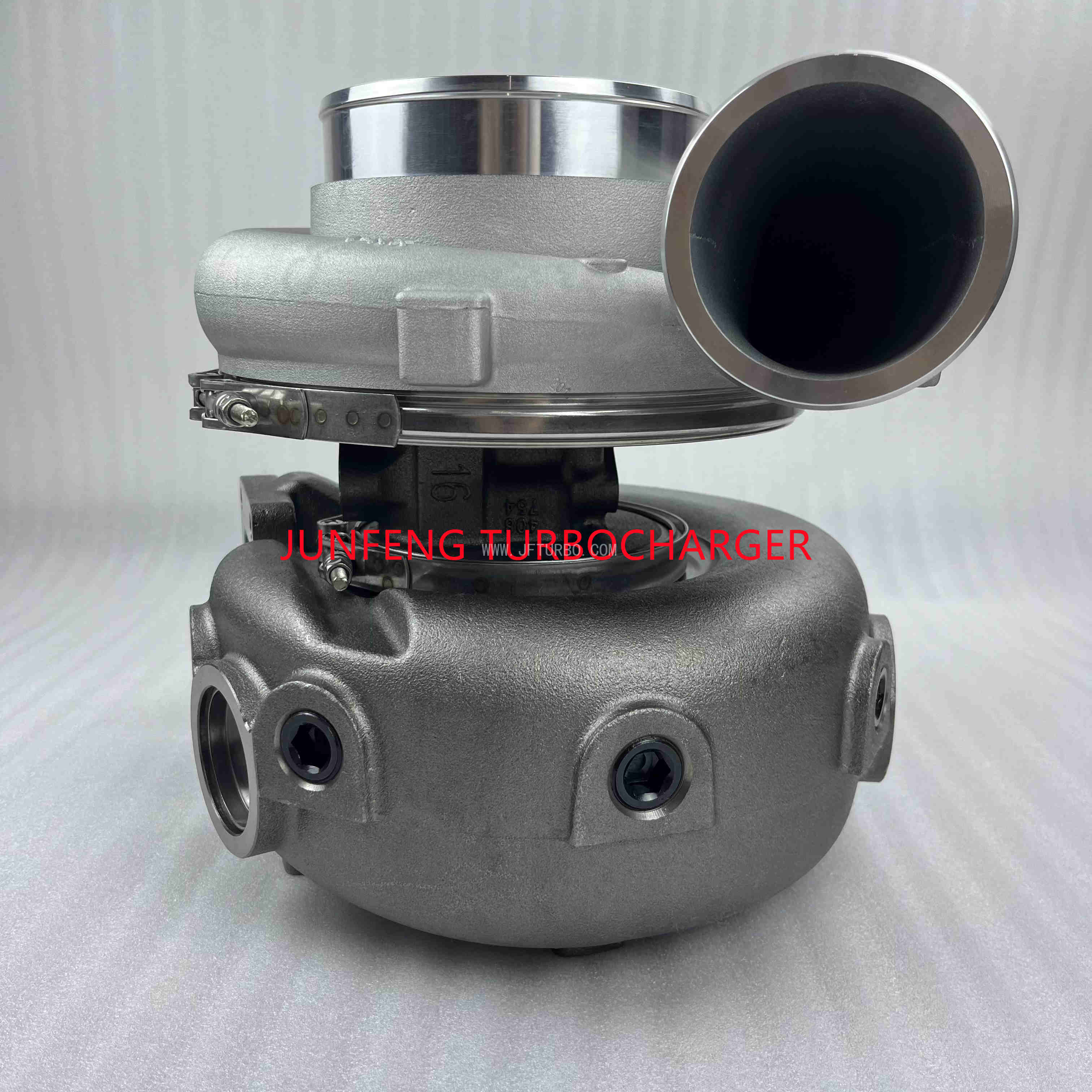

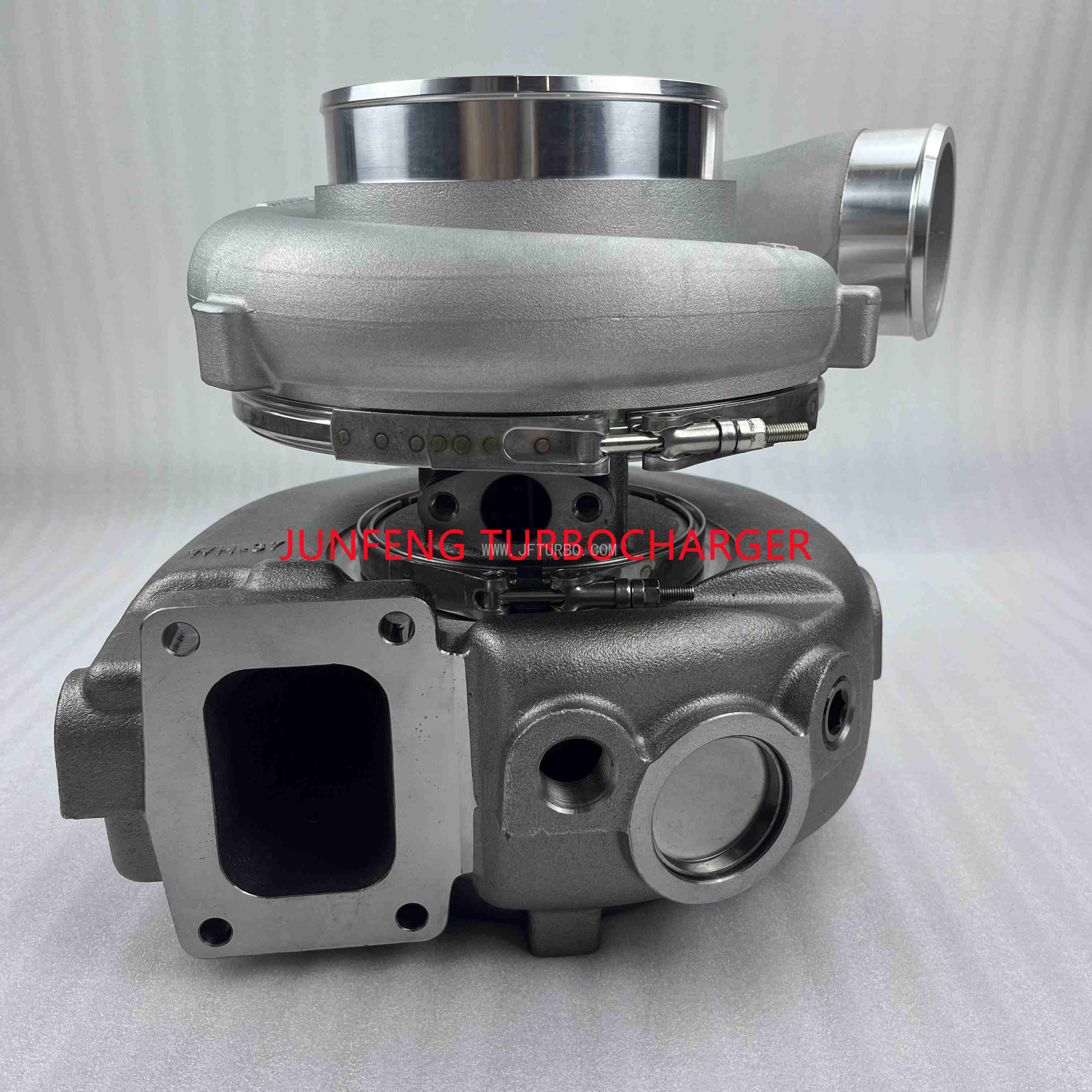

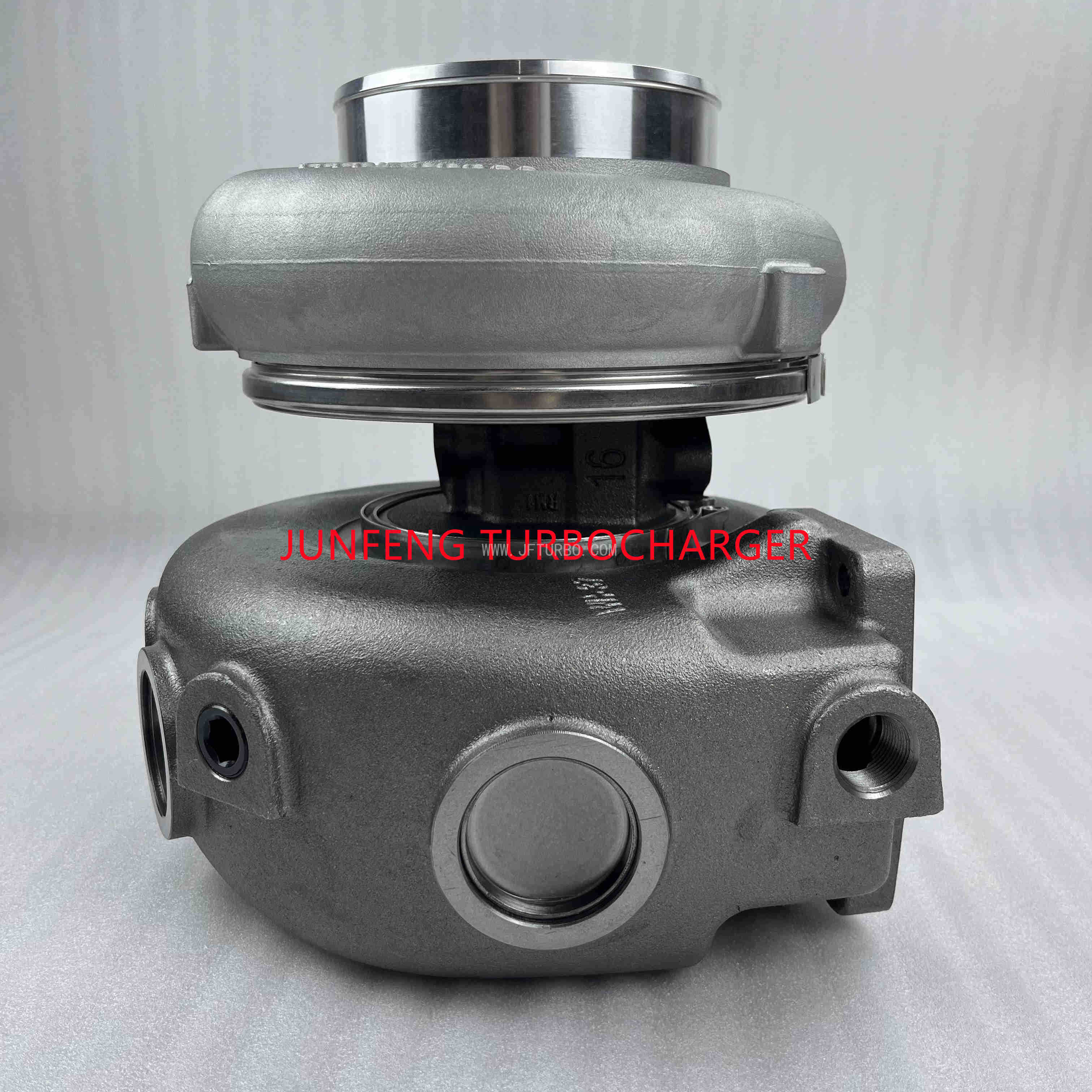

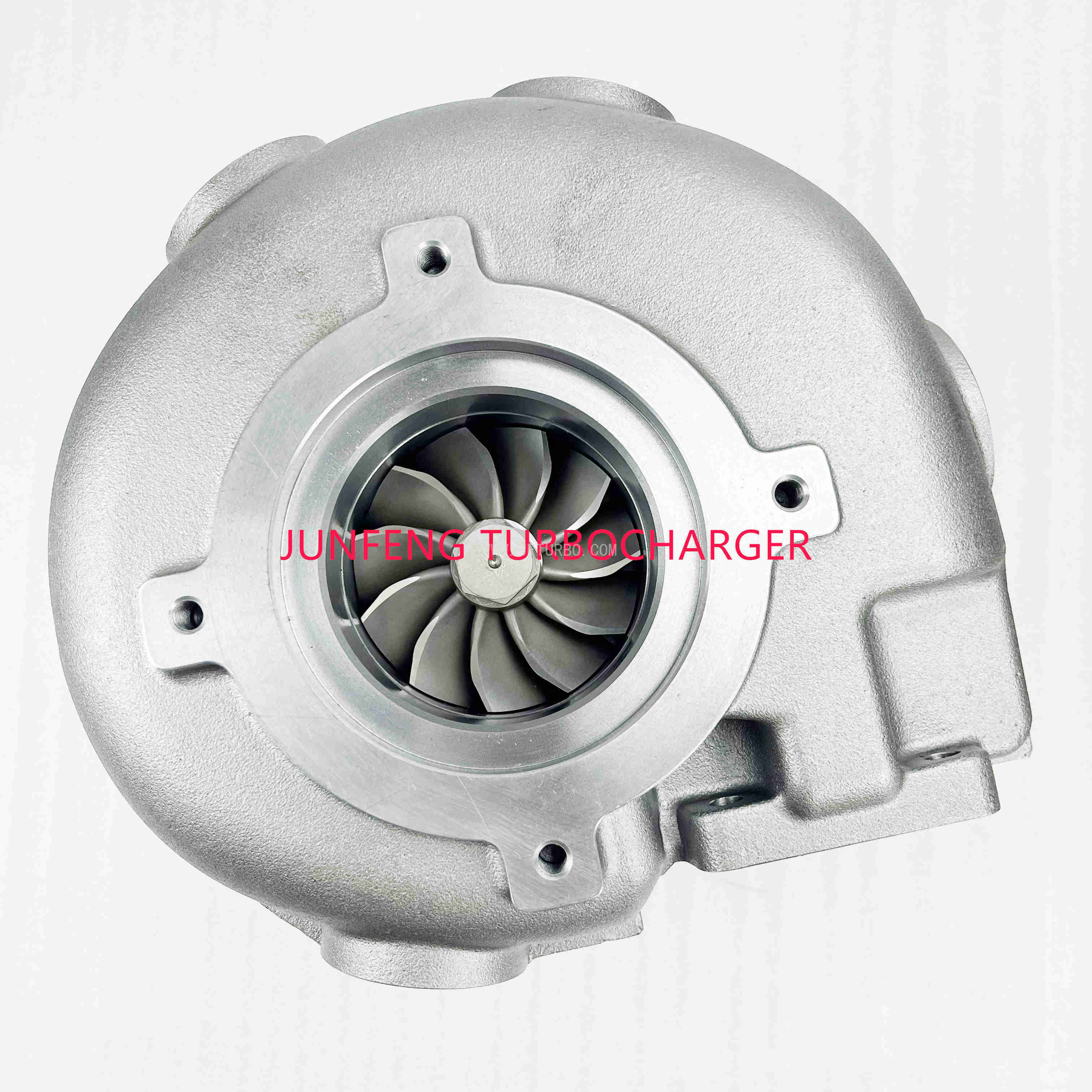

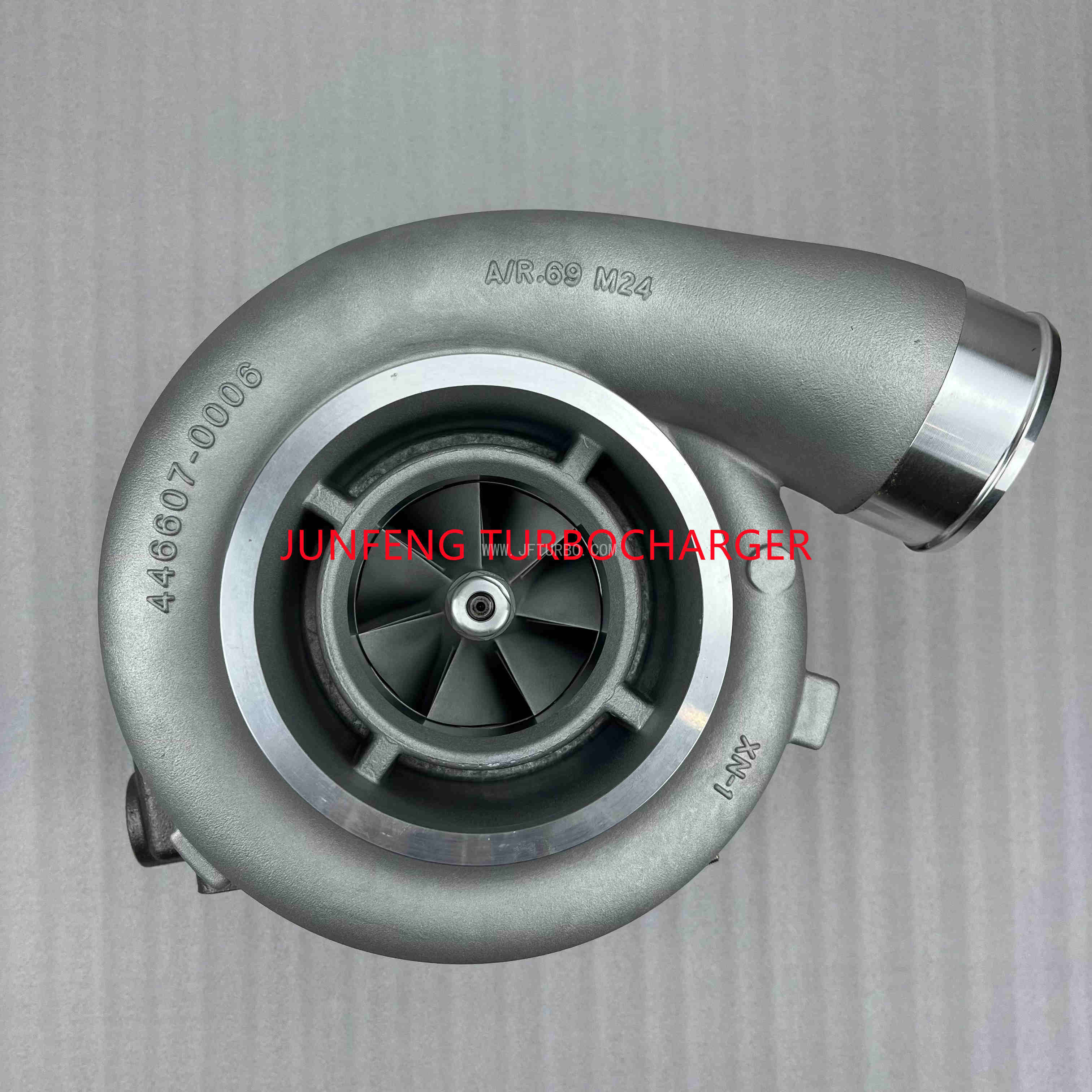

UTW8801 UTW8302 721270-5001S turbocharger fits for Detroit Diesel Marine Series 60 14.0 L ENGINE 23529000 R23529000

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product Description

Part Number	721270-5001S
Previous Version	721270-0001, 721270-9001, 721270-1, 7212705001S
OE Number	23529000, R23529000, E23529000, RR23529000
Description	Marine Engine
Turbo Model	UTW8302, UTW8801
CHRA	720584-0003 (23529001, 720584-0004, 720584-5003S)
Engine Manufacturer	Detroit Diesel
Displacement	14.0L, 14000 ccm
Engine	Series 60
Fuel	Diesel
NSN	2950-01-590-4198, 2950015904198
KW	740/825 HP
Bearing Housing	720703-0005
Turbine Wheel	451768-0004 (Ind. 99.62 mm, Exd. 109.41 mm, 11 Blades)
Comp. Wheel	721979-0004 (1979-04)(Ind. 83. mm, Exd. 123.45 mm, 7+7 Blades)
Back plate, Seal plate	720582-0002
Heat shield Number	407657-0009/409794-0002 (1N3751, 9Y1936)
Repair Kit	468267-0010 (468103-0000)(3545824)(1101678750)
Turbine Housing (water-cooled)	409339-0204 (23506458, 1318689)
Compressor Cover	446608-0086
Turbine Housing AR	1.03
Gasket (turbine inlet)	409038-0001 (210835-0000, 9749, 1215736, 7M7273)
Gasket oil inlet	129119 (201049, 9737, 1S6595, 409266-0004, 210019-0000, 201049, 129119, 409266-0003, 3819900)(1900000035)
