    UTV8133 Turbo 721853-0003 721853-0001 305866A 305865A 721853-5003S Turbocharger for Waukesha GUASCOR Industrial VGF H24GLD Engine
    UTV8133 Turbo 721853-0003 721853-0001 305866A 305865A 721853-5003S Turbocharger for Waukesha GUASCOR Industrial VGF H24GLD Engine
    • UTV8133 Turbo 721853-0003 721853-0001 305866A 305865A 721853-5003S Turbocharger for Waukesha GUASCOR Industrial VGF H24GLD Engine

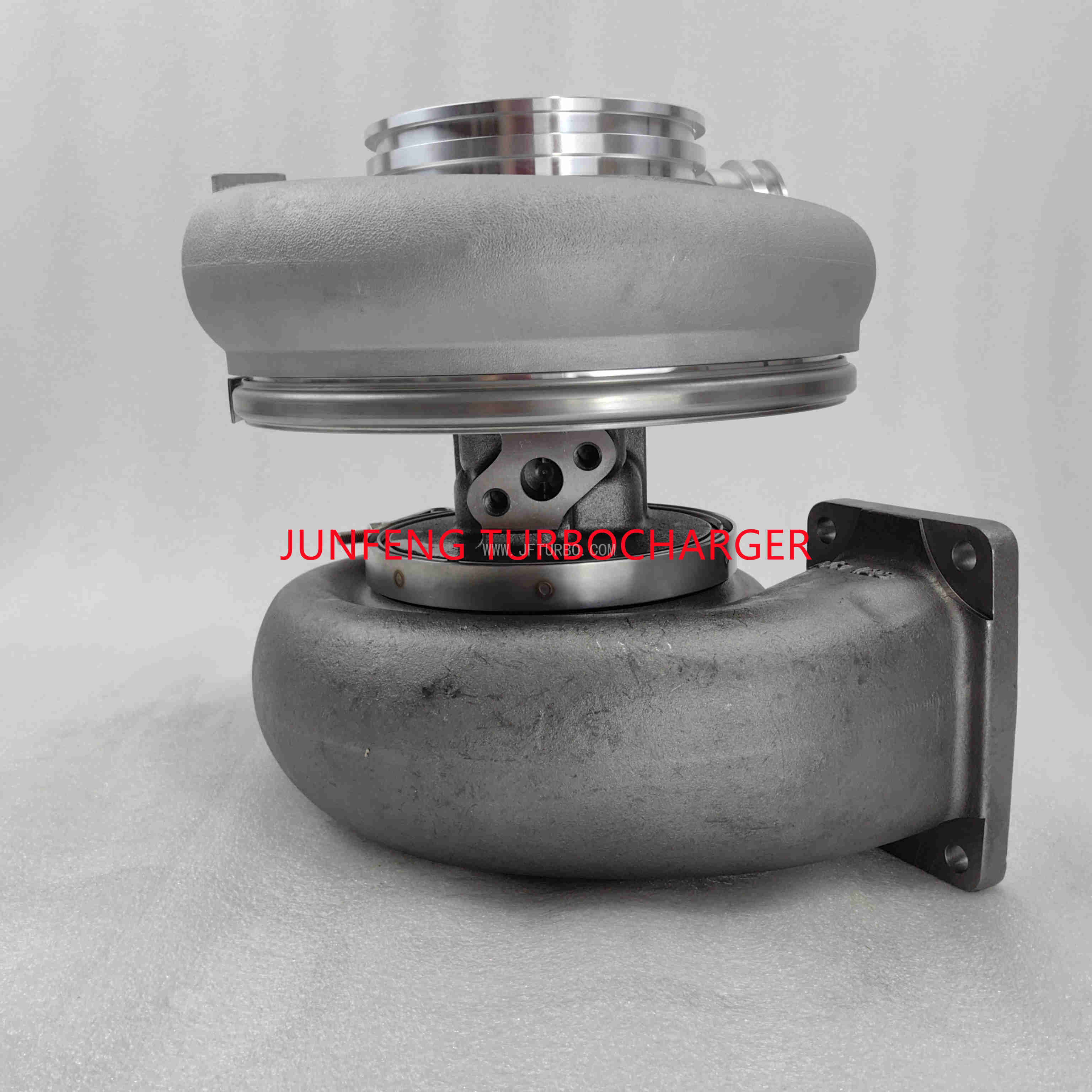

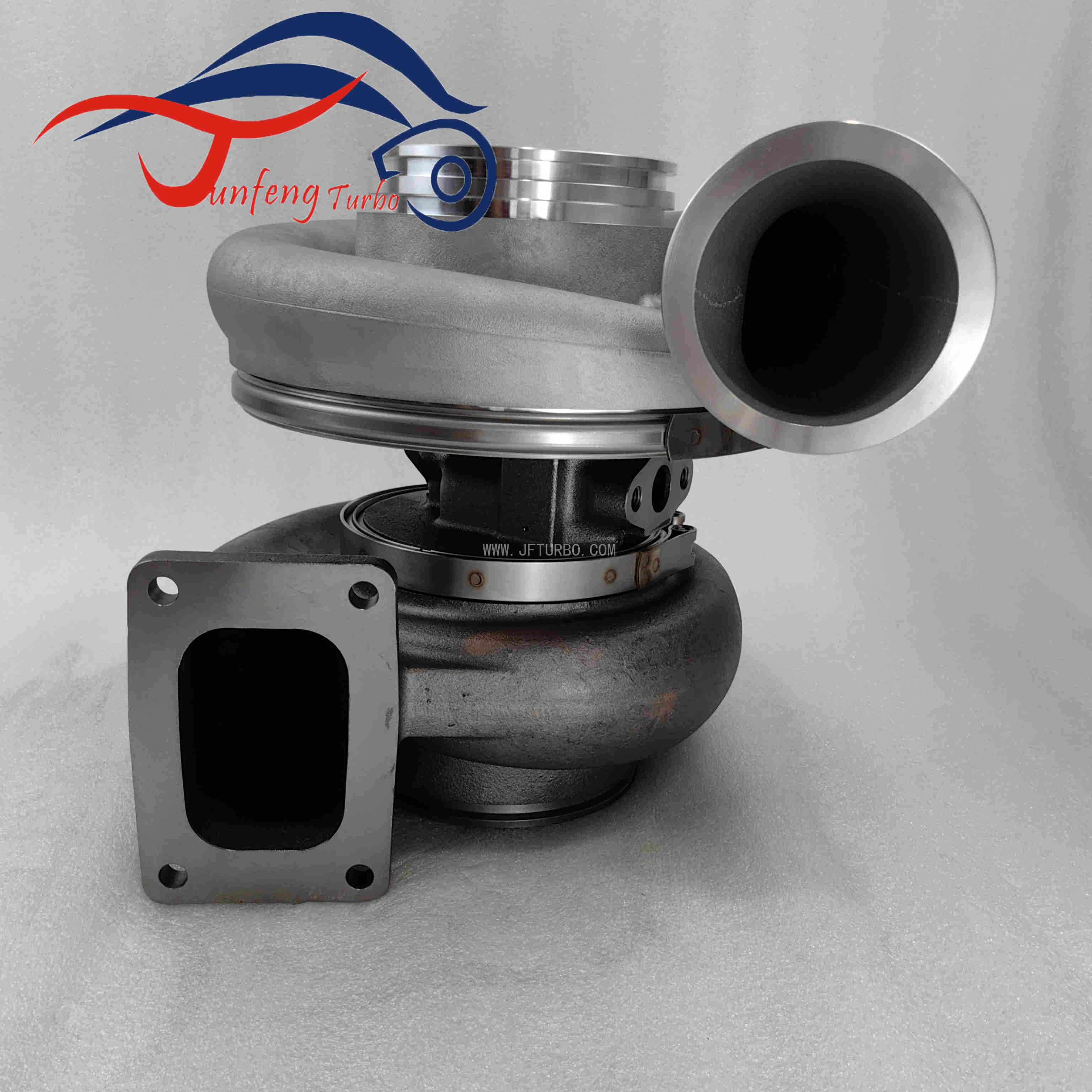

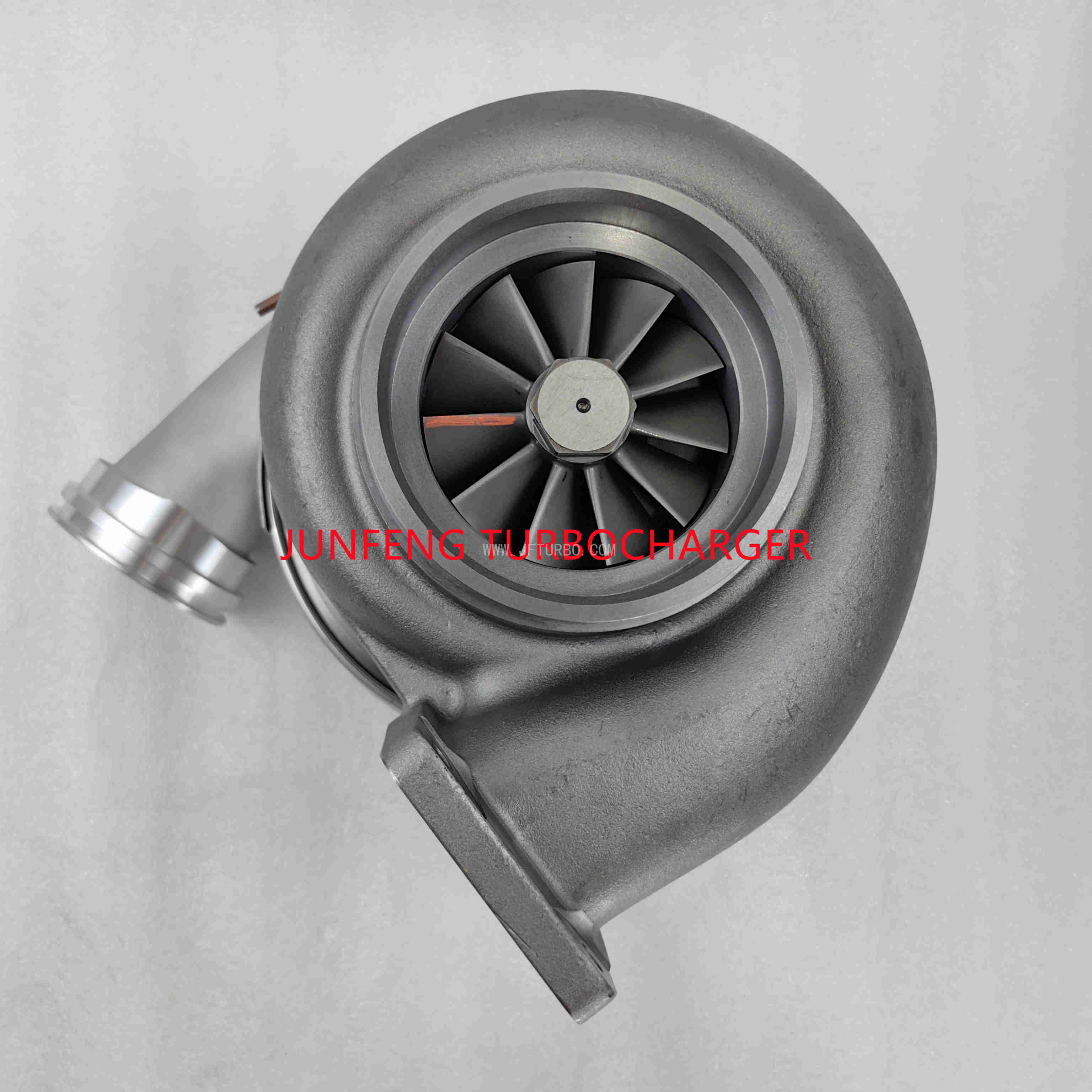

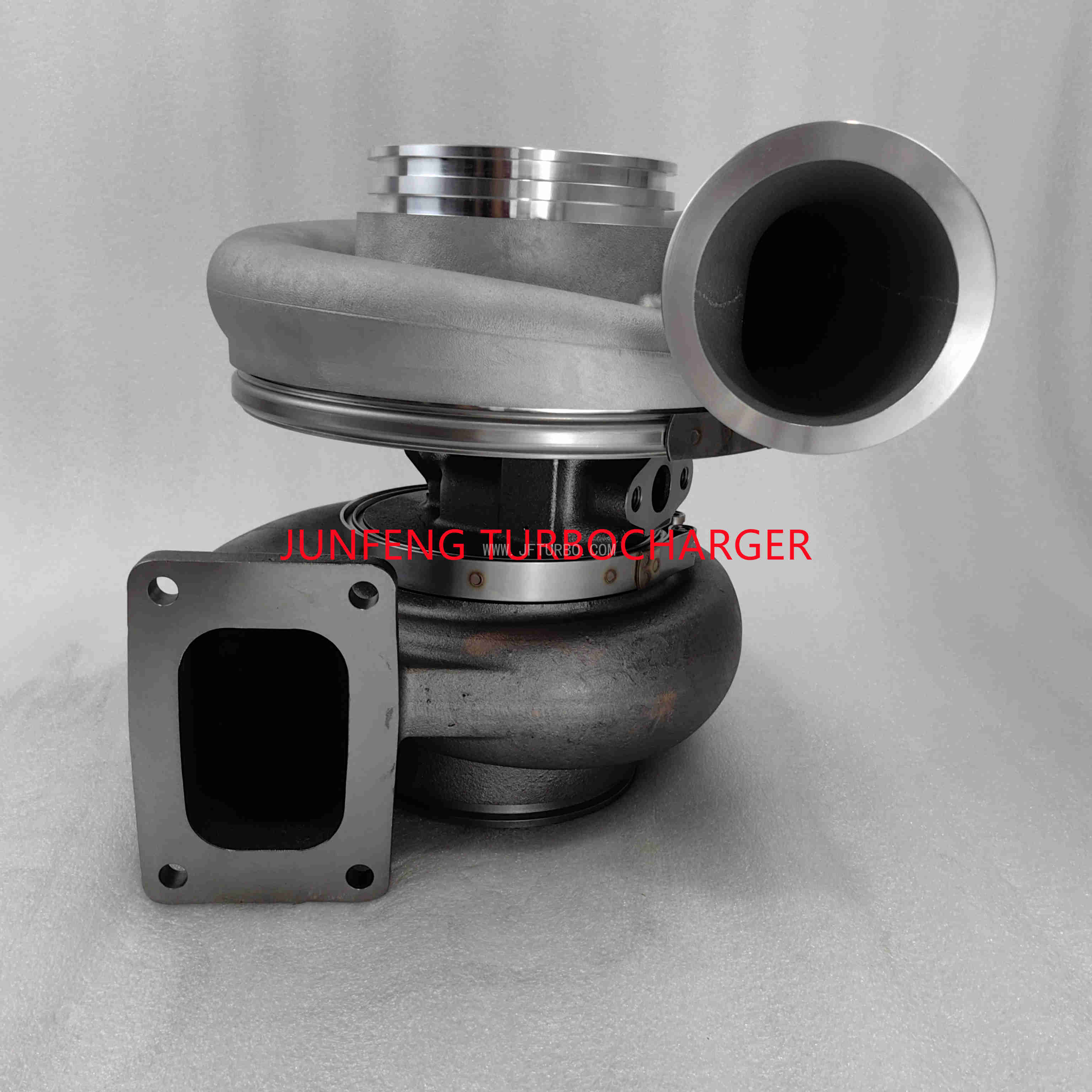

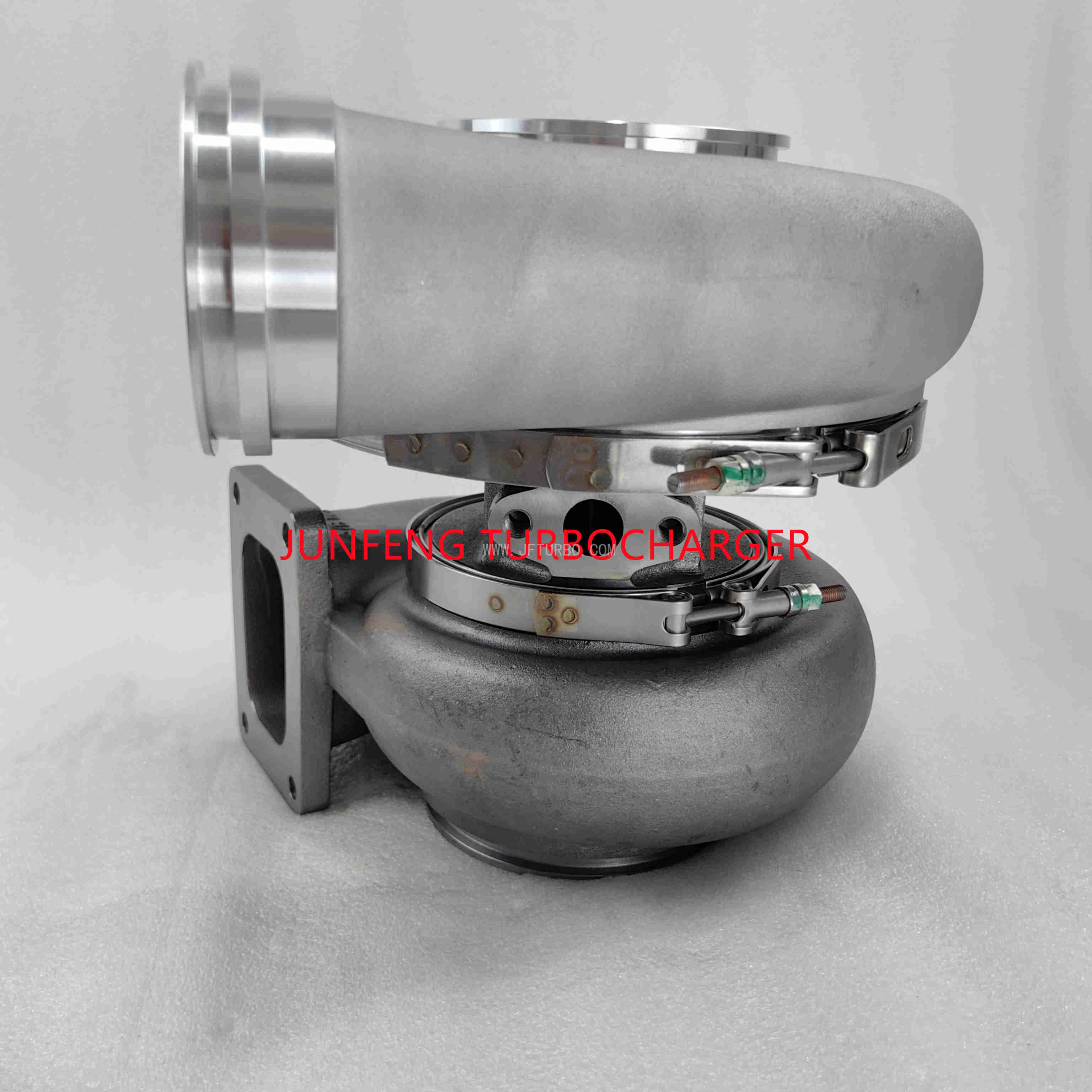

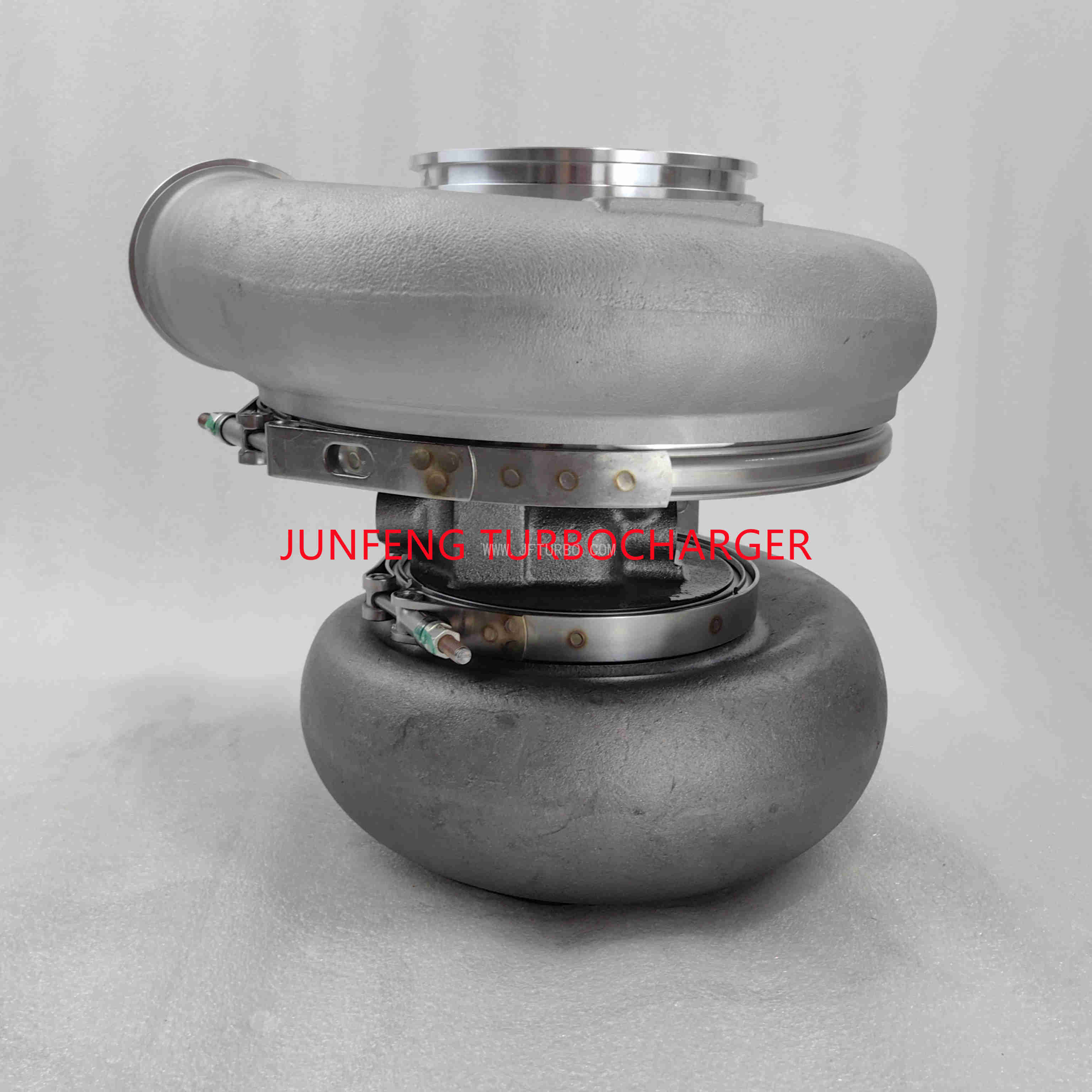

    • 721853-0003 UTV8133 6.jpg
    • 721853-0003 UTV8133 3.jpg
    • 721853-0003 UTV8133 4.jpg
    • 721853-0003 UTV8133 1.jpg
    • 721853-0003 UTV8133 5.jpg
    • 721853-0003 UTV8133 2.jpg

    UTV8133 Turbo 721853-0003 721853-0001 305866A 305865A 721853-5003S Turbocharger for Waukesha GUASCOR Industrial VGF H24GLD Engine

    Model
    UTV8133
    Part Number
    721853-0003, 7218530003, 721853-3 721853-0001
    OE number
    305866A, 305865A
    Others number
    721853-5003S
    File No.
    721853-0003
    Packing
    Neutral carton,or Customized Carton
    Size
    Standard size
    Sample Order
    accept
    Shipping
    DHL,Fedex,UPS,EMS,TNT,Air,Sea
    Trade Terms
    EXW
    Payment
    T/T,Western Union,Chinese Account
    Delivery
    Within 2 days after your payment arrive,if it have in stock
    Freight Delivery
    Depends on the express company
    Weight
    25kg
    Note
    Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.
    Inquire Online

    Products

    Electric Actuator
    Turbocharger
    Turbo Cartridge CHRA
    Performance Turbo
    Turbo Repair Kits
    Turbo Compressor wheel
    Fuel injection pump
    Nozzle Ring
    All products

    Product Description


    Part Number721853-5003S
    Previous Version721853-0003, 7218530003, 721853-3
    OE number305866A, 305865A
    CHRA449530-0041 (449530-5041S)
    Turbo ModelUTV8133
    FuelCNG
    Angle α (compressor housing)238º
    Angle β (turbine housing)15º
    Bearing Housing449072-0016 (Oil Cooled)
    Turbine Wheel449587-0001 (Ind. 97.10 mm, Exd. 111.45 mm, Trm 16.59, 11 Blades)
    Comp. Wheel449587-0001 (443121-0003)(6I0849)(Ind. 80.6 mm, Exd. 117.6 mm, Trm 8, 7+7 Blades)
    Back plate442732-0005
    Heat Plate407657-0009
    Repair Kit468267-0010 (1101085750)
    Turbine Housing408499-0044 (1W6553)
    Compressor Cover446824-0002
    Turbine Housing AR1.23
    Gasket (turbine inlet)409038-0001
    Gasket oil inlet129119 (1900000035)(201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)
    Gasket (oil outlet)210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025)
    Replaced By721853-0001

    Applications

    Waukesha, GUASCOR Industrial Engine VGF H24GLD
