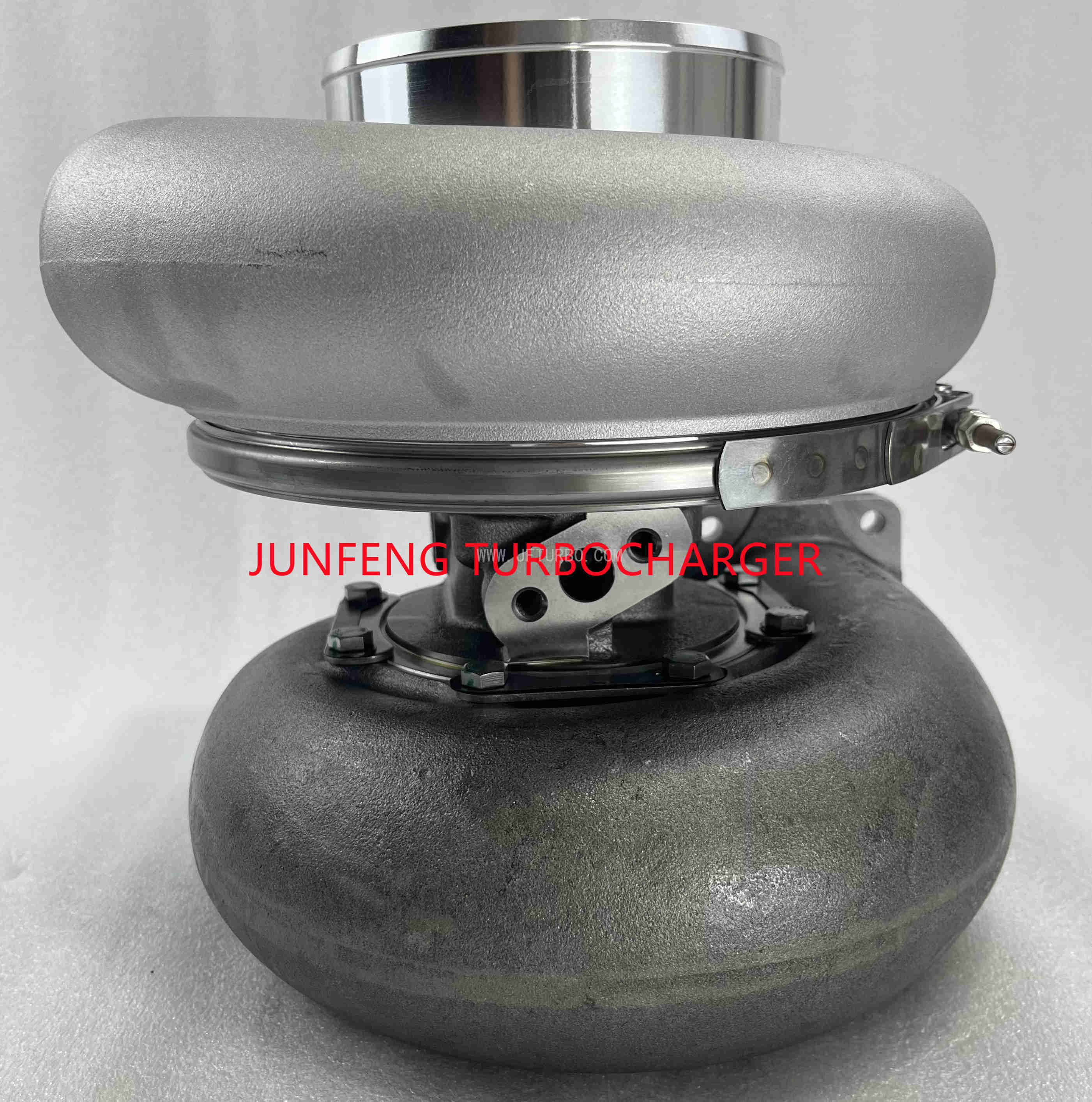

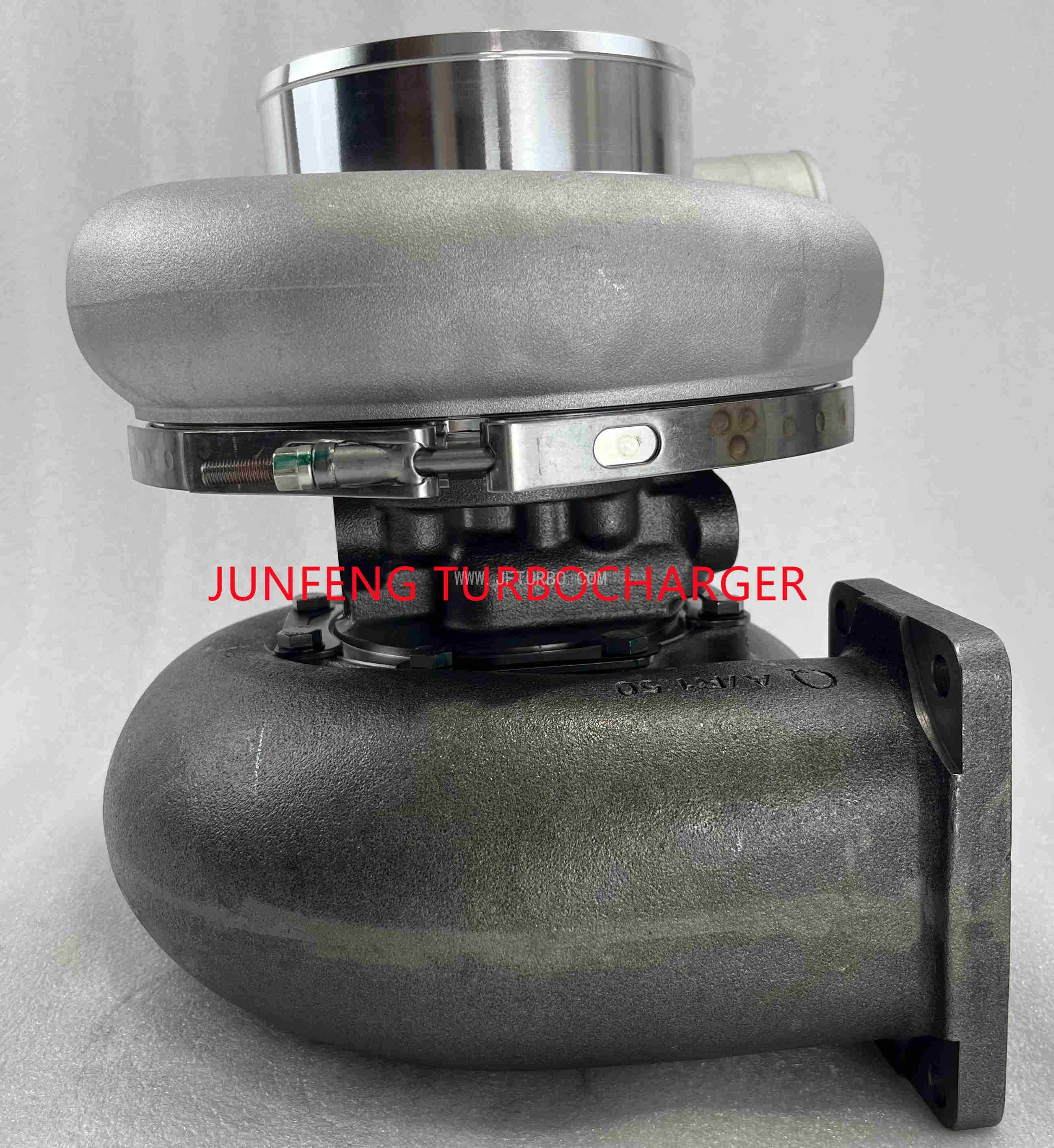

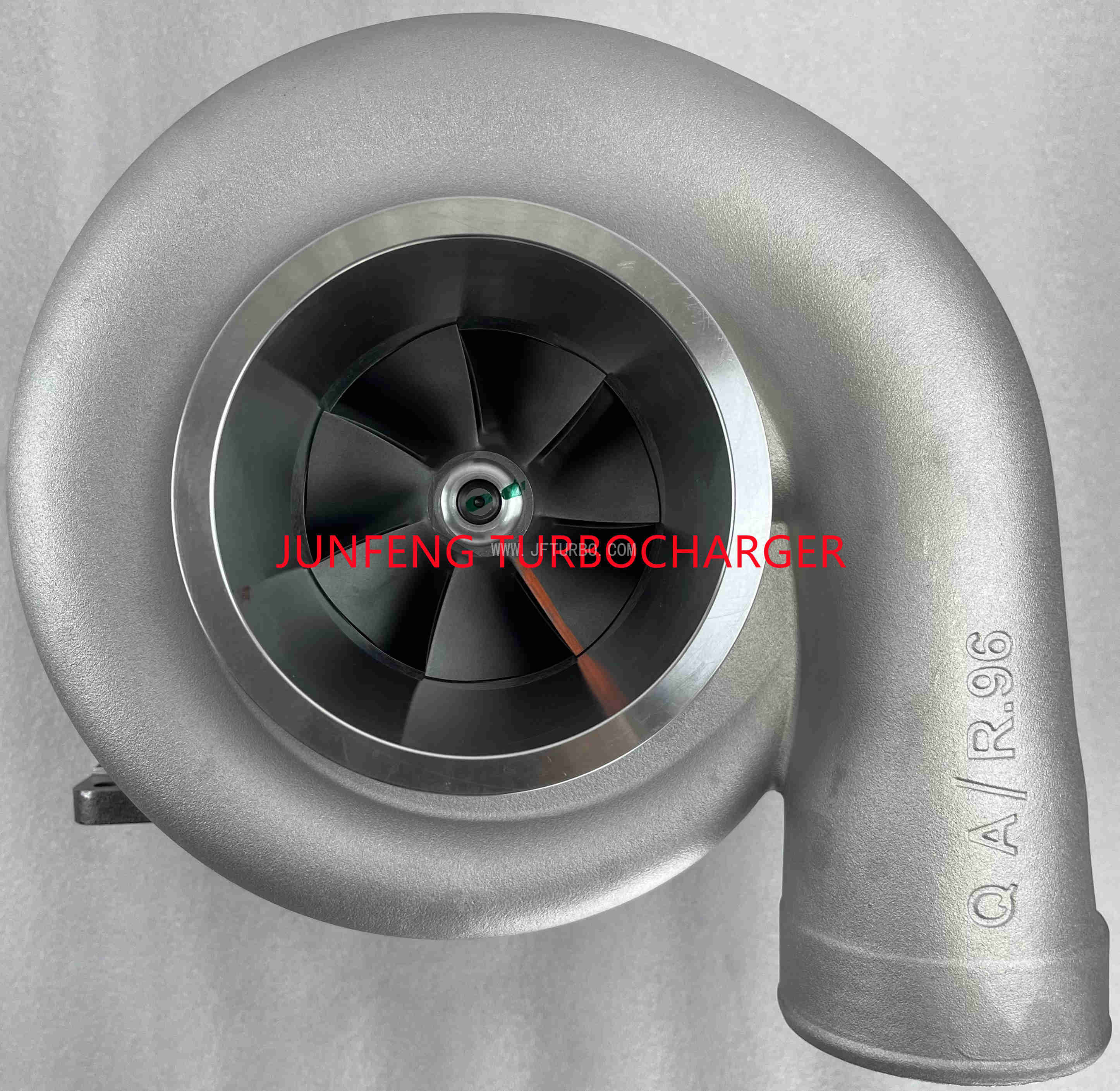

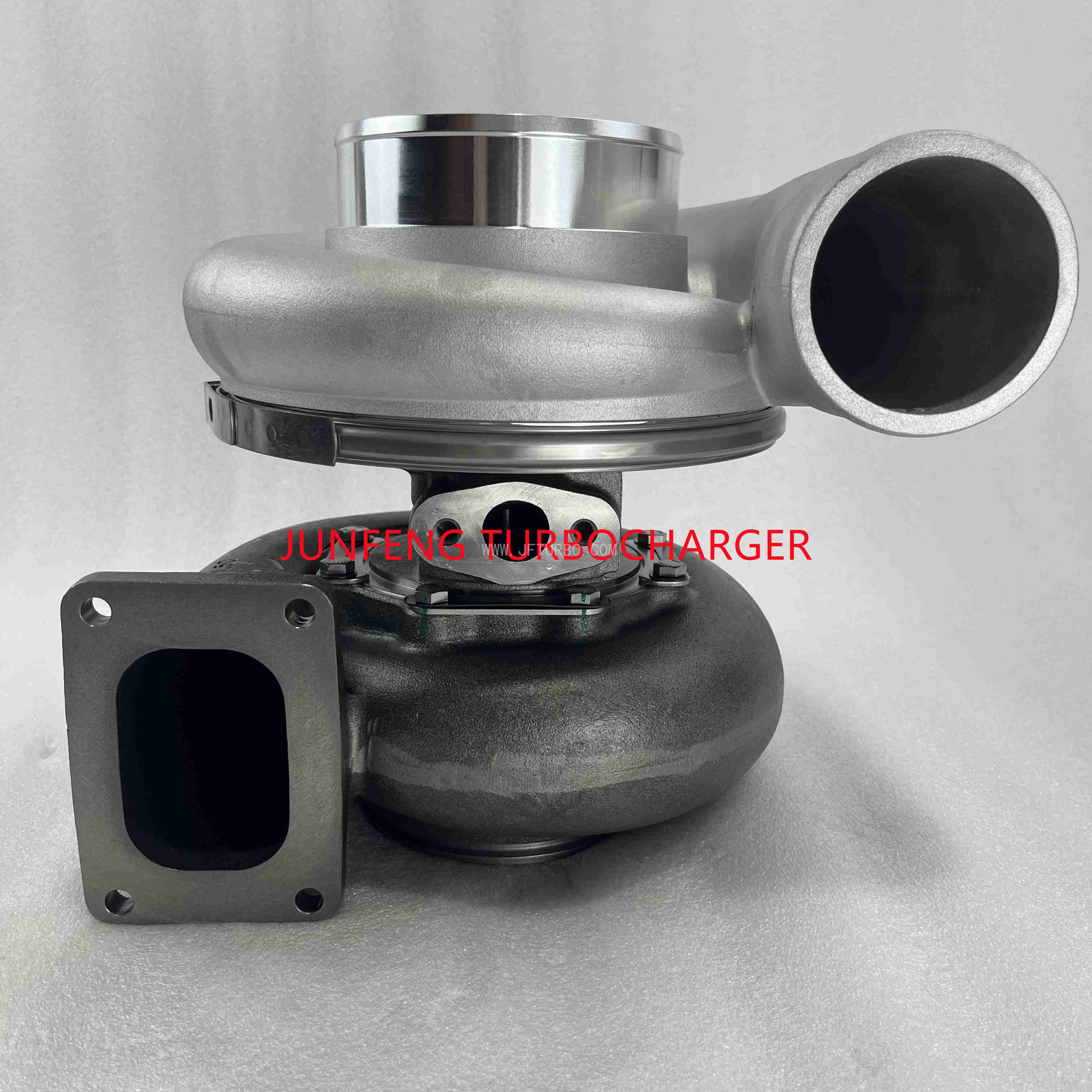

UTL9406 Turbo 701100-5007S 465329-0002 211391A 701100-0007 Turbocharger for Waukesha Industrial L7042GL Engine

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product Description

Part Number	701100-5007S
Previous Version	465329-0002, 465329-0005, 701100-0001, 701100-0007
OE number	211391A, 211391G, 211391N, 211391T, X6X5006
Description	Industrial Genset/Various
CHRA	431922-0008 (431922-5008S, 452670-0005, 452670-0008, 431922-0020)(23507415, 23507339)
Turbo Model	UTV9406, UTL9406
Engine	L7042GL, L7042 GL
Displacement	58.0L. 11.5L, 8, V12 Cylinders
KW	738/1547 HP
Fuel	CNG, Natural Gas
Engine Manufacturer	Waukesha
Bearing Housing	410301-0003 (443245-0002, 451860-0002)(8923985)(Oil Cooled)
Turbine Wheel	442208-0001 (442208-0003, 451882-0004)(23503611, 1101094435, 4W1223)(Ind. 106.8 mm, Exd. 129. mm, Trm 19.95, 11 Blades)(1100016382)
Comp. Wheel	441813-0007 (451883-0008)(23503609, 7E0478)(Ind. 93.8 mm, Exd. 141.3 mm, Trm 9.65, 7+7 Blades, Superback)
Back plate	408487-0032 (408487-0042, 452668-0001)(4P3820, 489019, 109-3481)
Heat shield Number	407566-0001 (407566-0003)(23507343)
Repair Kit	468416-0000 (707899-0001, 705731-0001)(1N3593, 1089342)(1101090755)
Turbine Housing	407738-0042
Compressor Cover	432078-0001
Gasket (turbine inlet)	409038-0001 (409038-0000, 1S4295, 132040, 205396, 202873, 3500683, 1215736, 210017-0000, 210835-0000, 9749)(1900000003)
Gasket oil inlet	210019 (409266-0004, 210019-0000, 201049, 129119, 409267-0002, 409266-0003)(Paper)(1900000035)
Gasket (oil outlet)	210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)

Turbocharger for Waukesha Industrial Engine & Power Units with L7042GL Engine
