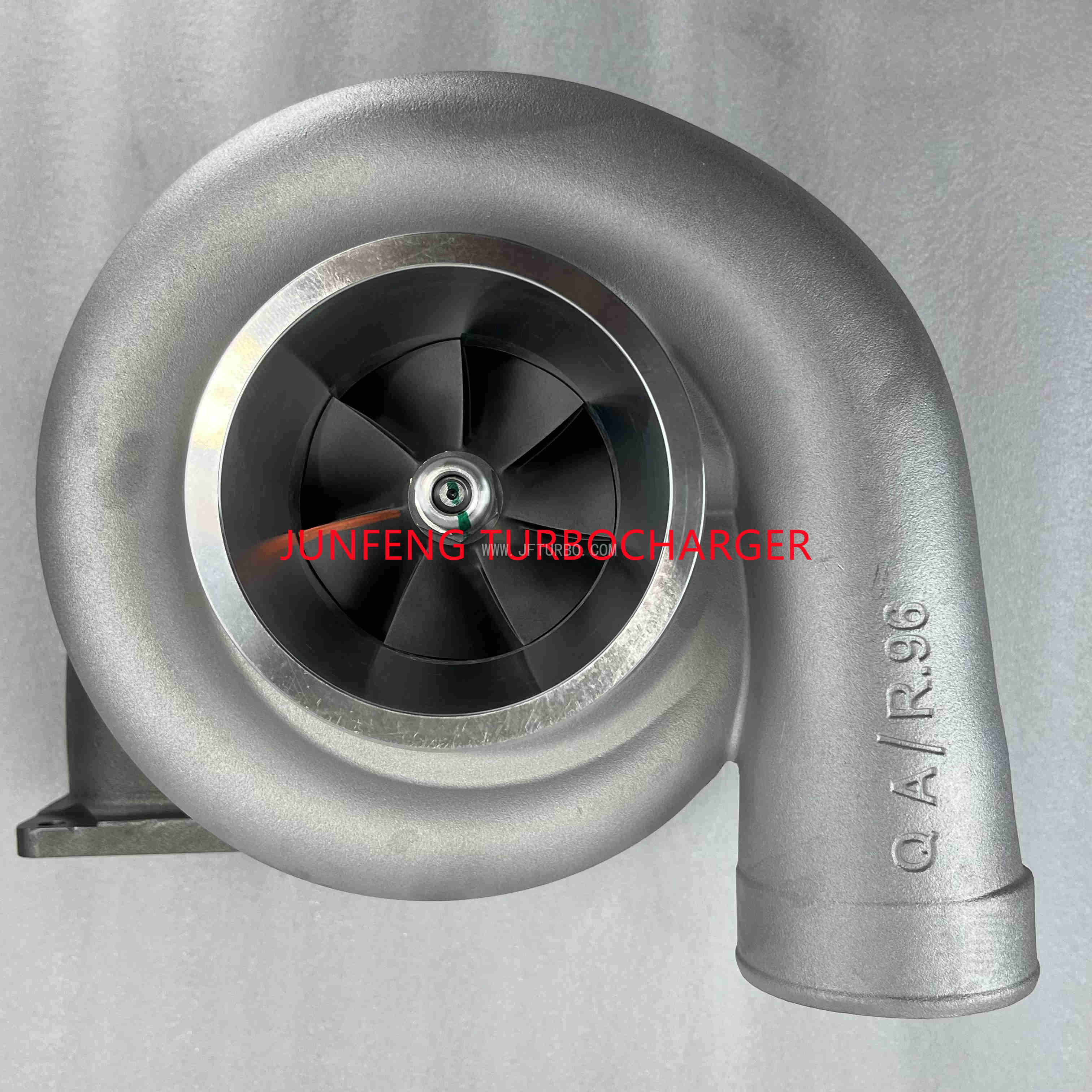

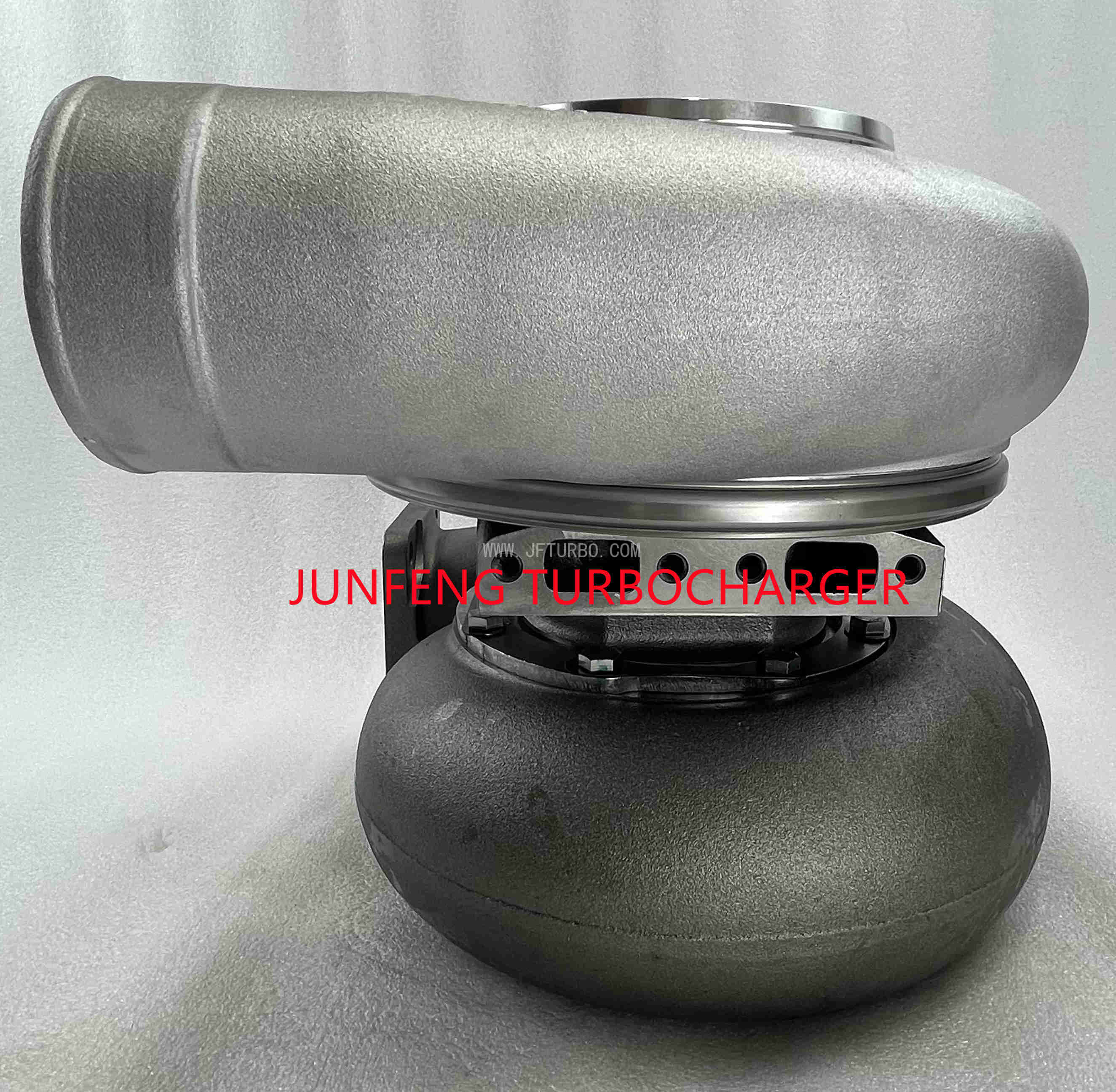

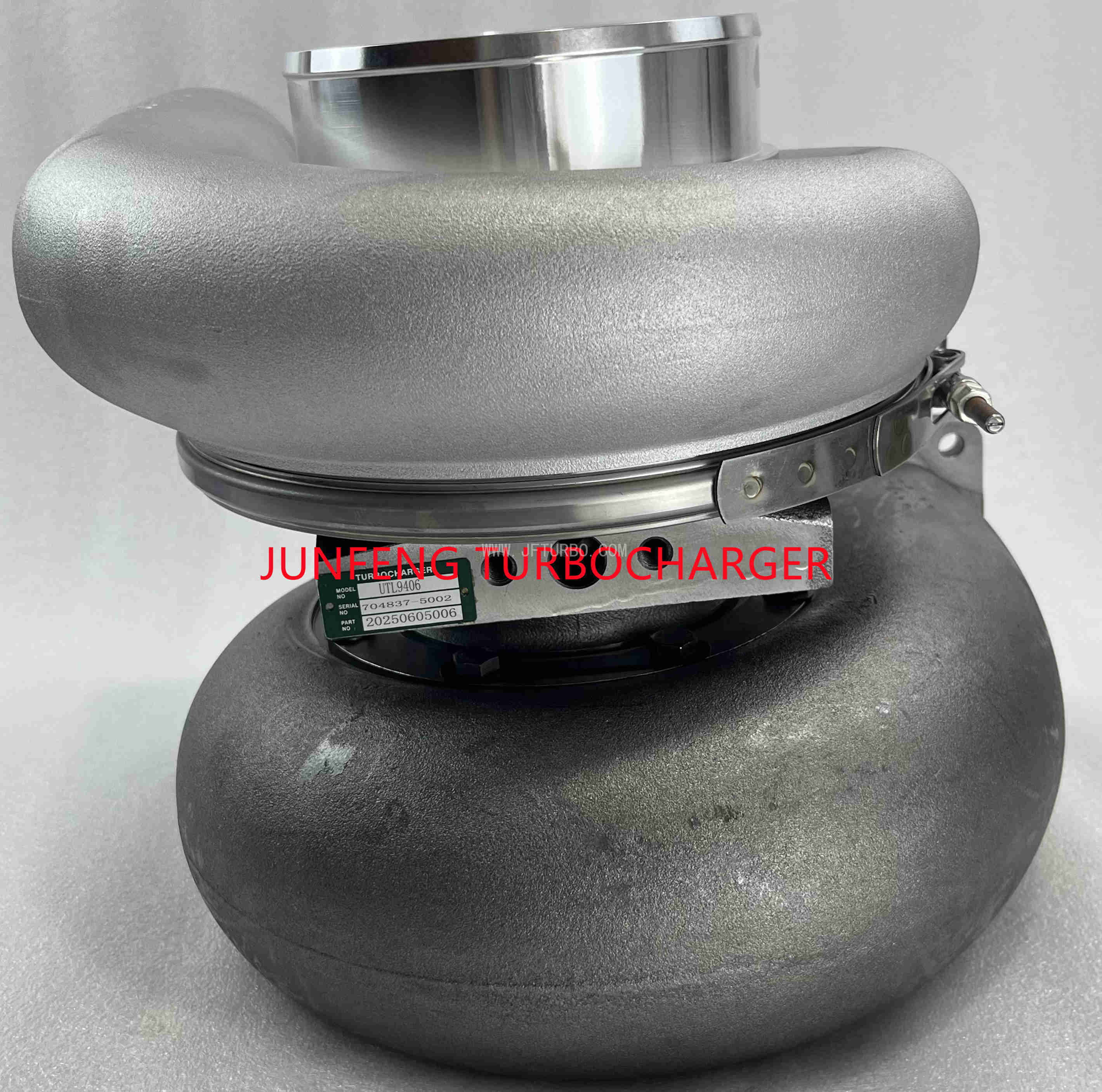

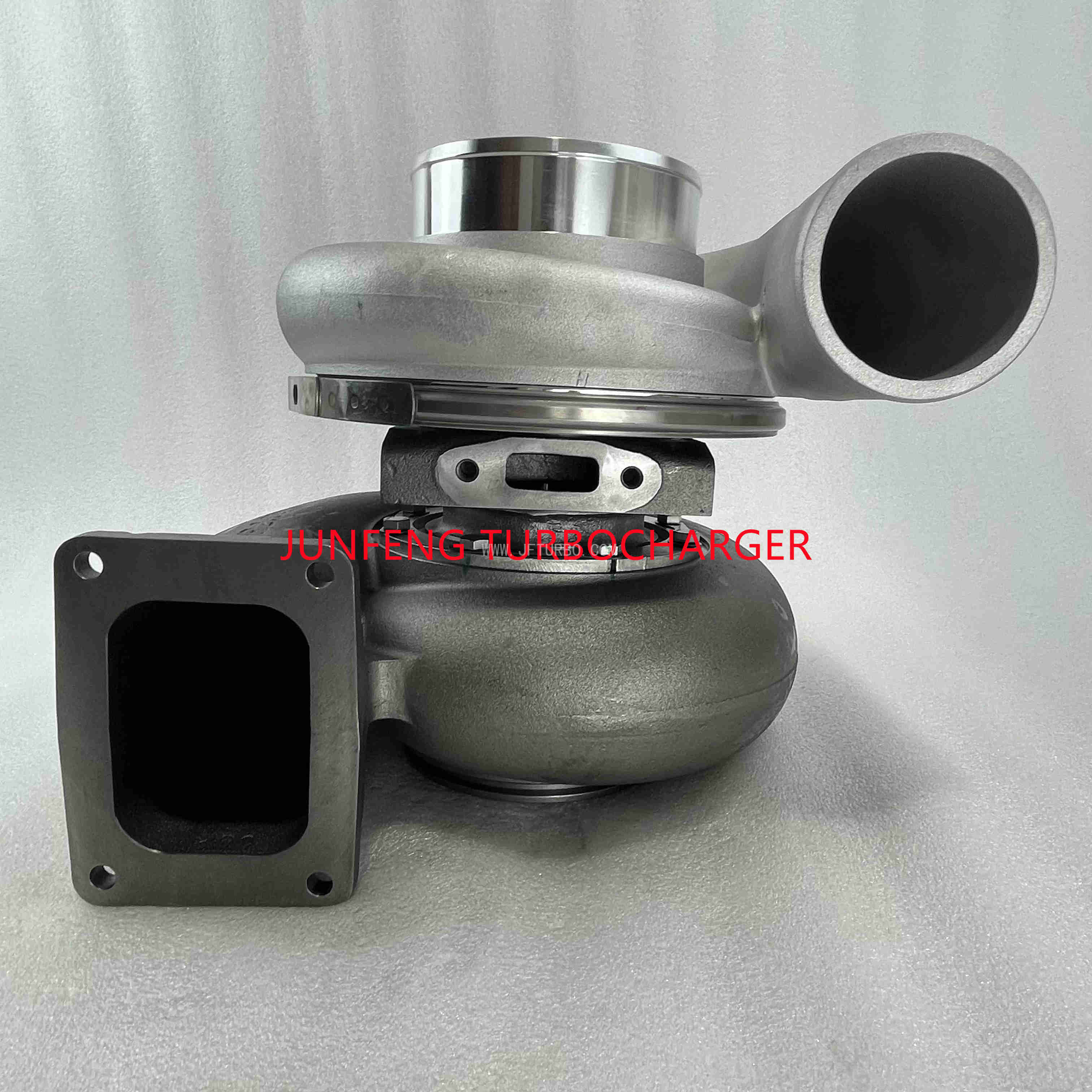

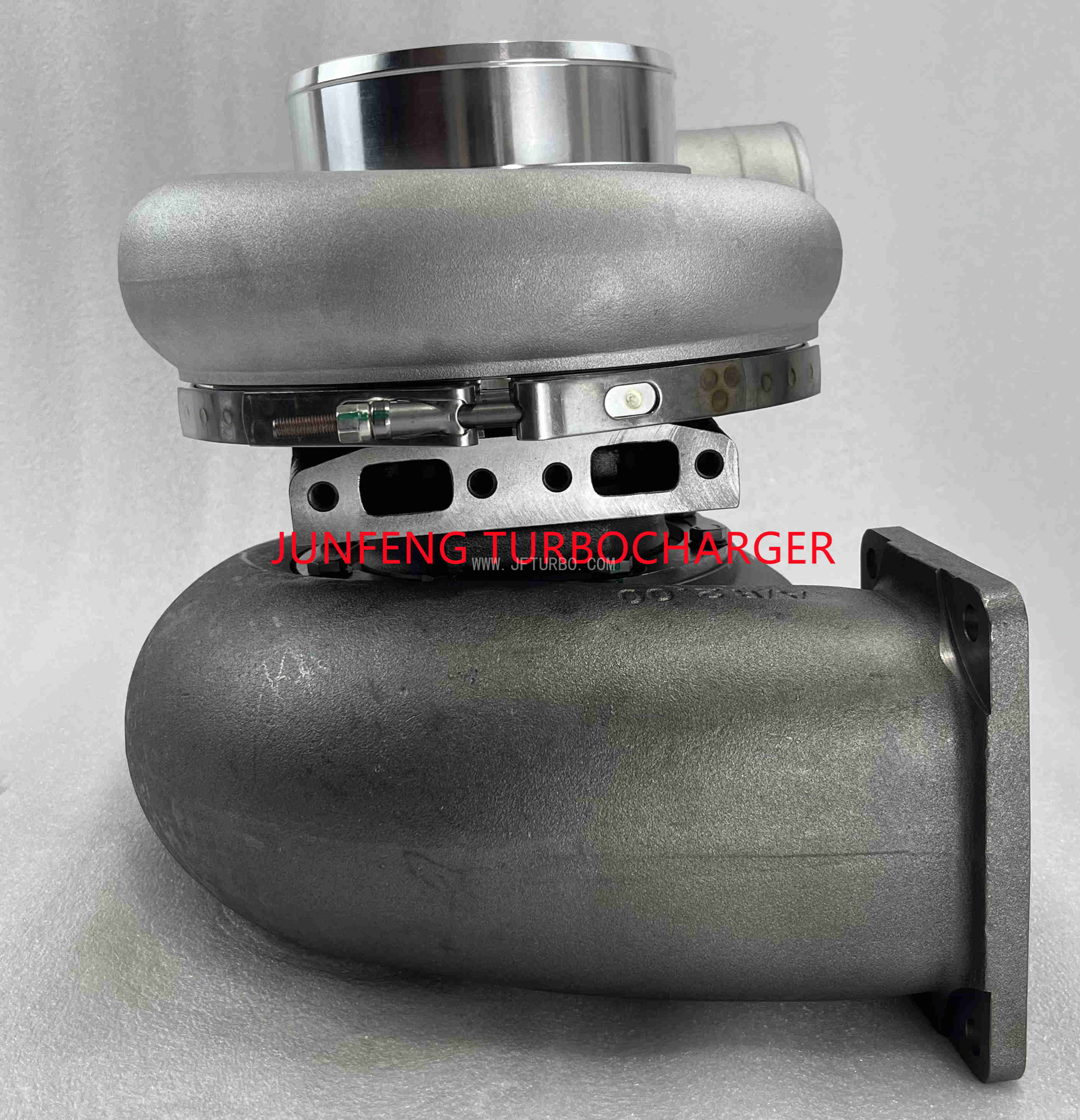

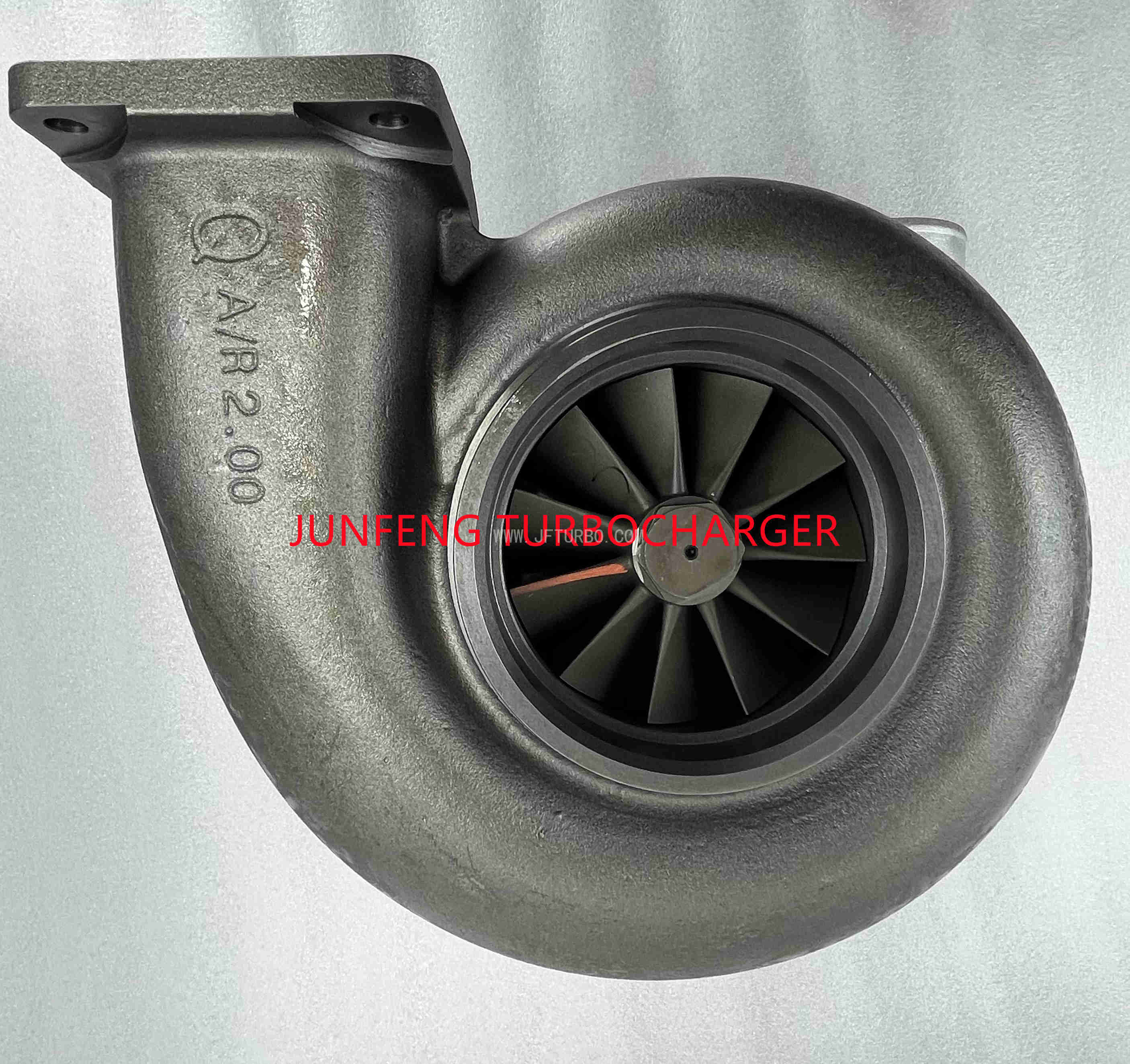

UTL9406 704837-0002 704837-5002S 701100-0009 Turbocharger for Waukesha F3524GSI L7044GSI F3524 L7044GSI Engine

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product Description

Part Number	704837-5002S
Previous versions	704837-0002, 704837-0004
OE Number	211896.0, 211896, 214007
Description	Industrial Caterpillar CV Off Highway
CHRA	452669-0006 (452669-5006, 452669-9006)
Turbo Model	UTL9406
Engine Model	F3524GSI, L7044GSI, F3524, L7044GSI Engines Draw Thru, 7044
Fuel	CNG (Compressed Natural Gas)
Bearing Housing	451861-0002 (Water-Cooled)
Turbine Wheel	451882-0004 (Ind. 129. mm, Exd. 111.6 mm, Trm 18.72, 11 Blades)
Comp. Wheel	451883-0008 (Ind. 93.8 mm, Exd. 141.3 mm, Trm 9.6, 7+7 Blades, Superback)
Back plate	452668-0001 (408045-0057)
Repair Kit	705731-0001
Turbine Housing	409688-0033 (1100181821)
Compressor Cover	432078-0001 (432078-0004)(23503610)
Turbine Housing A/R	2.0
Gasket (turbine inlet)	409038-0001 (409038-0000, 1S4295, 210835-0000, 9749, 132040, 202873, 205396, 3500683, 210017-0000)(1900000003)
Gasket oil inlet	210161 (paper)
Gasket (oil outlet)	210172 (Paper)
Gasket (water inlet and outlet)	210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807)(1900000027)
Replaced By	701100-0009

1999- Turbocharger for Waukesha, Caterpillar Industrial Engine F3524GSI
