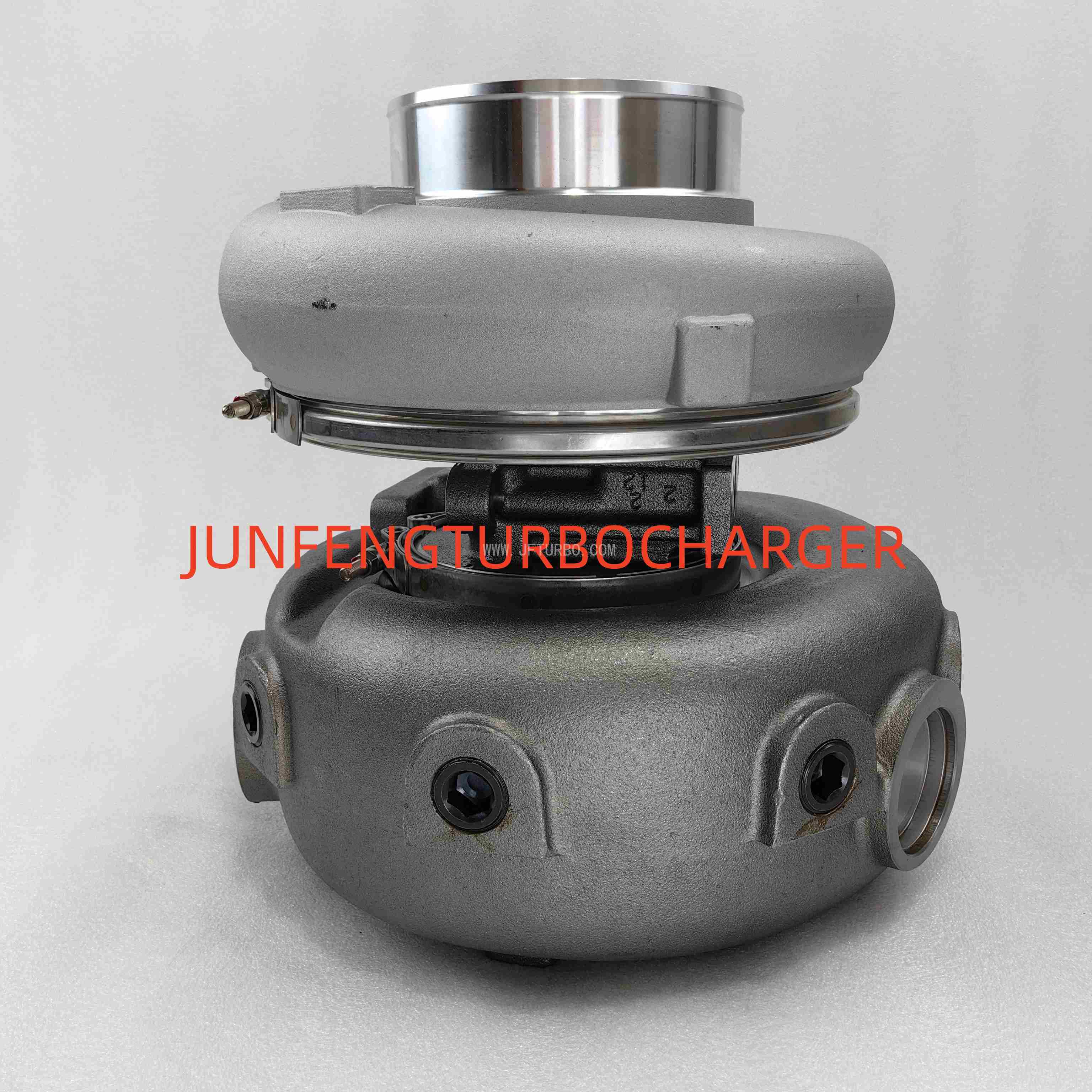

TW8401 Turbo 465797-5002S 465797-0001 23503617 R23503617 turbocharger for Detroit Diesel Marine with 6V92TAB Engine

Part Number: 465797-5002S 465797-0001 4657970001, 465797-5001, 465797-9001, 4657970001, 4657975001, 4657979001, 465797-1

OE number: 4657970002, 465797-0002, 465797-5002, 465797-9002, 4657970002, 4657975002, 4657979002, 465797-2

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Part Number	465797-5001S
Previous Version	4657970001, 465797-5001, 465797-9001, 4657970001, 4657975001, 4657979001, 465797-1
OE number	23503617, R23503617
Description	Marine
CHRA	442032-0023 (442032-5023S)(23503618)
Turbo Model	TW8401
Engine	6L71TI
Displacement	6.9L, 6981 ccm, 6 Cylinders
KW	485
Fuel	Diesel
Angle α (compressor housing)	349º
Angle β (turbine housing)	356º
Bearing Housing	442028-0001 (8925742, 08925742)(Oil Cooled)
Turbine Wheel	442029-0014 (442029-0017, 183011-0000)(23501293, 8925762, 08925762)(Ind. 95.91 mm, Exd. 107.25 mm, 11 Blades)(1101083435)
Comp. Wheel	441831-0001 (23501536)(Ind. 85.38 mm, Exd. 117.6 mm, Trim 56/55, 7+7 Blades, Super Back)
Back plate	442732-0001 (8928658)
Heat shield Number	407657-0004 (409794-0000)(9N2037, 9N3701, 8925757)(1101680340)
Repair Kit	468267-0000 (23514215)(1101678752)
Turbine Housing (Water Cooled)	409339-0106 (23503619, 7C6708)
Cap Plug Turbine Housing	400831-0001
Compressor Cover	443568-0012 (23502214)
Turbine Housing AR	1.37
Gasket (turbine inlet)	409038-0001 (409038-0000, 1S4295, 132040, 205396, 202873, 3500683, 1215736, 210017-0000, 210835-0000, 9749, 7M7273)(1900000003)
Gasket (turbine inlet)	129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035) (Paper)
Gasket (oil outlet)	129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)

Applications

turbocharger for Detroit Diesel Marine with 6L71TI Engine

turbocharger for Detroit Diesel Marine with 6V92TAB Engine
