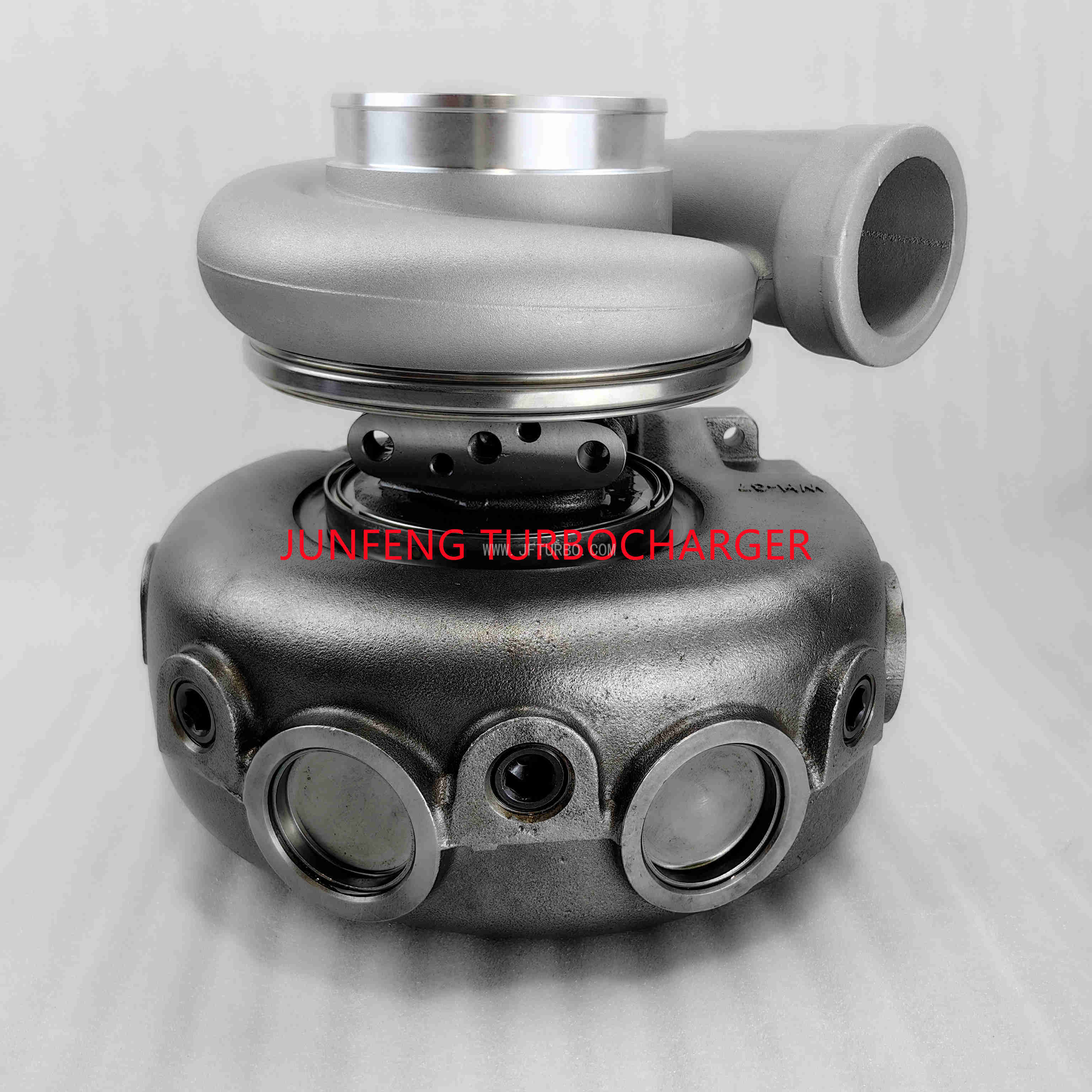

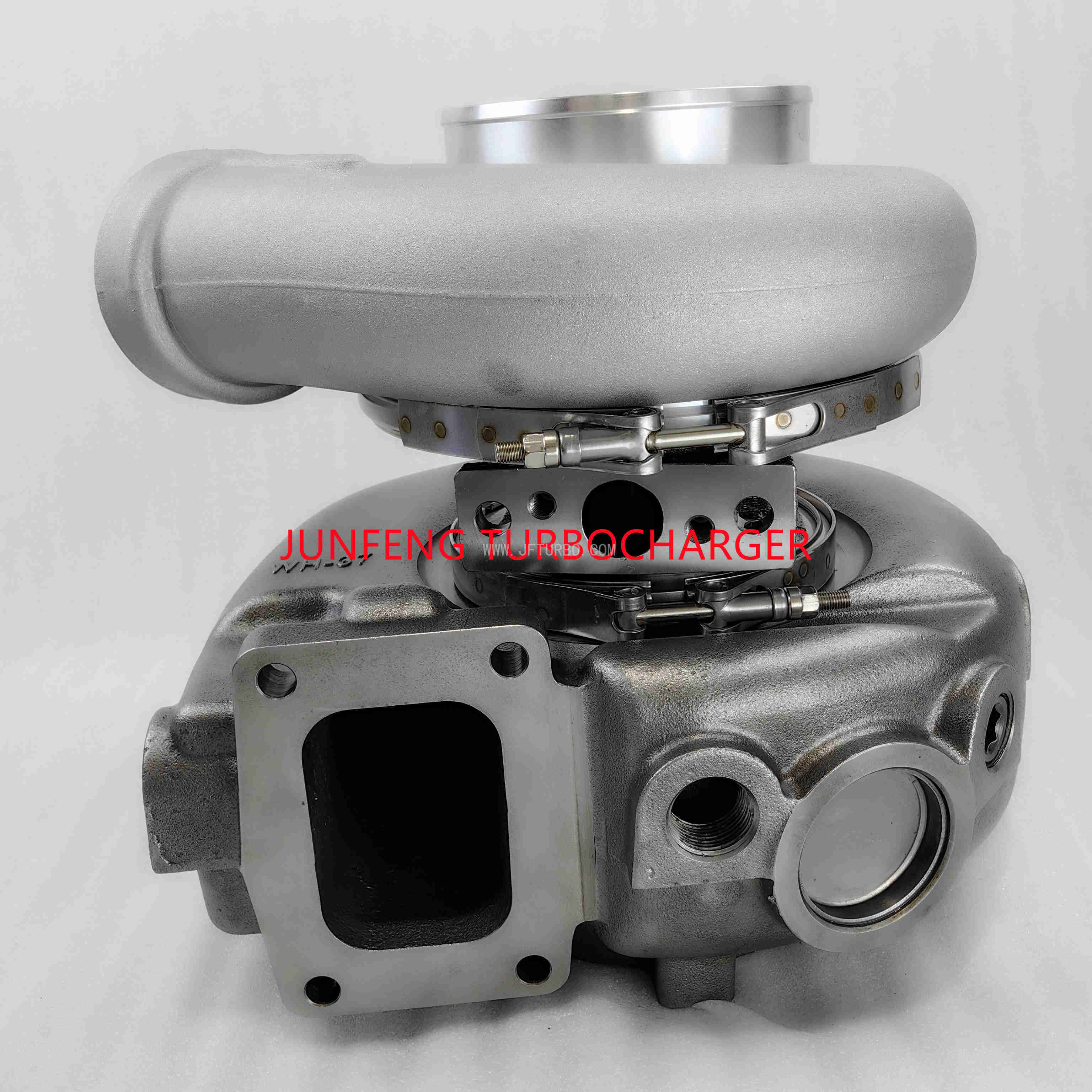

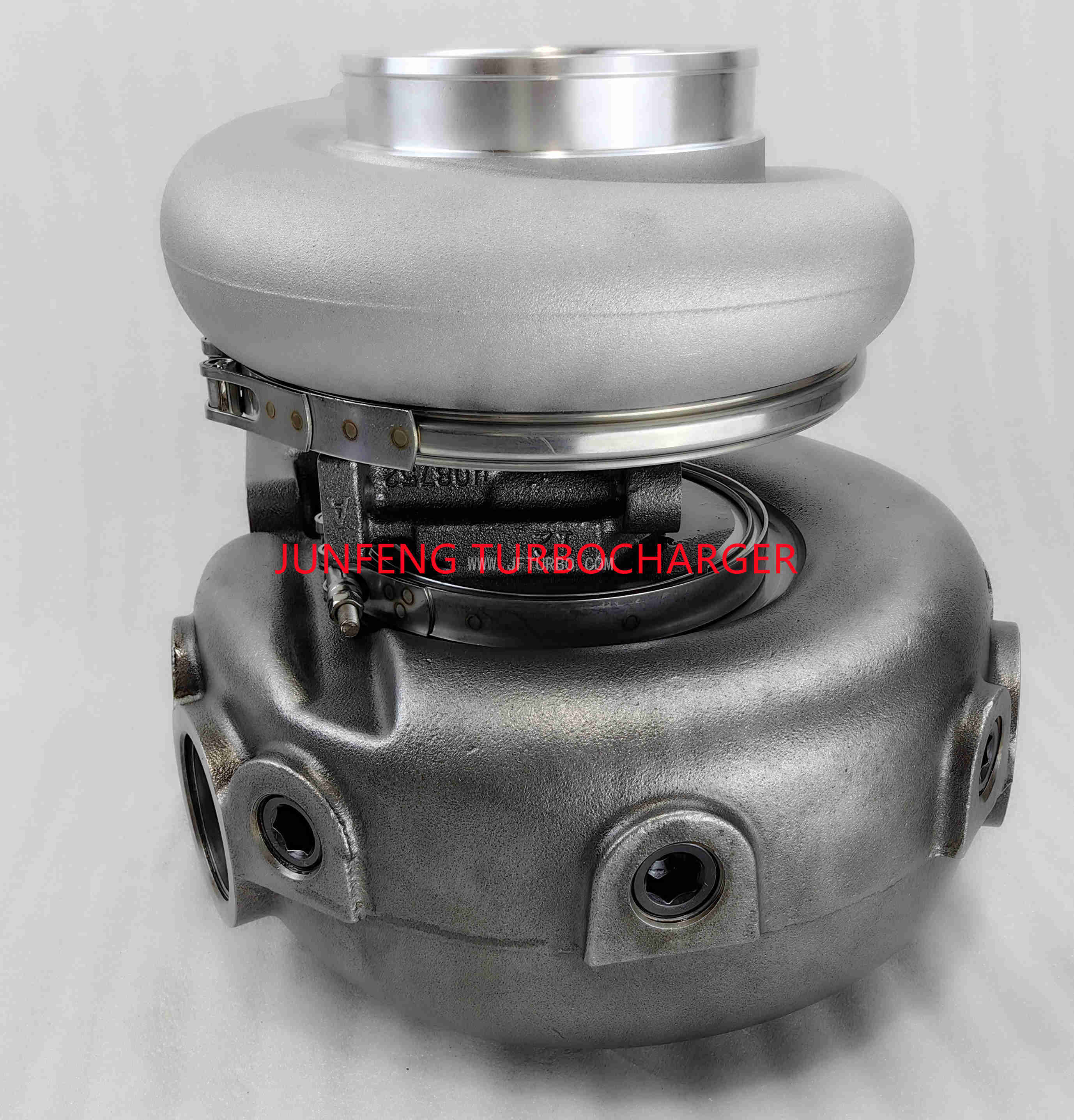

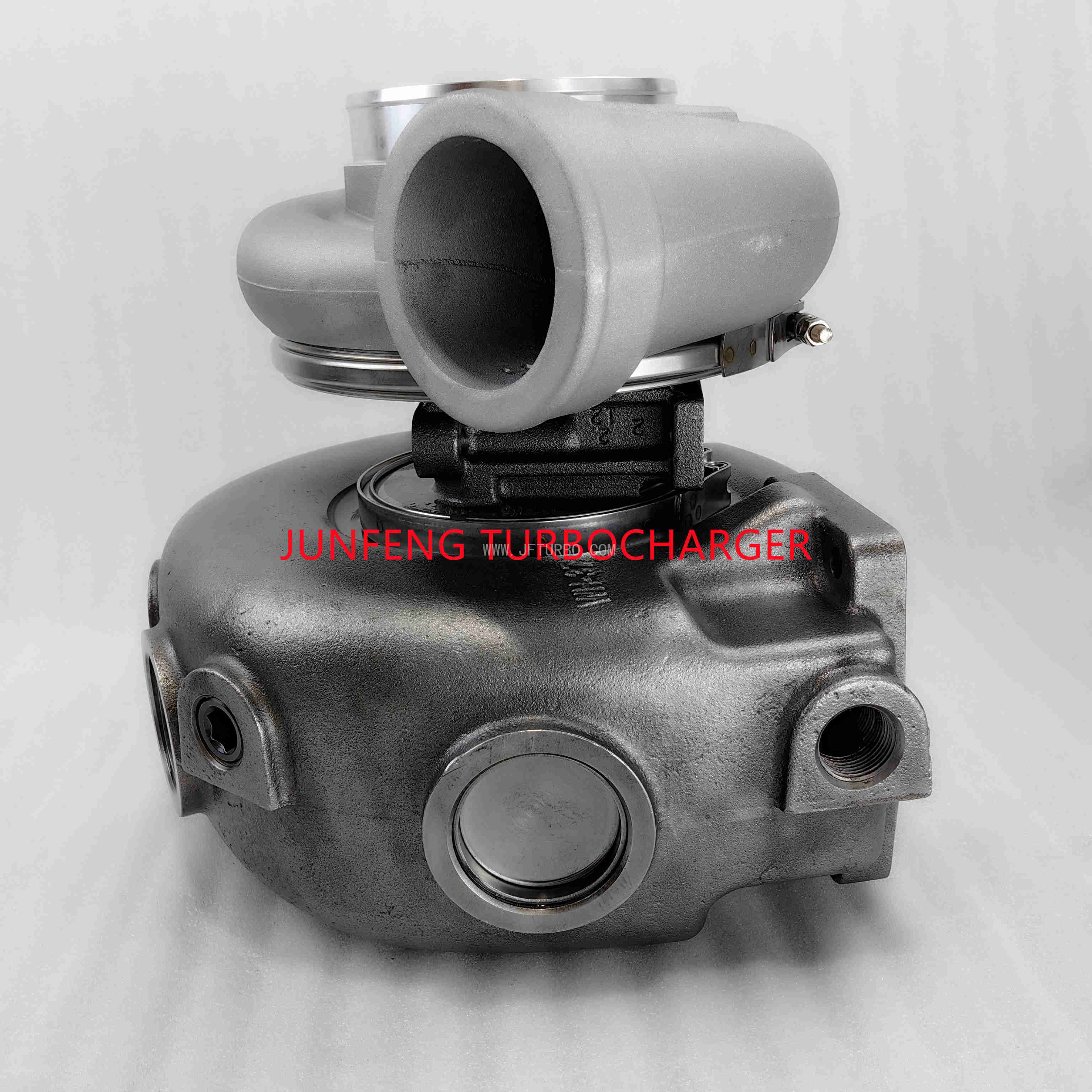

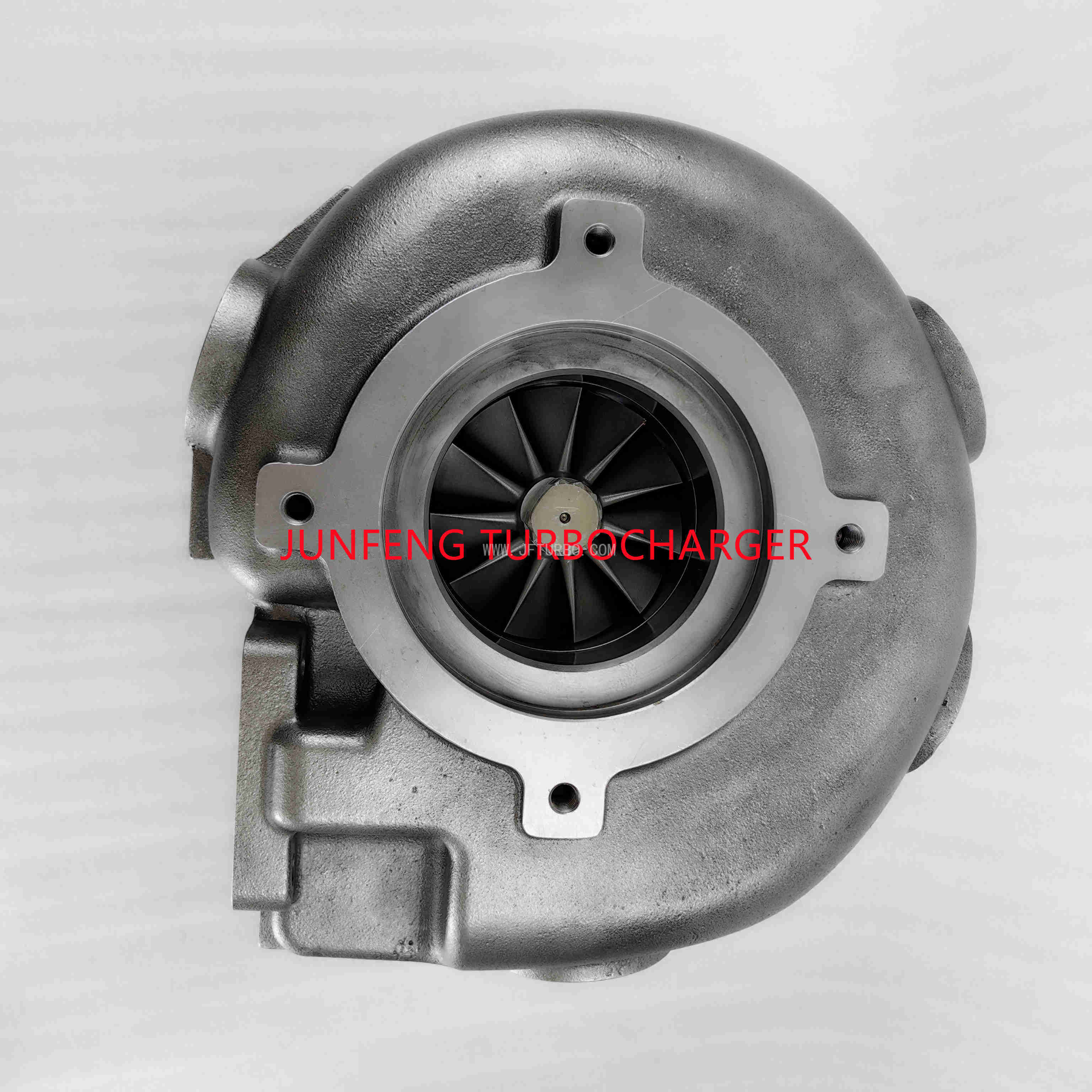

TW7502 Turbo 465689-5001S 465689-9001 465689-1 23502231R Turbocharger for Detroit Diesel Marine 12V72T 12V92T 12V92TA Engine

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product details

Part Number	465689-5001S
Previous Version	465689-0001, 465689-9001, 465689-1
OE number	23502231, R23502231, 23502231R
Description	Marine
CHRA	442032-0018 (442032-9018S)(23503193)
Turbo Model	TW7502
Engine	12V72T, 12V92T, 12V92TA
Displacement	13963/18092 ccm, V12 Cylinders
KW	440/530 HP
Fuel	Diesel
Angle α (compressor housing)	138º
Angle β (turbine housing)	340º
Bearing Housing	442028-0001 (8925742, 08925742)(Oil Cooled)
Turbine Wheel	442146-0005 (23514429)
Comp. Wheel	441553-0016 (23514428)(Ind. 65.6 mm, Exd. 91. mm, Trm 52*75, 6+6 Blades, Superback)(1401404412)
Back plate	442027-0004 (23501518, 7C4020)
Heat shield Number	407967-0000 (5149173)
Repair Kit	468267-0000 (23514215, 468211-0000, 3545836, 188002-0000)(1101678752)
Turbine Housing (Water Cooled)	409339-0151 (1W8423, 23503600)
Compressor Cover	441880-0004 (23501527)
Turbine Housing AR	1.23
Gasket (turbine inlet)	409038-0001 (210835-0000, 9749, 132040, 7M7273)
Gasket (turbine outlet)	210255 (Copper layers)
Gasket oil inlet	210019 (409266-0004, 210019-0000, 201049, 409266-0003)
Gasket (oil outlet)	210018 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
NOTE	Partially restricted
Manufacturer	booshiwheel

Applications

turbocharger for Detroit Diesel Marine with 12V92TA Engine
