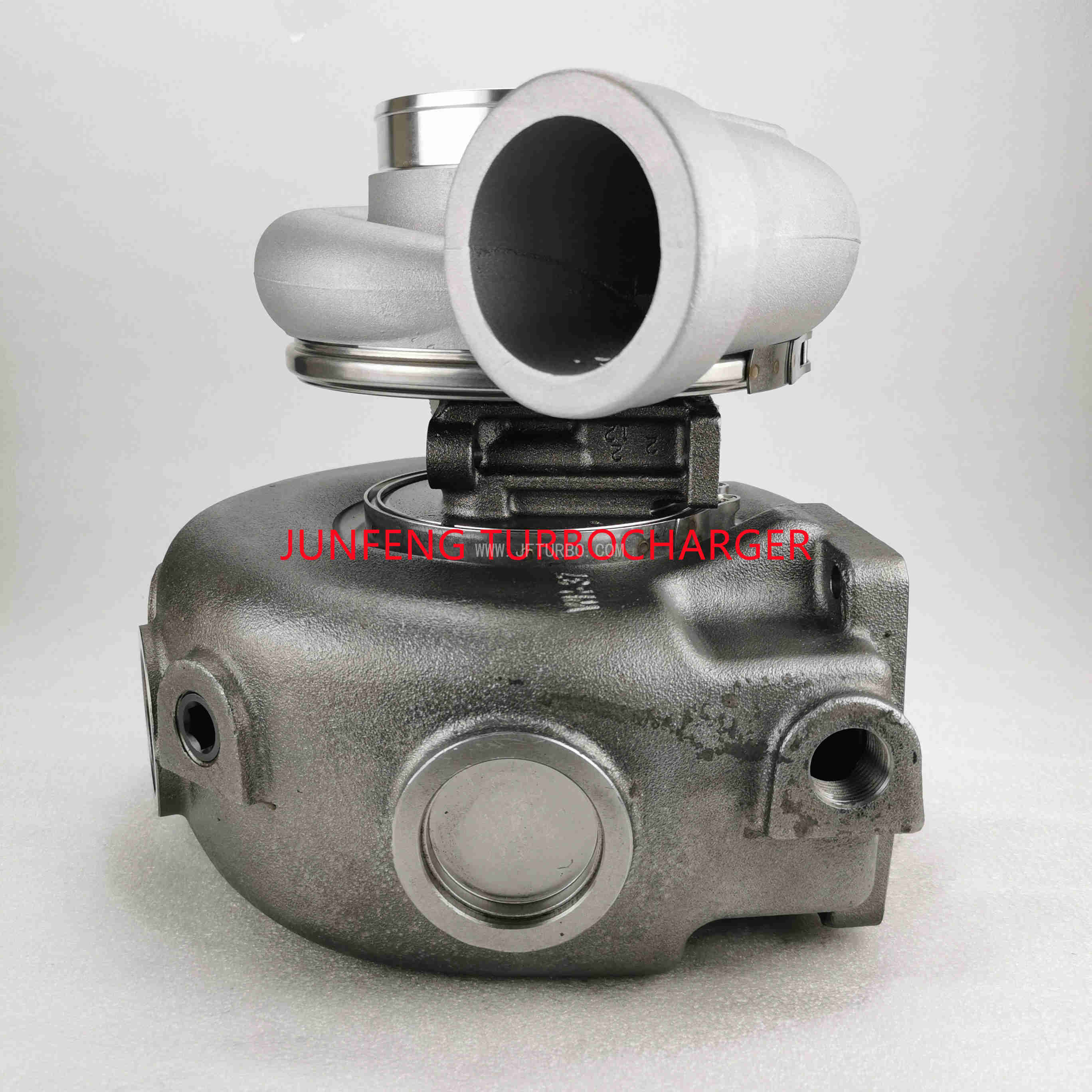

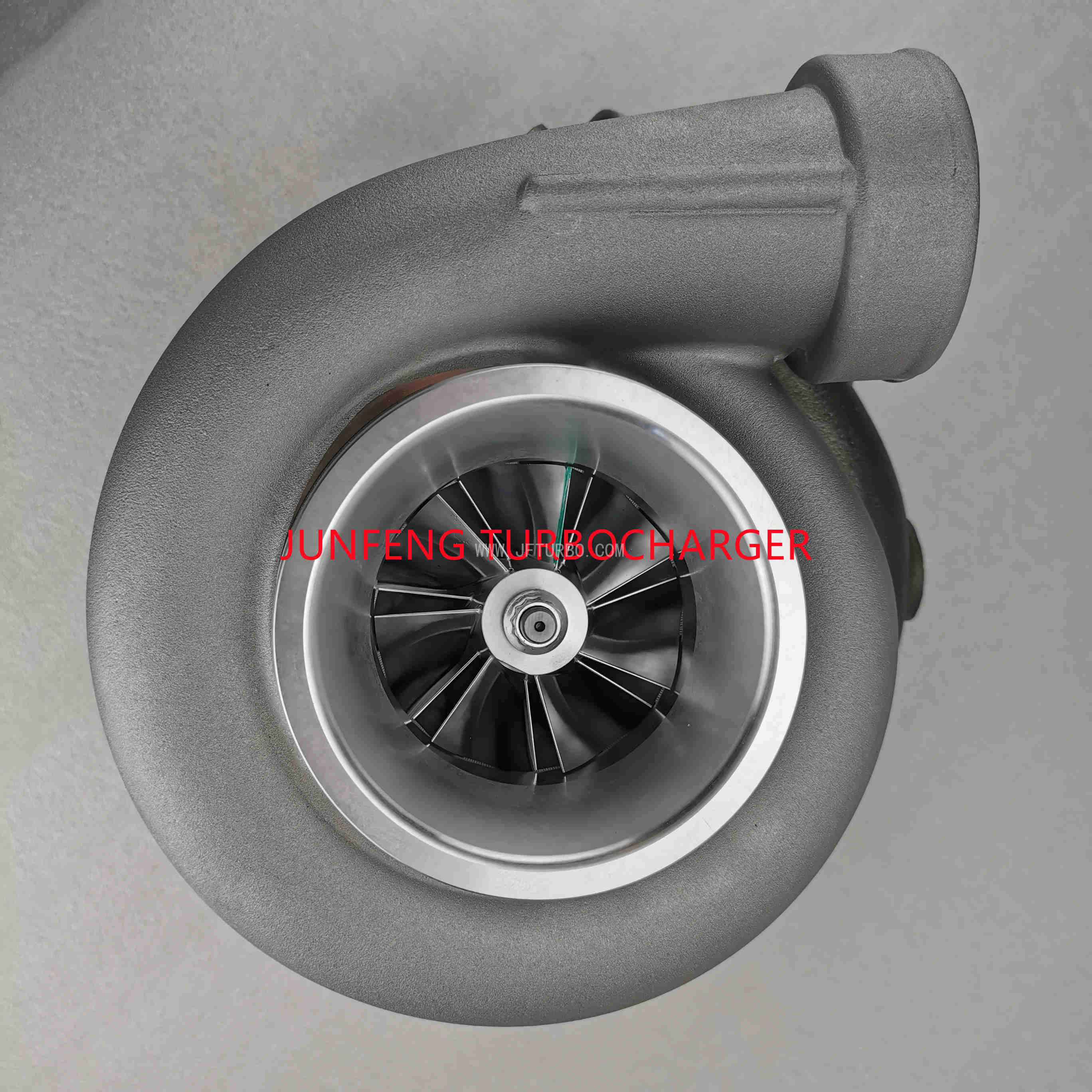

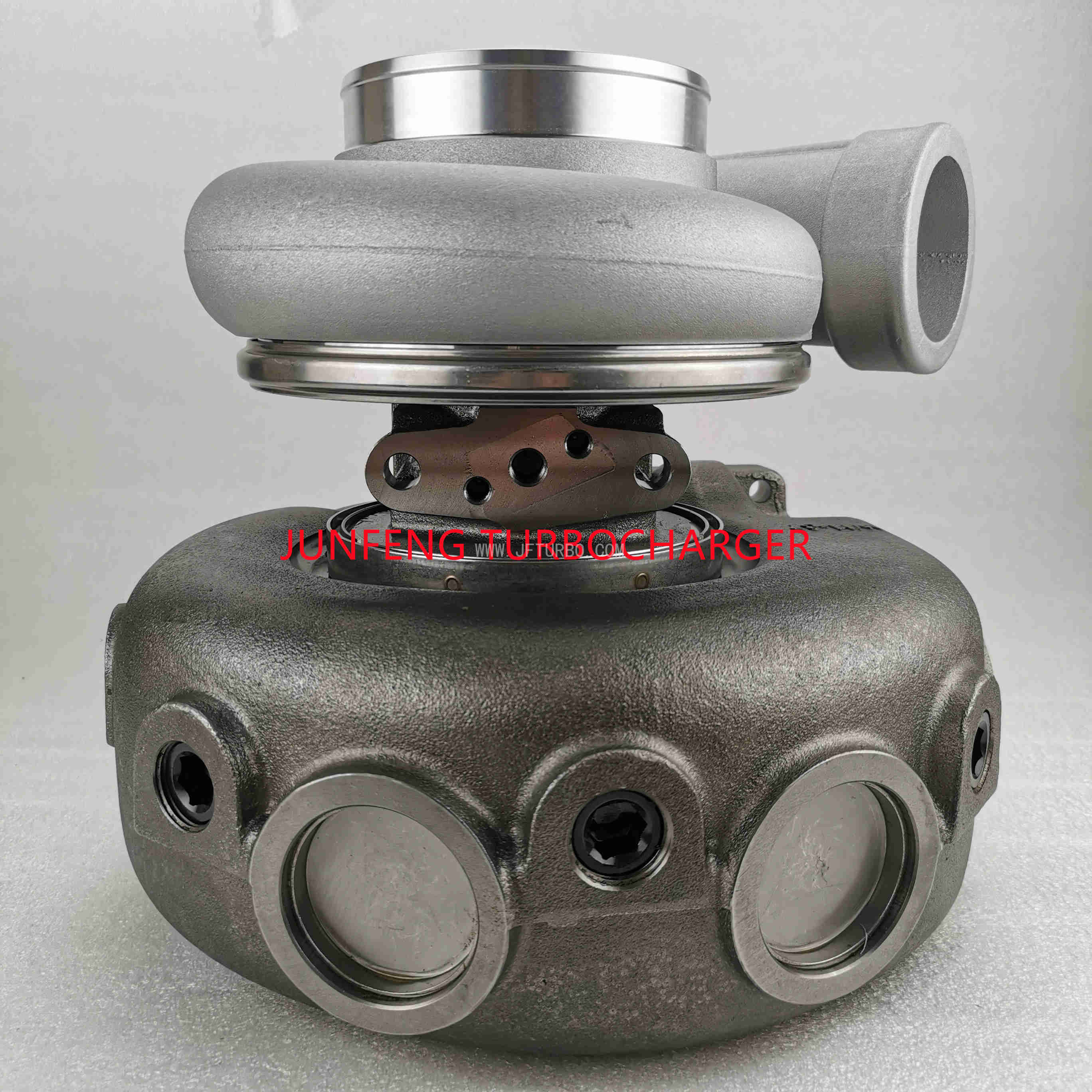

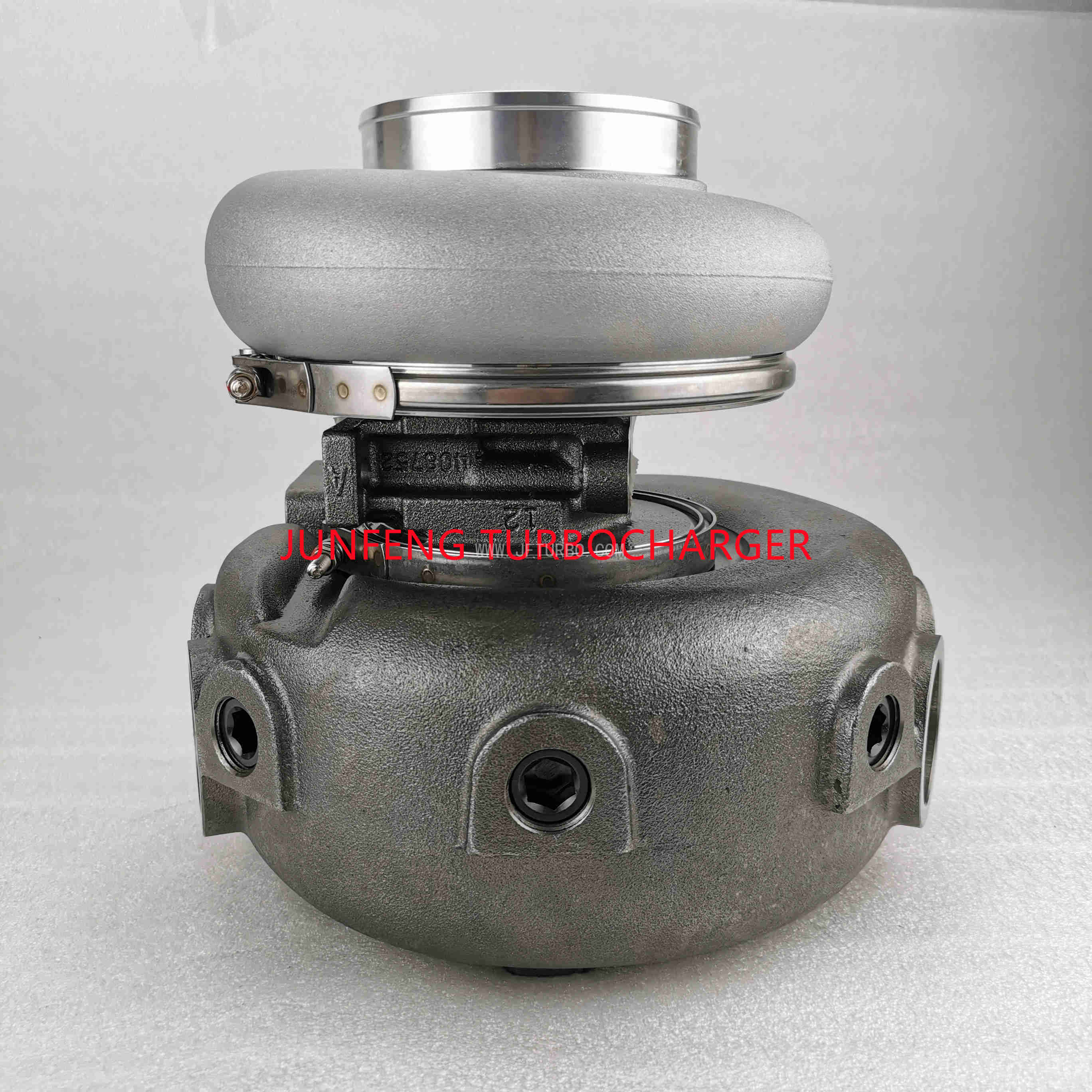

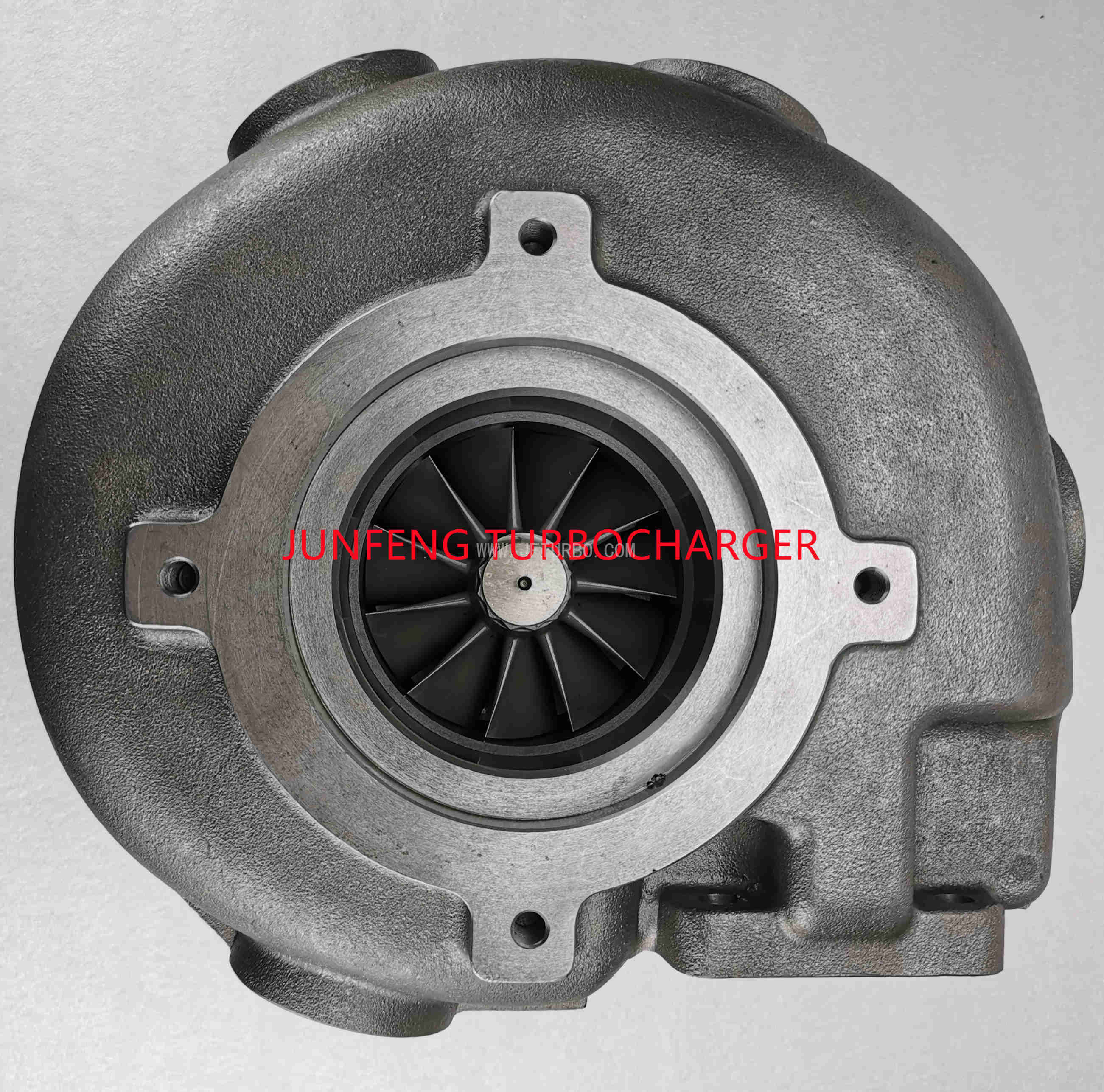

TW7301 465251-0001 465251-5001S 2350126 R23501263 turbocharger for Detroit Diesel Marine 12.0L 8V82TA Engine

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product details

Part Number	465251-5001S
Previous Version	465251-0001, 465251-1
OE number	23501263, R23501263
Description	Marine
CHRA	442032-0010 (442032-5010S)(23501286, E23501286, R23501286)
Turbo Model	TW7301
Engine	8V82TA
KW	735
RPM Max	12.0L, 12062 ccm, 8V Cylinders
Fuel	Diesel
Angle α (compressor housing)	138°
Angle β (turbine housing)	340°
Bearing Housing	442028-0001 (8925742, 08925742)(Oil Cooled)
Turbine Wheel	442029-0003 (8925743, 2950012372943)(Ind. 96.52 mm, Exd. 83.97 mm, 11 Blades)(1101675435)
Comp. Wheel	443120-0001 (Ind. 70.9 mm, Exd. 102.3 mm, Trm 48*54, 7+7 Blades, Superback)(23501285)
Back plate	442027-0001 (8925746)
Heat shield Number	407657-0004 (409794-0000)(9N2037, 9N3701, 8925757)(1101680340)
Repair Kit	468267-0000 (23514215)(1101678752)
Turbine Housing (Water Cooled)	409339-0132 (23501605)
Compressor Cover	441880-0008 (23503168)
Turbine Housing AR	1.19
Gasket oil inlet	129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035)(Paper)
Gasket (oil outlet)	129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
Gasket (turbine inlet)	409038-0001 (409038-0000, 1S4295, 132040, 205396, 202873, 3500683, 1215736, 210017-0000, 210835-0000, 9749)(1900000003)
Gasket (turbine inlet)	210255 (Copper layers)

Applications

turbocharger for Detroit Diesel Marine with 8V82TA Engine
