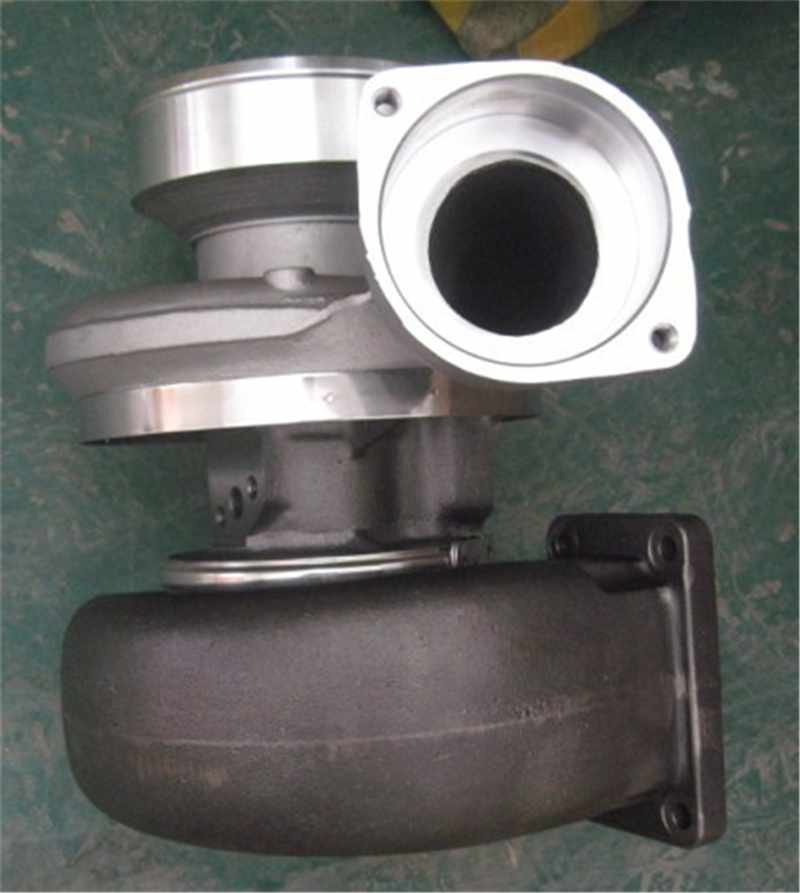

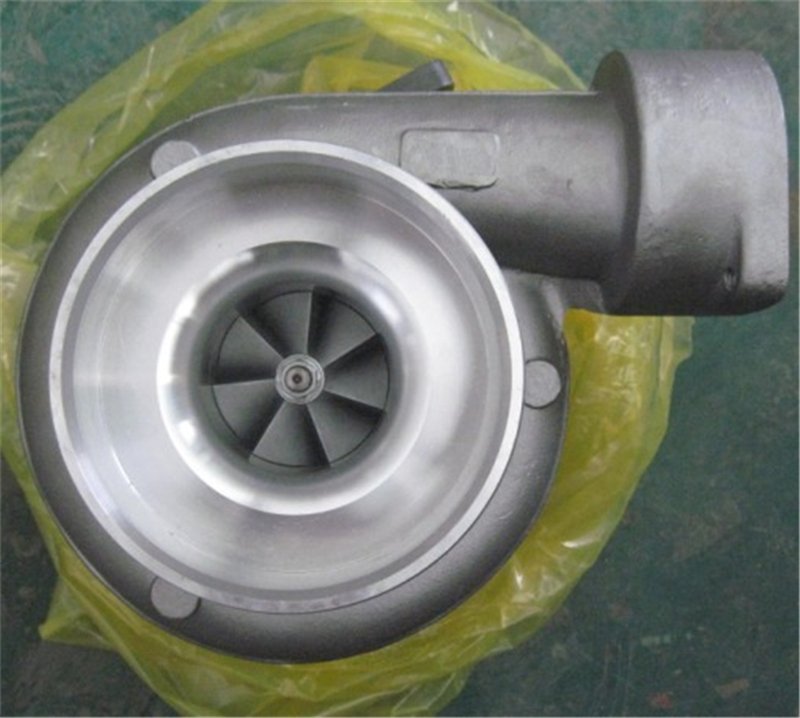

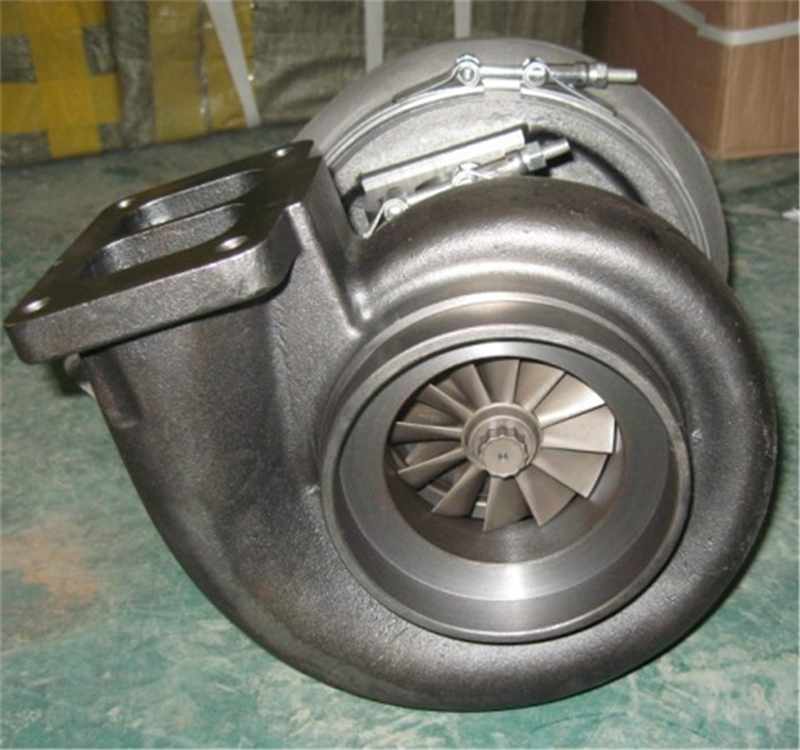

Caterpillar S4DS006 turbocharger 313013 7C7691 7N7878 196547

S4DS006 313013 turbo 0R6333,7C7691 turbocharger

Product Description
Part Number 313013 ,196547

OE number 0R6333, 7C7691
CAT Reman. CHRA 0R5598, 0R5730, 7C3844, 7C7503
Description Earth Moving
Manufacturer Part Number 196547 178059, 194992

CHRA 311850 (196536, 0R5598, 0R5730, 7C3844, 7C7503)
Turbo Model S4DS006
Engine 3406, D8N
Fuel Diesel
Equip 199114
Machine Engine 3406, 3406B, 3406C
Motor Grader 16G, 16H NA
Pipe layer 578
Track-Type Tractor 8A, 8SU, 8U, 8, D8N, 57H
Wheel-Type Loader 980C
Bearing Housing 196661/199144/196534 (7C7611, 4P3627)
Turbine Wheel 189553 (7W3842)
Comp. Wheel 193756 (7W3841, 7W3842)
Back plate 197651
Heat shield Number 187517 (4W7355)
Repair Kit 318405 (311144)
Turbine Housing 194991 (7C3173)
Compressor Cover 193241 (7W3843)
Turbine Housing AR 4.63/1.27
Gasket (turbine inlet) 409038-0000
Gasket oil inlet 210019
Gasket (oil outlet) 210018

Application
Caterpillar D8N Earth Moving with 3406 Engine

Packing
