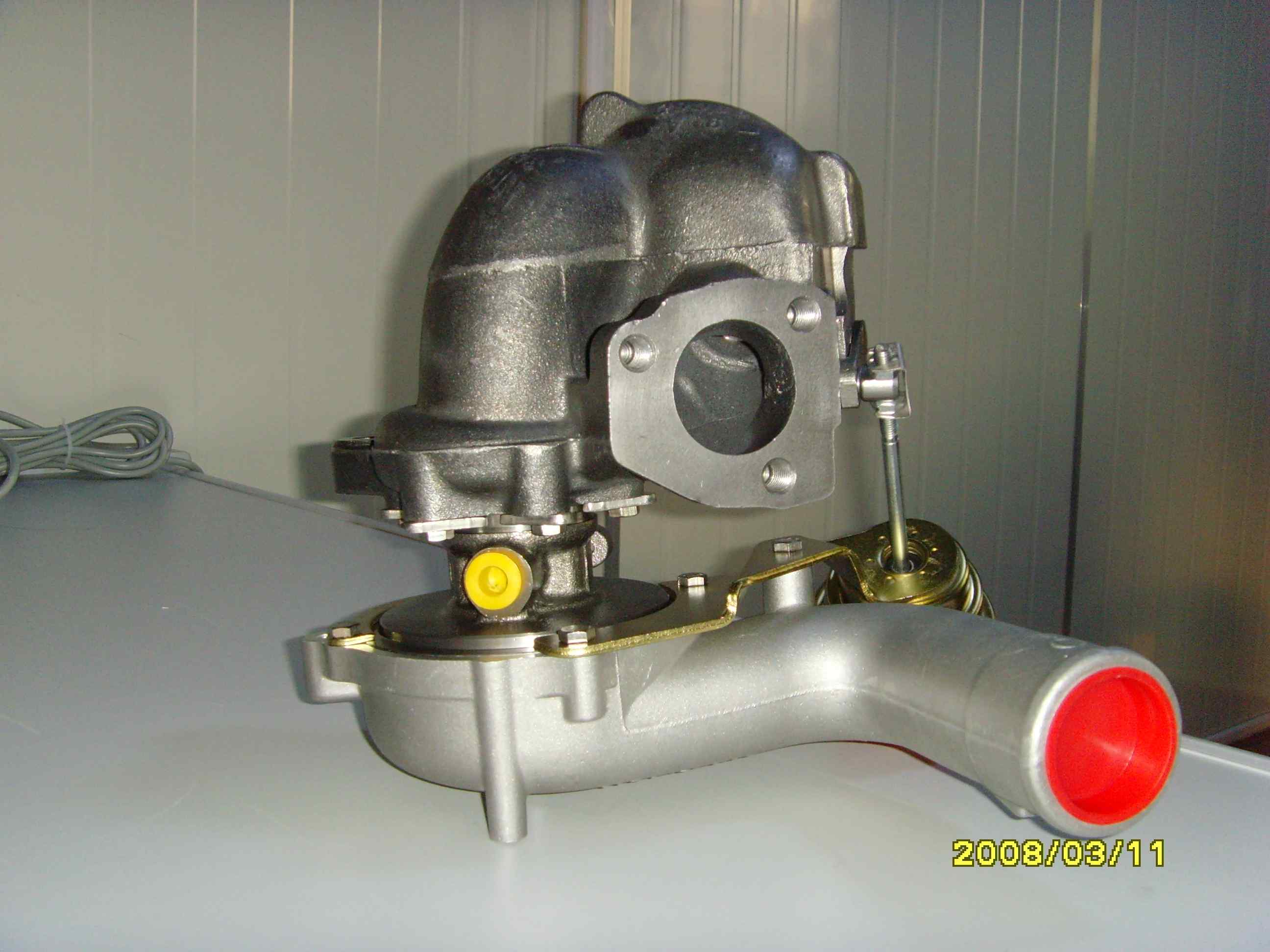

Product Description

Part Number    53049500001

Previous Version    53049880001, 5304-988-0001, 5304-950-0001, 5304 950 0001

Year    1996-09

Description    Audi A3, TT Upgrade

Application    A3/TT Upgraded

Manufacturer Part Number    53049700001, 5304-970-0001

CHRA    53047100500 (5304-710-0500) (1302004900)

Turbo Model    KO4-001, K04-2075EAC5.82KCAXK

Displacement    1.8L, 1800 ccm

KW    162/220 HP

Fuel    Gasoline

Engine    1.8L-5V transverse, 1.8L -5V quer/transversal

Engine Code    AJQ, APP, AUM, AUQ, ARY

Comparison Number    1113104, 1057139, 914F6K682AG, 914F6K682AF, 914F6K682AB, 6611235

Angle α (compressor housing)    299

Angle β (turbine housing)    220

Bearing Housing    53041500003/53041500004/53041500010 (1302004450, 1302004451)

Turbine Wheel    53041205008/53041500010/53041500011/53041500014/53041202100 (Ind. 42. mm, Exd. 50. mm, 12 Blades)(1302004436)

Comp. Wheel    53041232005/53041235010/53041015331/53041015009 (Ind. 34.9 mm, Exd. 49.96 mm, 6+6 Blades)(1302003408)

Back plate    53041515702/53041515700/53041232005 (1302003302)

Heat shield Number    53041652000/53031652000 (1302003341, 1302003340)

Repair Kit    53037110000 (1302003752)

Turbine Housing    53041009022

Compressor Cover    53041015010

Turbine Housing AR    5

Actuator    58251104026

Gasket (turbine inlet)    210229 (Steel)

Gasket (turbine outlet)    210331 (Stainless Steel)

Gasket (oil outlet)    210317 (Paper)

Fitting oil inlet    430066-0001

Manufacturer    Borg Warner - 3K - Schwitzer

Applications

1996-09 Audi A3 upgraded Engine FT 190 4EB/4EA/4EC

1996-09 Audi TT upgraded Engine FT 190 4EB/4EA/4EC

1991- Ford Transit IV 2.5 TD Engine FT 190 4EB/4EA/4EC

1996-09 Volkswagen BEETLE, Seat IBIZA upgraded Engine FT 190 4EB/4EA/4EC
