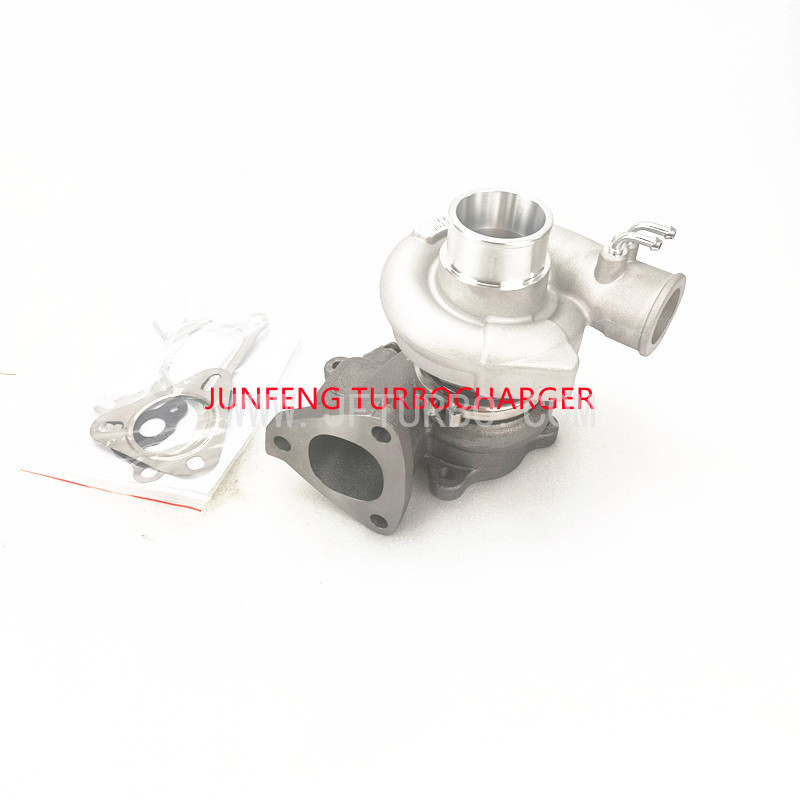

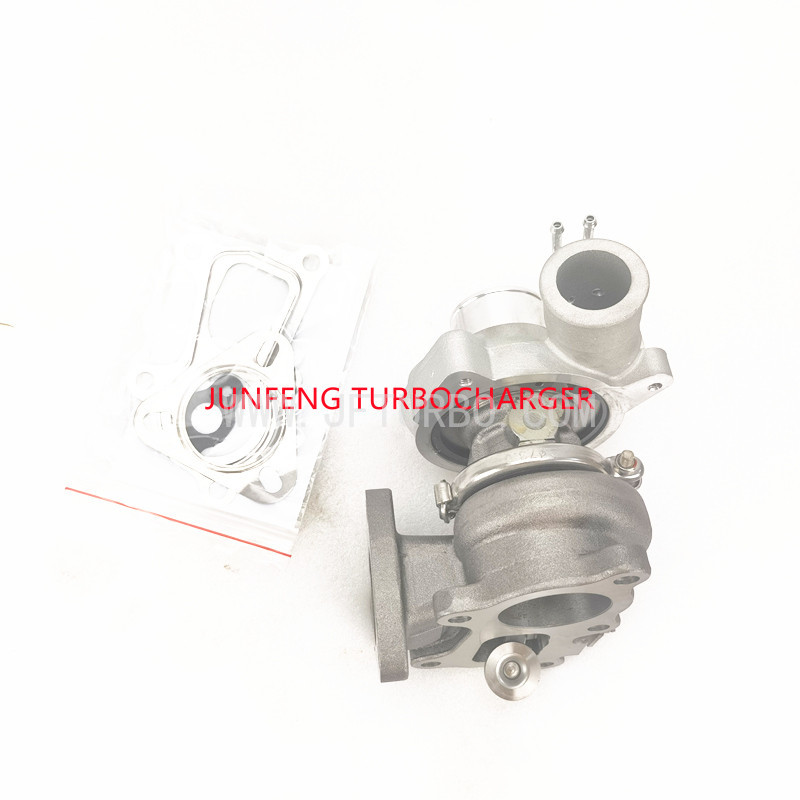

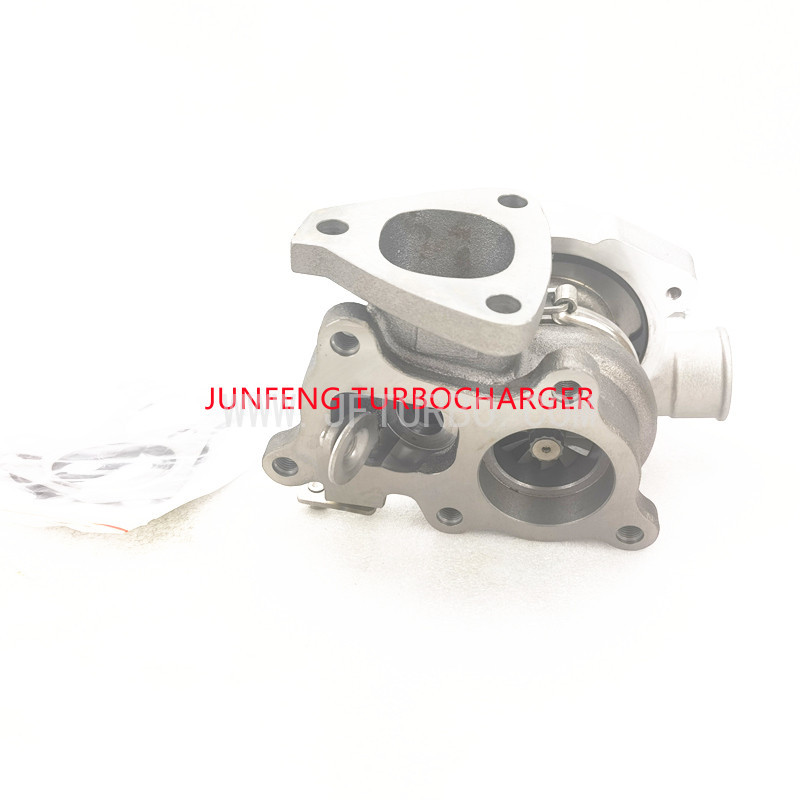

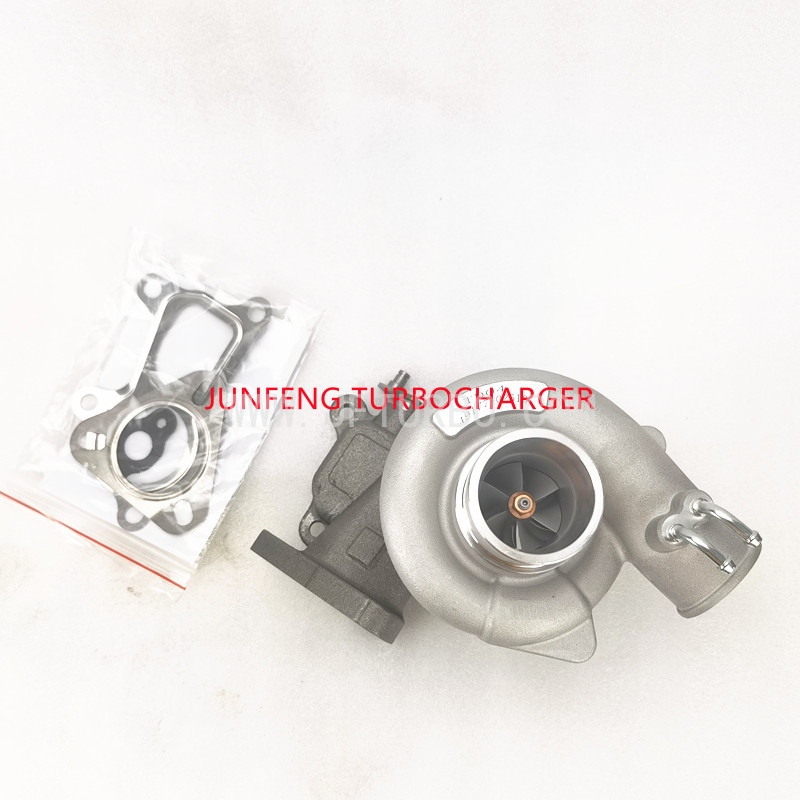

TD04 Turbo 49177-02510 MD155984 4917702510 Turbocharger for Mitsubishi Montero Pajero L200 Galoper 4D56 4D56Q 4D56QDOM Engine

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product Description

Part Number	49177-02510
Previous versions	4917702510
OE Number	MD155984
Description	L200, Pajero, Galoper
CHRA	49177-08110 (1401404902, 1000050016) 295.00 NEW IN STOCK, MADE IN USA
Turbo Model	TD04, TDO4-11G/4
Engine	4D56Q, 4D56QDOM
Engine Manufacturer	Mitsubishi
Displacement	2.5L, 2477 ccm
Bearing Housing	49177-25100 (49177-25540, 49177-25520)(Oil Cooled)(1401635462, 1900011152) $69.92 NEW IN STOCK
Turbine Wheel	49177-30120 (49177-30130)(Ind. 47.19 mm, Exd. 40. mm, Trm 6.45, 12 Blades)(1401404435, 1100030029) $95.00 NEW IN STOCK
Comp. Wheel	49177-43300 (Ind. 37.89 mm, Exd. 49. mm, Trm 4.8, 6+6 Blades, Flatback)(1200030027) $49.00 NEW IN STOCK
Back plate	49173-22500 (49135-00044, 49135-15405)(1401404300, 1800016030) $19.96 NEW IN STOCK
Heat shield Number	49170-19100 (49135-00020)(2030016010) $14.64 NEW IN STOCK
Repair Kit	49177-80410 (1401404755, 5000050004) $98.80 NEW IN STOCK
Turbine Housing	49377-15490
Compressor Cover	49177-56080
Turbine Housing AR	4
Gasket (turbine inlet)	210501 (Inox Steel)
Gasket (turbine outlet)	210525 (Inox Steel)
Gasket (oil outlet)	210243 (Paper) $4.50
Replaced By	49177-02511

Applications

turbocharger for Mitsubishi Montero, Pajero with 4D56Q Engine

1990-00 turbocharger for Mitsubishi Pajero II 2.5 TD with 4D56Q Engine

1993-96 turbocharger for Mitsubishi Montero, Pajero, Shogun with 4D56Q Engine
