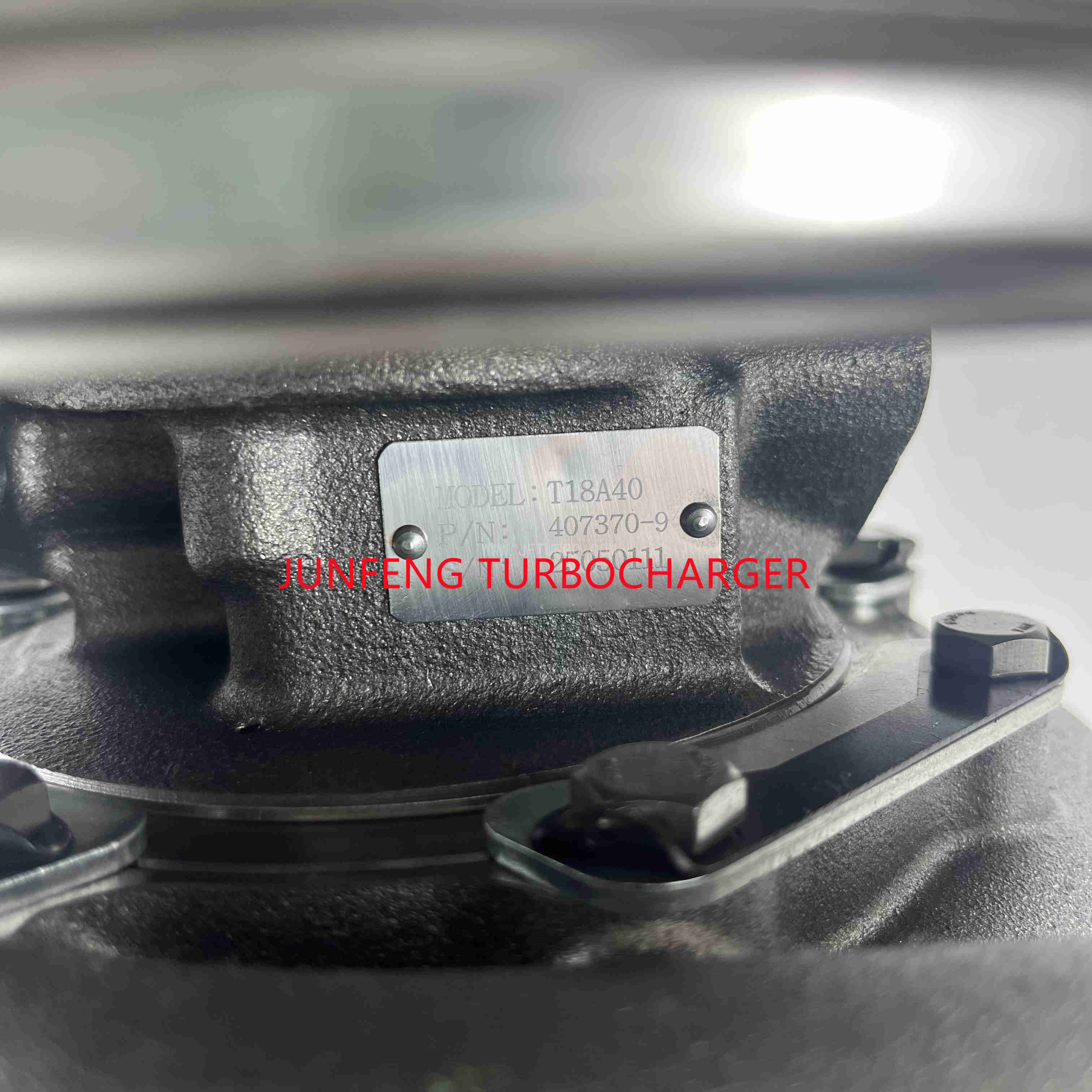

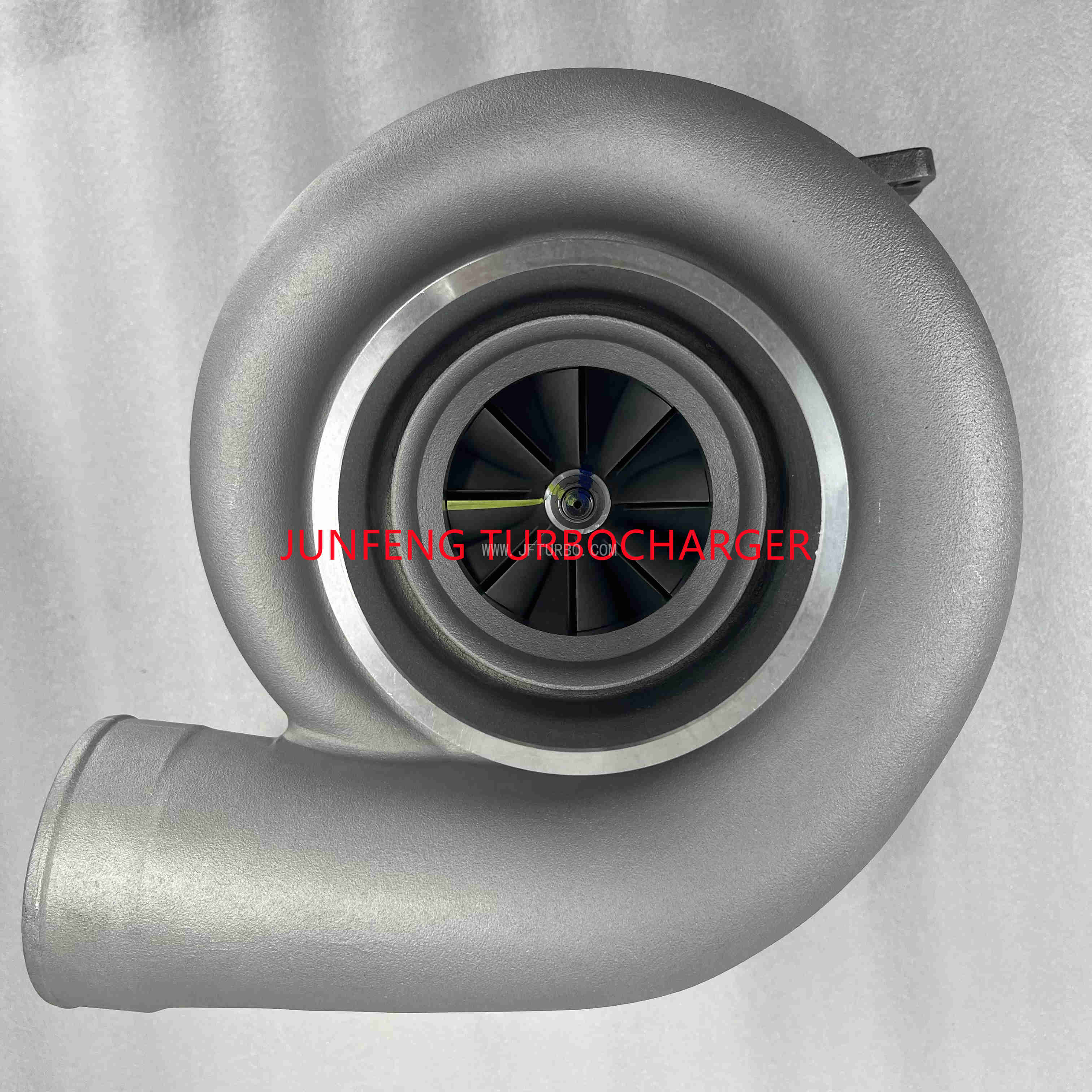

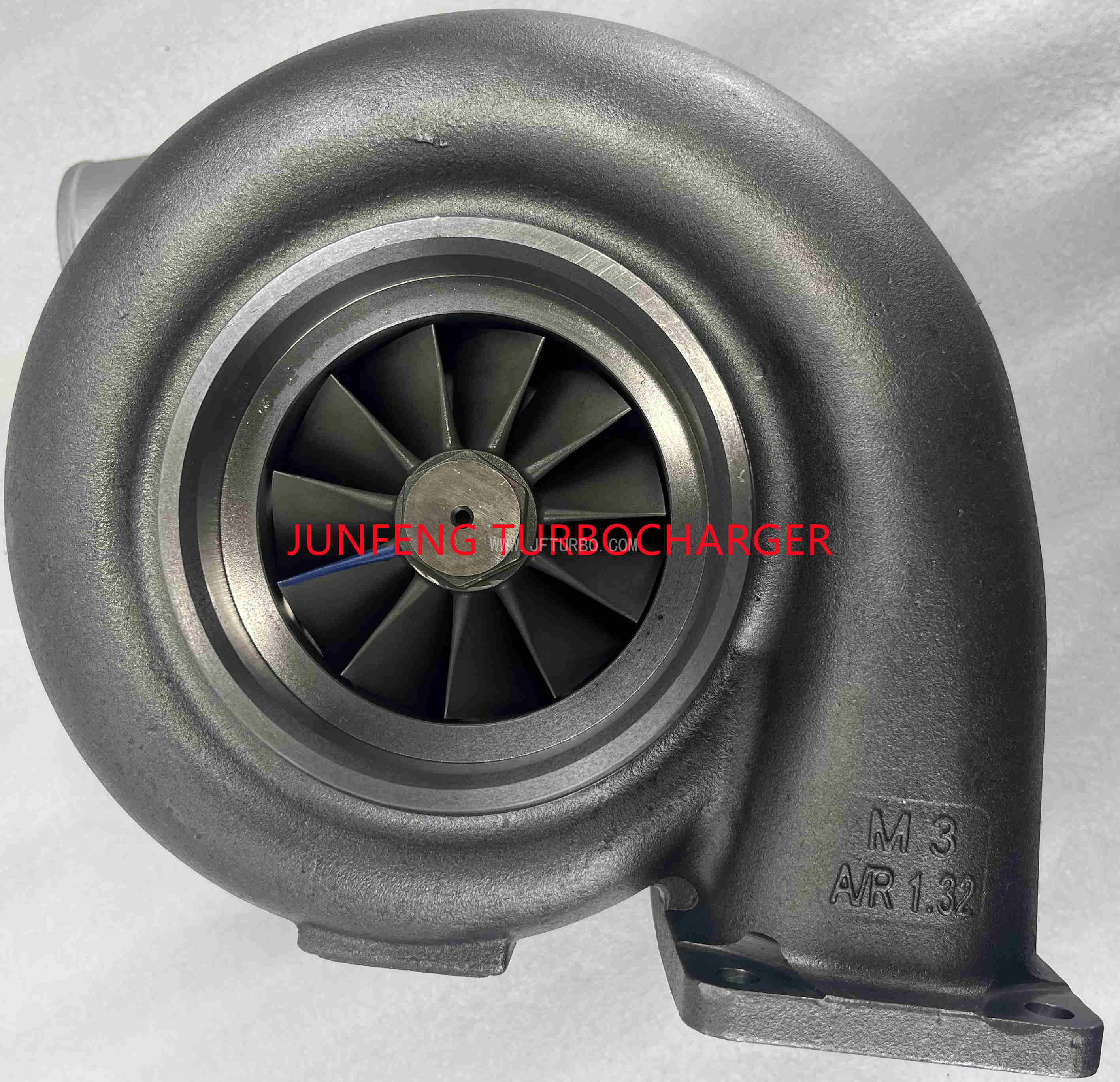

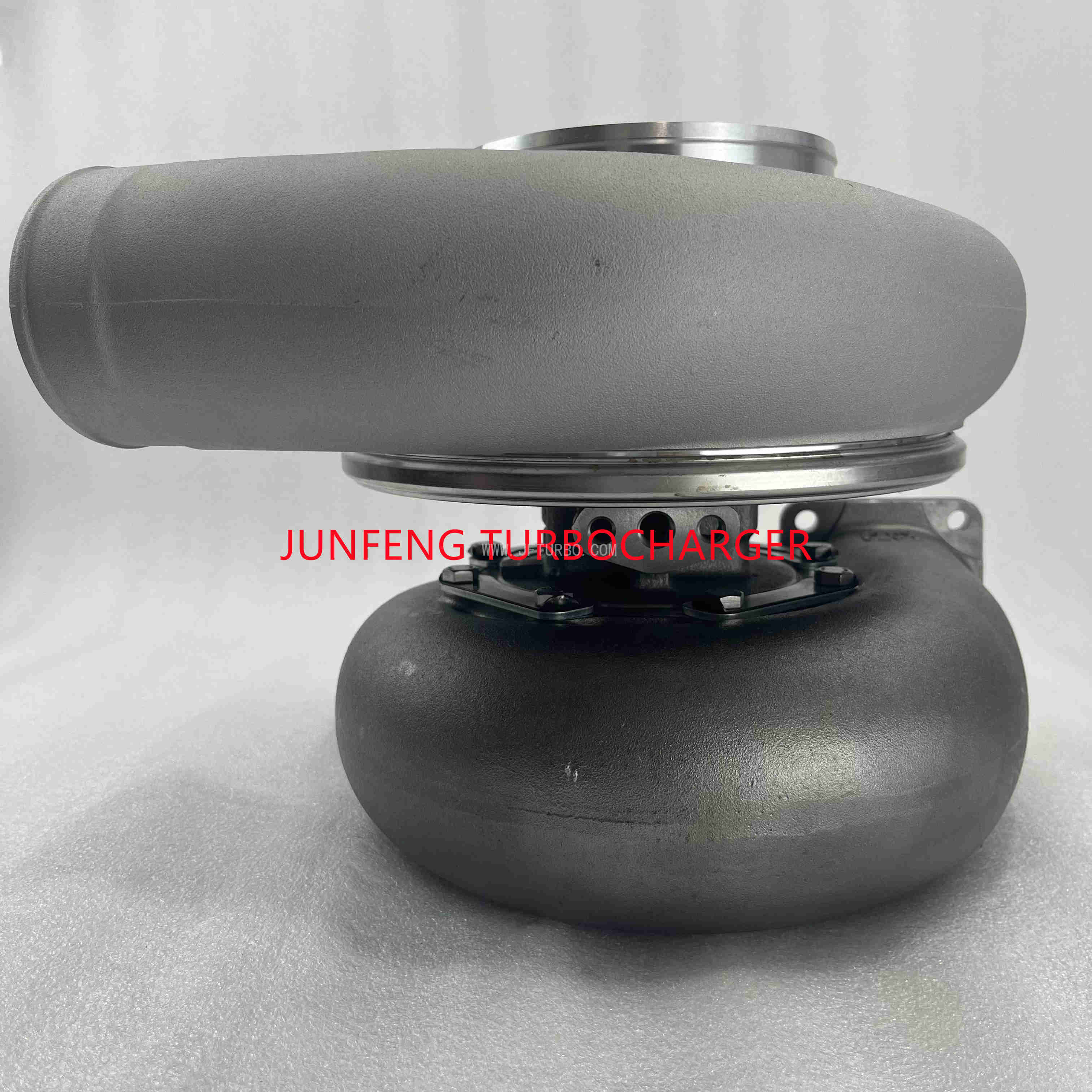

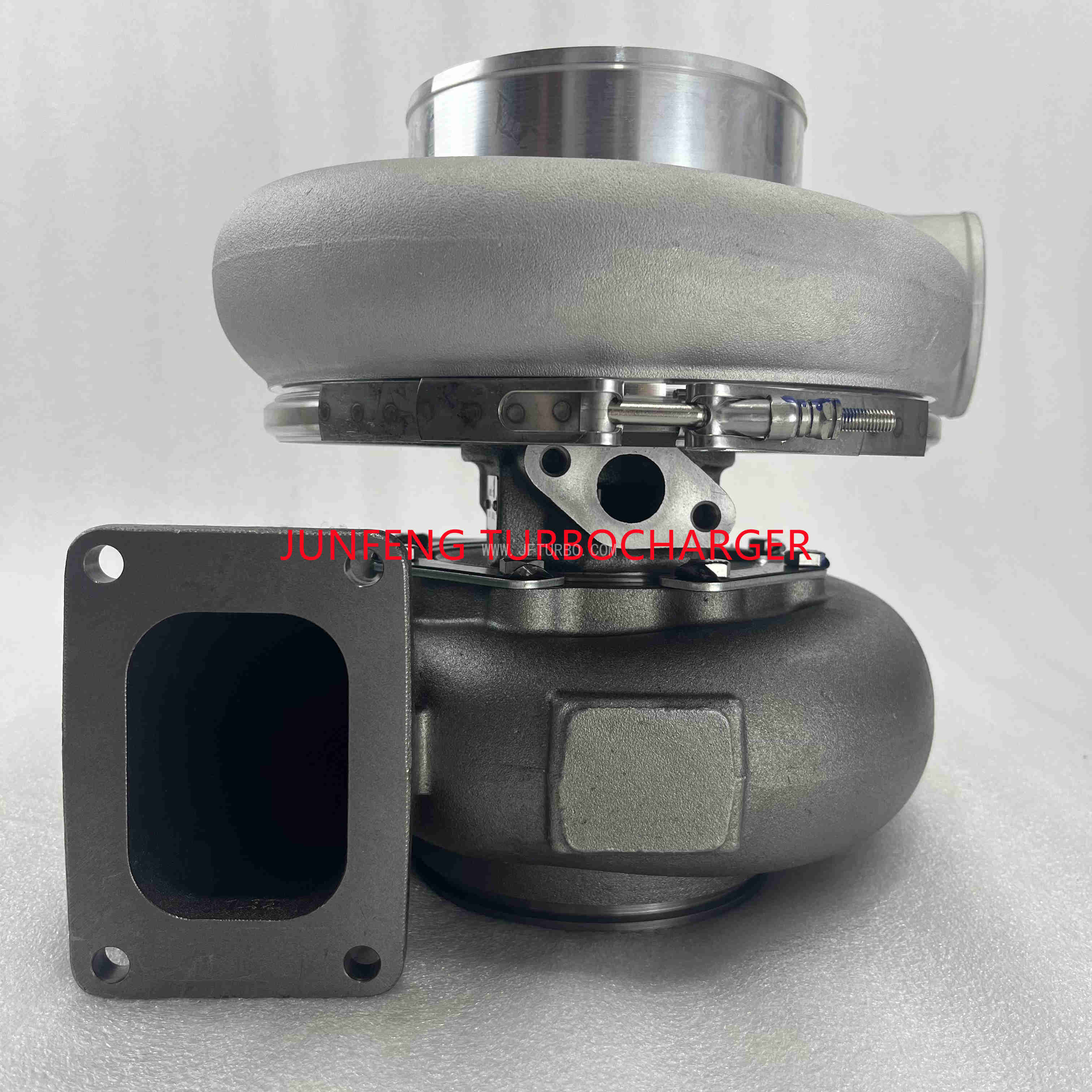

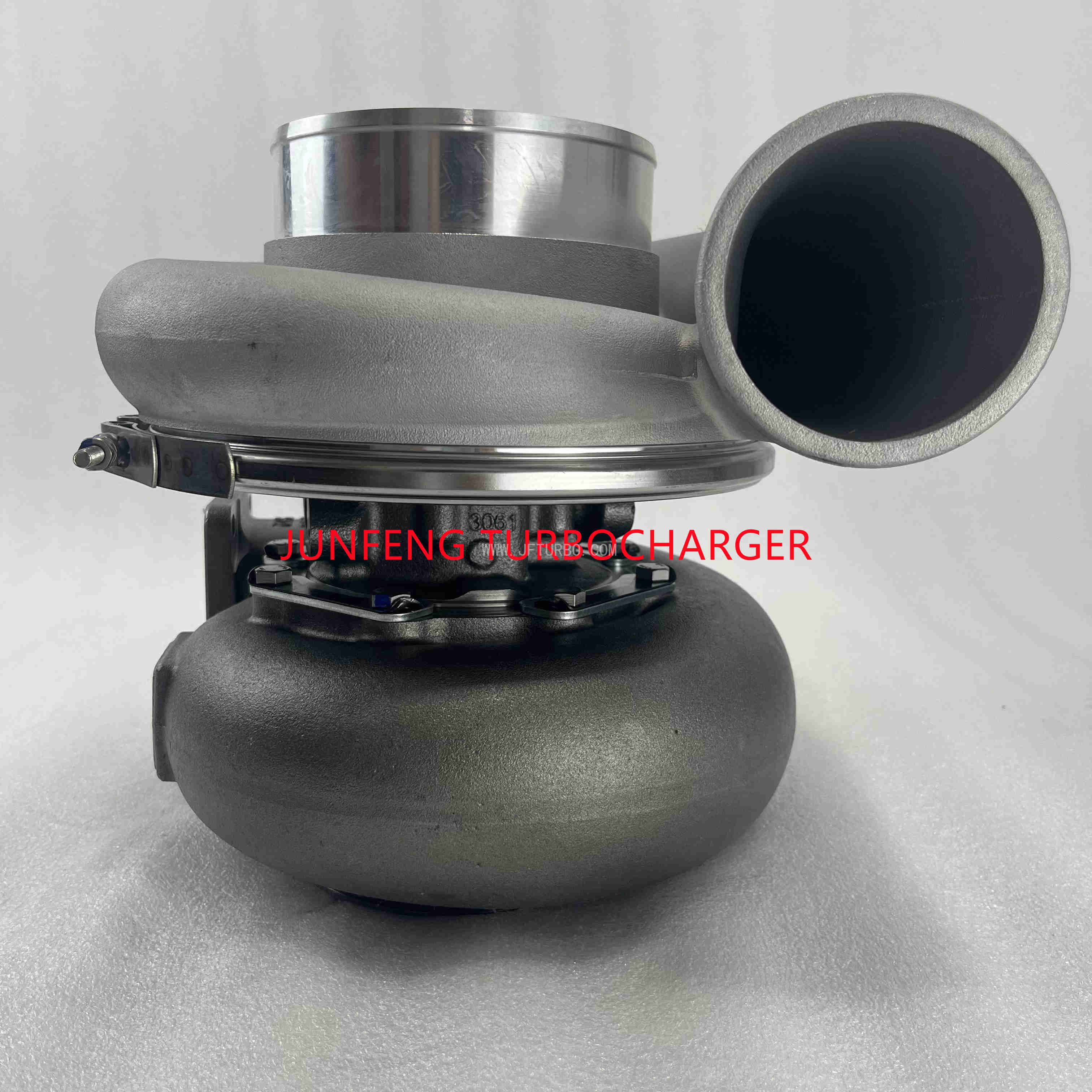

T18A40 Turbo 407370-0009 5103838 5141854 Turbocharger for Detroit Diesel Marine Industrial Truck

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product Details

Part Number	407370-5009S
Previous Version	407370-0009, 407370-5004S, 407370-9, 407370-9009
OE number	5103838, 5141854, R5103838, R5141854
Description	Truck, Gen. Set, Marine, Industrial Generator Engine
CHRA	407302-0001 (407302-5001S, 407302-0005)(05149299, 118002XR, 5149637, R5149637, 5199020)
Turbo Model	T18A40
Engine	12V149T, 12V150T, 8V71T, 16V149T MTU, 16V149T, 8V71T
Engine Manufacturer	Detroit diesel inter cooled Engines 6-71 and 12V71
Cylinders	V8/V12 Cylinders
Displacement	13963/9300/39100 ccm
KW	163 HP
NSN	2950010898895, 2950-01-089-8895
Fuel	Diesel
SN	1704770-02C
Bearing Housing	407214-0010 (407214-0011)(3022514, 5149403, 5199024)(Oil Cooled)
Turbine Wheel	407218-0006 (407293-0004)(207424, 4061087, 6374154, 23511699, 5149298, 202851)(Ind. 95.65 mm, Exd. 127.05 mm, 11 Blades)
Comp. Wheel	407869-0000 (5199023)(Ind. 82.65 mm, Exd. 127.0 mm, 8+8 Blades, Billet)
Back plate	407215-0000 (407215-0006)(5199028, 207427, 490335, 637417, 3004583, 5149399, 4072156)
Heat shield Number	406687-0002 (5199055)(Cast)
Repair Kit	468107-0000 (1100181752)
Turbine Housing	407738-0003 (5199484)
Compressor Cover	407333-0000 (5199429)
Turbine Housing AR	1.32
Gasket (turbine inlet)	409038-0001 (210835-0000, 9749, 7M7273)
Gasket oil inlet	210019 (409266-0003, 3819900, 9737, 1S6595, 201049, 129119)(1900000035)
Gasket (oil outlet)	210018 (409267-0002, 3500682, 3519763, 3709738, 9738, 9988, 1S4810, 201048, 129120)(1900000025)

Application

turbocharger for Detroit MTU Diesel Truck, Marine, Industrial Generator Engine with 8V71/149, 16V149T Engine
