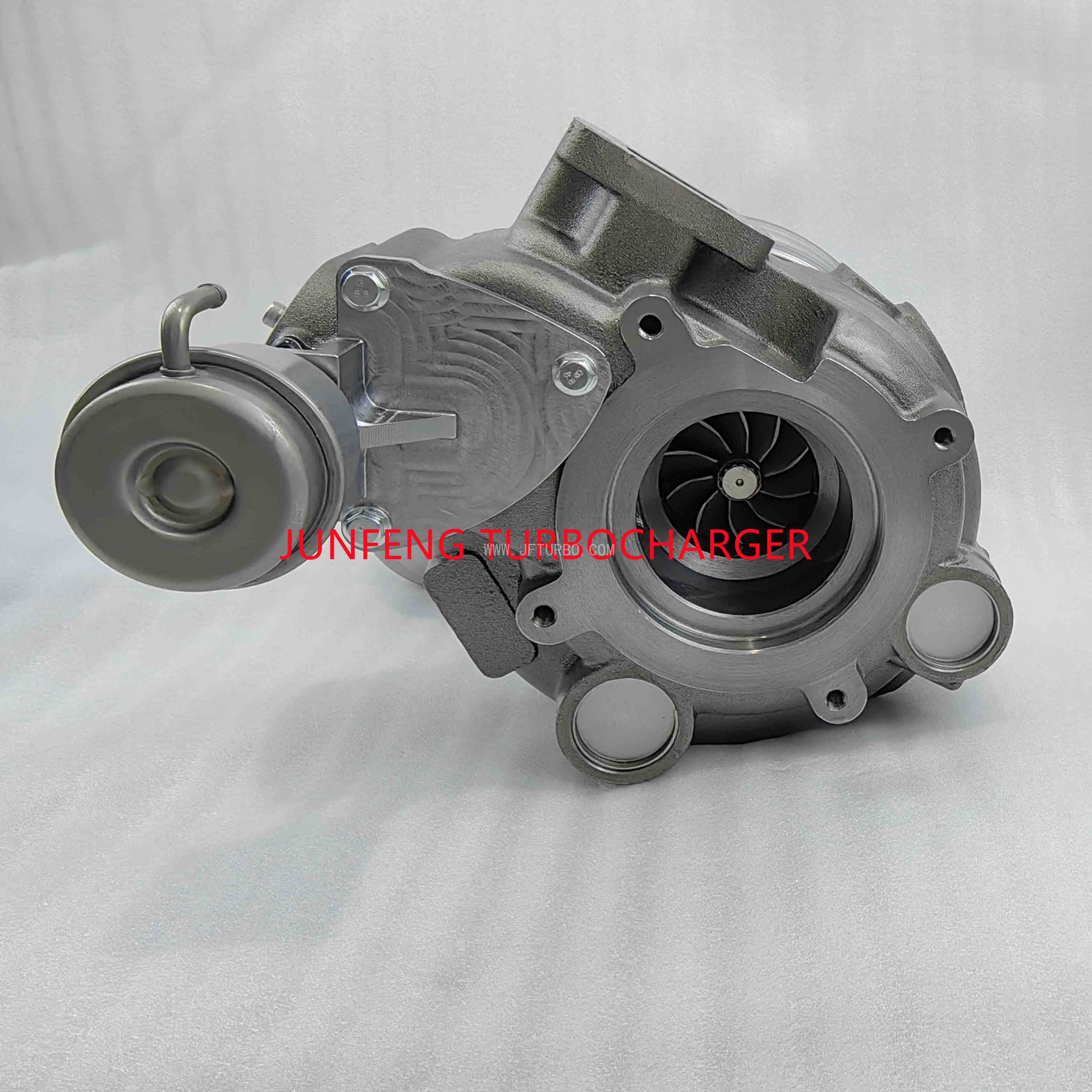

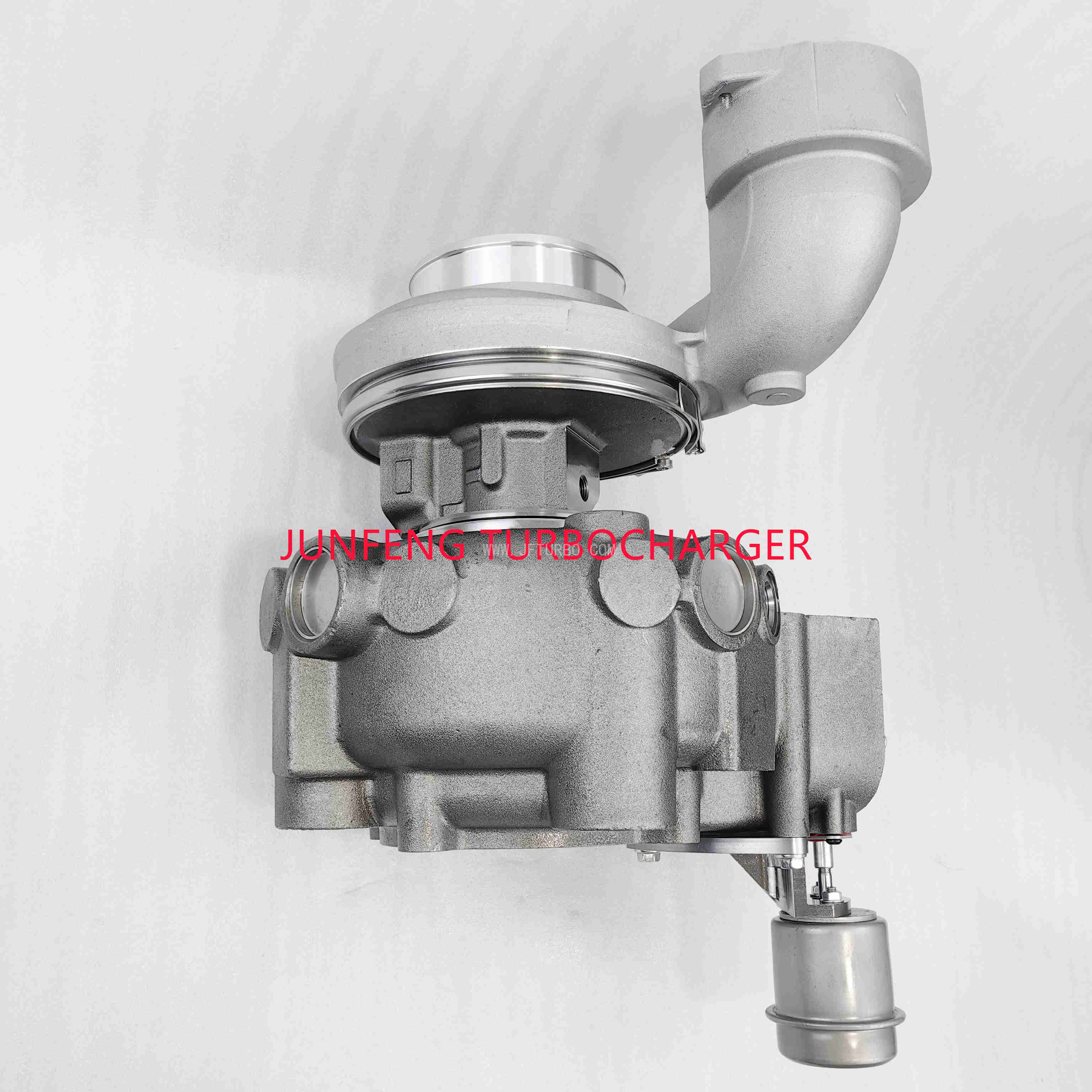

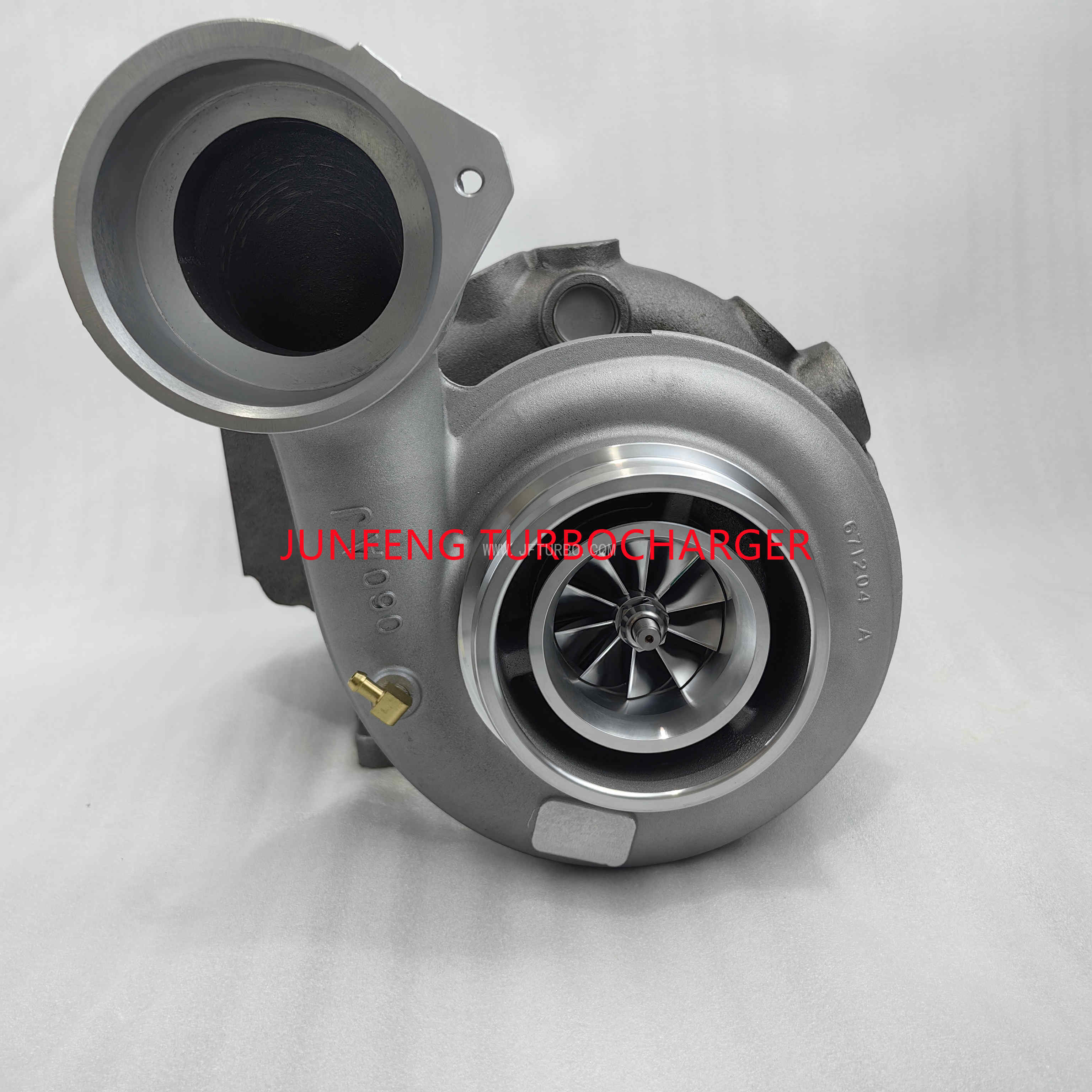

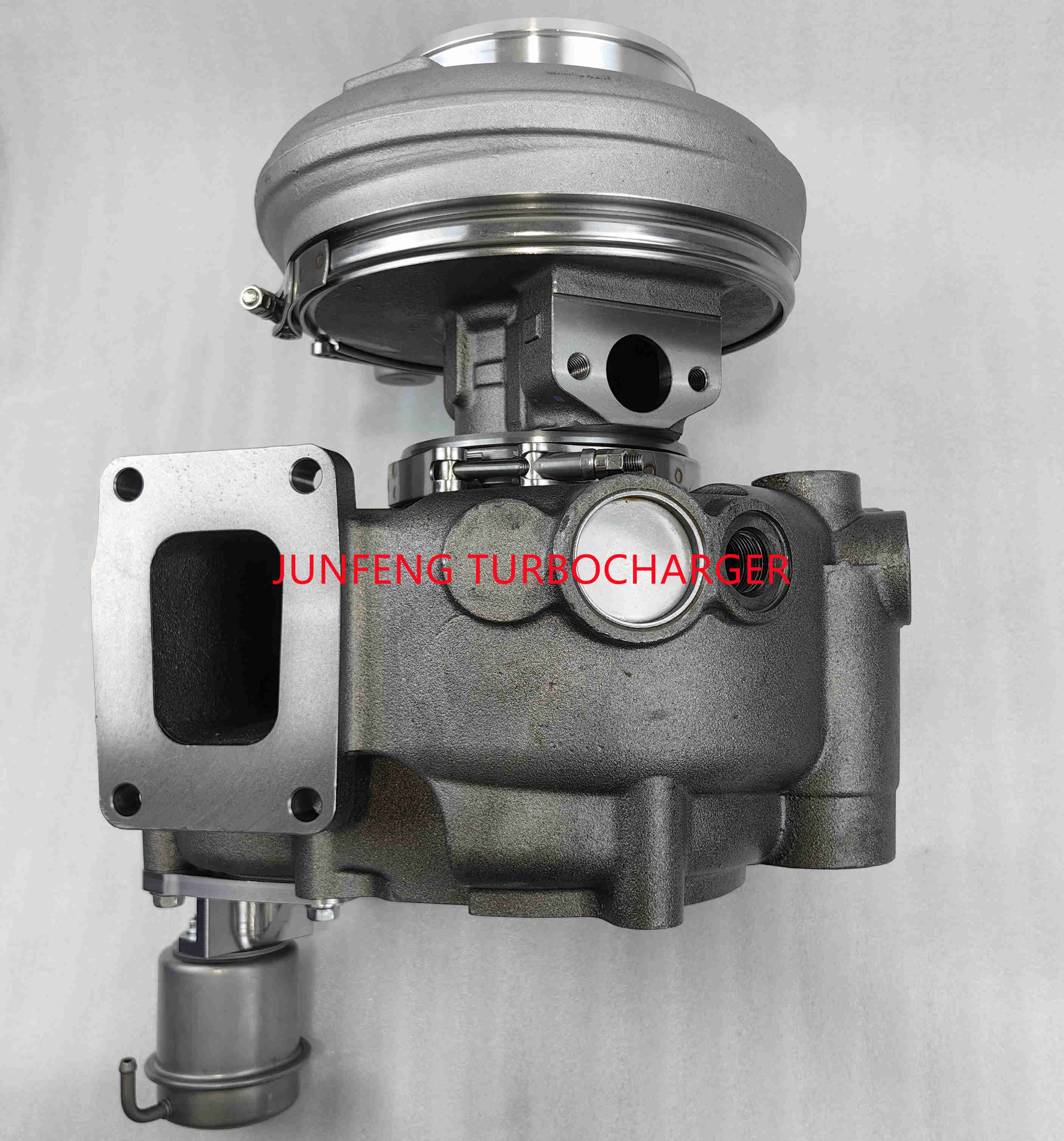

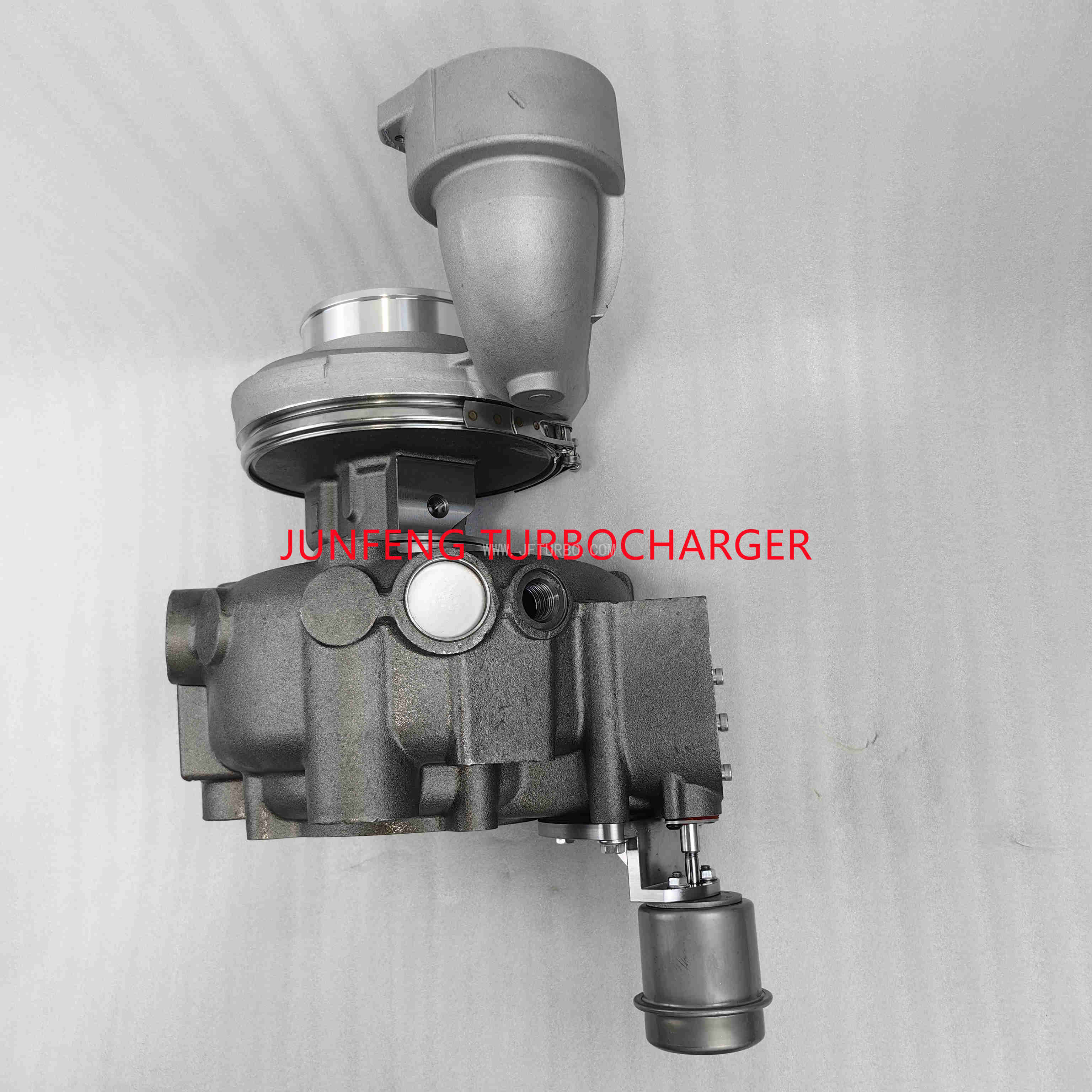

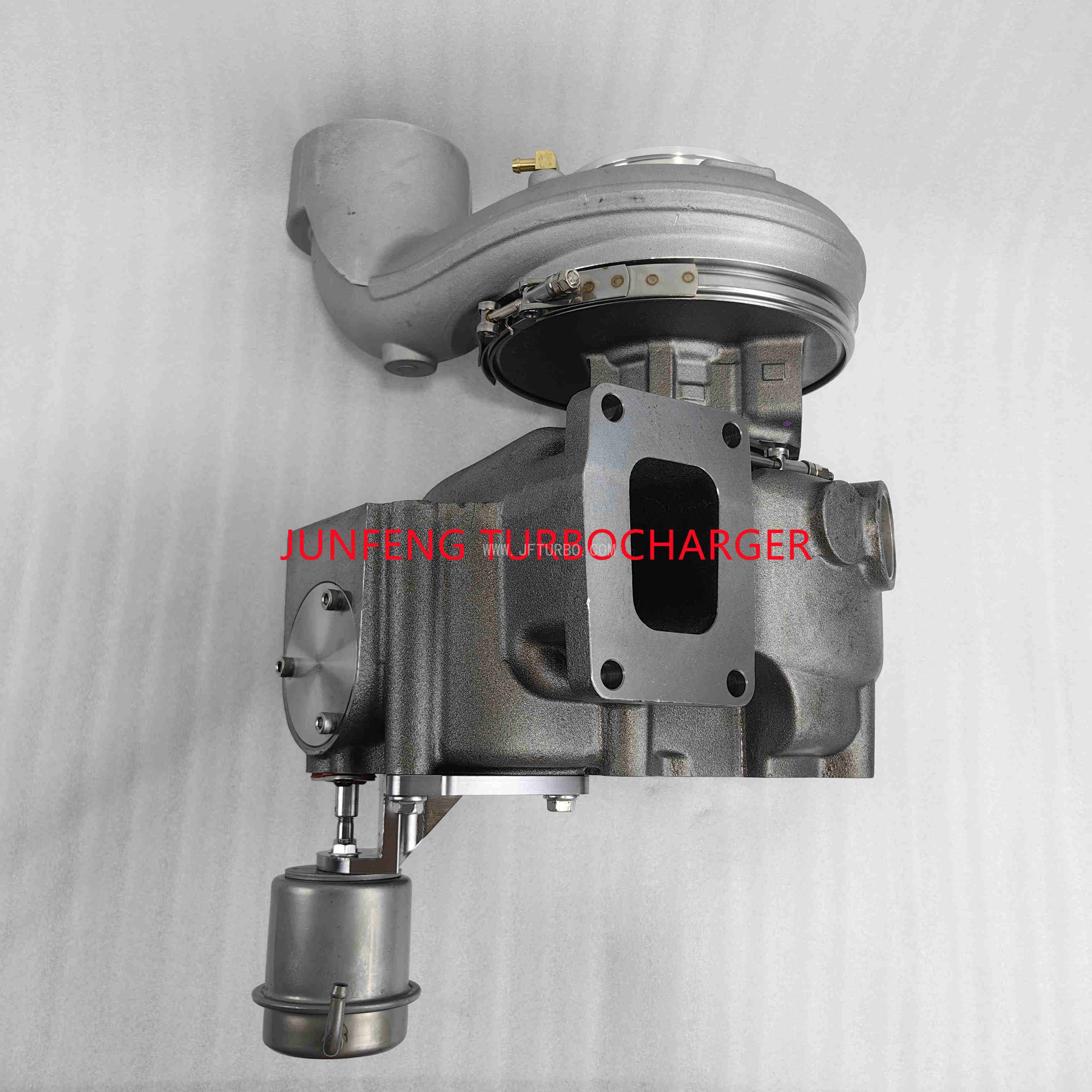

S410W047G 14809880002 14809700002 171650 194-2848 Turbocharger for Caterpillar Marine C7 3126 3126B Engine

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product Description

Part Number	171650
Previous Version	14809880002, 1480-988-0002
OE number	1942848, 194-2848
Description	Marine
CHRA	178181 (0R9930, 164-9397, 1649397)(171231, 171231R, 178181R, 471231, 478181)(14009097005)
Turbo Model	S410W, S410W047
Marine Engine	3126B, C7
Manufacturer Part Number	14809700002, 1480-970-0002
KW	130/245/177/334 HP
Displacement	7.0L, 7000 ccm
Fuel	Diesel
Engine speed	2800 RPM
S/N	3GS00001-UP, 1ZJ00001-UP, 6MK00001-UP, 9ZF00001-UP, C7X00001-UP, C7B00001-UP
Angle α (compressor housing)	270º
Angle β (turbine housing)	315º
Bearing Housing	171238 (Oil Cooled)
Turbine Wheel	171282 (Ind. 73.28 mm, Exd. 79.37 mm, 10 Blades)
Comp. Wheel	171227 (Ind. 67.65 mm, Exd. 96. mm, 10 Blades, Superback)
Back plate	NEW IN STOCK
Heat shield Number	167789 (2030016012)
Repair Kit	318396 (318397, 169637)(1253400750)
Turbine Housing (Water Cooled)	1942849 (194-2849)
Compressor Cover	2075281 (207-5281)
Wastegate	14801009003 (2063050165)
Plug-Cup	3S8313
Plug-Cup	4K0149
Replaced By	14809880002, 1480 988 0002

turbocharger fits for 2000-05 Caterpillar Marine with 3126 Engine
