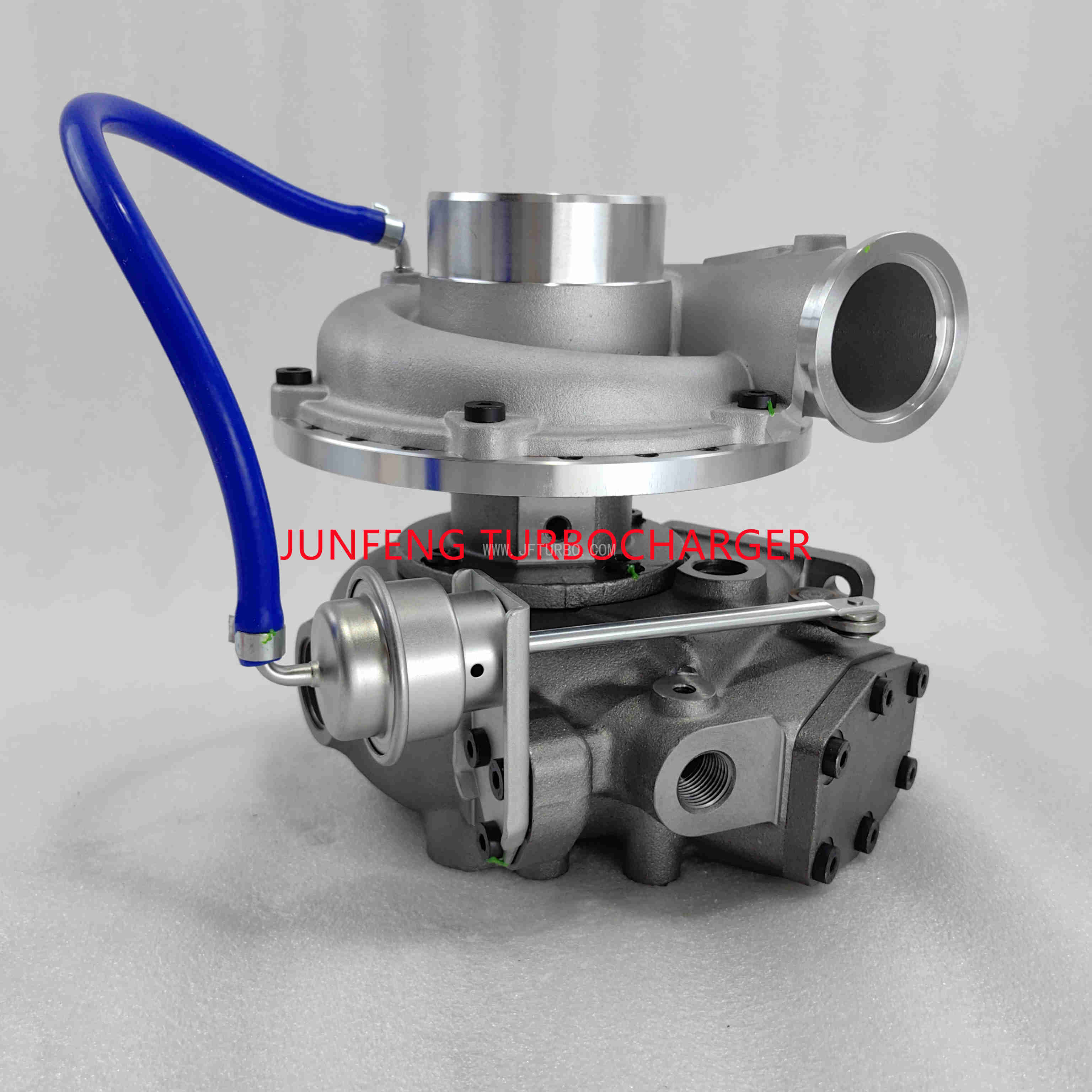

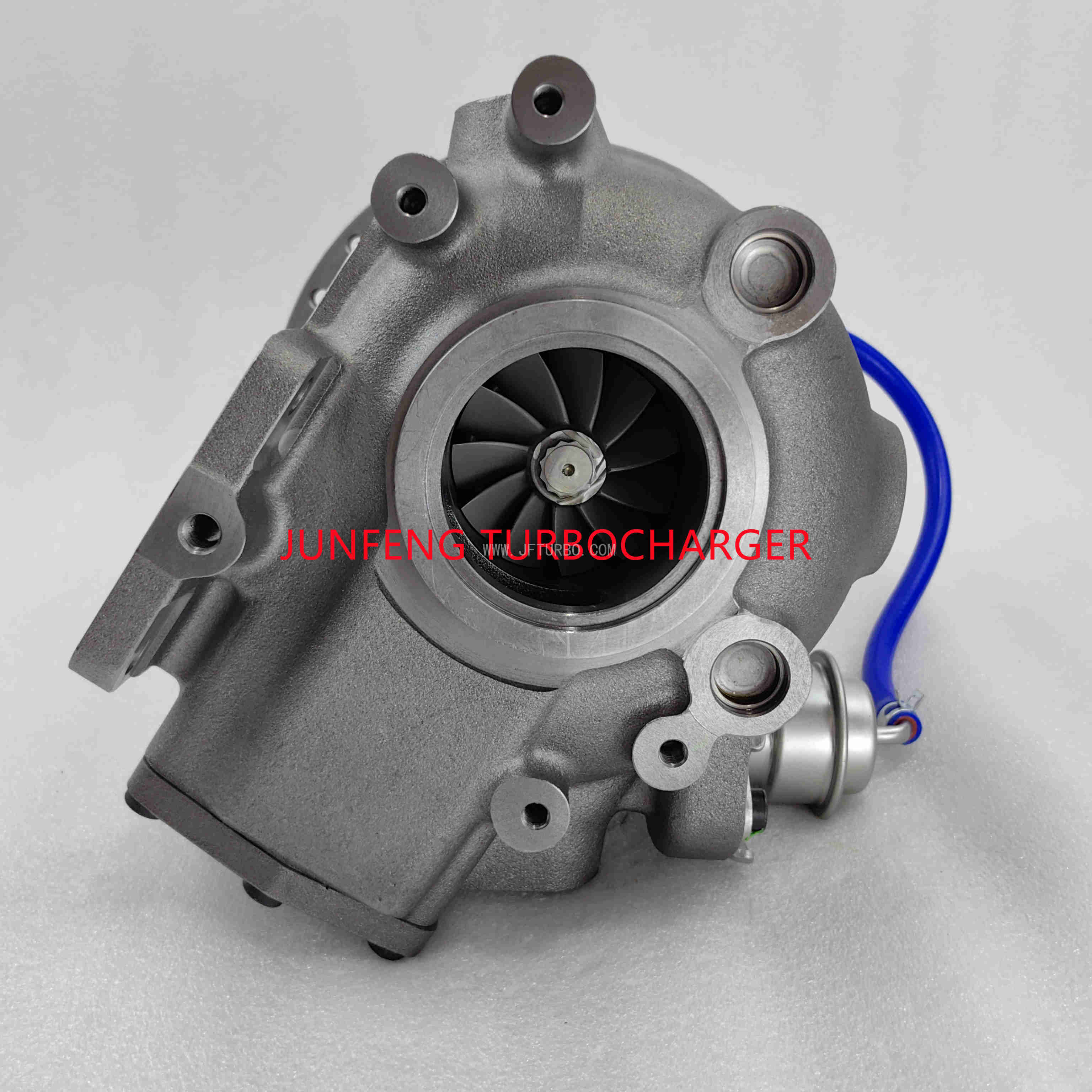

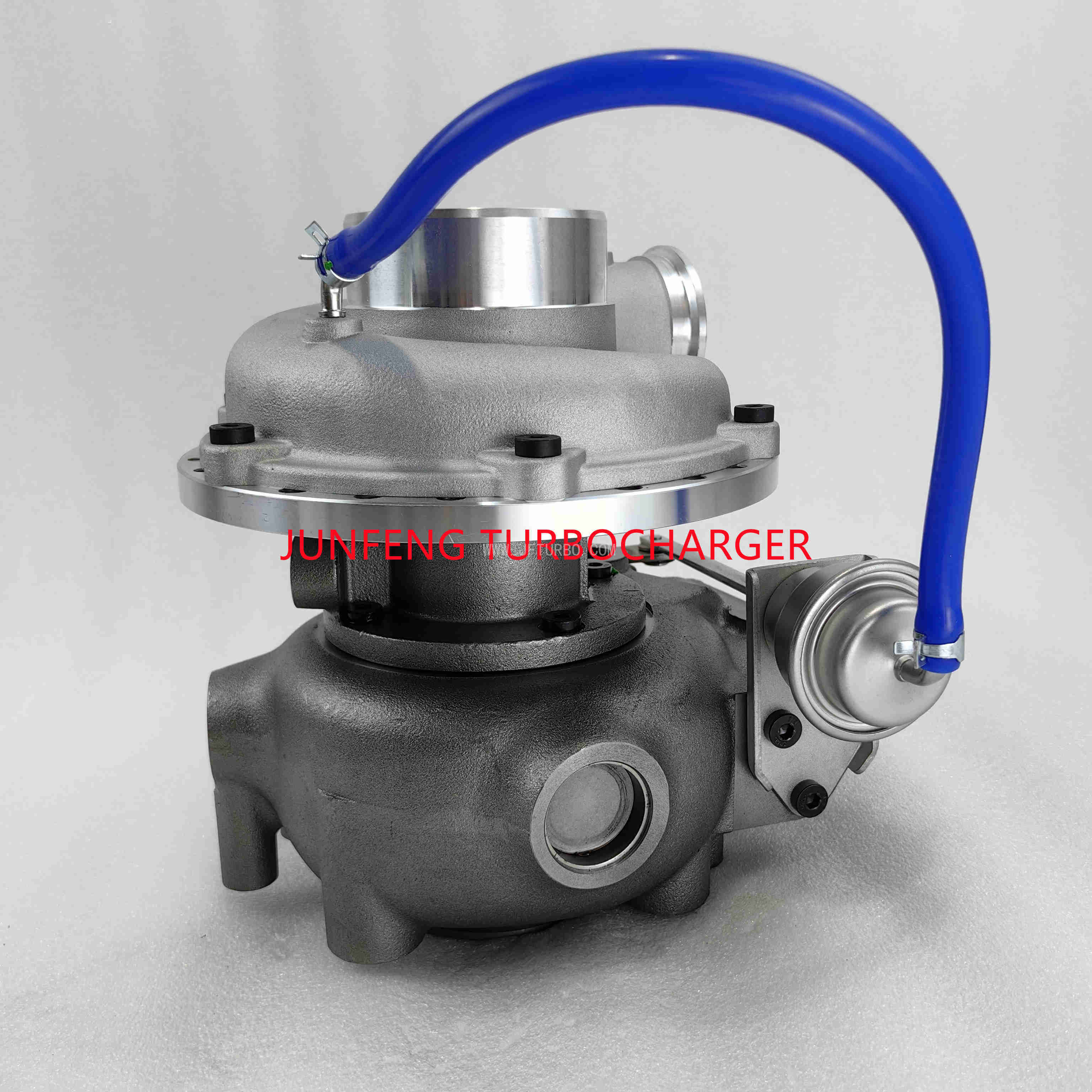

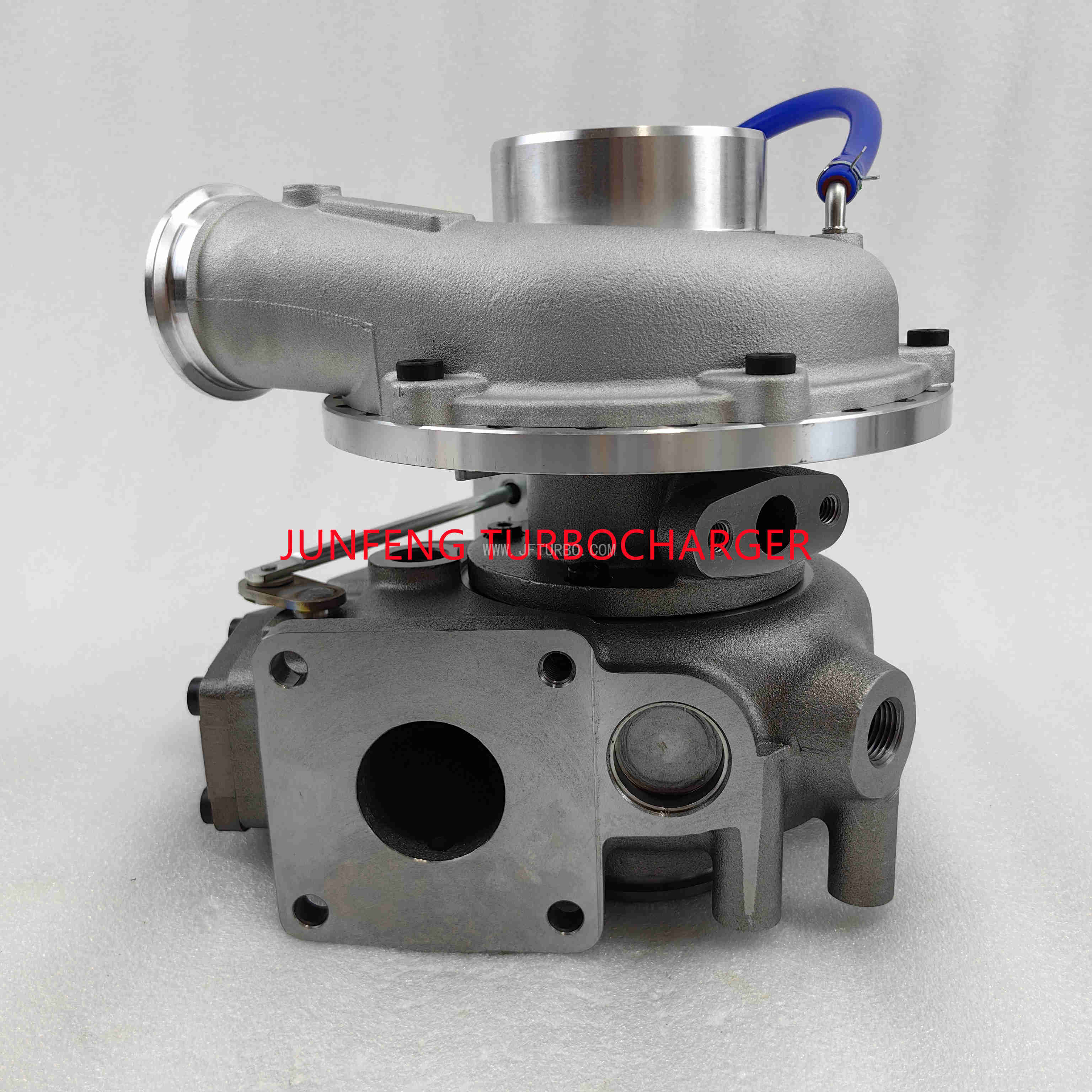

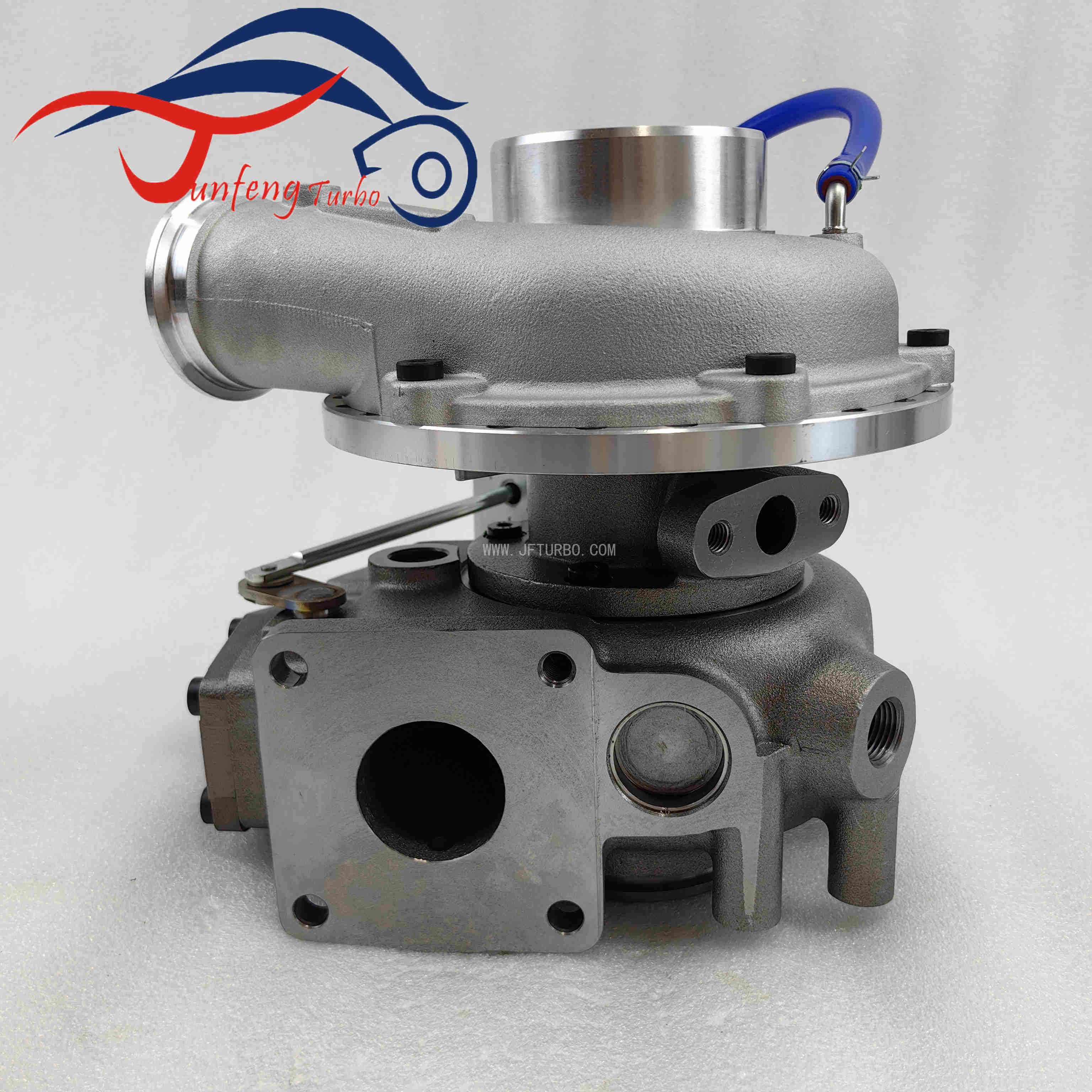

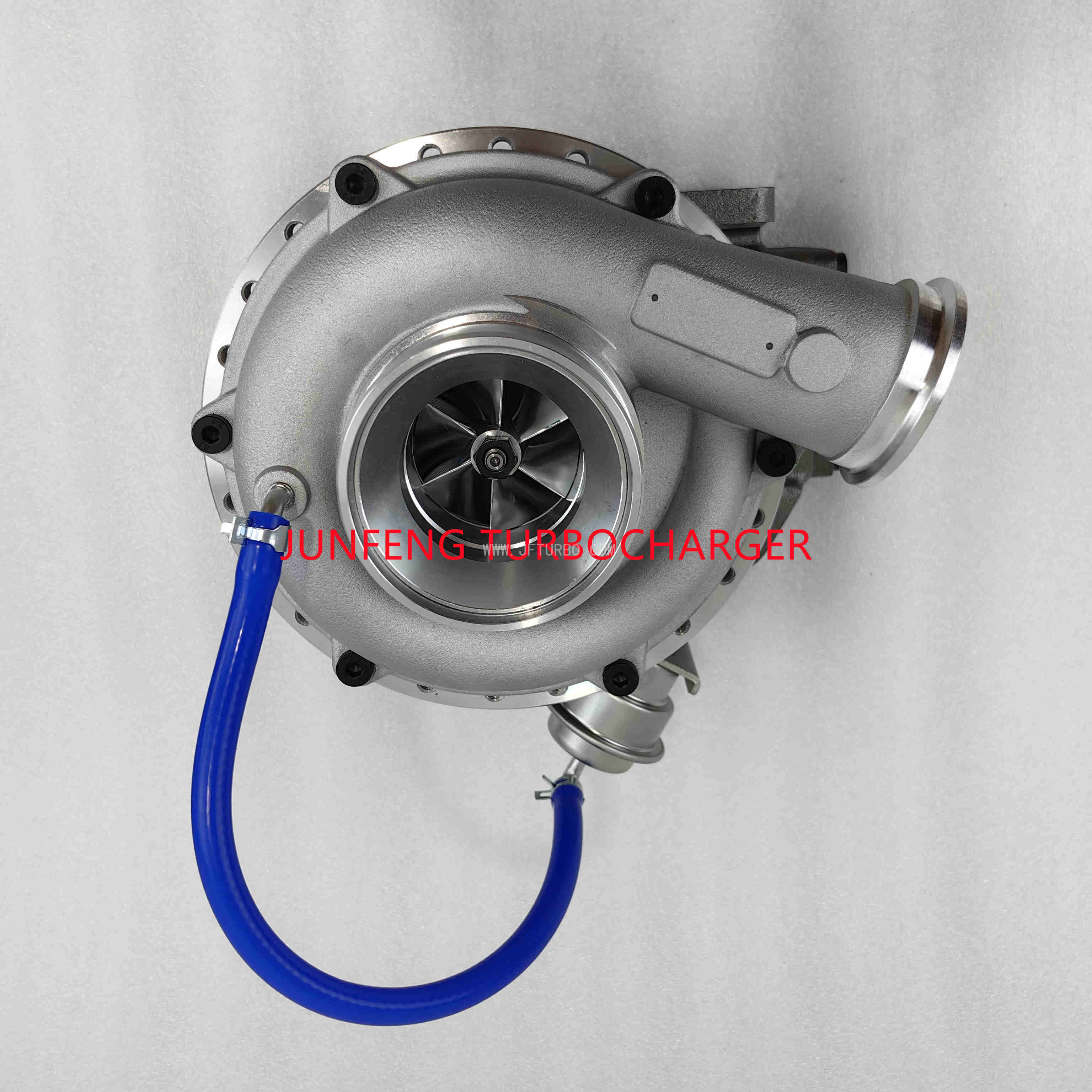

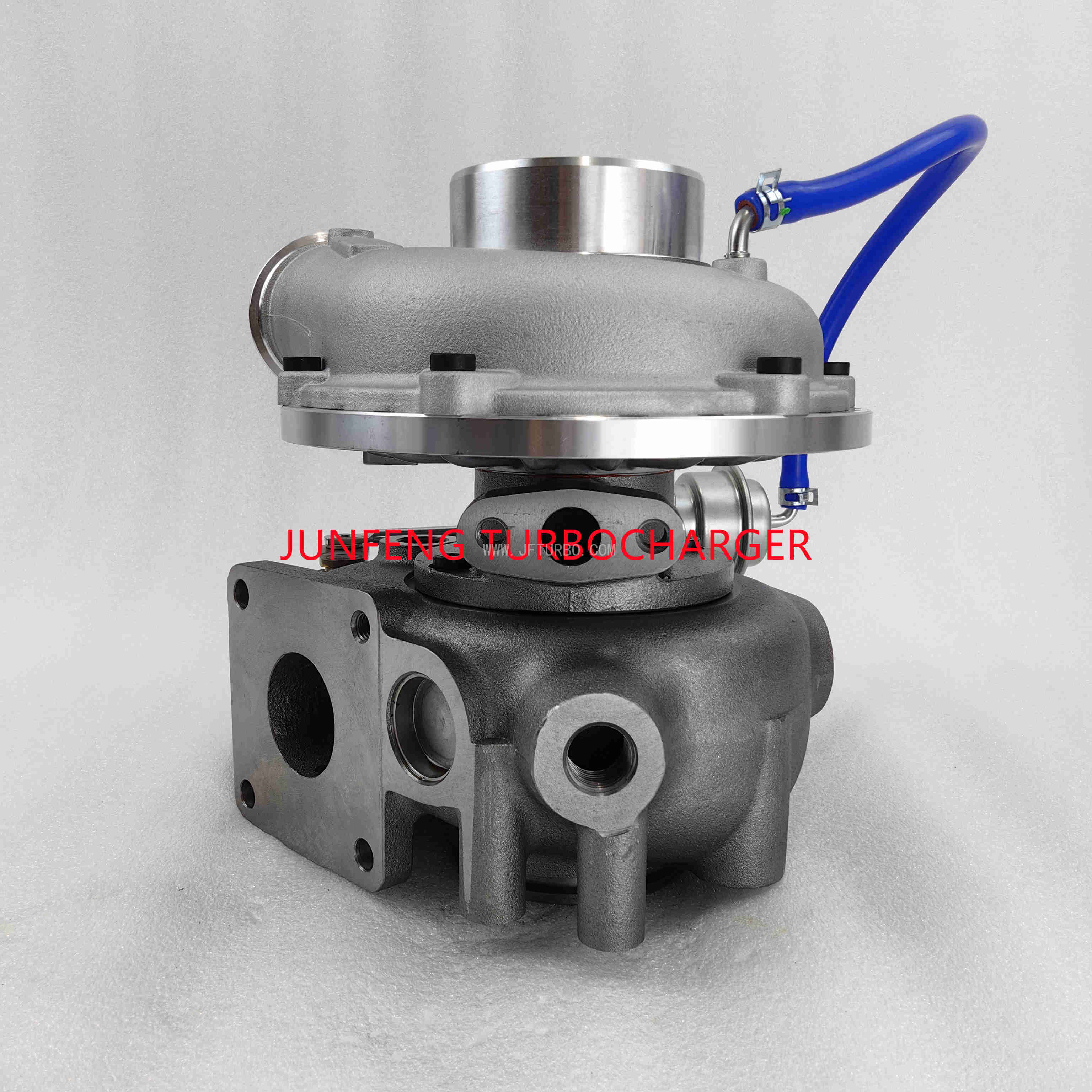

RHE62W Turbo 119773-18011 119773-18010 VC720022 MYAX Turbocharger for Yanmar Marine 6LP-DTE 6LP-DTZE Diesel Engine

OE number: 119773-18011, 11977318011 11977318010, 1-19773-18011, 1-19773-18010

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Turbo Product Description

Part Number	VC720022
Previous versions	VA720022, VB720022, VD720022
OE number	119773-18011, 11977318011, 119773-18010, 11977318010, 1-19773-18011, 1-19773-18010, E61CAD-S0022B, E61CADS0022B
V-SEPC.	MYAX
Description	Marine
CHRA	VAX10016 (E61CAD-S0033C, E61CADS0033C)
Turbo Model	RHE62W-118003P20NWBRB584CCZ
Engine	6LP-DTE, 6LP-DTZE, 6LPA-DTEP, 6LPA-DTZEP
Displacement	41.66L, 4166 ccm, 6 Cylinders
KW	254 HP
Fuel	Diesel
Angle α (compressor housing)	225°
Angle β (turbine housing)	340°
Bearing Housing	NH362709 (Oil Cooled)
Turbine Wheel	NH361206 (Ind. 64.2 mm, Exd. 69.5 mm, 11 Blades)
Comp. Wheel	NH364606 (Ind. 56.3 mm, Exd. 75.06 mm, 6+6 Blades, Superback)
Back plate	NH362112
Heat shield Number	NH365303 (NB137143, NN137055)(38T-013)(129403-18720)
Repair Kit	NH369801 (NH369802)(2445200)
Bearing	NH363001
Thrust bearing	NH363051
Piston Ring (turbine side)	NH261604 (070T-018)
Piston Ring (compressor side)	NH261605 (070T-016, 115033-0000)
Turbine Housing (Water-Cooled)	NH365419
Compressor Cover	NH364405
Turbine Housing AR	20
Actuator	NH961260 (NH961180)
Gasket(turbine inlet)	119773-18250
Gasket	23414-100000
Gasket	23414-080012
Gasket (turbine Outlet)	128300-13230
Silencer	119773-18850
Plug PF1/8	23893-010002

Application

1998- TURBOCHARGER FOR Yanmar Marine with 6LP-DTE, 6LP-DTZE Engine
