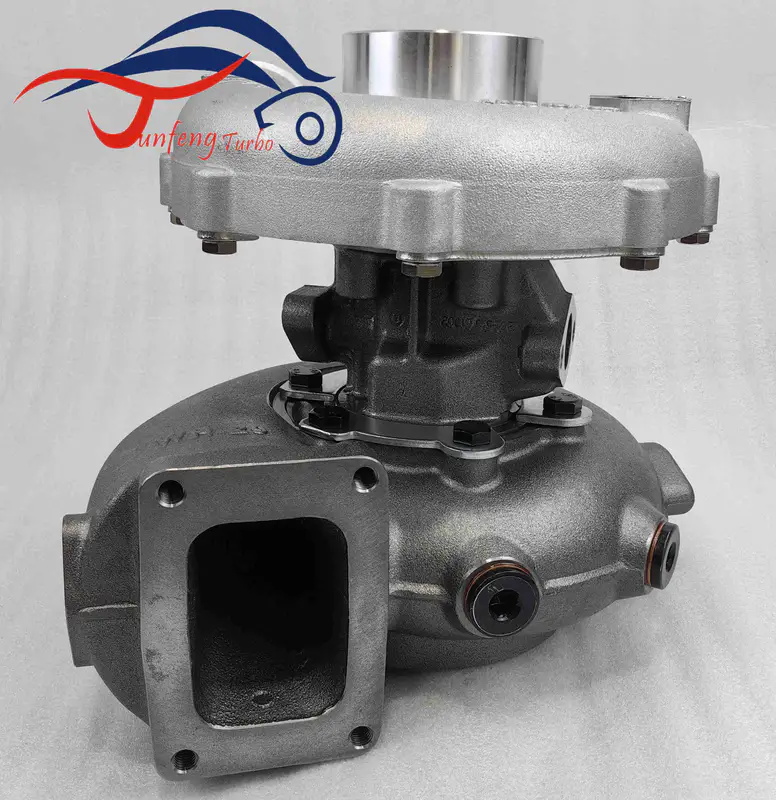

K36 Turbo 53369886793 51.09100-7239 51091007239 53369706793 Turbocharger for MAN Ship with D2842LXE Engine

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product Details

Part Number	53369886793
Previous Part Number	5336-988-6793, 5336 988 6793
OE number	51.09100-7239, 51091007239
Description	Ship
Manufacturer Part Number	53369706793, 5336-970-6793
CHRA	53367100027 (5336-710-0027)
Turbo Model	K36-4067MNA17.71GAAYB
Engine	D2842LXE
Displacement	21.93L, 21930 ccm
Fuel	Diesel
KW	1005 HP
Bearing Housing	53341500002 (Oil Cooled)
Turbine Wheel	53361202119 (53361202104, 53361202109)(Ind. 81.05 mm, Exd. 96.5 mm, Trm 14.7, 12 Blades)(1301036437)
Comp. Wheel	53371232023 (53371232021, 53371235026)(Ind. 83.6 mm, Exd. 118. mm, Trm 17.14, 7+7 Blades)(MIT0390KD)
Back plate	53361515717 (53361515712)
Heat shield Number	53341652000 (53341652001)(1301036340)
Repair Kit	53347110000 (53347110005)(1301036751)
Turbine Housing (water-cooled)	53361006407
Compressor Cover	53361015032
Turbine Housing AR	21
Gasket (turbine inlet)	210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)

Applications

1987-09 turbocharger fits for MAN Ship with D2842LXE Engine
