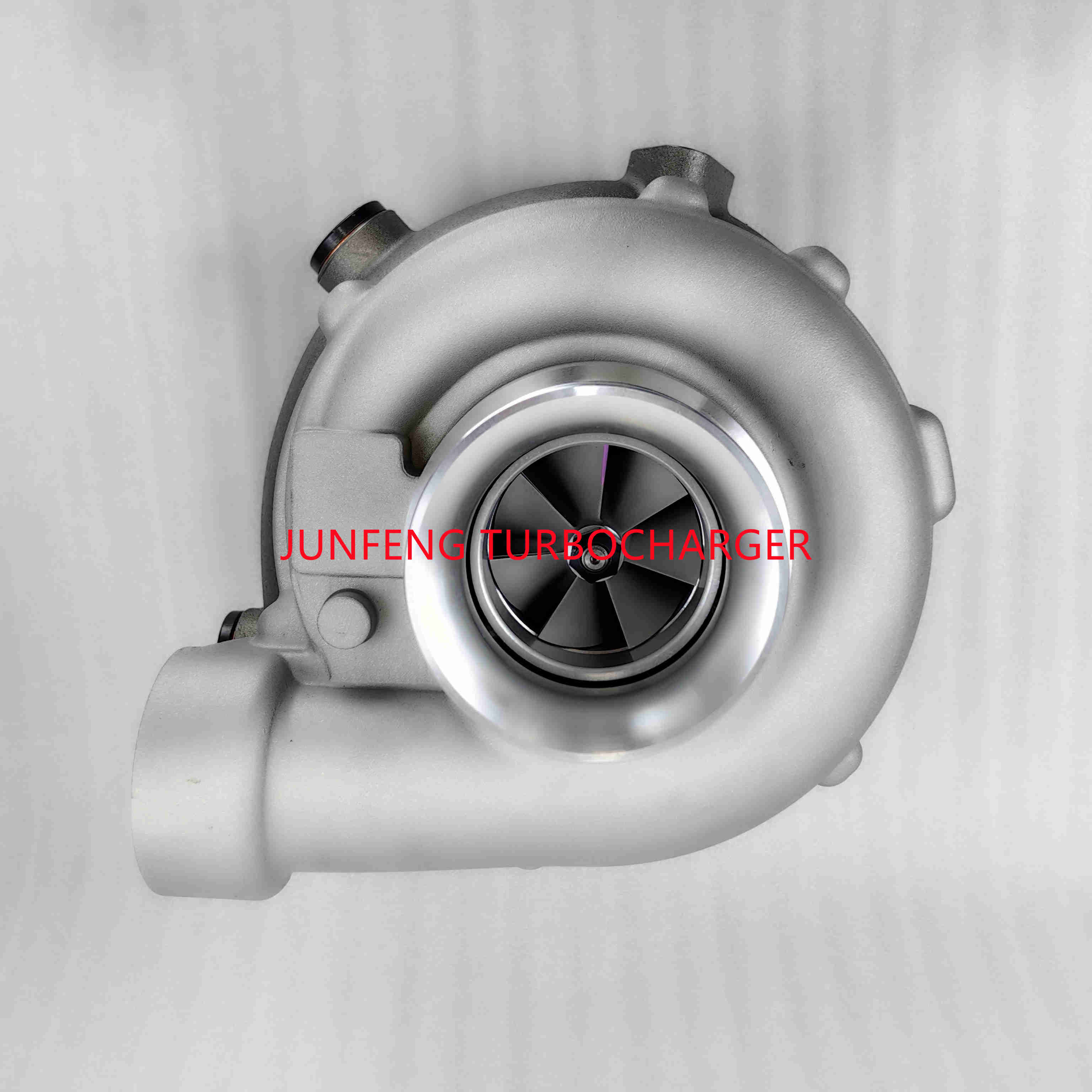

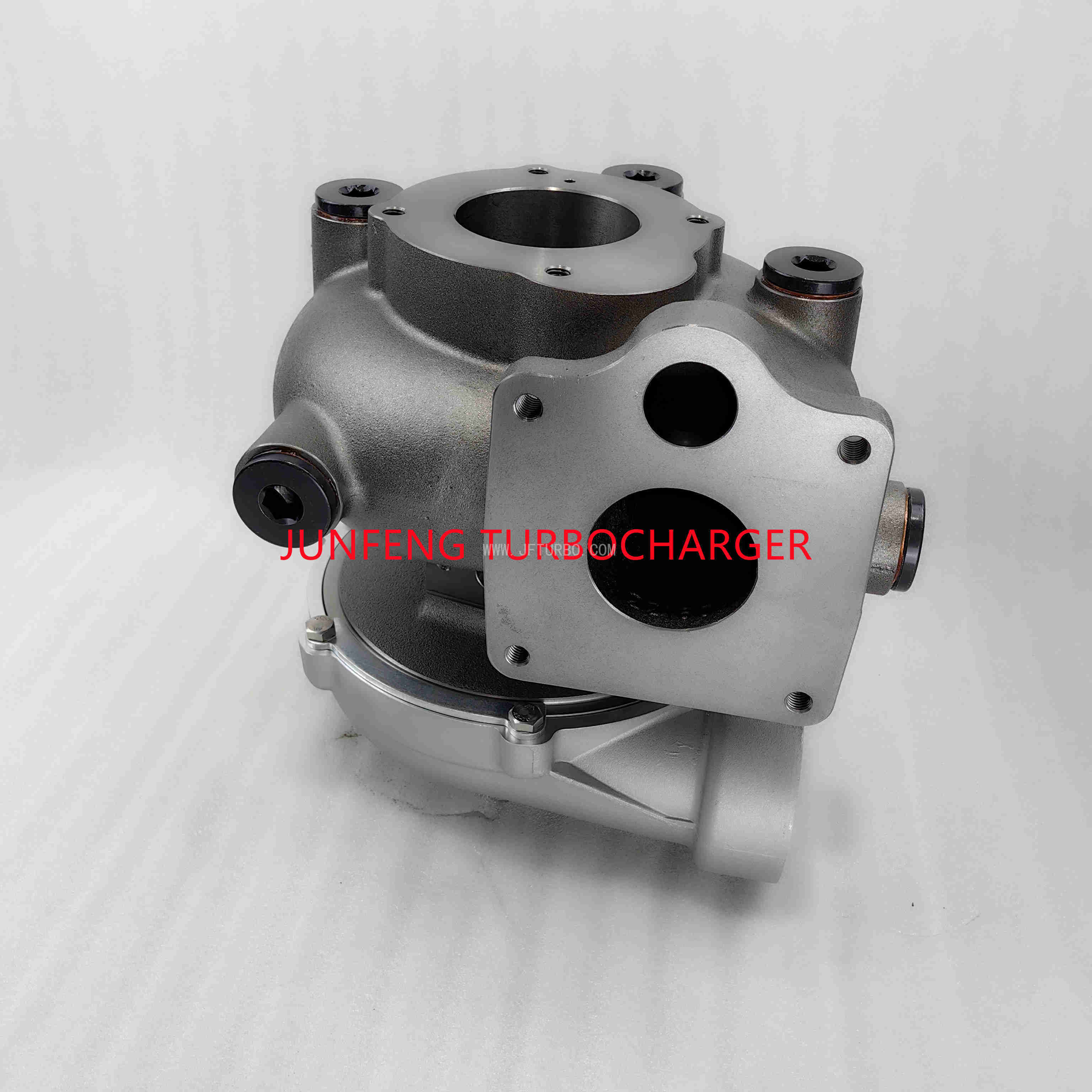

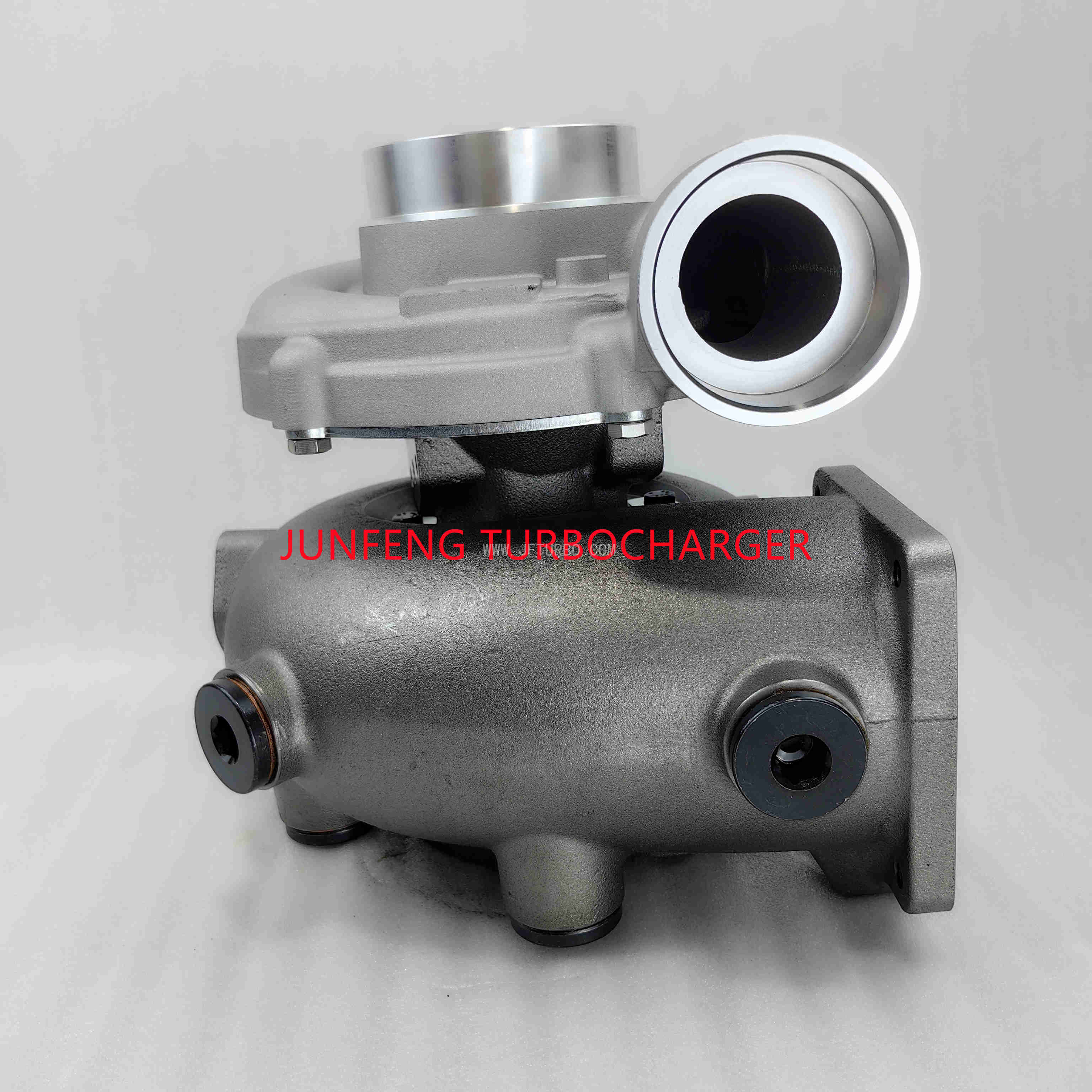

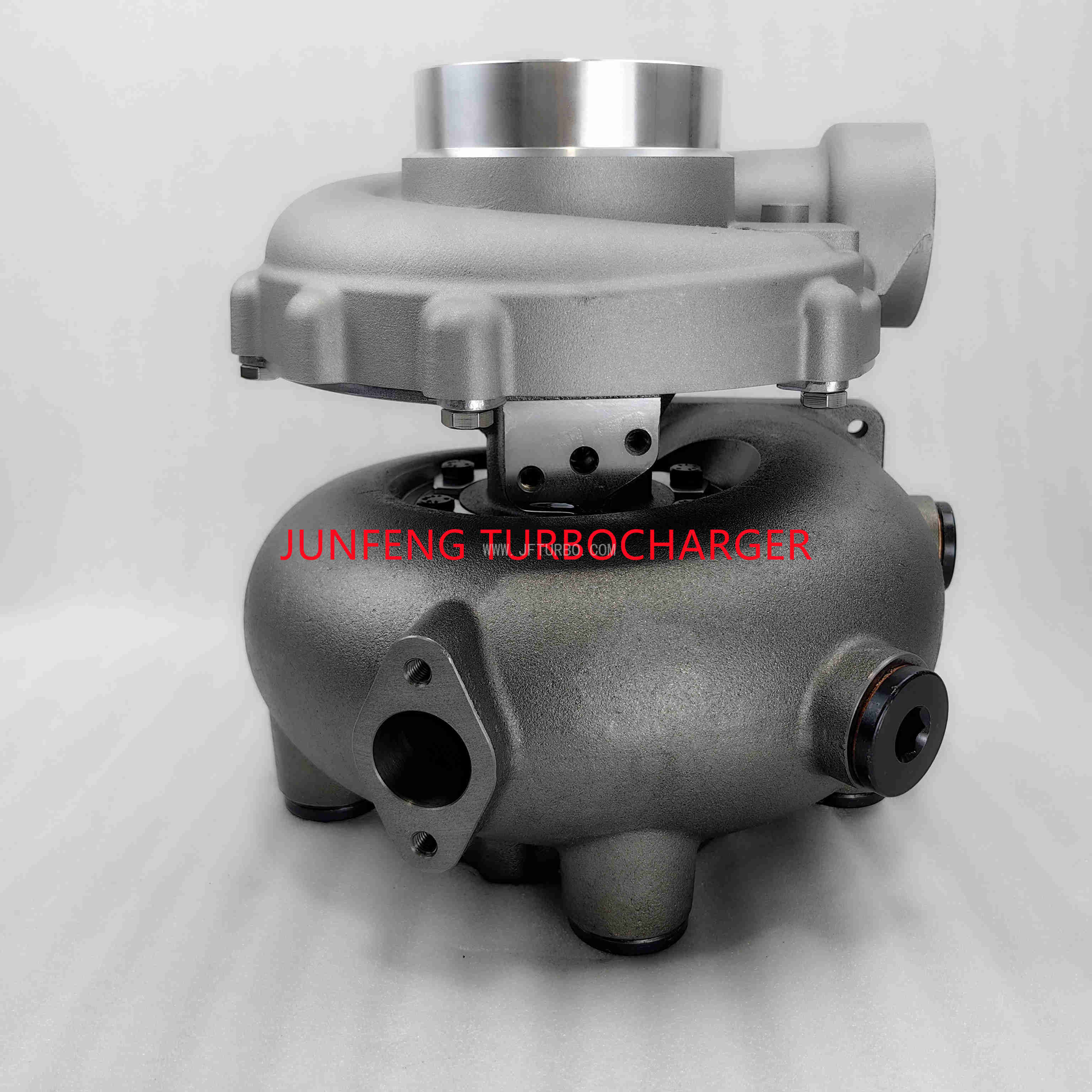

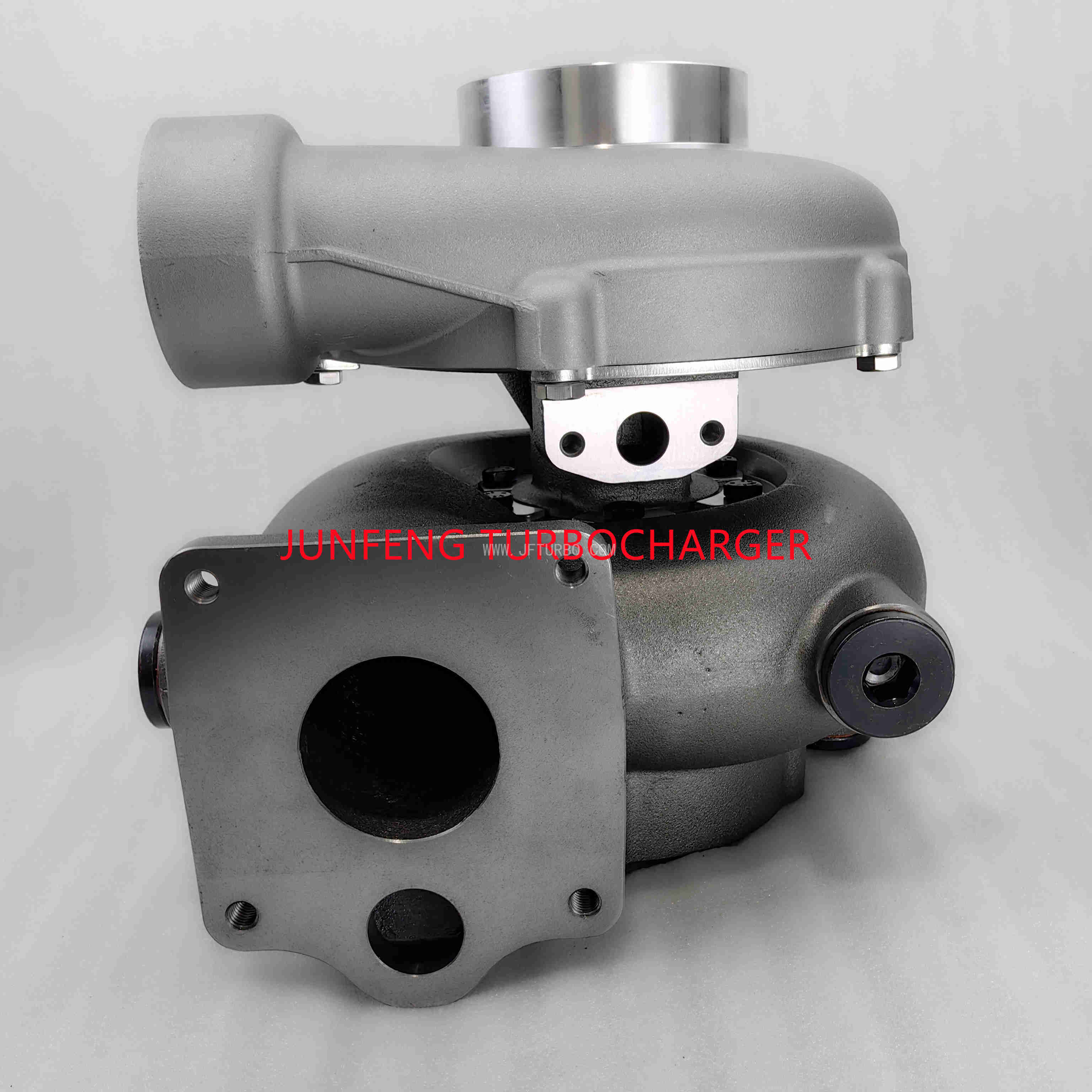

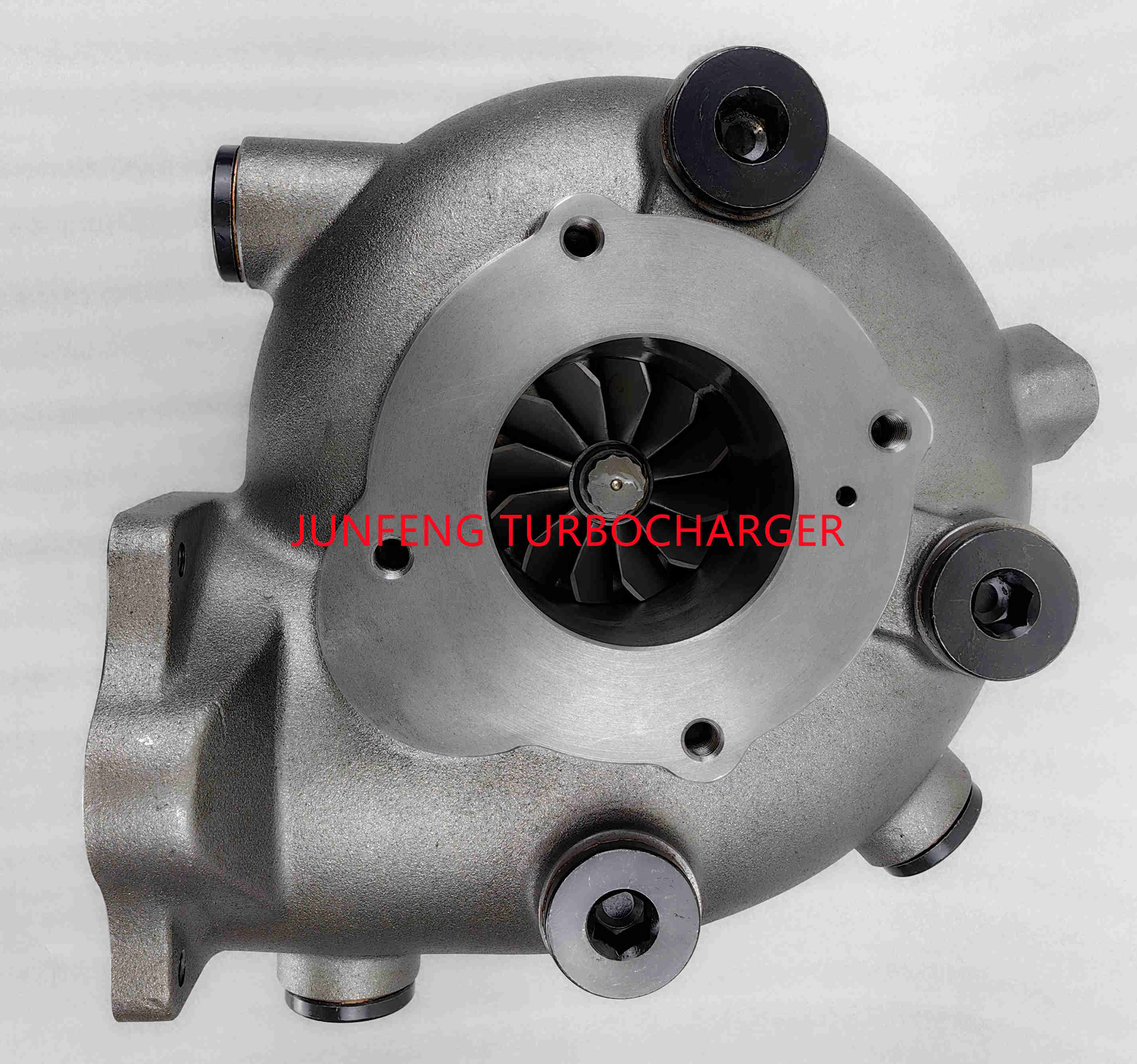

K29 Turbo 53299887108 70960299 70960399 Turbocharger for MTU Ship with 12V2000M40 M50 M60 Engine

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product Description

Part Number	53299887108
Previous Version	5329-988-7108, 5329 988 7108
OE number	0070960299, 0070960399, 70960299, 70960399
Description	MTU Ship
Manufacturer Part Number	53299707108, 53299717108, 5329-970-7108, 5329-971-7108
CHRA	53297100019 (5329-710-0019)
Turbo Model	K29-3771OOAKB22.72GAAXB
Engine	12V2000M40/M50/M60
Displacement	23.89L, 23890 ccm
KW	600/813
Fuel	Diesel
RPM	1800
Angle α (compressor housing)	51/158°
Angle β (turbine housing)	18/15°
Bearing Housing	53311500004 (Oil Cooled)(1900011255)
Turbine Wheel	53291205009 (Ind. 73.3 mm, Exd. 95. mm, 12 Blades)
Comp. Wheel	53311232001 (Ind. 65.14 mm, Exd. 80.07 mm, 7+7 Blades, Superback)
Back plate	53311523002 (53291523003)
Heat shield Number	53311652001
Repair Kit	53317110005 (53317110003)(Major)(1301031750)
Turbine Housing (Water cooled)	53291006400
Compressor Cover	53311013000
NOTE	Inter-cooler
Manufacturer	BOOSHIWHEEL

turbocharger for 2000-12 MTU Ship with 12V2000M40/M50/M60 Engine
