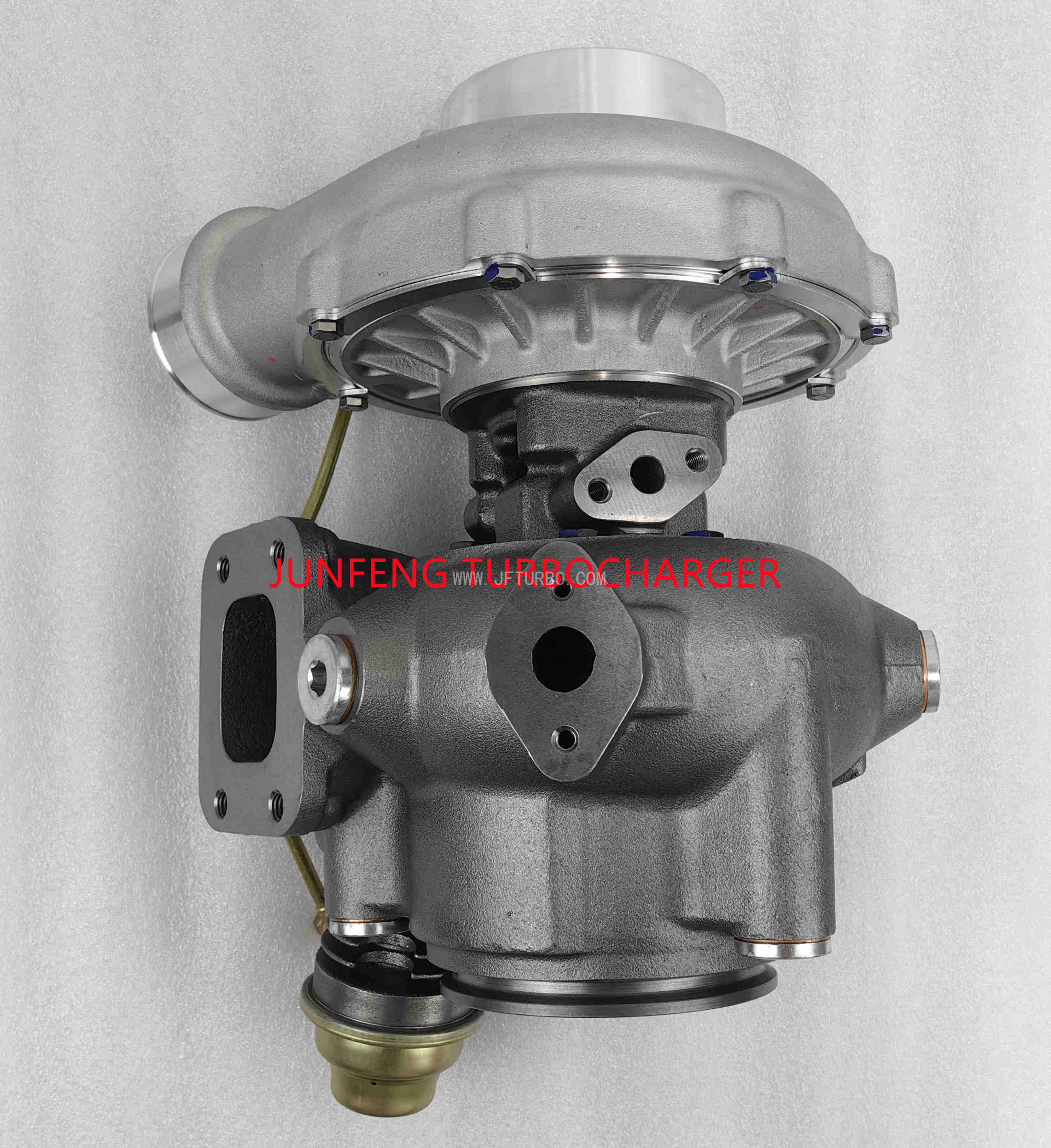

K27 Turbo 53279986745 53279886745 53279886789 53279886740 866639 3826913 turbocharger for Volvo Penta Ship with TAMD63P-A Engine

Part Number: 53279886740, 5327-988-6745, 5327-998-6745, 53279886789,5327-988-6789

OE number: 3827451, 3827451-0, 38274510, 3828361, 38.021.27, 38.300.94, 86.663.9, 38.269.13, 38.274.51

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Part Number	53279986745
Previous Version	53279886740, 5327-988-6745, 5327-998-6745, 53279886789,5327-988-6789
OE number	3802127, 3830094, 866639, 3826913, 3827451, 3827451-0, 38274510, 3828361, 38.021.27, 38.300.94, 86.663.9, 38.269.13, 38.274.51
Year	2001-05
Description	Ship
Manufacturer Part Number	53279706740, 53279706745, 5327-970-6740, 5327-970-6745, 5327-970-6789, 53279706789
CHRA	53277100156 (5327-710-0156) $1130.78 NEW IN STOCK
Turbo Model	K27-3767OHAKB/7.61, K27-3767OHAKB7.61GZASB
Engine	TAMD63P-A
Displacement	5.6L, 5600 ccm
KW	280/381
RPM Max	2800
Angle α (compressor housing)	80°
Angle β (turbine housing)	90°
Bearing Housing	53271500010 (Oil Cooled)(1301027450)
Turbine Wheel	53271205008 (3825121)(Ind. 63.98 mm, Exd. 76.12 mm, 12 Blades)
Comp. Wheel	53311232017 (3825123)(Ind. 61.70 mm, Exd. 94.90 mm, 7+7 Blades, Superback)
Back plate	53291515706 (53291515710)
Heat shield Number	53271652003 (53271652002, 53271652016)(838563, 312861)(1301027341)
Repair Kit	53277110023 (53277110054, 53277110053, 53277110055)(866286)(1301027751)
Turbine Housing (water-cooled)	53271007006
Compressor Cover	53311013025
Turbine Housing AR	7
Actuator	58061100217 (3828598)
settings Waste gate (pressure)	2.70 bar
settings Waste gate (lift shaft)	0.90 mm
Gasket Kit	876955 (215579)
Gasket Actuator	864778 7

Applications

2001-05 Volvo Penta Ship with TAMD63P-A Engine
