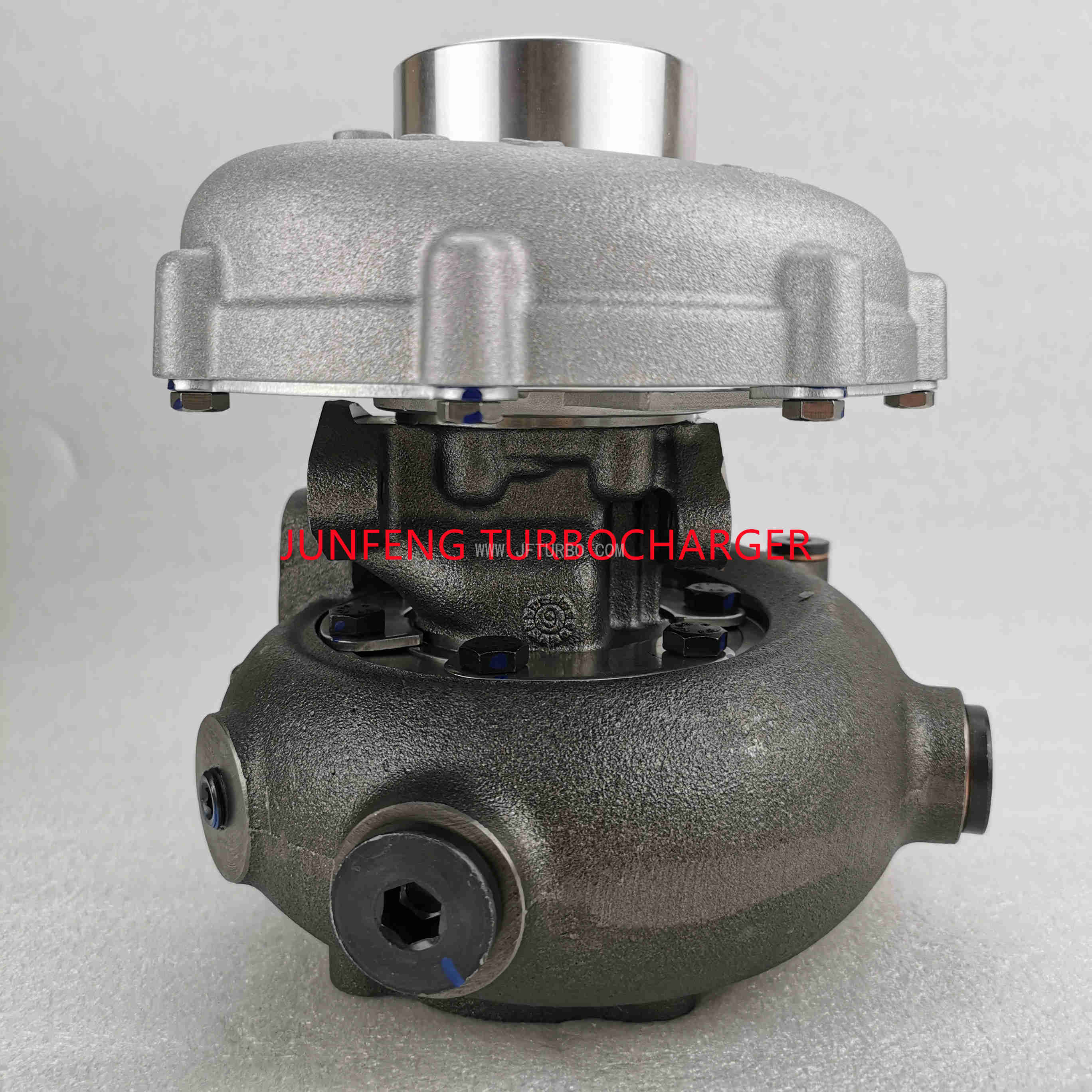

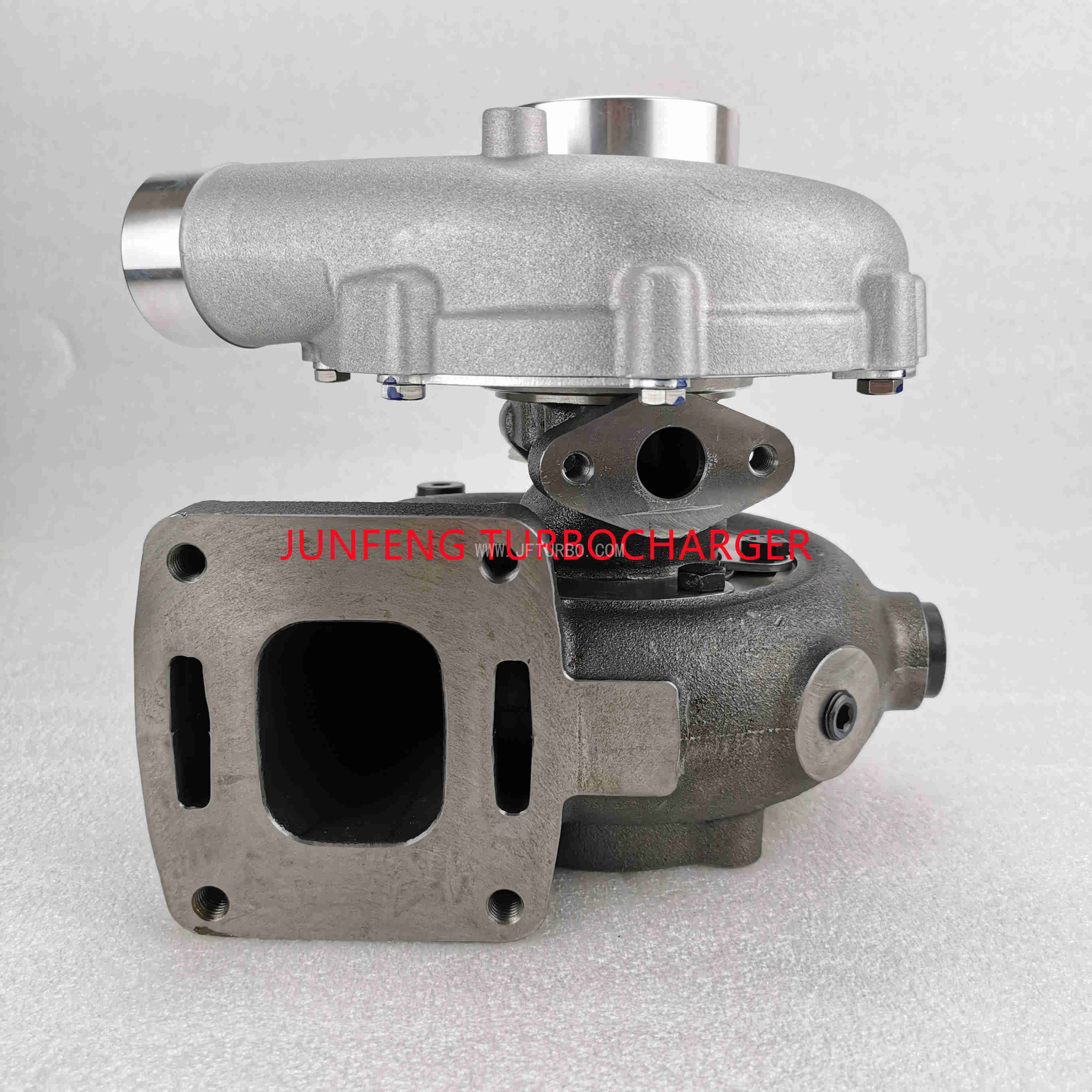

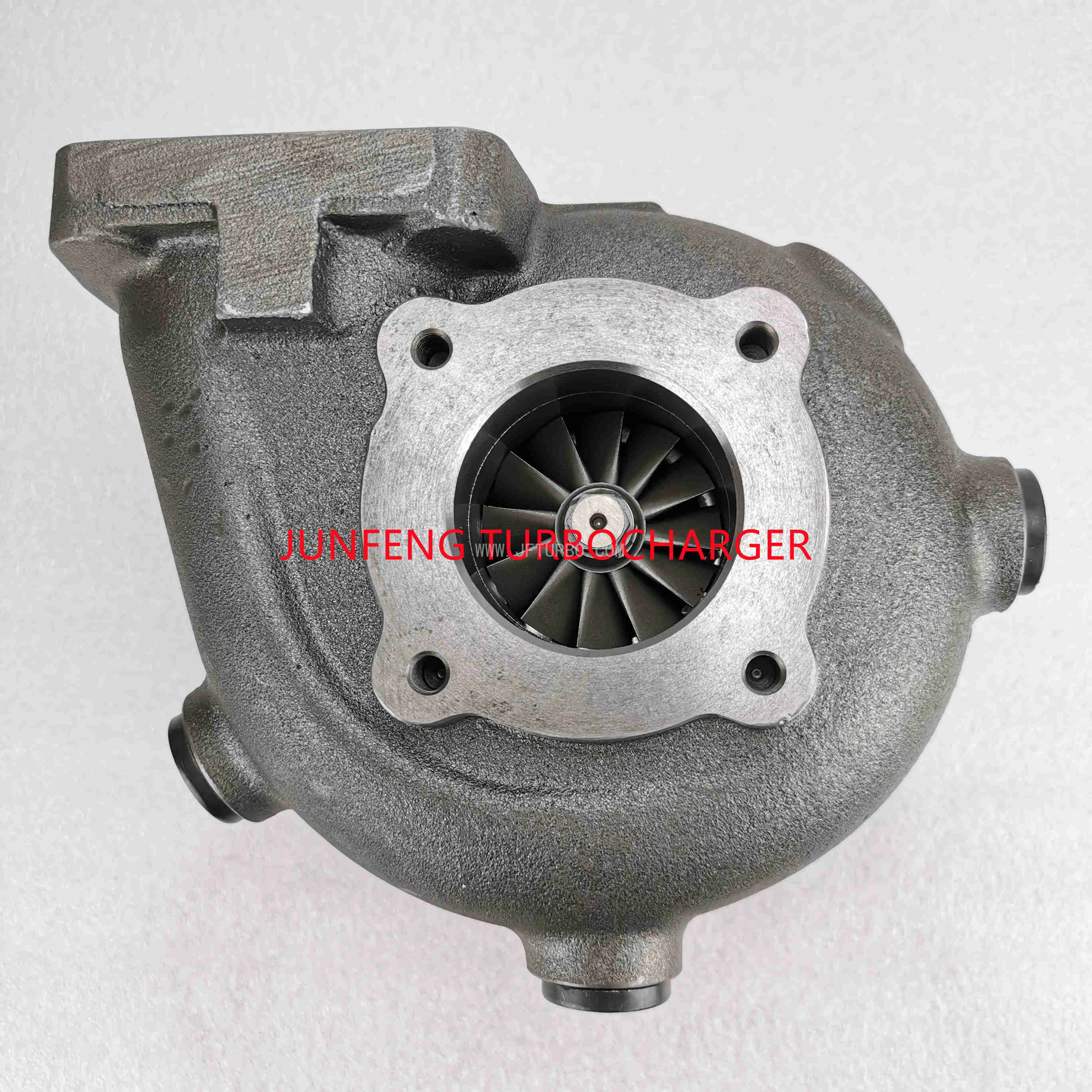

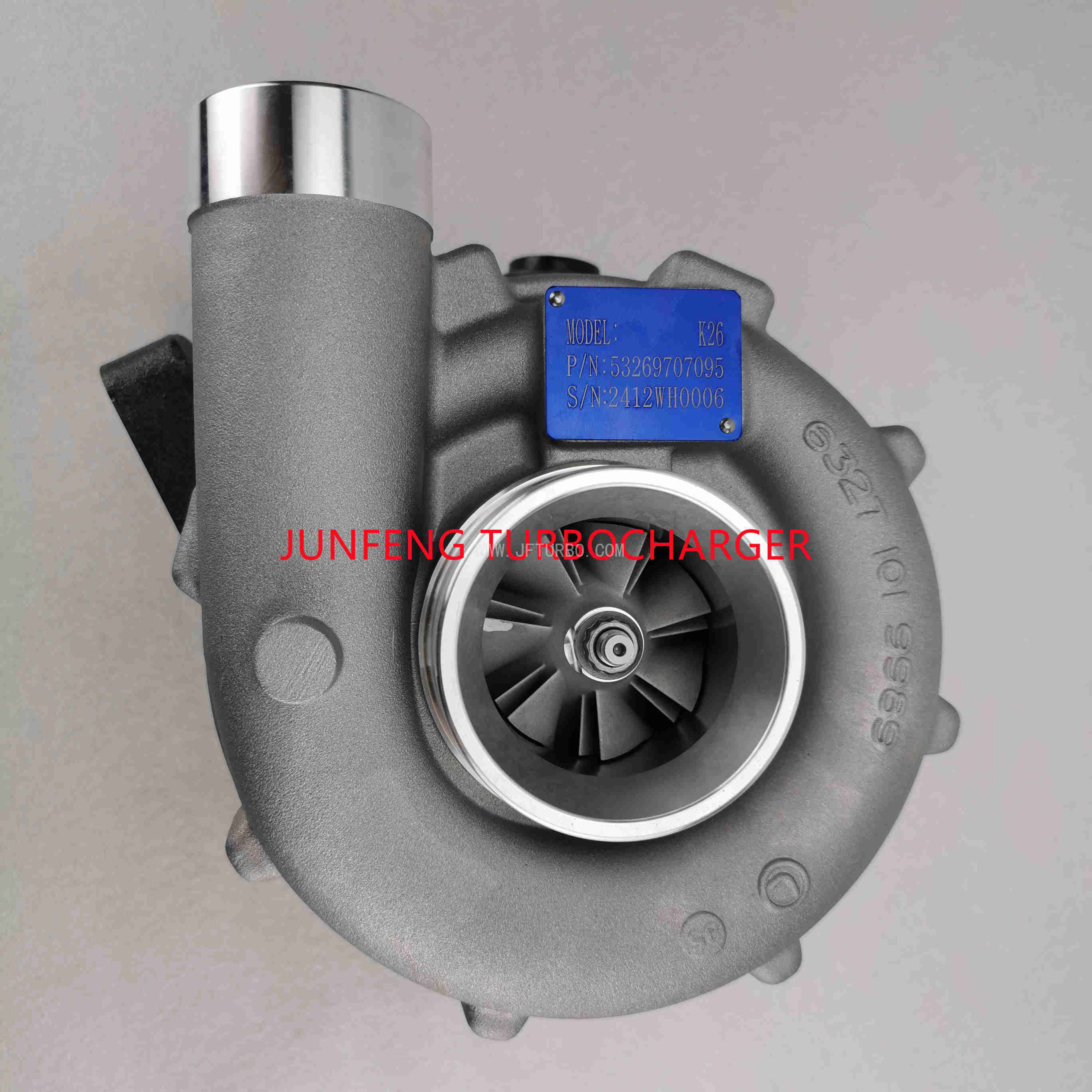

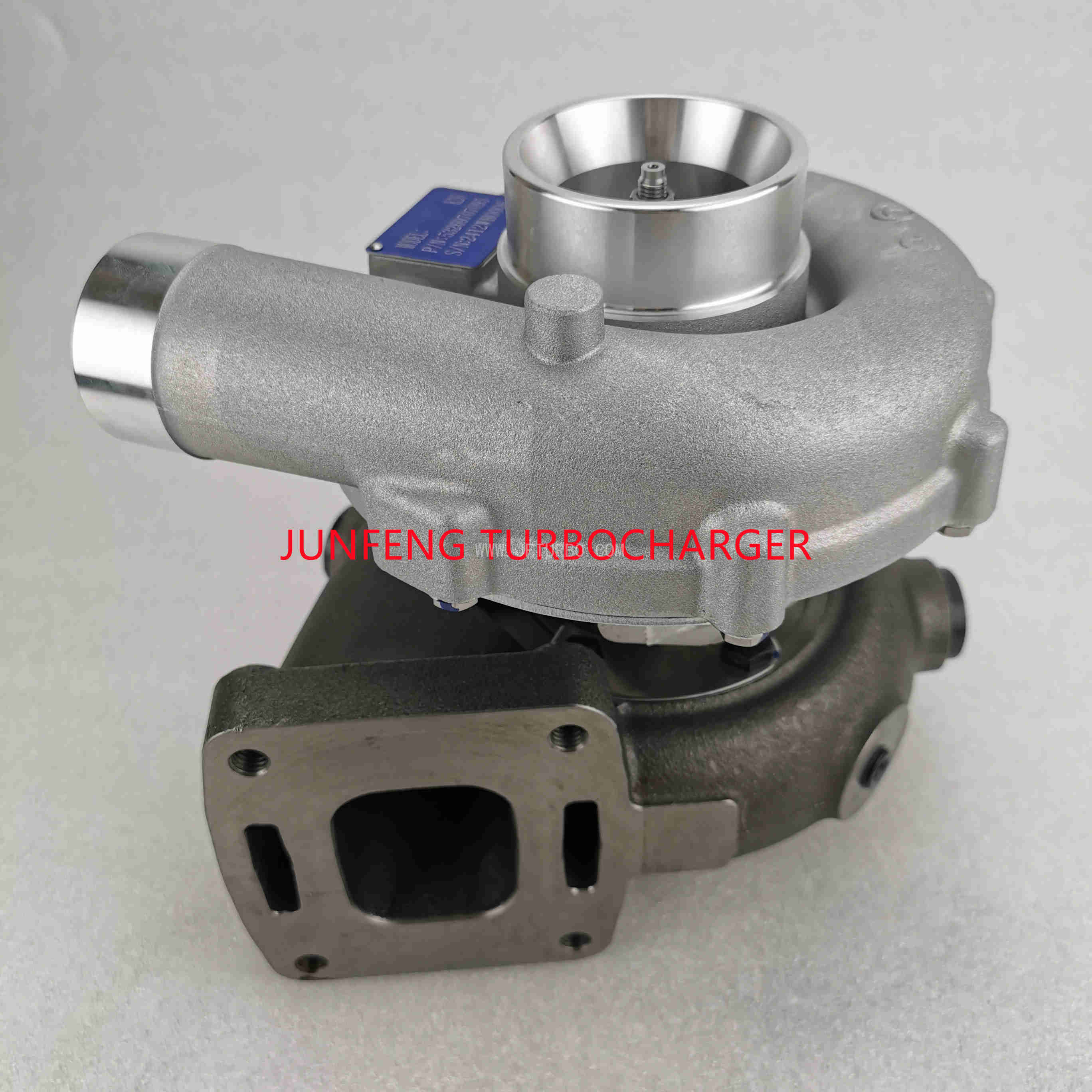

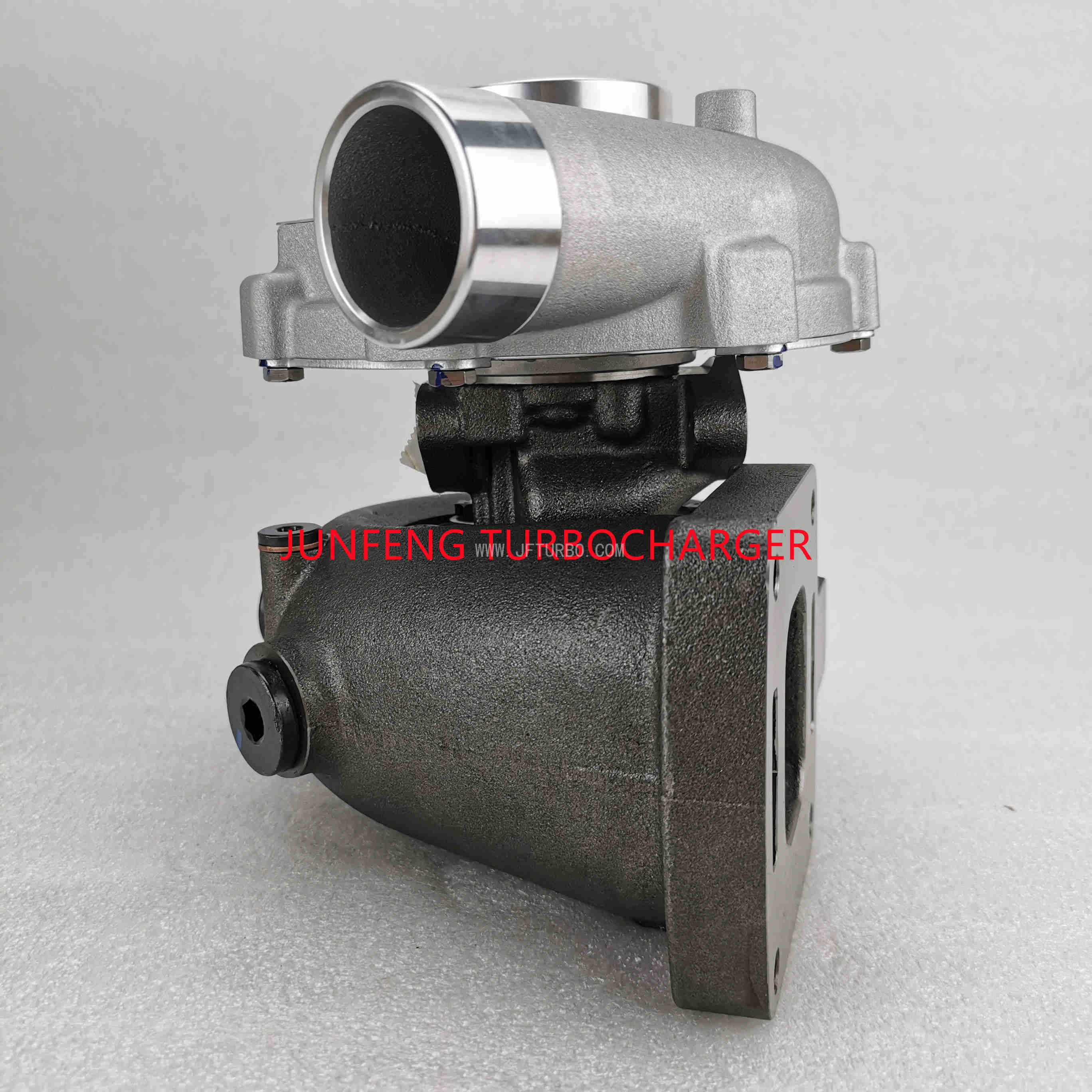

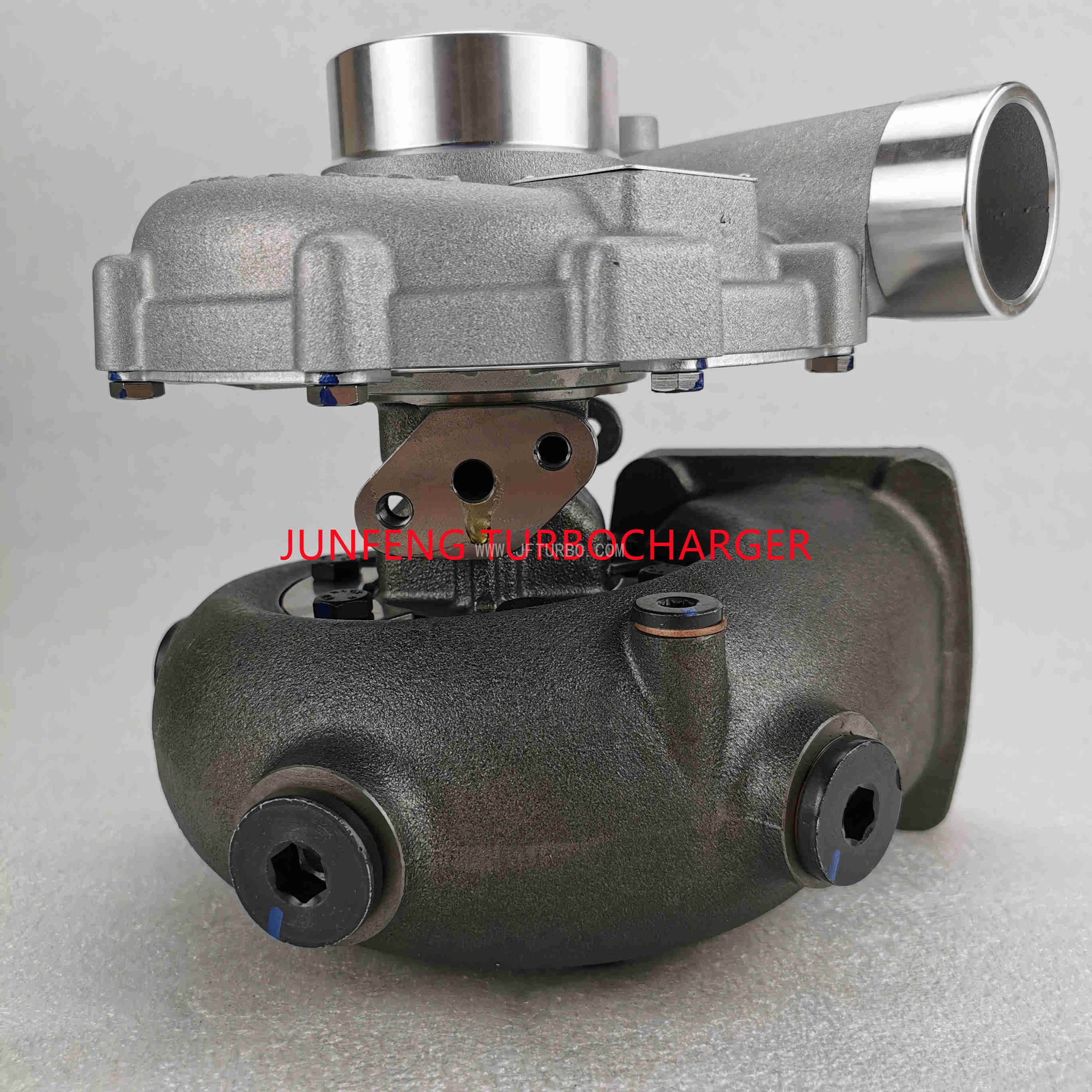

K26 53269707095 53269887095 8018872 turbocharger for Iveco Aifo Ship 8061SM20-SRM25 Engine

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product details

Part Number	53269887095
Previous Version	5326-988-7095, 53269887094, 5326-988-7094
OE number	8018872
Year	1990-11
Description	Ship
Manufacturer Part Number	5326970709, 5326-970-7095
CHRA	53267100061 (53267100075, 53267100059, 5326-710-0061) v
Turbo Model	K26-2970MNA8.72GAAXB
Engine	8061SM20-SRM25
Displacement	5.86L, 5860 ccm
KW	220/299
RPM Max	2700
Fuel	Diesel
Bearing Housing	53261500016 (53241500004, 53261500026)(858705)(Oil Cooled)
Turbine Wheel	53261205002 (53261202107, 53261205001, 53261205009, 53261202111, 53261202119, 53261202128)(Ind. 54.54 mm, Exd. 64.25 mm, Trm 10.02, 12 Blades)(1301026435)
Comp. Wheel	53271232310 (53271232202, 53261232201)(Ind. 47.35 mm, Ed. 73.9 mm, Trm 3.5, 7+7 Blades, Superback)(1200016224)
Back plate	53261515713 (53271516700, 53271516706, 53271516708, 53261515715)(1300016051)
Heat shield Number	53261652005 (53261652007)(858668)
Repair Kit	53267110039 (53267110001)(3827366)(1301026752, 5000040117B)
Turbine Housing (water-cooled)	53261006424
Compressor Cover	53271015335
Turbine Housing AR	8
Gasket (turbine inlet)	2465018
Gasket (oil outlet)	210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585. 2475021, 2475013)
Gasket oil inlet	210023 (409036-0000, 210023-0000, 55739, 147837)
NOTE	Intercooler; also for 150 kW at 2700 RPM; Old ref. no. 8007079; with separate waste gate 58061101151

Applications

turbocharger for 1990-11 Iveco-Aifo Ship with 8061SM20-SRM25 Engine
