K04 53049880064 turbo 06F145702C turbocharger

Product Description
Part Number 53049880064
Previous Version 5304-988-0064, 5304 988 0064
OE number 06F145702C
Year 2003-10
Description Audi S3, TT, Seat Leon, Volkswagen Golf
Manufacturer Part Number 53049700064, 5304-970-0064, 5304 970 0064
CHRA 53047100518 (5304-710-0518)
Turbo Model K04-2283DXBAA6.88GCAXM
Engine 2.0L TFSI quer/transversal
Displacement 2.0L, 1984 ccm, 4 Cylinders
KW 195/265/206/280 HP
RPM Max 6800
Fuel Gasoline
Bearing Housing (water-cooled) 53041500067, K04-64
Turbine Wheel 53041206511
Comp. Wheel 53061232014
Compressor back plate (O-ring type) 53041515721
Heat Plate 53041652009
Repair Kit 53037110000
Turbine Housing with manifold 53041009514
Compressor Cover 53041004903/53041004907
Actuator 58251104227

Applications
2003-10 Audi S3 with 2.0L TFSI quer, transversal Engine
2003-10 Audi TT'S with 2.0L TFSI quer, transversal Engine
2003- Audi S3 2.0L TFSI (8P/PA) Engine BHZ
2003- Audi TT S 2.0L TFSI (8J) Engine BHZ

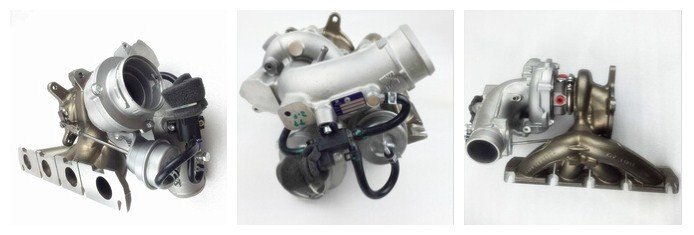

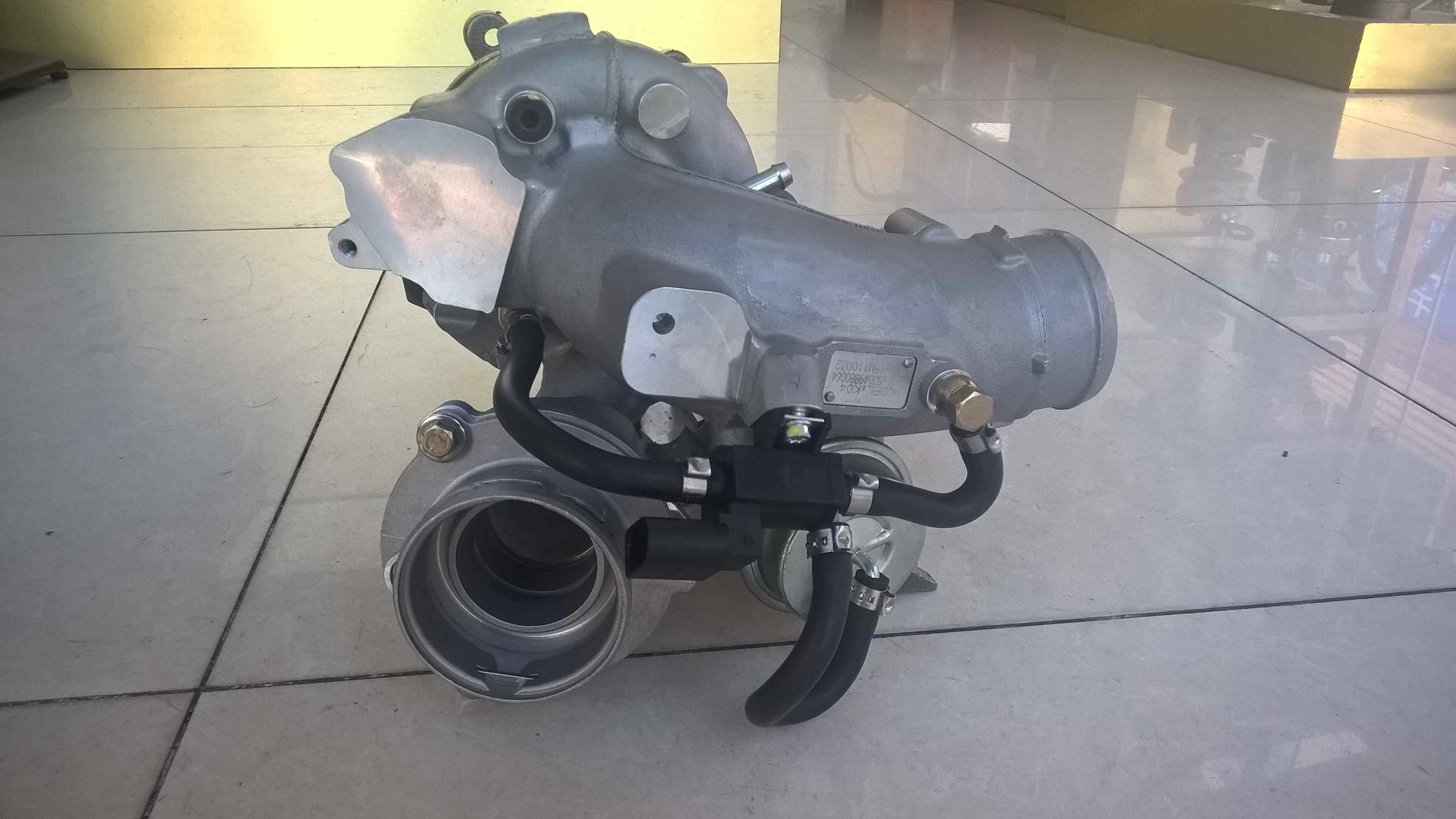

Product show

Packing and Shipping details
