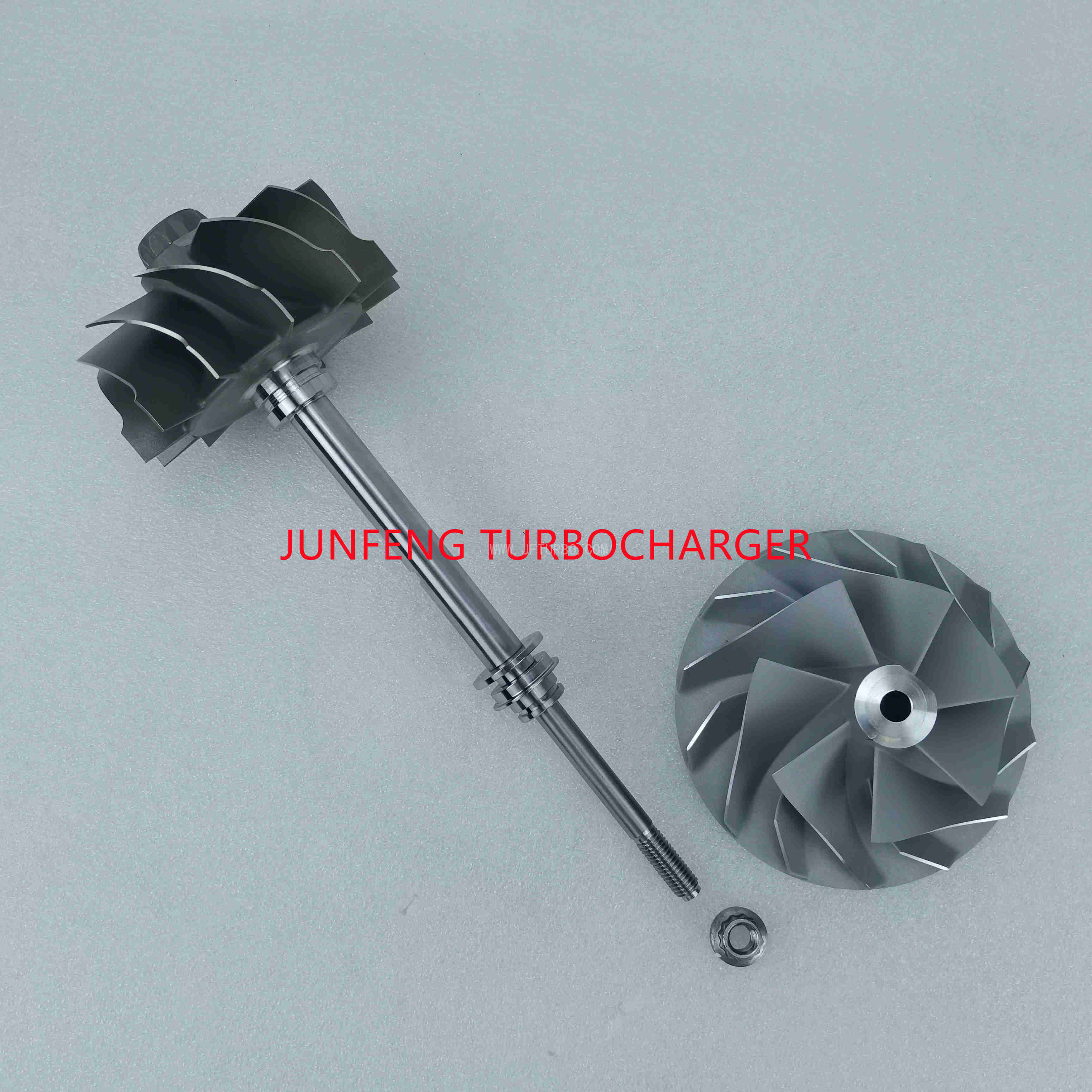

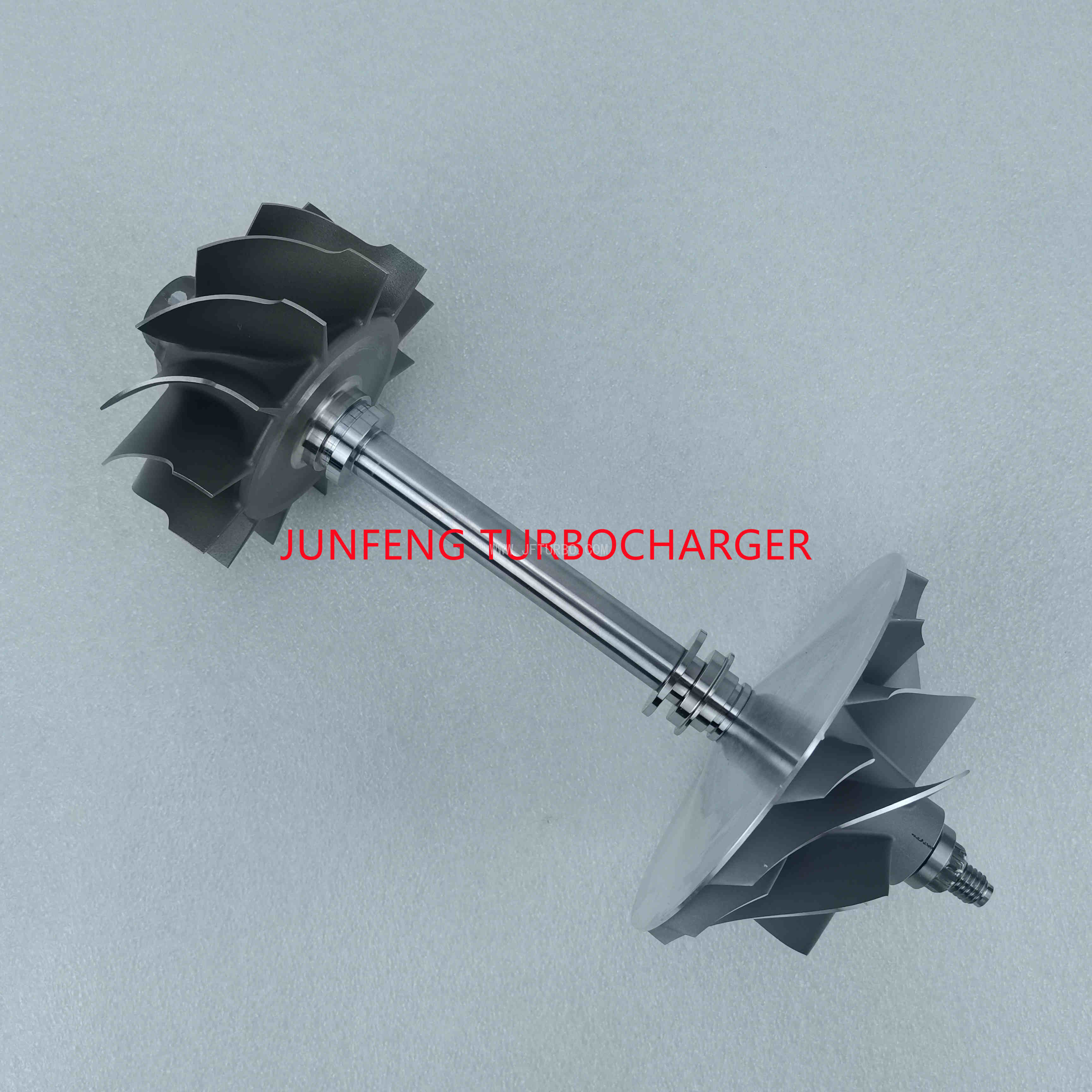

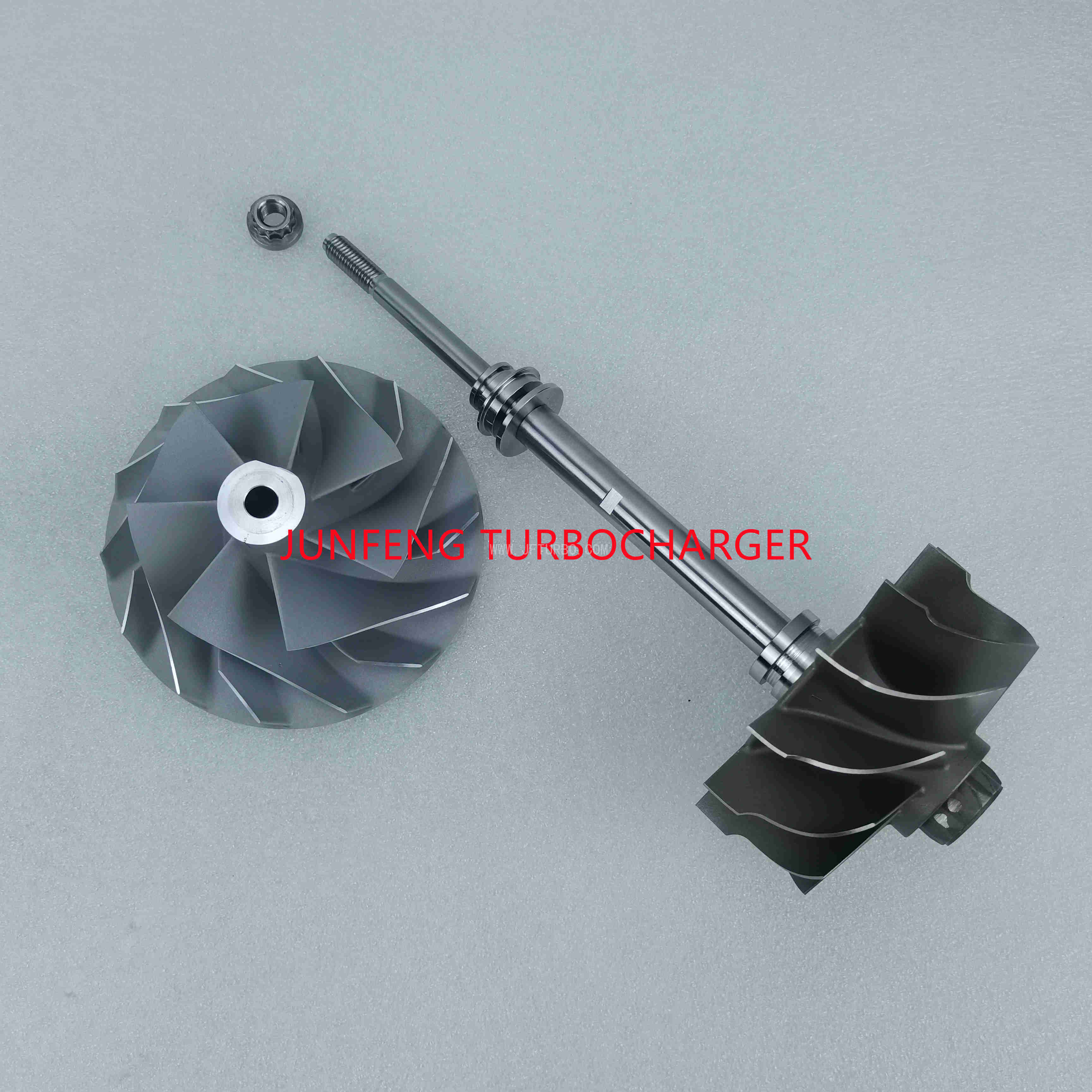

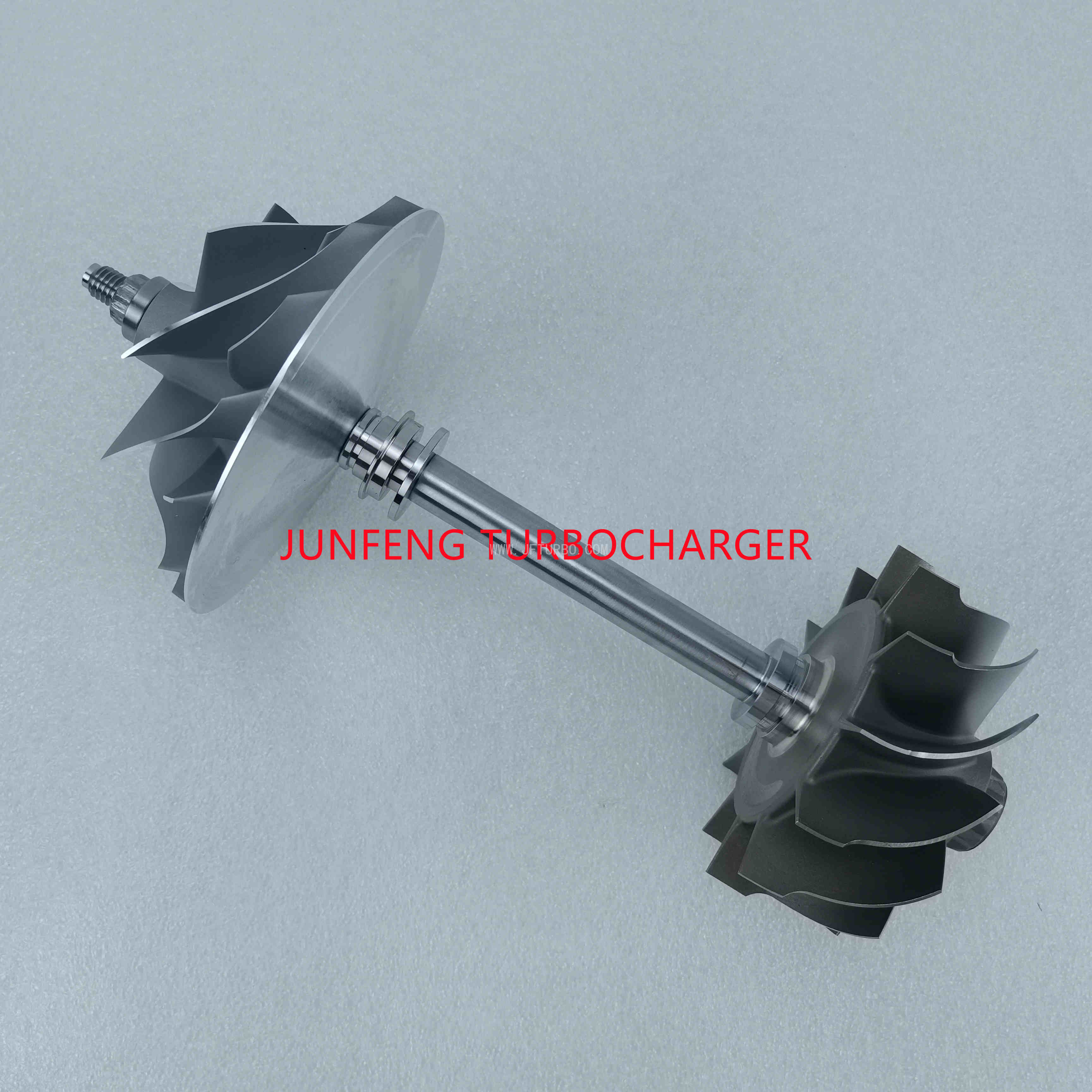

Iveco Ford Truck Astra Cursor 13 F3B Euro-3 Engine HY55V 4046945 turbocharger rotor assembly kit

Part Number: 4043267, 4043324, 4043325, 4046946, 4046947, 4033195HX, 5322536

OE number: 504252142, 504252144, 4031404, 3769433, 4046947, 4046946, 5042521440.5042521420

Others number: 3594712, 3594931, 3594932, 3595671, 3598515, 4036282, 4038389, 4042547

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Part Number	4046945
Previous Version	3594712, 3594931, 3594932, 3595671, 3598515, 4036282, 4038389, 4042547, 4043267, 4043324, 4043325, 4046946, 4046947, 4033195HX, 5322536
OE number	504252142, 504252144, 4031404, 3769433, 4046947, 4046946, 5042521440.5042521420
Description	Iveco, Ford Truck Astra Engine
CHRA	4034048 (1000020102)
Turbo Model	HY55V, HE500VG
Engine	CURSOR 13, Cursor 13 F3B Euro-3
Engine Manufacturer	Iveco
KW	338/460
Displacement	12.90L, 12900 ccm
Fuel	Diesel
Angle α (compressor housing)	55º
Angle β (turbine housing)	270º
Bearing Housing	(Water Cooled)(1900011269)

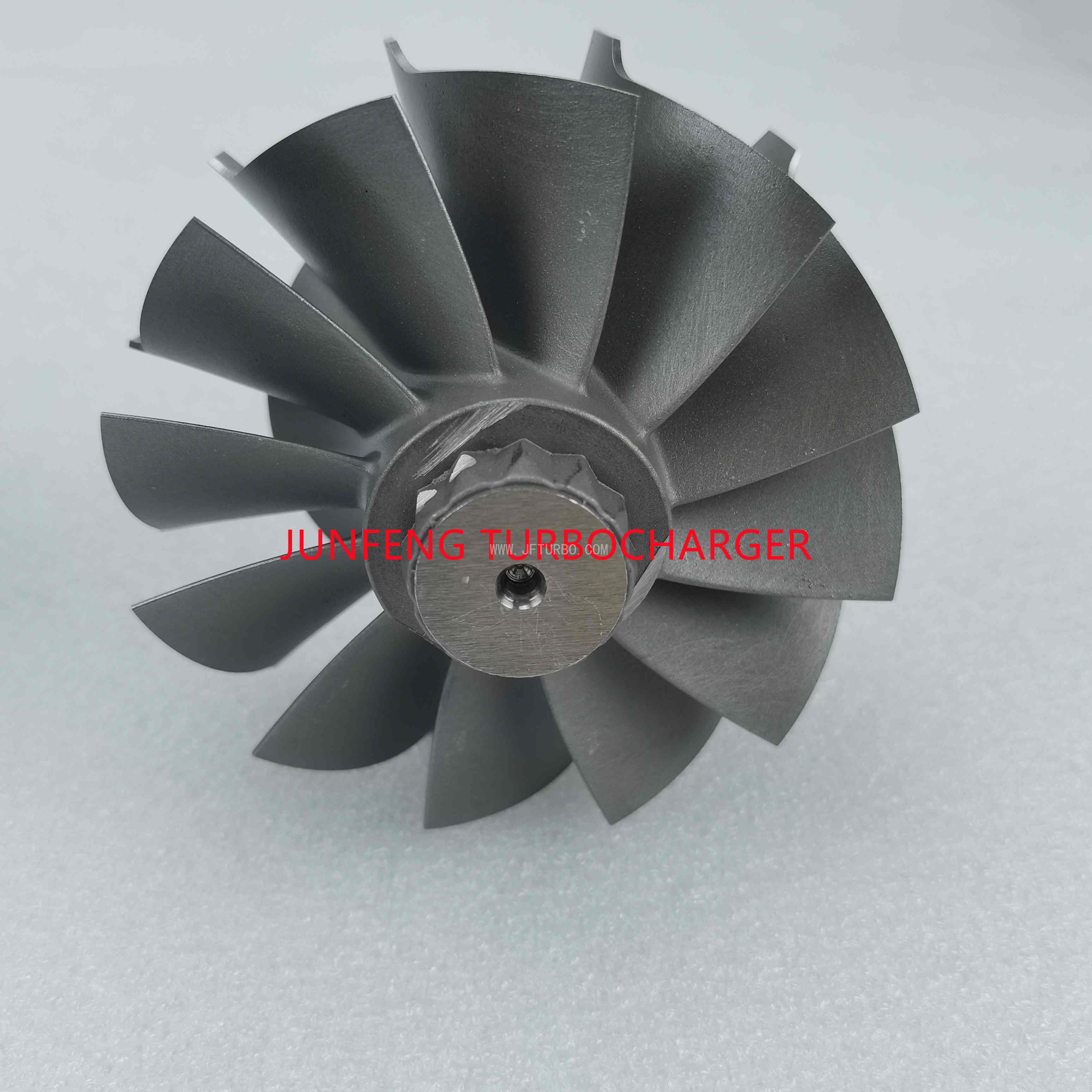

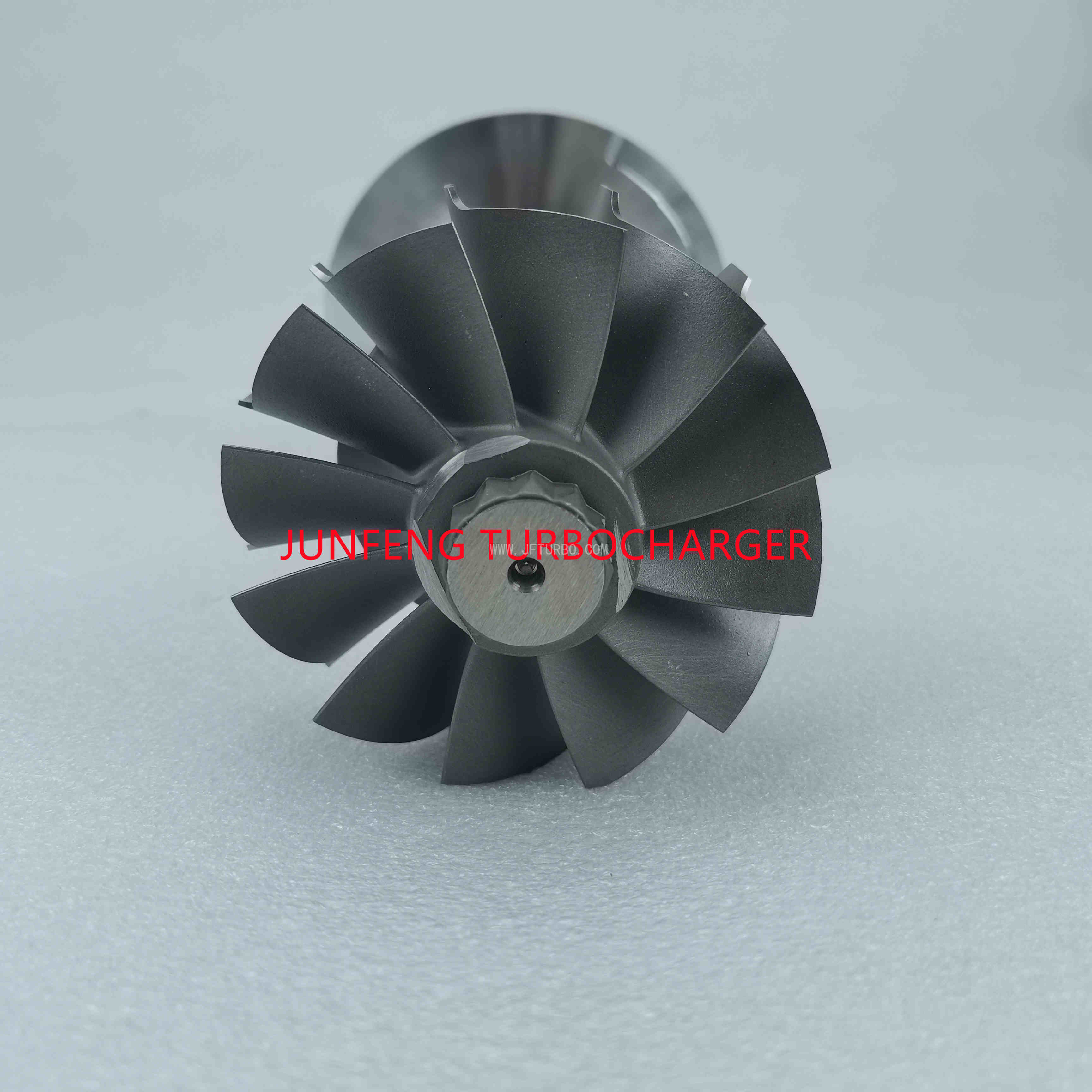

Turbine Wheel	3590433 (Ind. 86. mm, Exd. 77. mm, 12 Blades)(1100016179C)

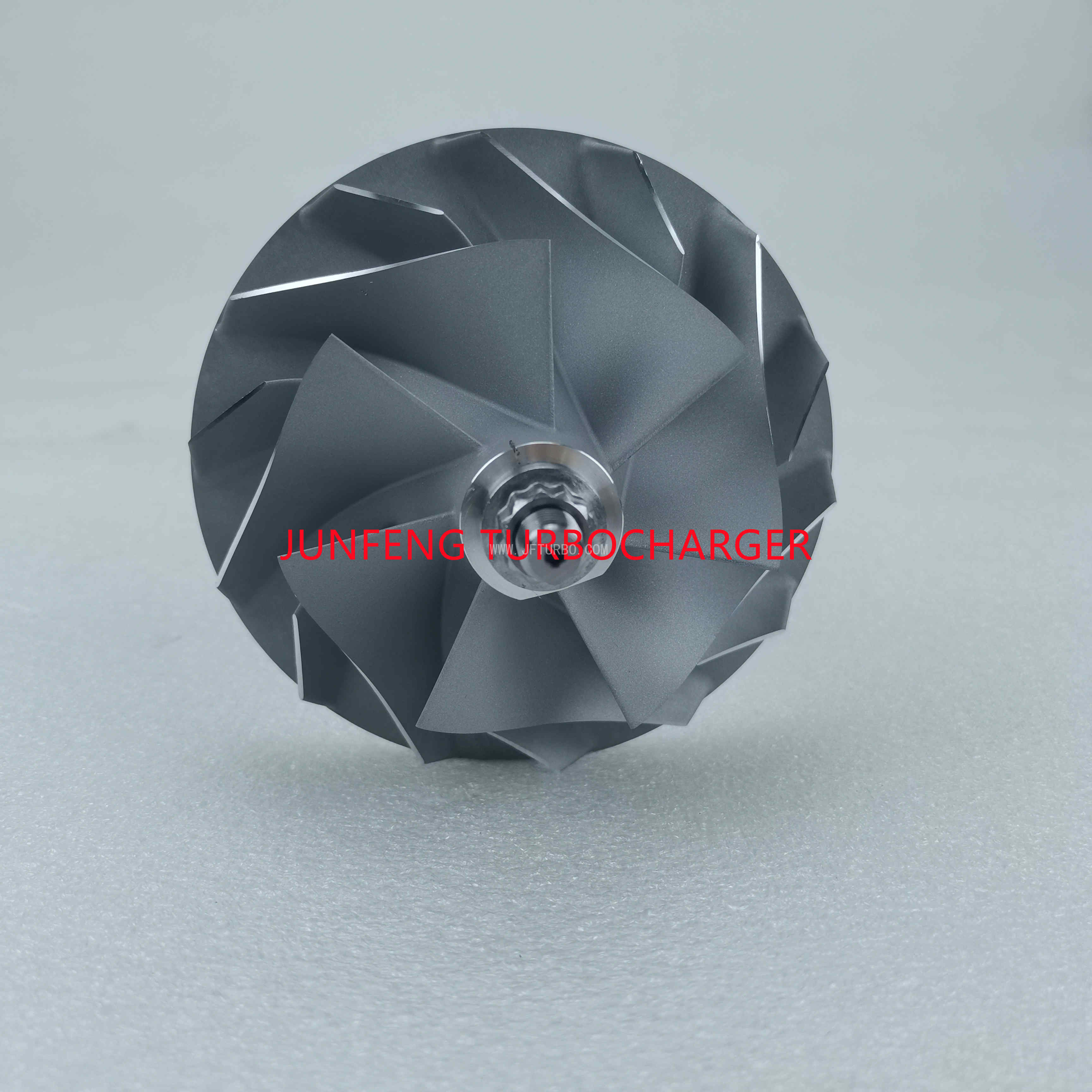

Comp. Wheel	3592938 (Ind. 103. mm, Exd. 40. mm, 7+7 Blades, Superback)(1200016281)
Back plate	(1300016083)
CHRA (Nozzle Ring)	3537326
Repair Kit	4031455 (5000020024) STOCK
Turbine Housing	4034017
Compressor Cover	4034022 (4038491)
Turbine Housing AR	VGT
Valve Kit/Actuator	4034014 (3772495, 4034014H)(2063050400) $644.17
Nozzle Ring Assembly)	4046830 (3000016026)
Gasket (turbine inlet)	210872 (Stainless Steel)
Control speed sensor	3596456 (3596456H) $363.49
Speed Sensor	4027556
