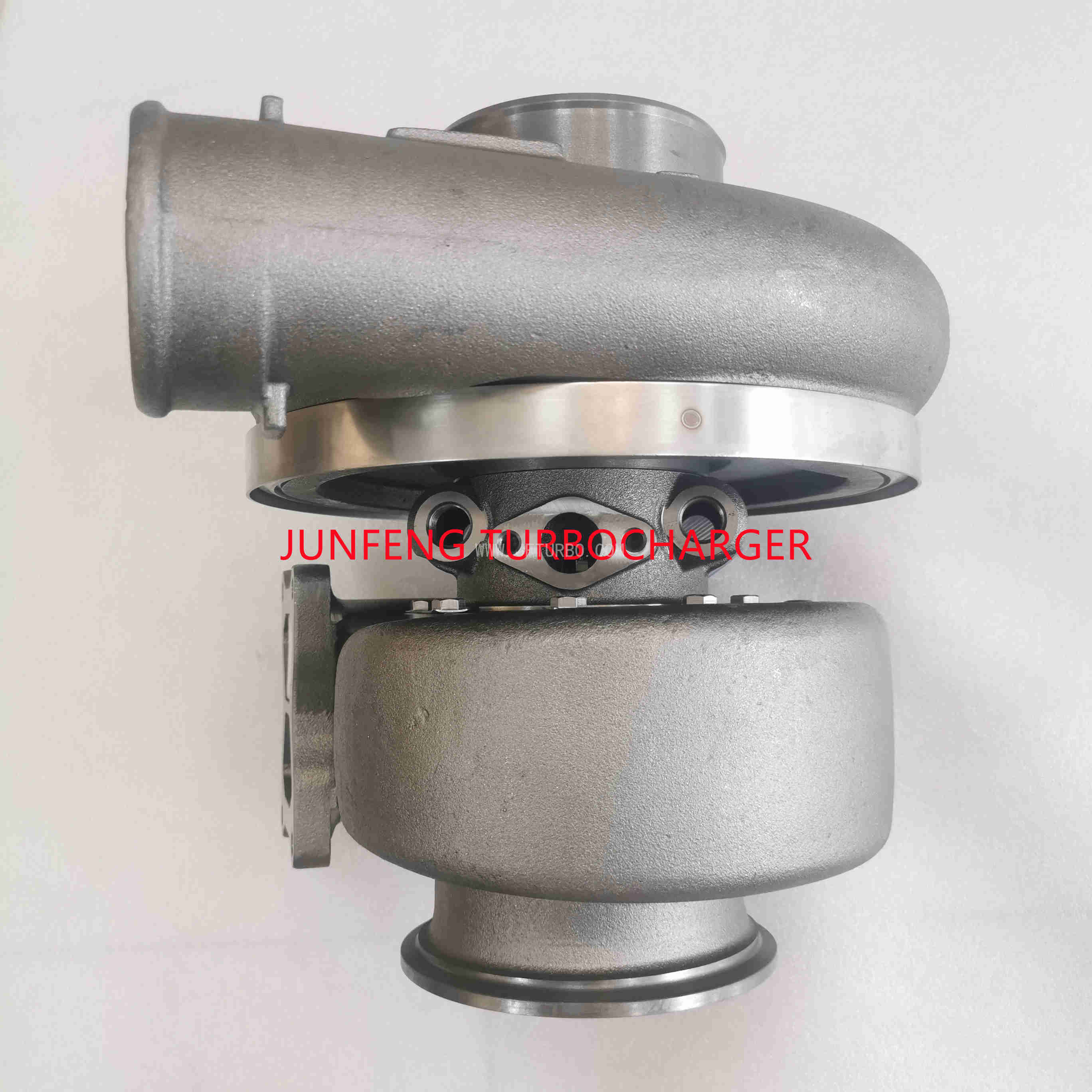

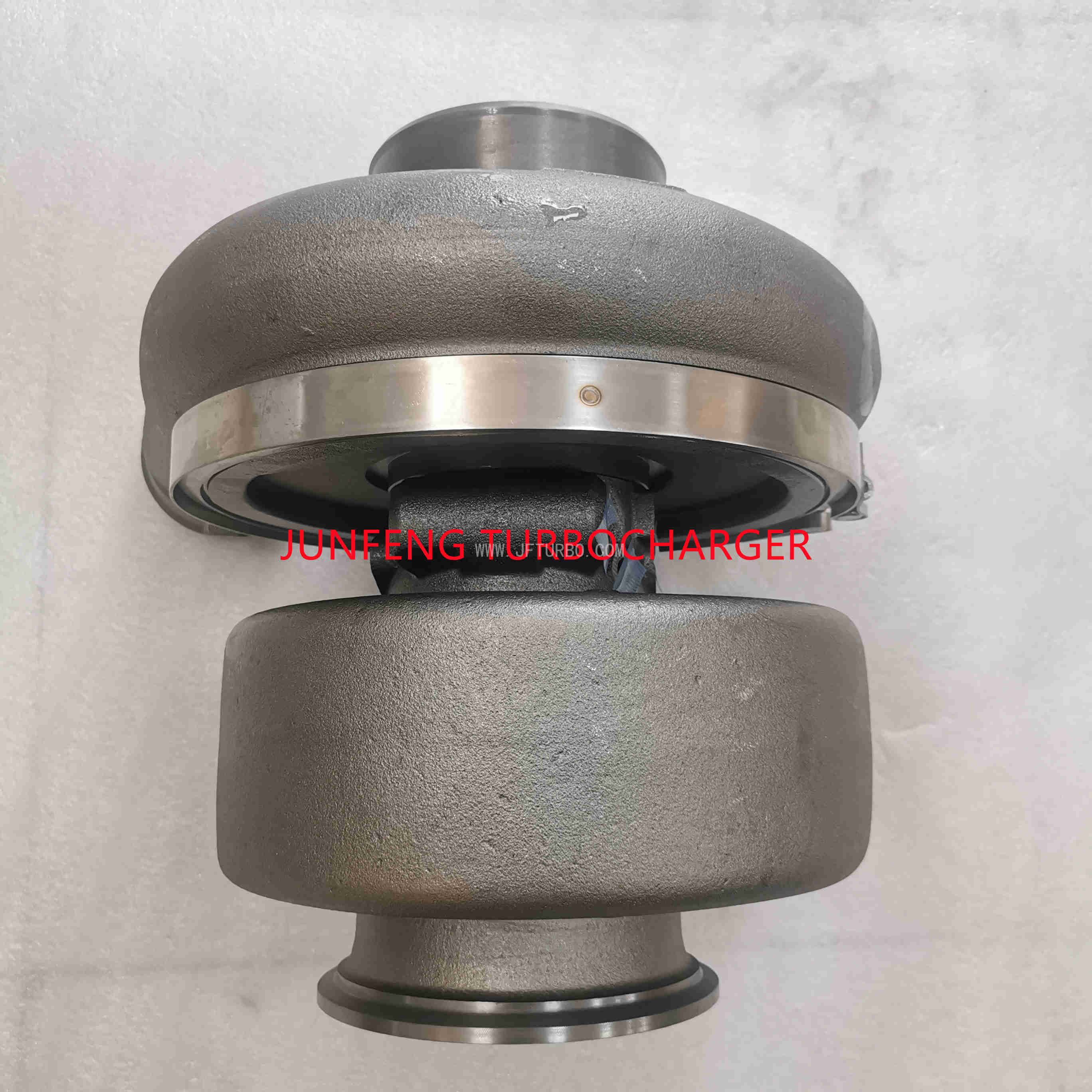

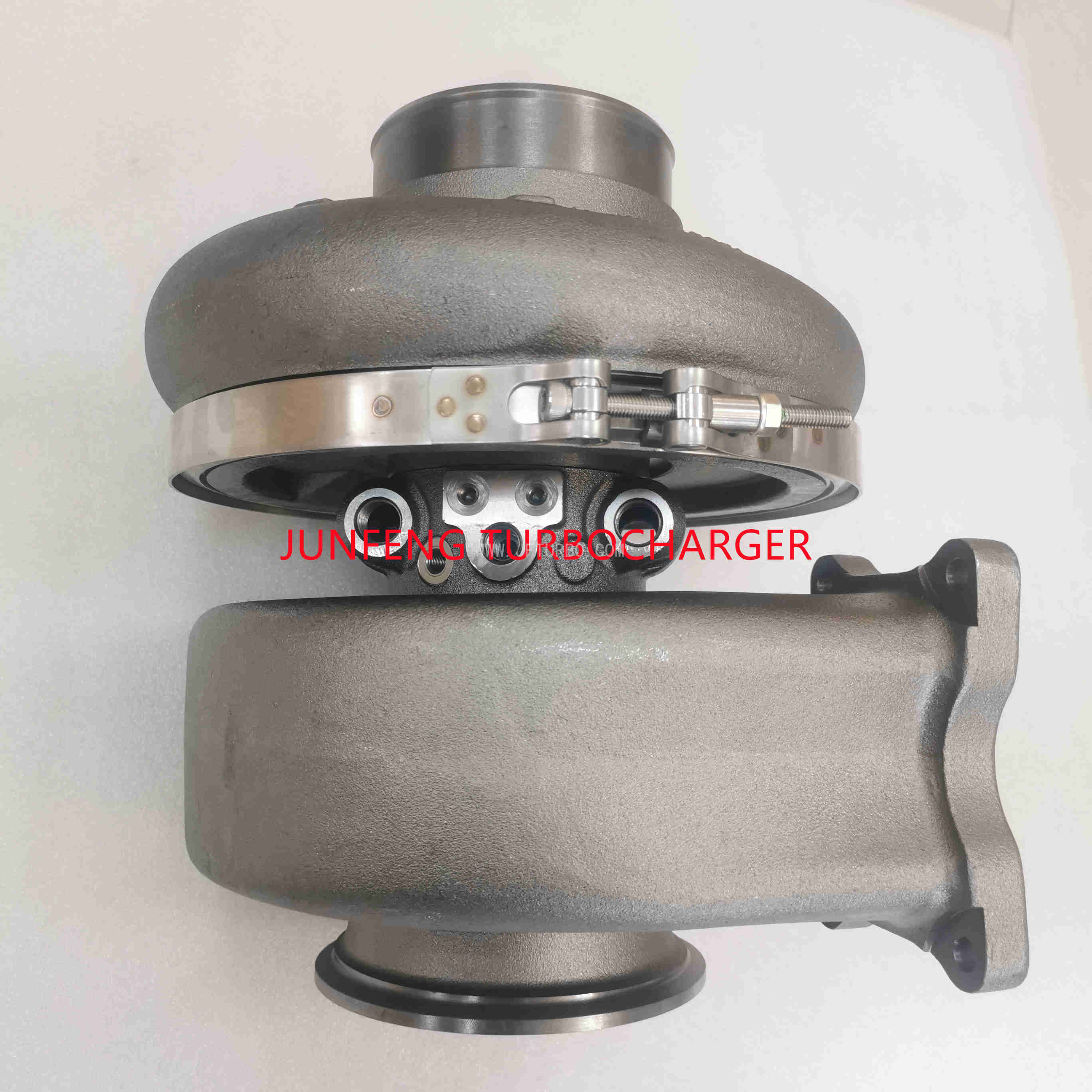

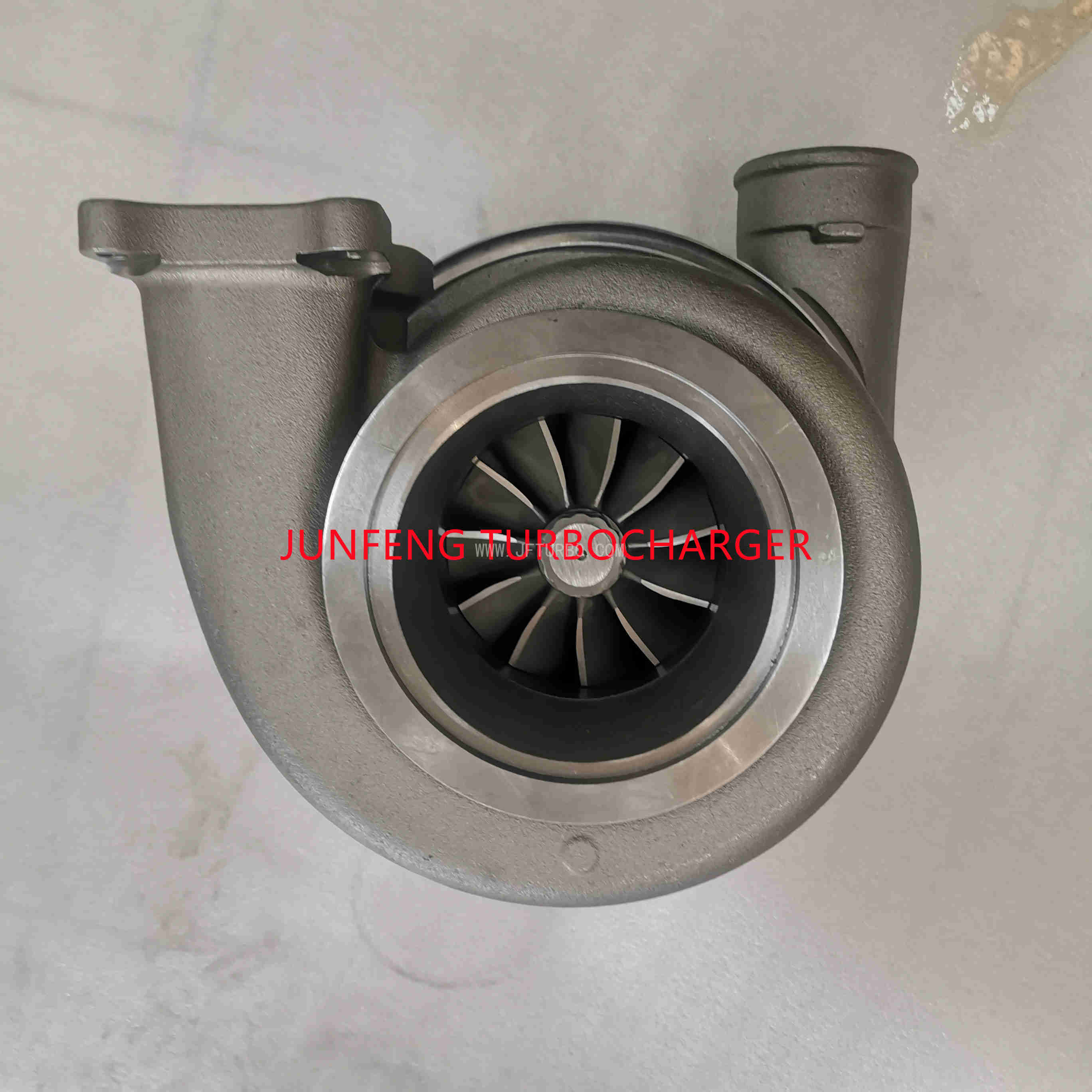

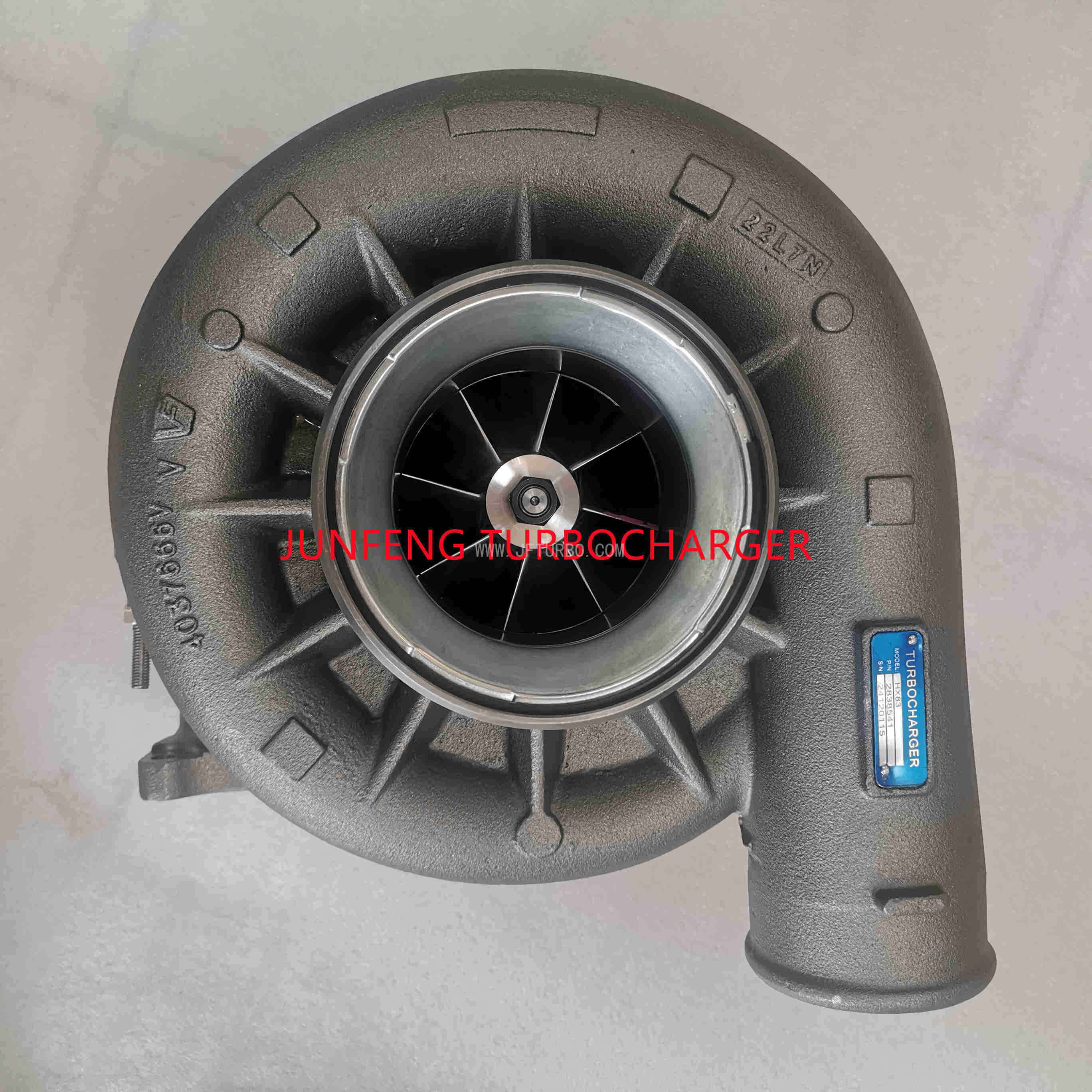

HX83 Turbo 2838541 4956137RX 4033010 4955933 Turbocharger for Cummins Construction Equipment QSK19 Q19 QSK38 Engine

Others number: 4040239, 4040240, 4040241, 4047882, 5455589, TS2838541, TS2838541R

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product Description

Part Number	2838541
Previous Version	2837540, 2838541, 3777194, 4033010, 4040239, 4040240, 4040241, 4047882, 5455589, TS2838541, TS2838541R
OE number	4089987, 4955933, 4956137, 4956137NX, 4956137RX
After Market	4033010
Description	Various, Locomotive, Construction Equipment
Manufacturer Part Number	4955933
CHRA	4027916 (2843424, 4047881) $989.00 IN STOCK
Turbo Model	HX83, HX83-A151N65YBR/A129P82YAM36H
Engine	QSKTAA19, Q19 TIER 3, QSKTAA19-CE, QSK38
Displacement	19.0L, 18960 ccm
Engine Manufacturer	Cummins
Fuel	Diesel
KW	700/710
Angle α (compressor housing)	40/259/310º
Angle β (turbine housing)	45/360º
Bearing Housing	3536903 (Oil Cooled)
Turbine Wheel	3536155 (Ind. 106. mm, Exd. 129. mm, 11 Blades)
Comp. Wheel	3596532 (Ind. 90.6 mm, Exd. 141. mm, 8+8 Blades, Billet)
Back plate	3590516 (1154351300)
Heat shield Number	3536588 (353658800) (1153080340)
Repair Kit	3545647 (3575236)(1152105750)
Turbine Housing	3537575
Compressor Cover	4037669
Speed Sensor	4042082
Gasket Kit	4032499 (3575178)
Gasket (turbine inlet)	210521 (Inox Steel)
Gasket (oil outlet)	210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)

Applications

turbocharger for 2008-10 Cummins Construction Equipment with QSK19, Q19 Engine
