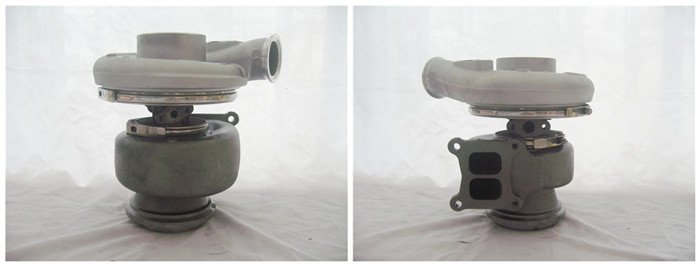

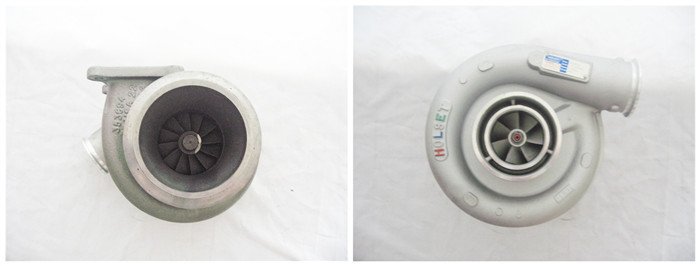

HX55 turbo 3590044 turbocharger ​Cummins 4039173​,4046031​

Part Number 3590044
Previous Part Number 3590045, 3536995, 3536996, 3590044, 4039173, 4046031
OE number 3800471, 3800471RX, 3803938, 3590045
Year 1999-09
Description Truck, Bus, Diamond & Delta Plus Alpha
Manufacturer Part Number 4046031, 2834419, 3590045, 4039173
CHRA 3580726
Turbo Model HX55-E9861L/H22E11D, HX55
Engine ISM, ISME, M11, ISM,, ISME Euro-2 & Euro-3
Engine Manufacturer Cummins
Fuel Diesel
Angle α (compressor housing) 317.5
Angle β (turbine housing) 270
Bearing Housing 3535704
Turbine Wheel 3535983
Comp. Wheel 3534329
Back plate 3528096
Heat shield Number 3533038
Repair Kit 3580762
Turbine Housing 3536942
Compressor Cover 3594775
Compressor Cover (Noise Baffle) 3595516
Compressor Cover (Ring) 3531238
Gasket (turbine inlet) 409123-0002
Gasket oil inlet 210019
Gasket (oil outlet) 210060

Applications
2007-12 Cummins Truck, Bus with ISM, ISME, M11 Engine
1999-09 Cummins Truck Bus, Truck Delta Alpha Plus with M11 Engine
