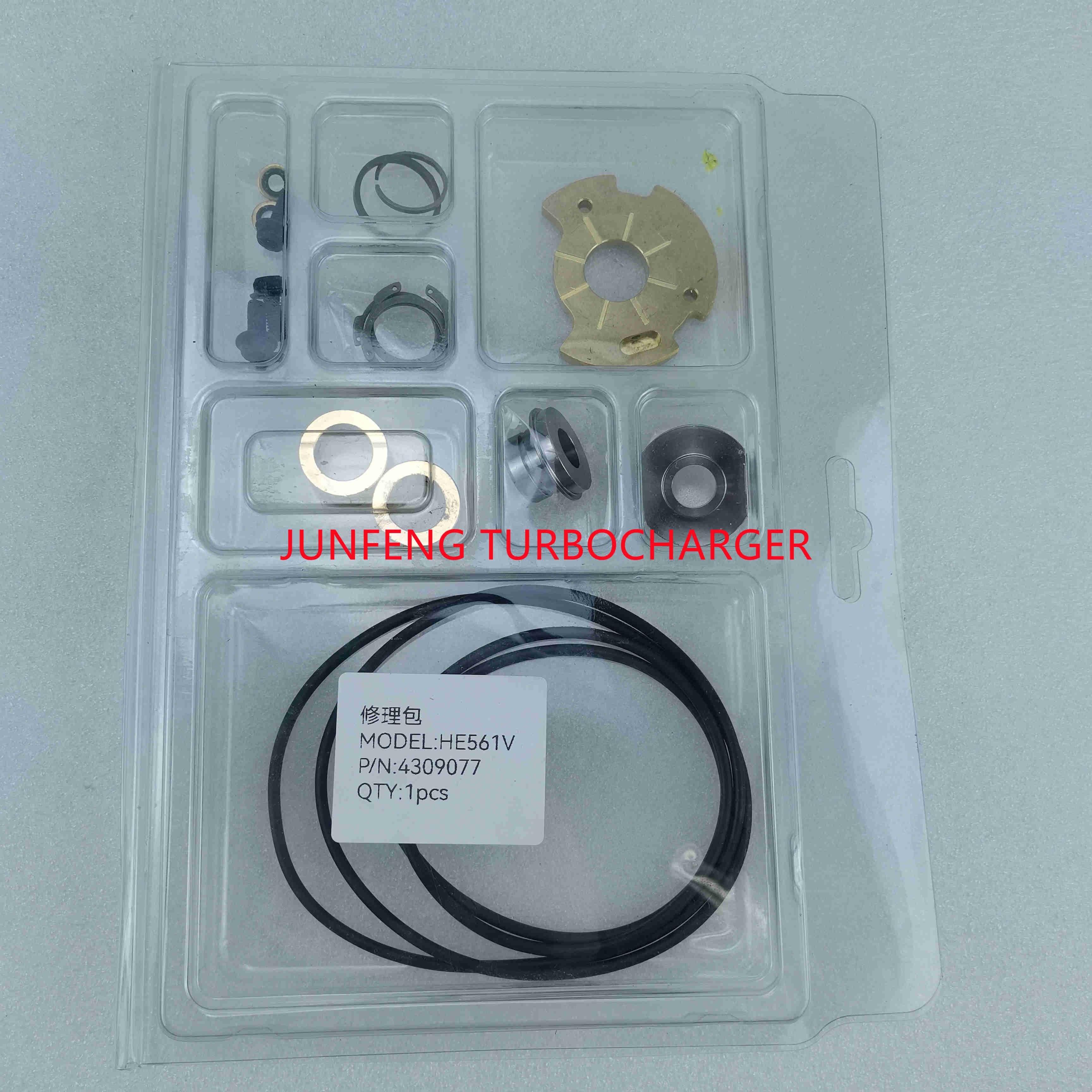

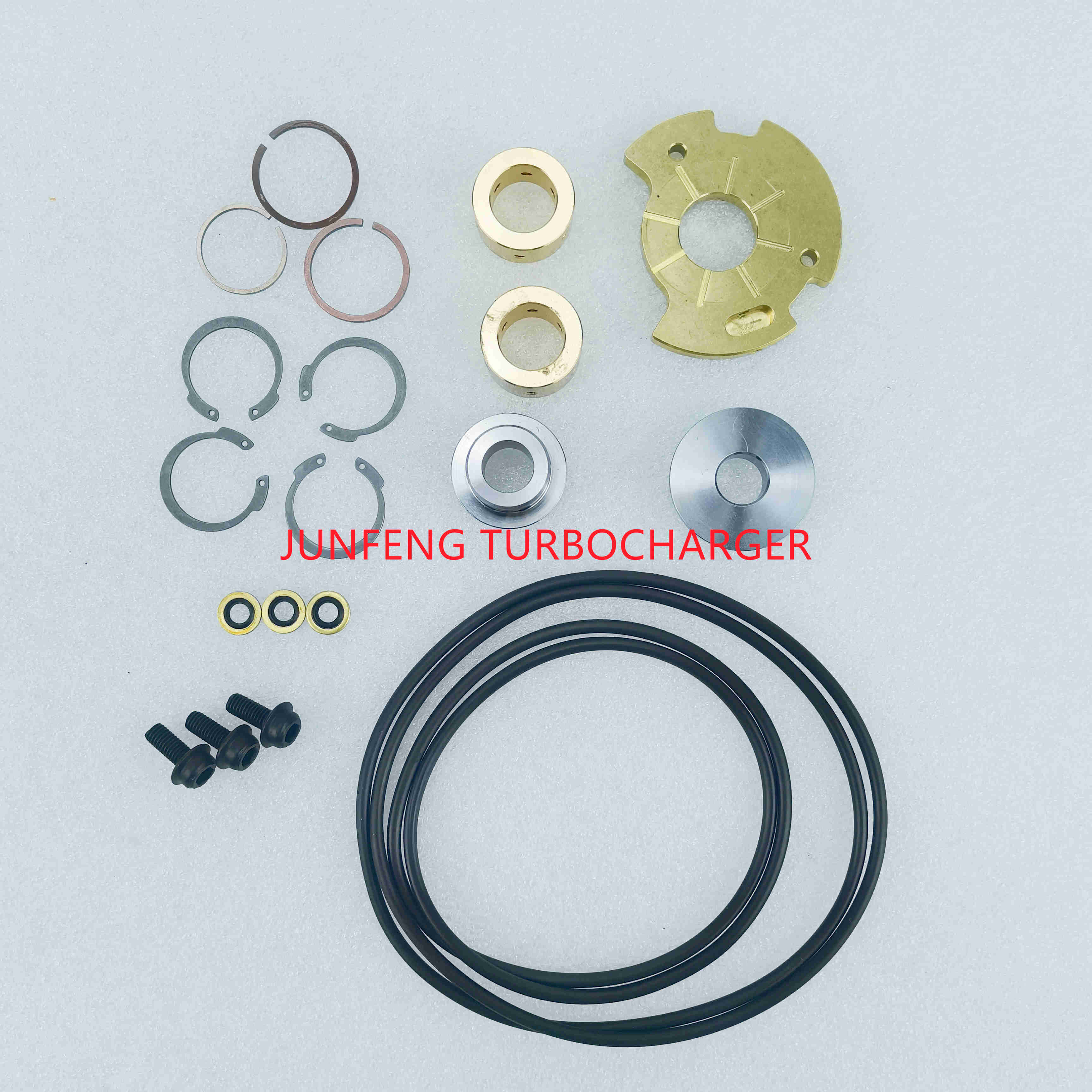

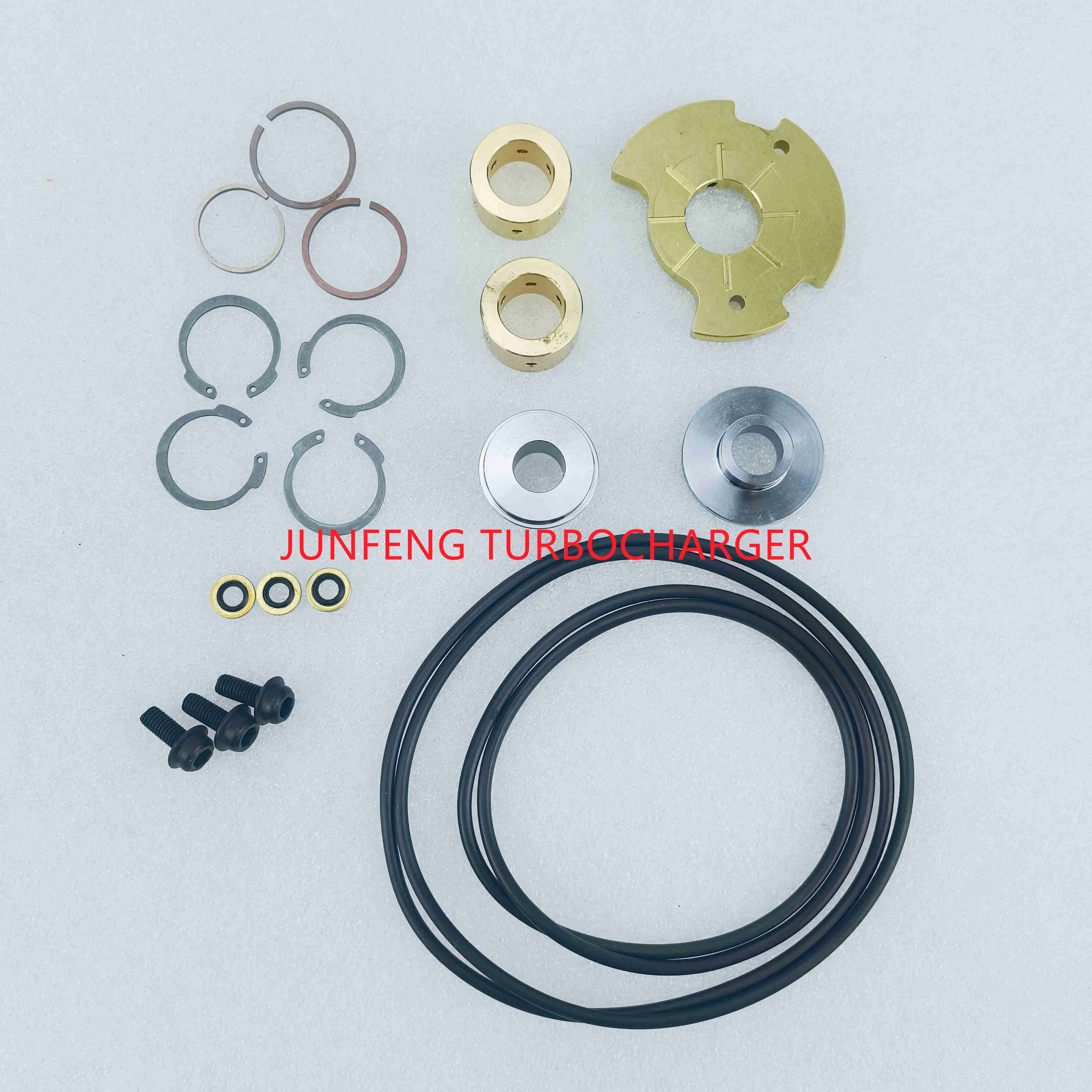

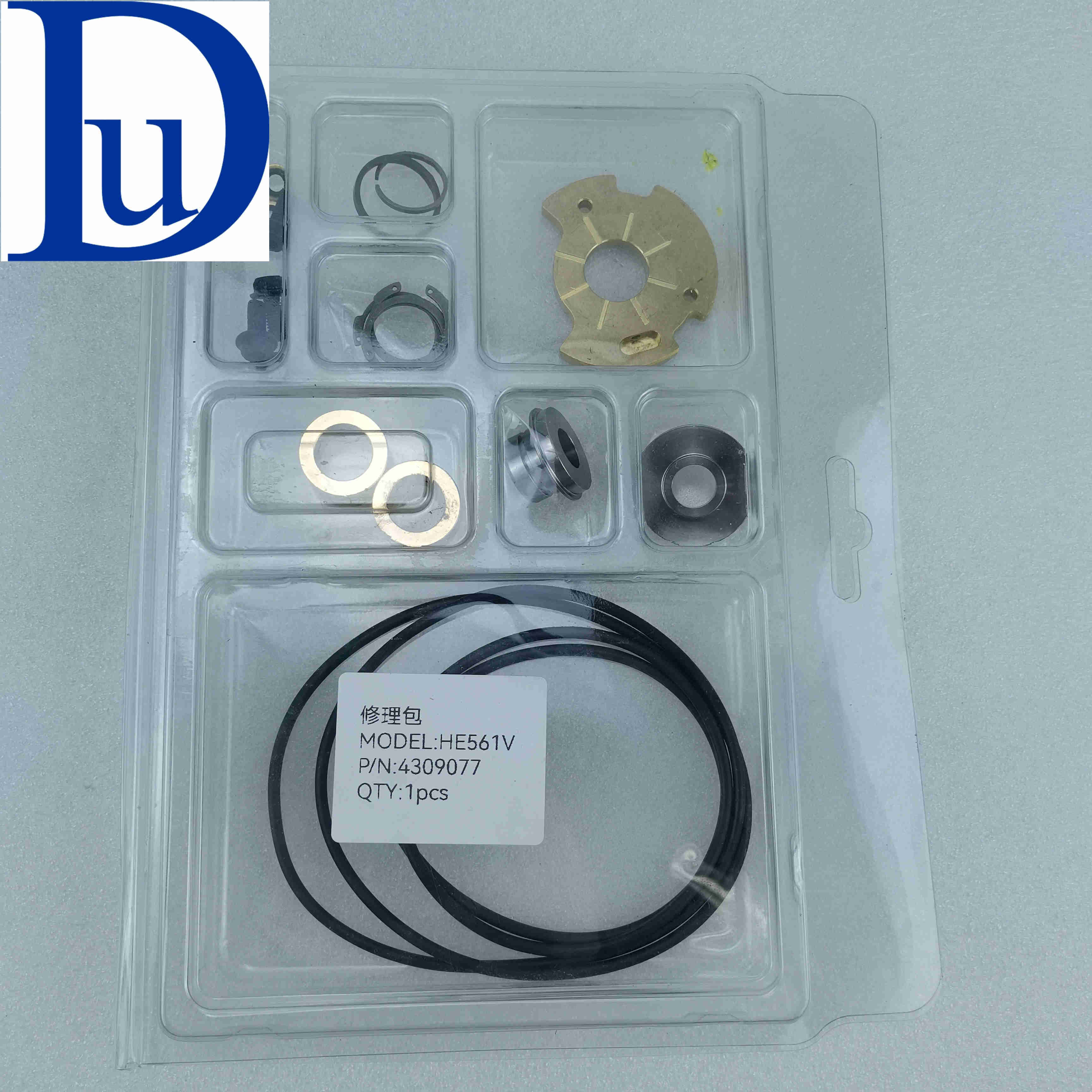

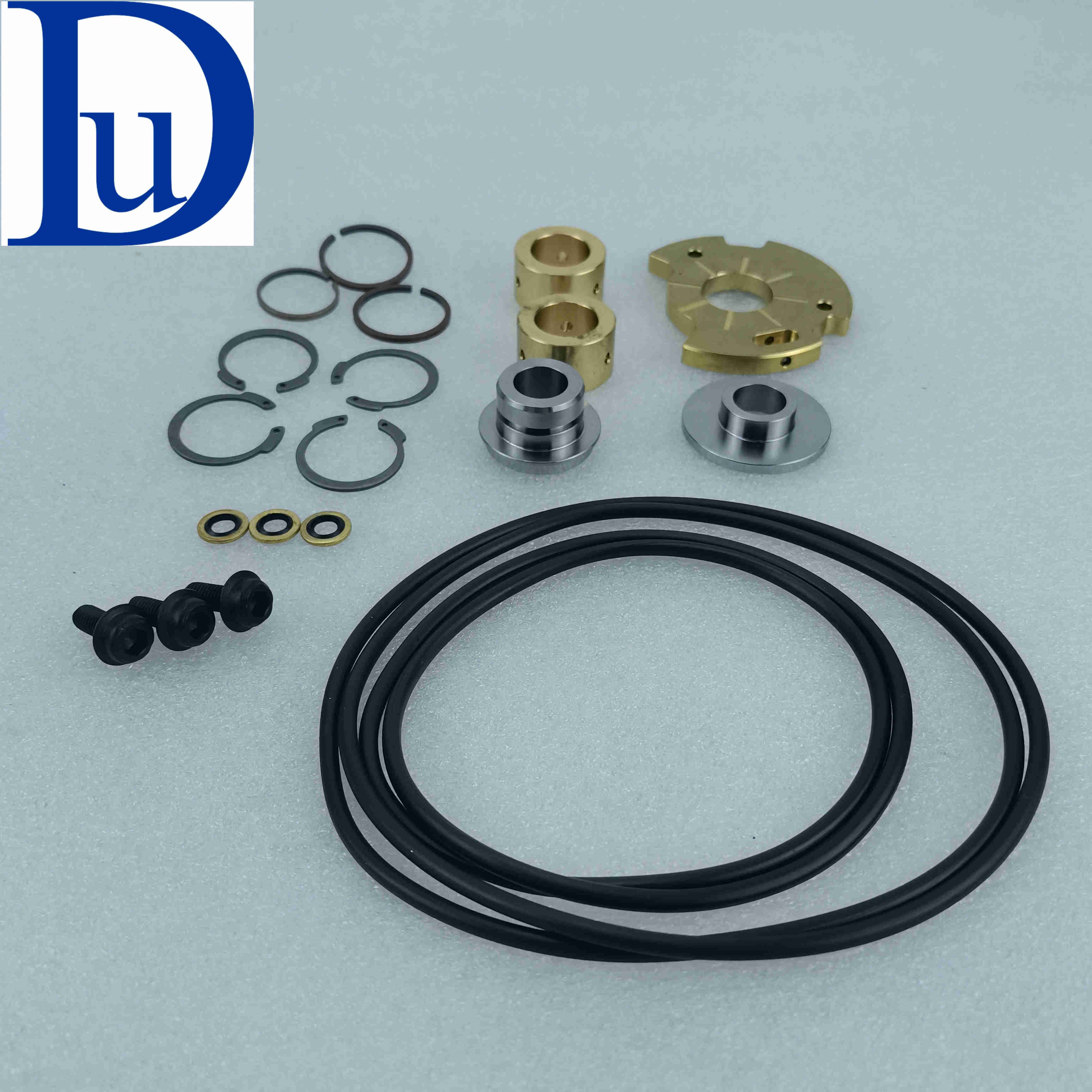

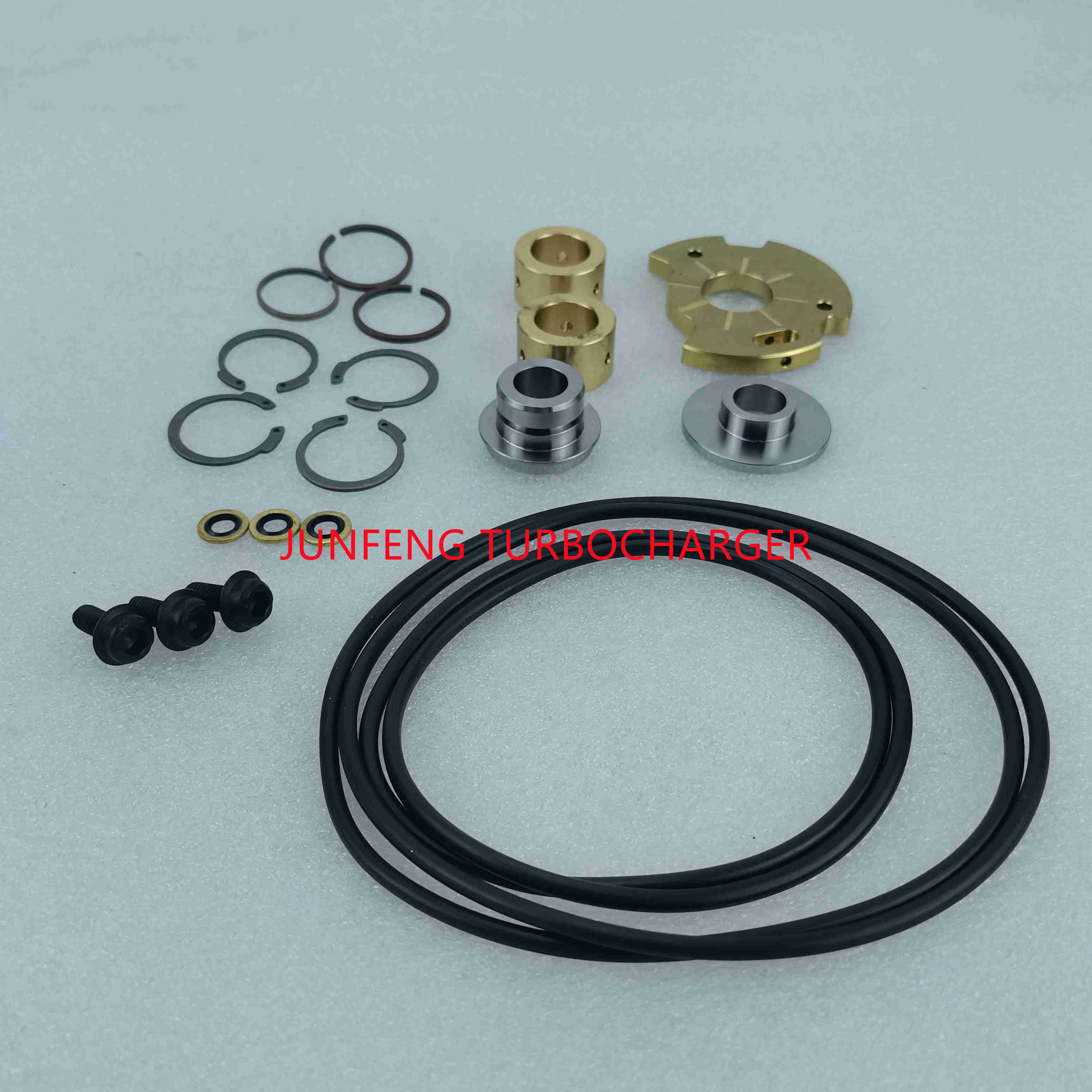

HE561V 4309077 3774613 4309076 Turbo Repair kits fits for Cummins Coach Transit Bus Various ISX07 ISX1 ISX-EGR ISX15 ISL engine

Model: HE561V

Part Number: 4309077 3774613 4309076 3774613, 3781160, 5350510, 430907700

OE number: 4045032, 4045035, 4048260, 4048261, 4955426, 4955903, 4956011

Others number: 5350895H, 5350895HX, 5456817, 5456817H, 5456817HX, 5457298, 5457298NX, 5457298RX, 4042417

File No.: 4309077NX, 4309077RX, 4955426 4955903, 4956011, 4956011NX, 5350895

Packing: Neutral carton,or Customized Carton

Size: Standard size

Sample Order: accept

Shipping: DHL,Fedex,UPS,EMS,TNT,Air,Sea

Trade Terms: EXW

Payment: T/T,Western Union,Chinese Account

Delivery: Within 2 days after your payment arrive,if it have in stock

Freight Delivery: Depends on the express company

Weight: 2kg

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product Information
Port

Part Number	3774613
Previous Version	2836358, 2836359, 2838008, 2838009, 2840523, 2840524, 2840525, 2843356, 2843359, 2881786, 2881786NX, 2881786RX, 2881988RX, 2881998, 2881998NX, 2881998RX,, 4048260, 4045019, 2838008, 3767616, 4309077, 4045032, 4309077RX, 4309077NX, 3774641, 3767632, 430907700HX, 4309077RX, 4309077RXCUM, 2881998RX, 5350895HX, 3767616, 3767623, 3767631, 3769880, 3769882, 3774602, 3774613, 3774627, 3774641, 3776665, 3776666, 3776669
OE Number	4955903, 4956011, 4956011NX, 4955426, 2080039R
Year	2008-11
Cummins	2881786, 2881998, 34042417, 4045032, 4045035, 4048260, 4048261, 4309077, 430907700, 430907700HX, 4309077HX, 4309077NX, 4309077RX, 4955426, 4955903, 4956011, 4956011NX, 5350895, 5350895H, 5350895HX, 5456817, 5456817H, 5456817HX, 5457298, 5457298NX, 5457298RX, 4042417, 4045032, 4045035, 4048260, 4048261, 4955426, 4955903, 4956011-
Holset	3774613, 3781160, 5350510, 430907700-
Description	Cummins Coach, Transit Bus, Various
Turbo Model	HE500VG, HE561VE
Displacement	3.6L, 3600 ccm, V6
Manufacturer Part Number	3774627, 4045035, 3767623, 2838009, 4042417, 4048261, 2840524, 2836359, 3774641
Engine Model	ISX07, ISX1, ISX-EGR, ISX15, ISL
Displacement	8.3LL, 8300 ccm
Fuel	Diesel
Angle α (compressor housing)	132º
Angle β (turbine housing)	155º
Bearing Housing	4042072 (Water Cooled) NEW IN STOCK
Turbine Wheel	4038560 (Ind. 72. mm, Exd. 86. mm, 12 Blades) NEW IN STOCK
Comp. Wheel	4043068 (Ind. 70. mm, Exd. 111.48 mm, 8+8 Blades, Superback) NEW IN STOCK
Back plate	NEW IN STOCK
Heat shield Number	NEW IN STOCK
Repair Kit	stock
