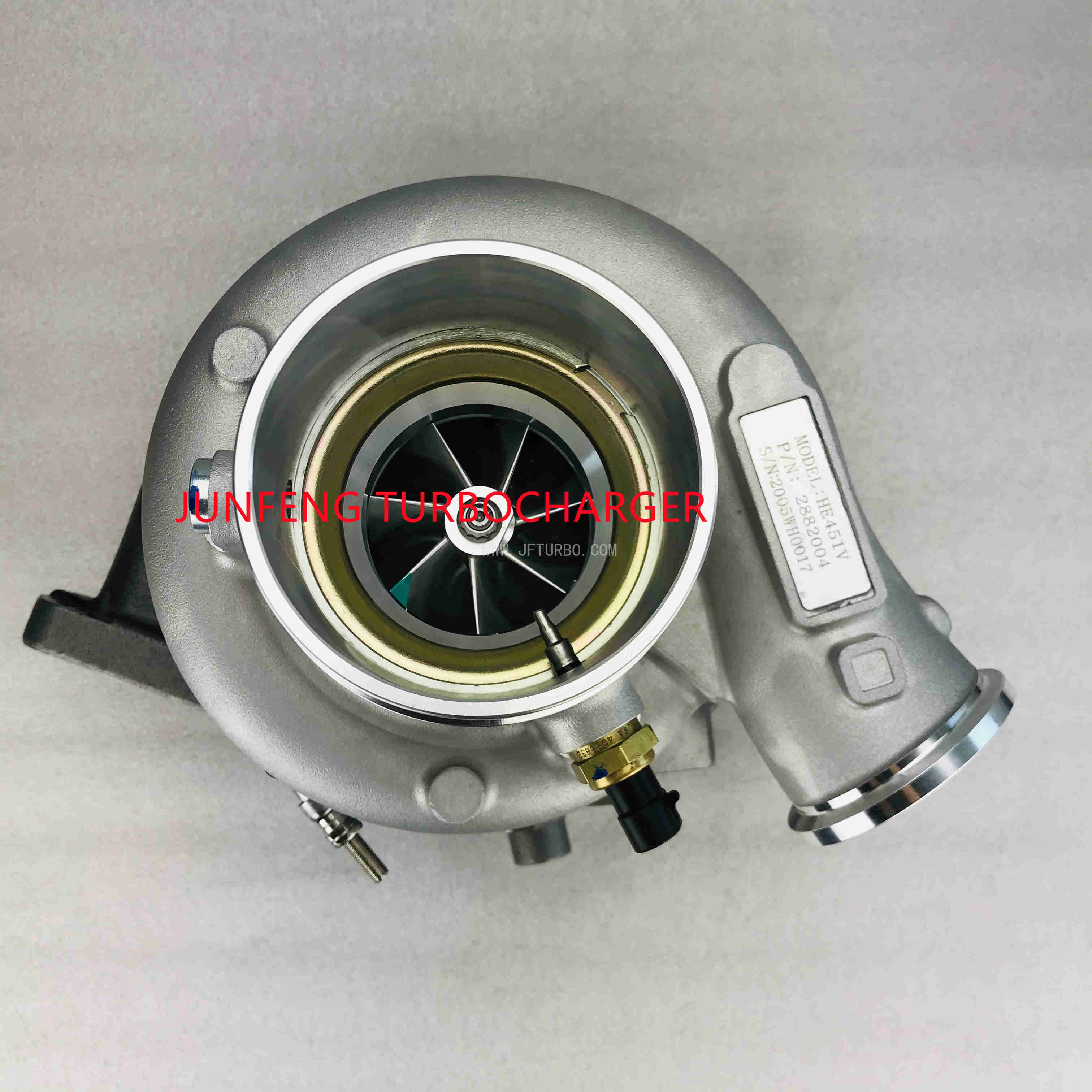

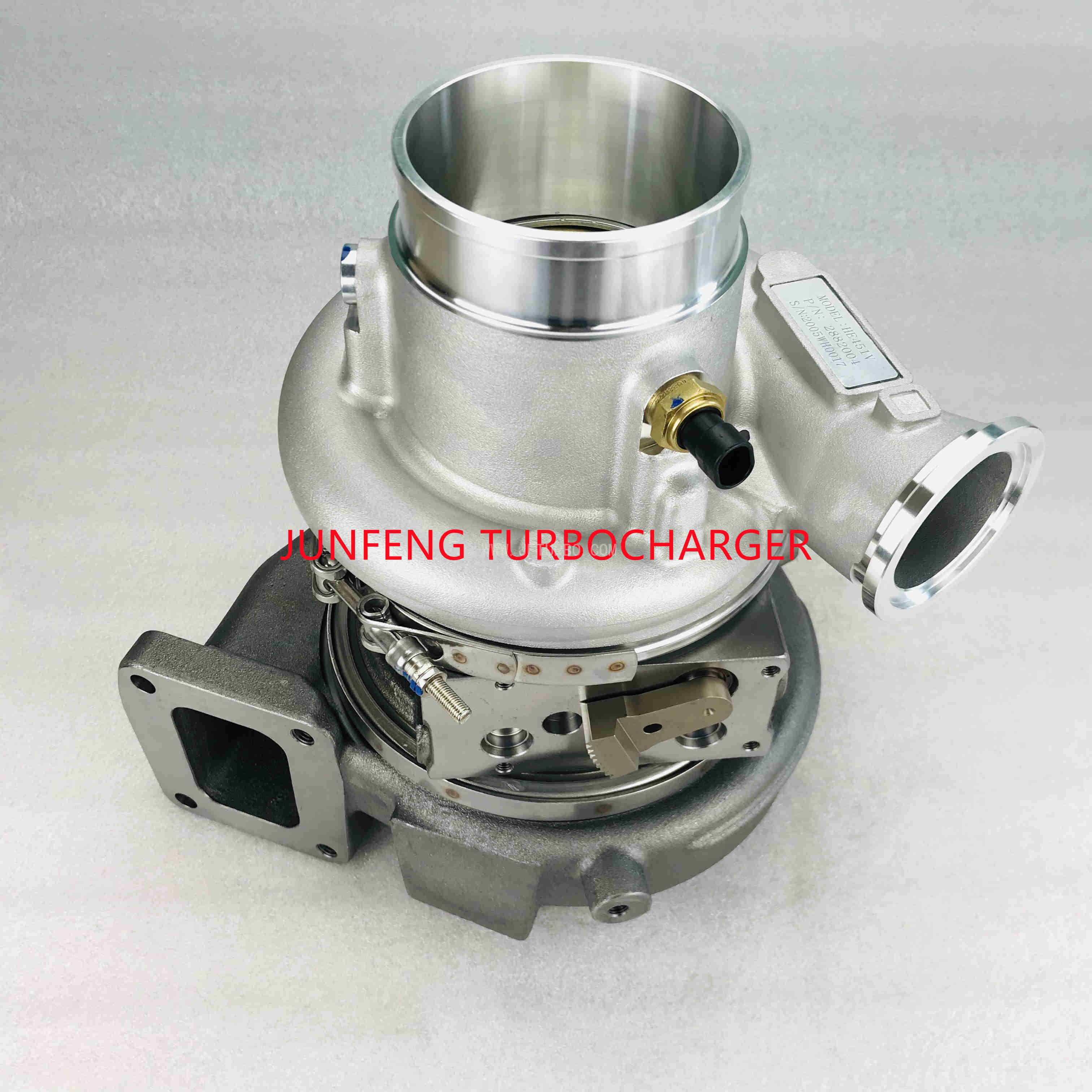

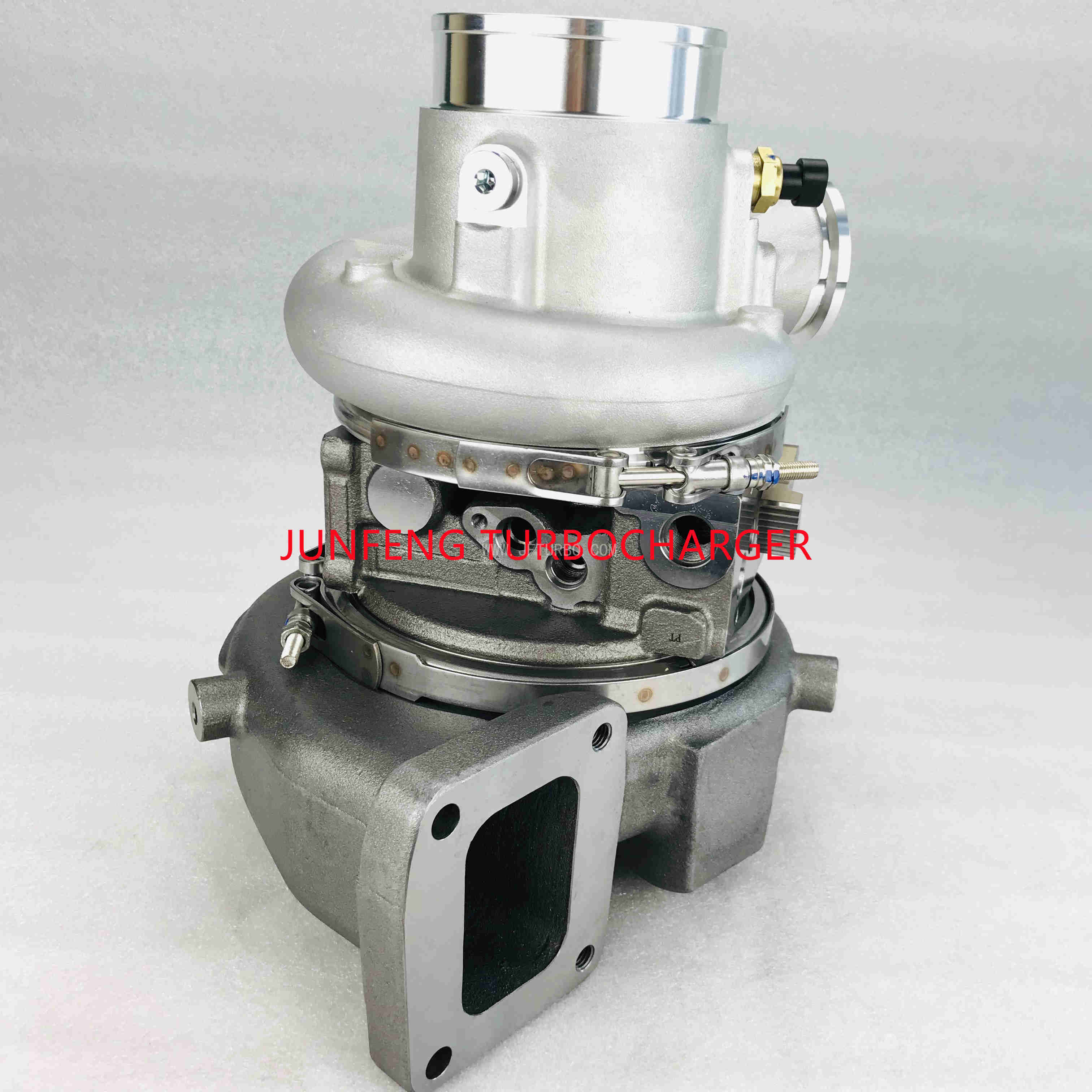

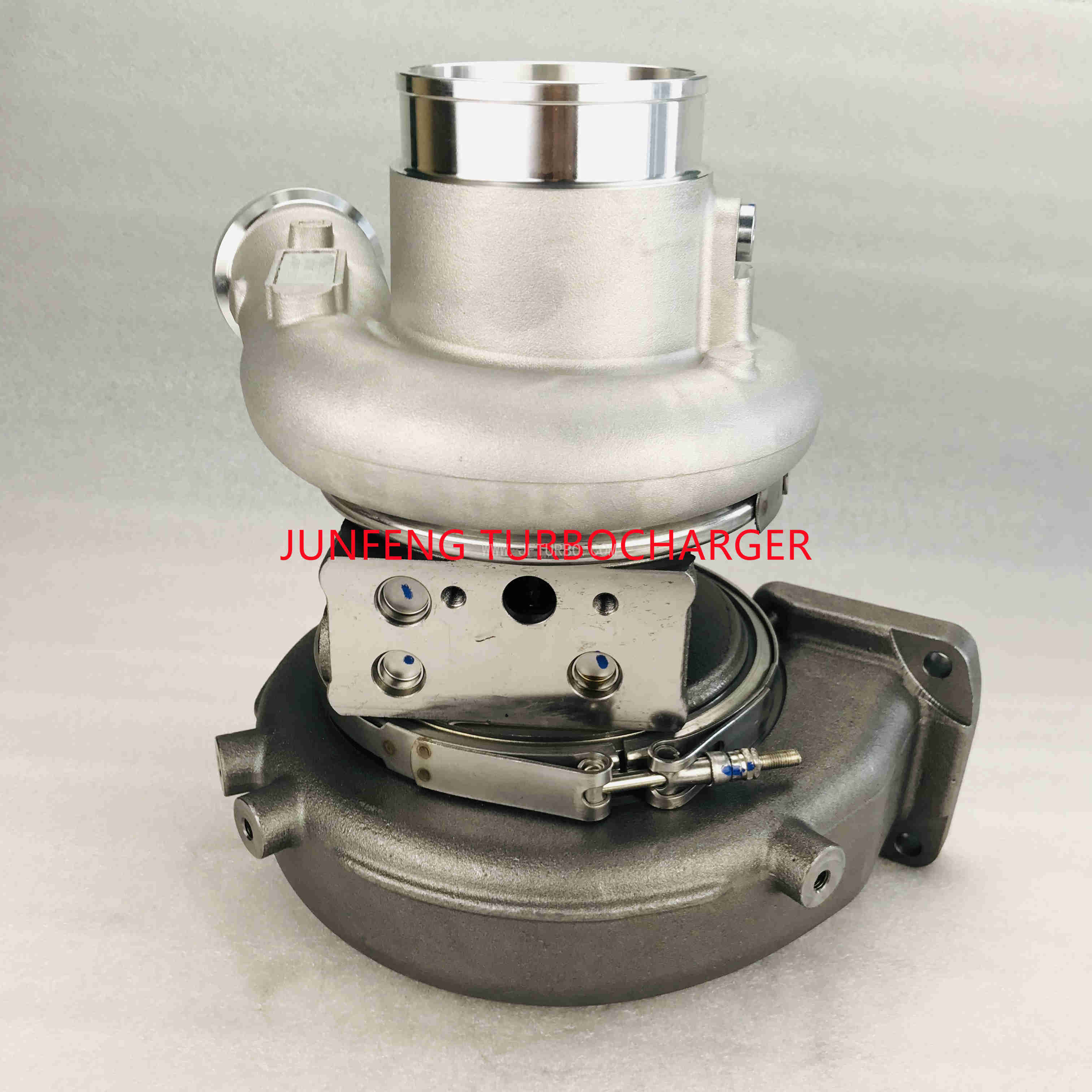

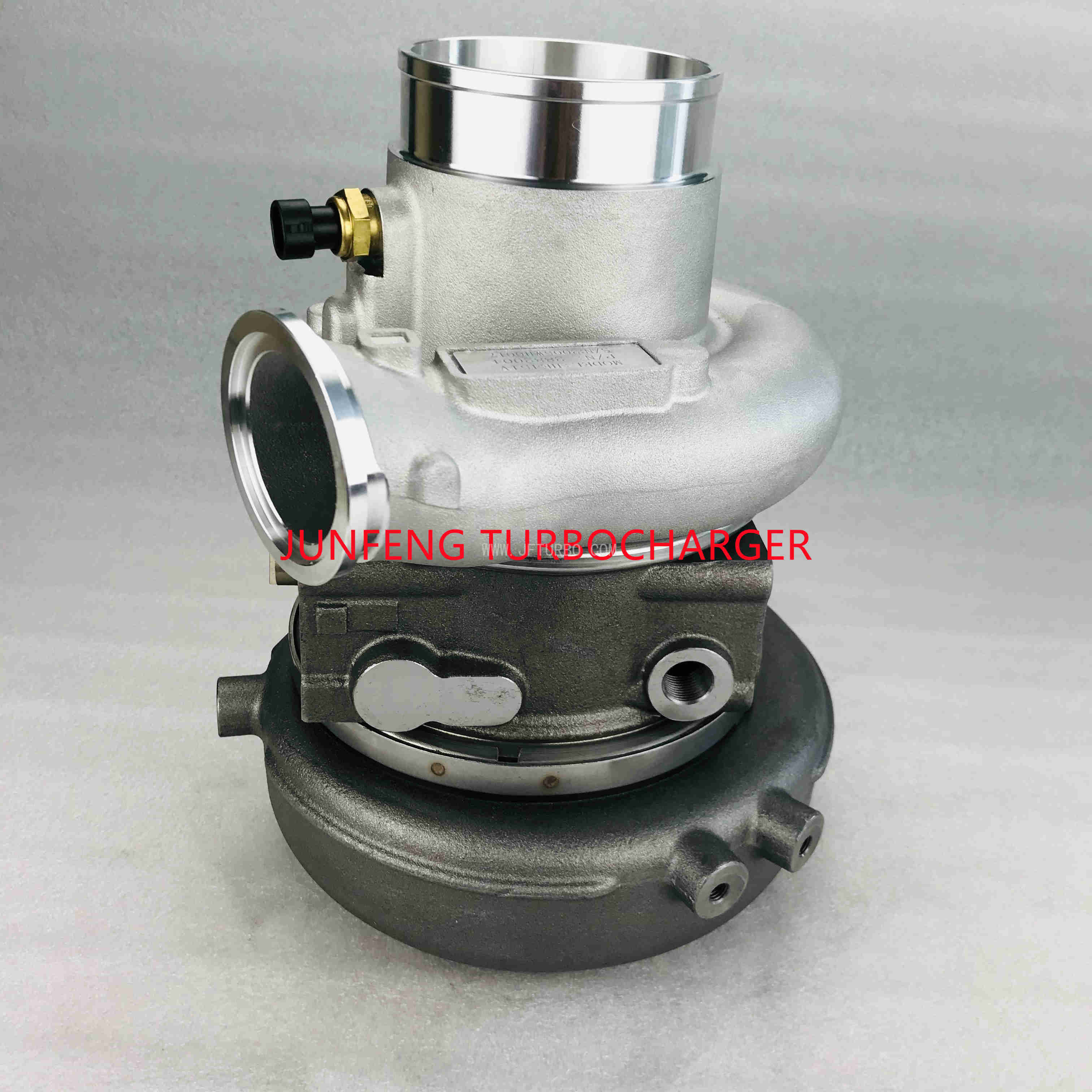

HE451V Turbo 2882111 5458503 5458503NX 5458503RX Turbocharger for Cummins ISX QSX15 CM2250 ECF engine

Others number: 379257600H, 3792576H, 3792577, 3792583, 379258300H, 3792583H, 3795122, 3795143

File No.: 3773488,3773489,3773491,3773492,3773493,3773495,3792571,3792576,379257600

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Part Number	2882111
Previous Version	2882004NX, 288211100, 2882111NX, 2882111RX, 2841220, 2841221, 2841222, 3768194, 3773569, 3792586, 2882111, 2881807, 2882004, 2840007, 3773562, 3773561, 2882110, 3792586H, 2882110NX, 3792586HX, 288211100HX
Year	2005-10
OE Number	8773568, 3783568, 2843893, 3792584, 3773566, 3768191, 2882110NX
Description	Various Trucks
Manufacturer Part Number	2843481
Turbo Model	HE451VE, HE400VG
Engine	ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X114, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102
Displacement	15.0L, 1500 ccm
Fuel	Diesel
Angle α (compressor housing)	275°
Angle β (turbine housing)	155°
Turbine Wheel	2840238RX (Ind. 66.35 mm, Exd. 71.28 mm, 11 Blades) NEW IN STOCK
Comp. Wheel	(Ind. 61.95 mm, Exd. 92.96 mm, 7+7 Blades, Superback) NEW IN STOCK
Turbine Housing AR	VGT
Speed Sensor Kit	4034201H
Gasket Kit	3685535
Superseded	5350503
NOTE	This turbo is sold without the Electronic Actuator
Electronic Actuator	4034289H
NOTE	Actuator it needs to be calibrated to the turbo

Applications

2005-15 turbocharger for Cummins Various with ISX, QSX Engine
