HE431V 4047231 4047232 2881681NX 2881681RX Turbocharger backplate Fits for Cummins Truck Bus ISC ISL Engine

Model: HE431V

Part Number: 4047231 4047232 2881681NX 2881681RX

Others number: 4045934 4047231 4043879

File No.: HE431V 4047231

Packing: Neutral carton,or Customized Carton

Size: Standard size

Sample Order: accept

Shipping: DHL,Fedex,UPS,EMS,TNT,Air,Sea

Trade Terms: EXW

Payment: T/T,Western Union,Chinese Account

Delivery: Within 2 days after your payment arrive,if it have in stock

Freight Delivery: Depends on the express company

Weight: 3kg

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product Information
Port

Part Number	4047231
Previous Part Number	2835204, 2835726, 2836548, 2836809, 2839572, 2839578, 2839970, 2839975, 2842335, 2842348, 2842355, 2842547, 2881659, 2881659NX, 2881671, 2881681, 2881681NX, 2881681RX, 2881741, 2881741RX, 2881861, 2881861NX, 2881861RX, 3774330, 3774335, 3774347, 3778778, 3778790, 3778796, 3795640, 379564000, 379564000H, 3795640H, 3795652, 3795658, 3772940
OE number	4955533, 4955693, 4955692, 4955535, 4955534, 4955403, 4955693
Manufacturer Part Number	4045254, 4047290, 4309193, 4309193NX, 4309193RX, 4352529, 435252900, 435252900H, 435252900HX, 4352529H, 4352529HX, 4352529NX, 4352529RX, 4955533, 4955533NX, 4955942, 4955942NX, 4955989, 5321720, 5321724, 5455957, 545595700, 545595700H, 545595700HX, 5455957H, 5455957HX
Description	FITS FOR Cummins Various, Truck, Bus
CHRA	(1000020150T)
Turbo Model	HE431VE
KW	805/816
Engine	ISL, ISC, ISC 280
Fuel	Diesel
Power	805 HP
S/N	P0806090435
Angle α (compressor housing)	247/270/155°
Angle β (turbine housing)	151/61/134°
Bearing Housing	2841670 (2840639)(Water Cooled)(1900011344)
Turbine Wheel	4041399 (Ind. 59.15 mm, Exd. 74.69 mm, Trm 7.81, 11 Blades)(1100016341)
Comp. Wheel	4039432 (Ind. 59.35 mm, Exd. 85. mm, 7+7 Blades, Superback)(1200016481T)

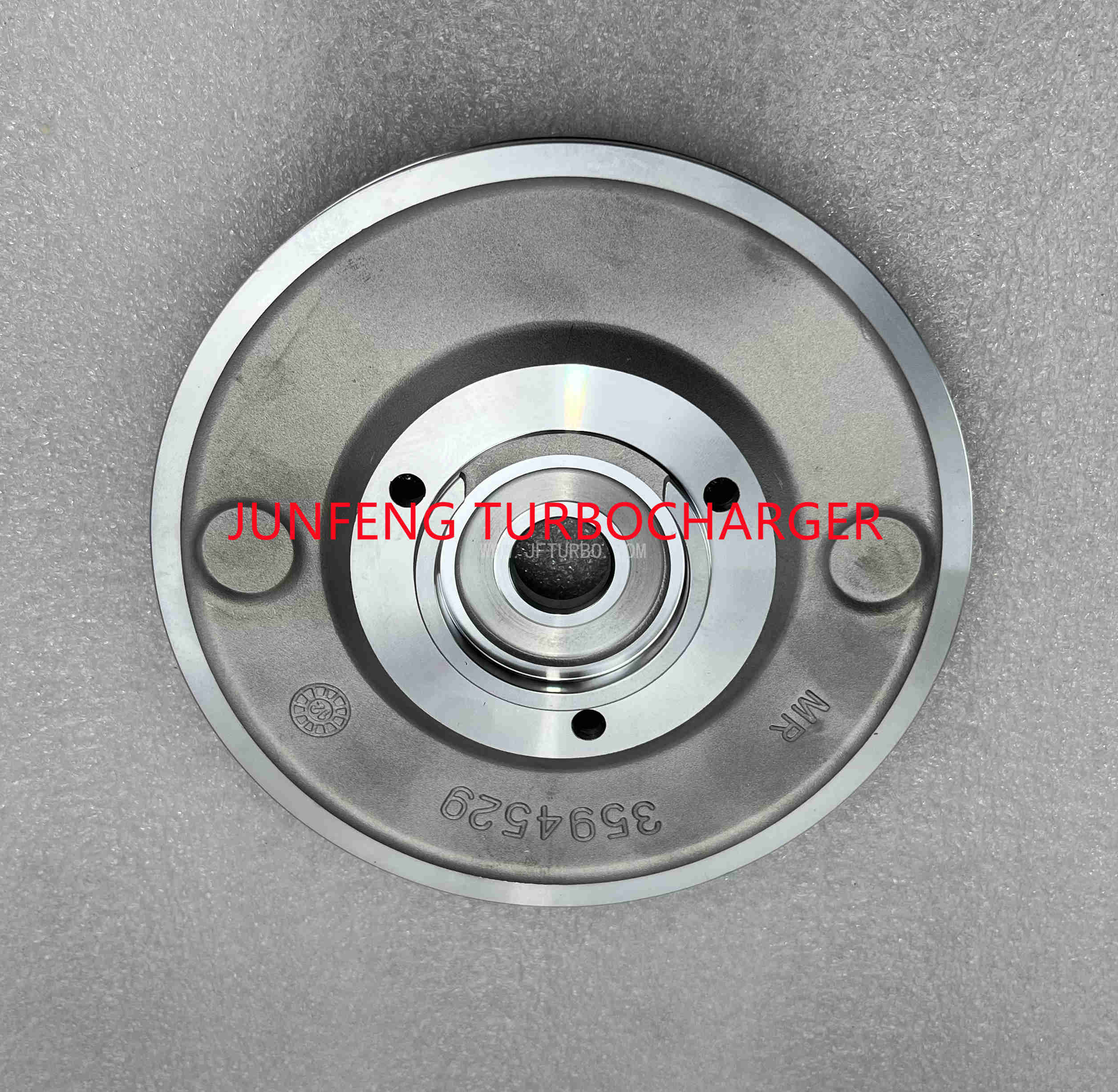

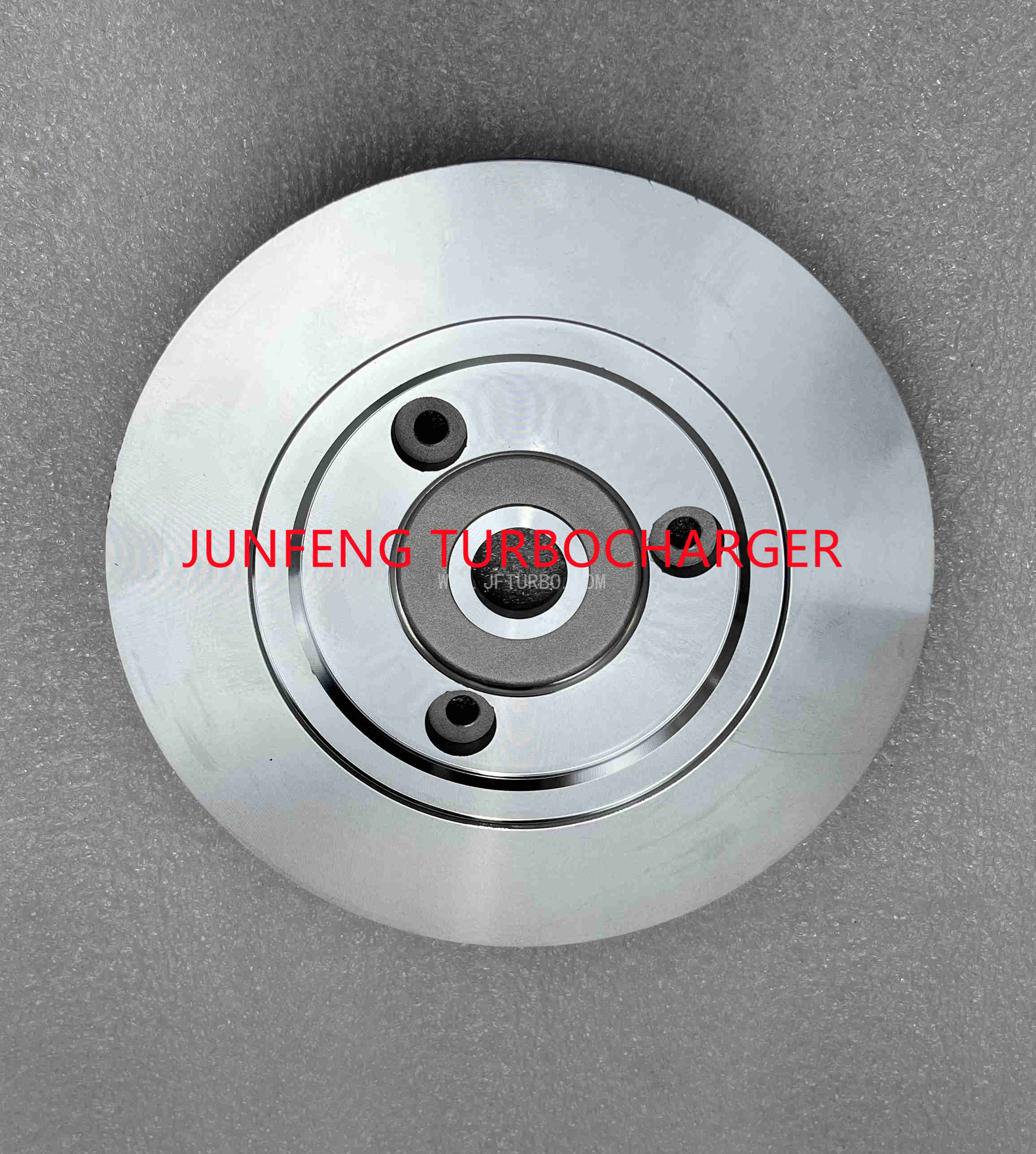

Back plate	3594529 (1300016122)
Heat shield Number	(2063050182)
Repair Kit	(1154551765, 500002003)
Nozzle Ring Assembly	(3000016051)
Actuator Electronic VGT	2835946 (28169127, 28169127-10, 2816912710, 28200933, 28200933-10, 2820093310, 2835946, 2835949, 2837208, 2840219, 3787561, 3787595, 4032161, 4032674, 4032768, 4032768NX, 4032768RX, 4034122, 403412200, 403412200H, 403412200HX, 4034122H, 4034122HX, 4034122NX, 4034122RX)(12 Volts)
Gasket Kit	4032585 (403258500)
Replaced by	2842336, 4047231, 4047233

Applications

2007-13 turbocharger for Cummins Truck, Bus, Various ISL engine
