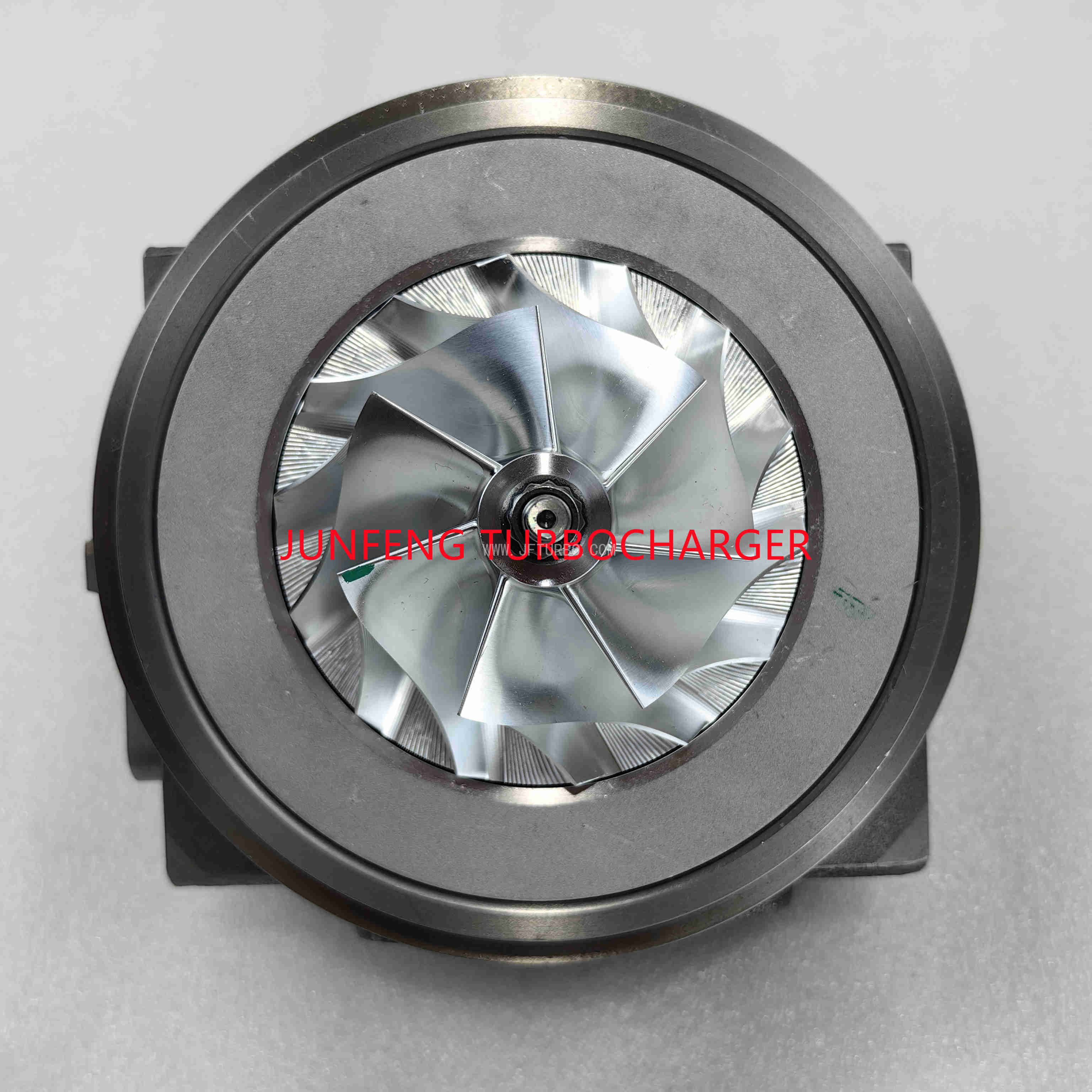

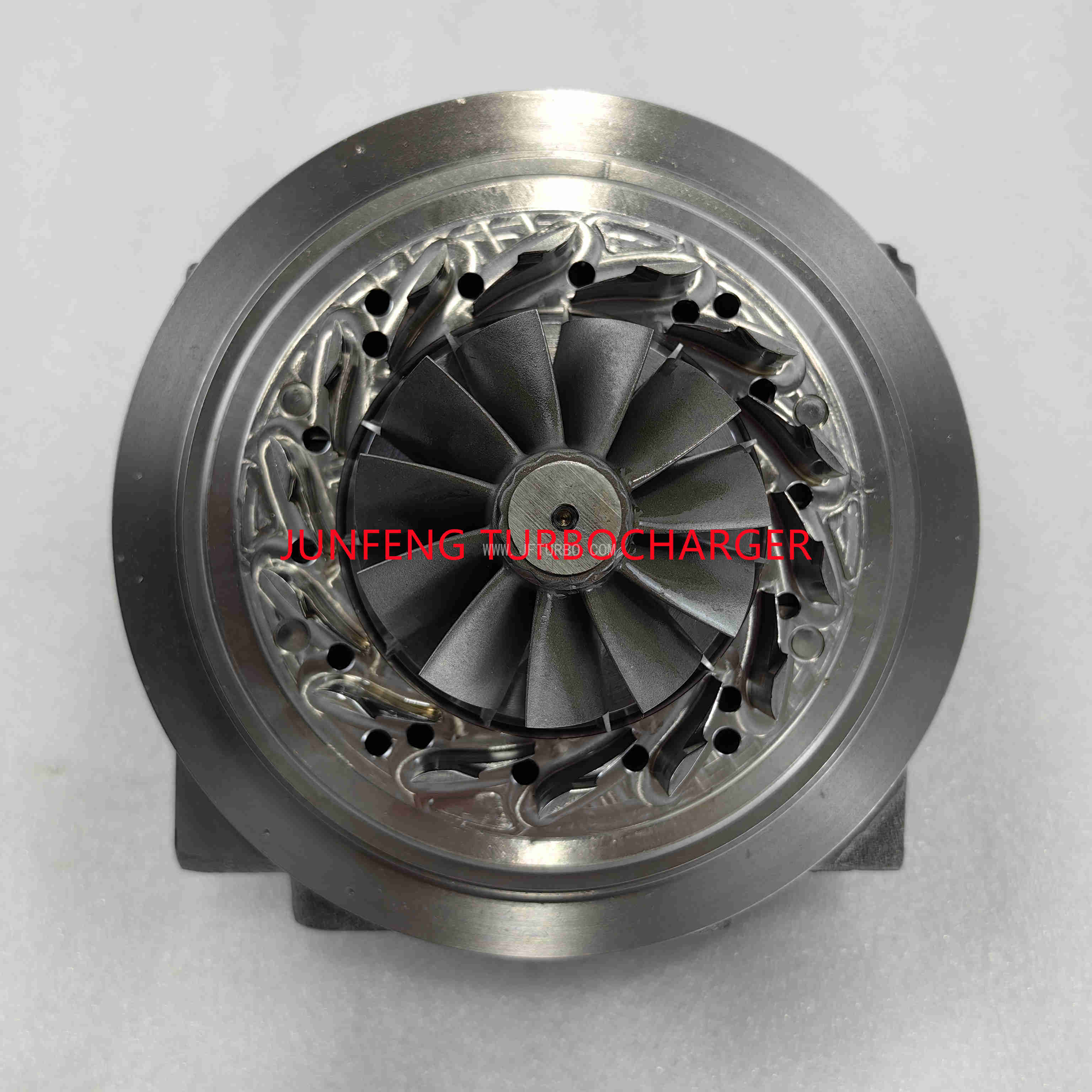

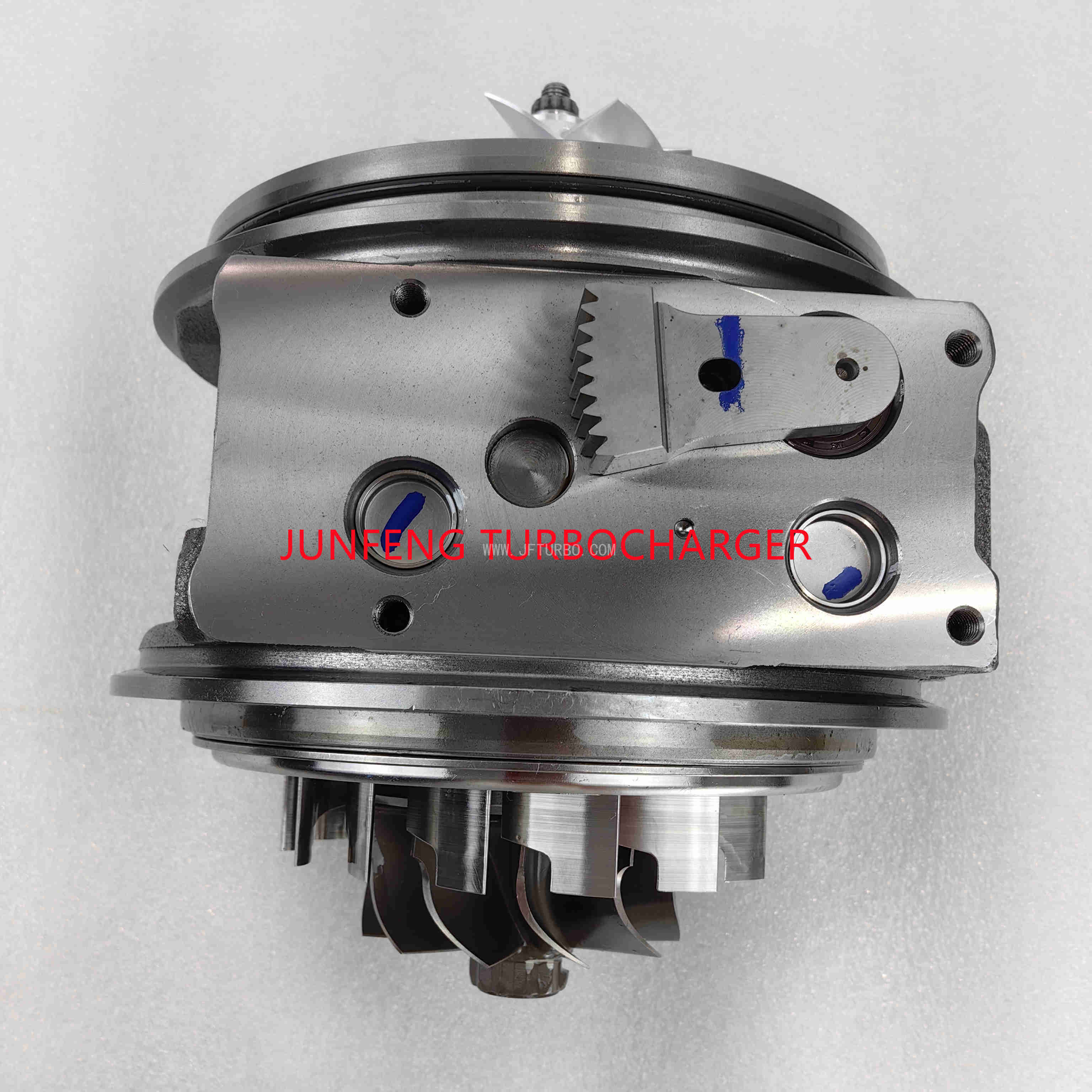

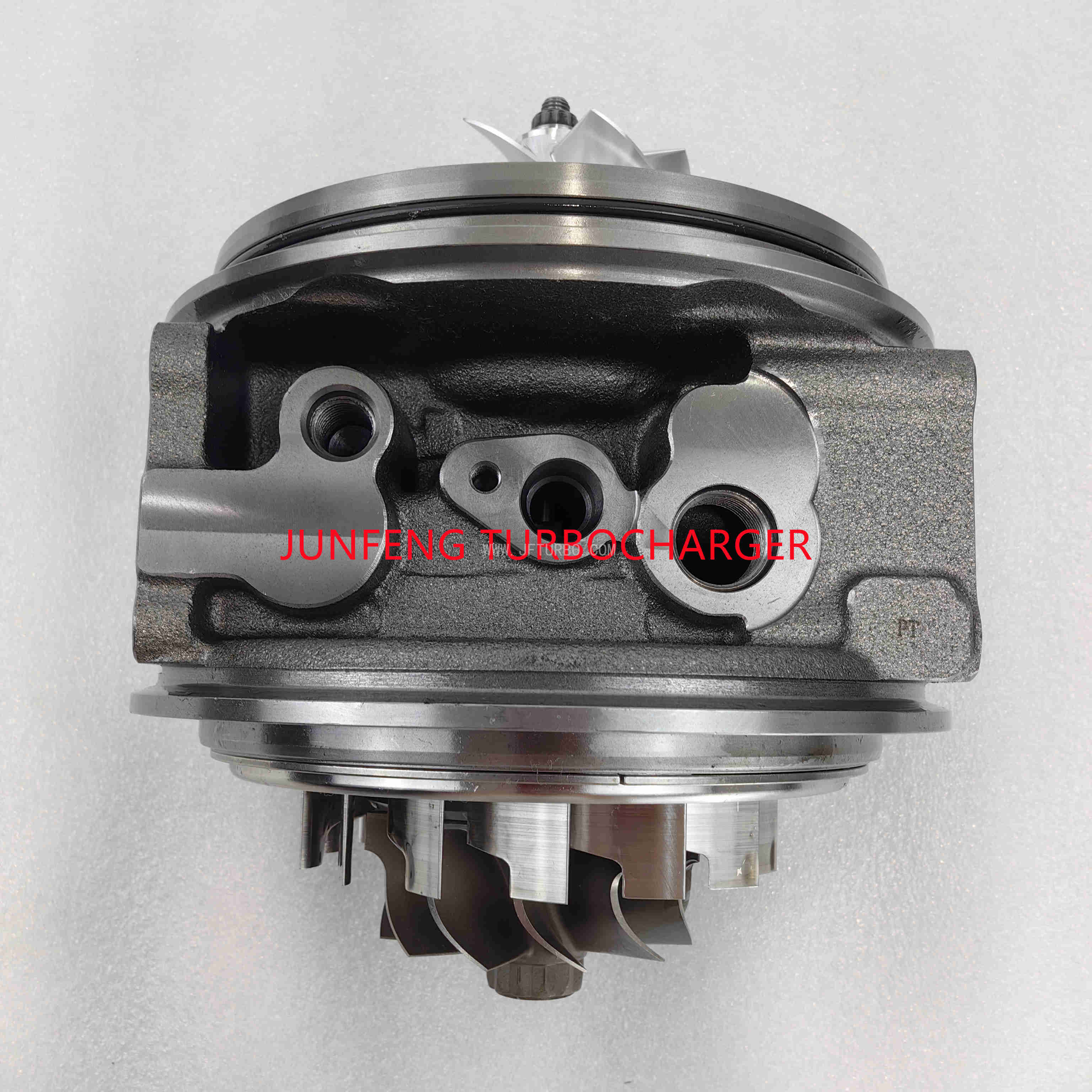

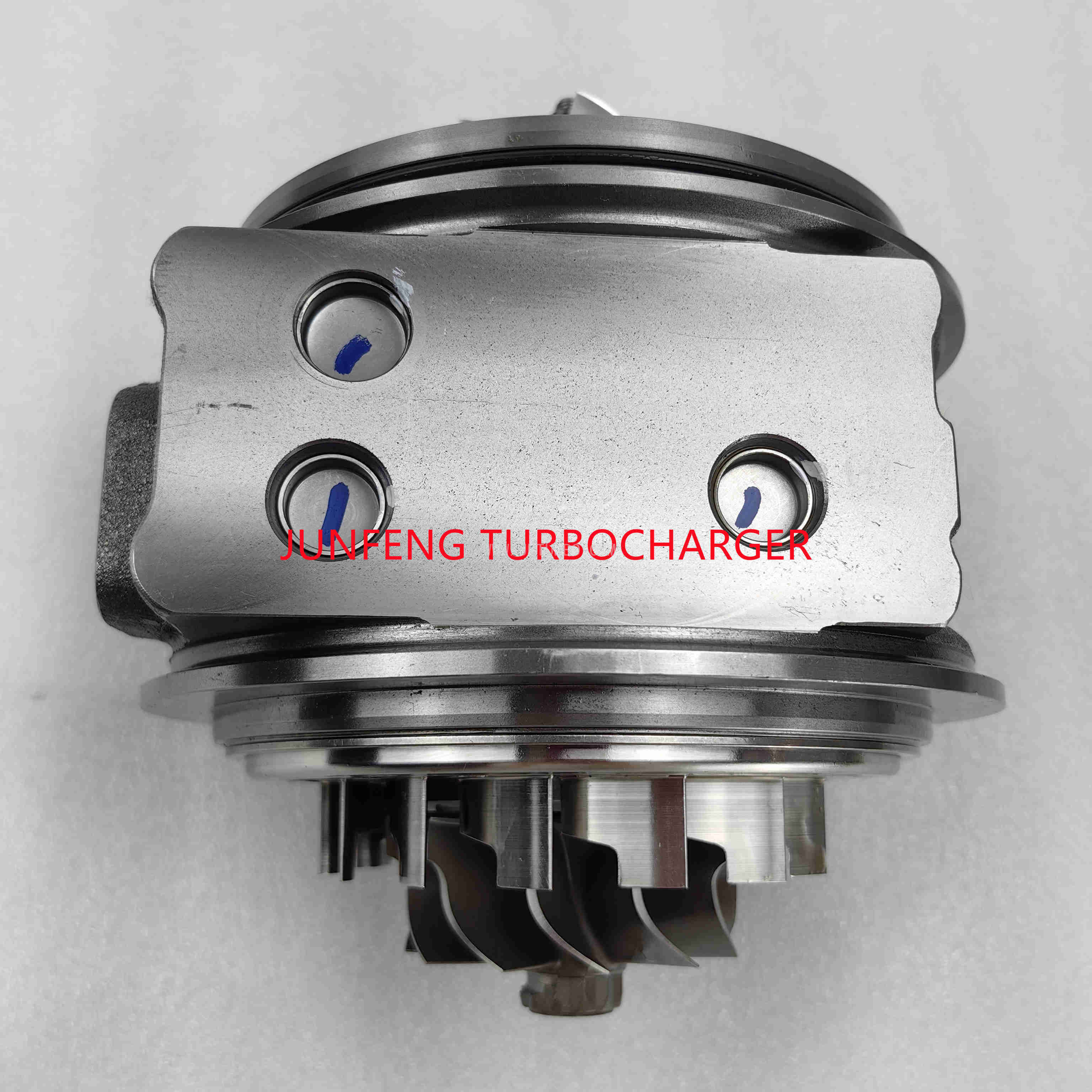

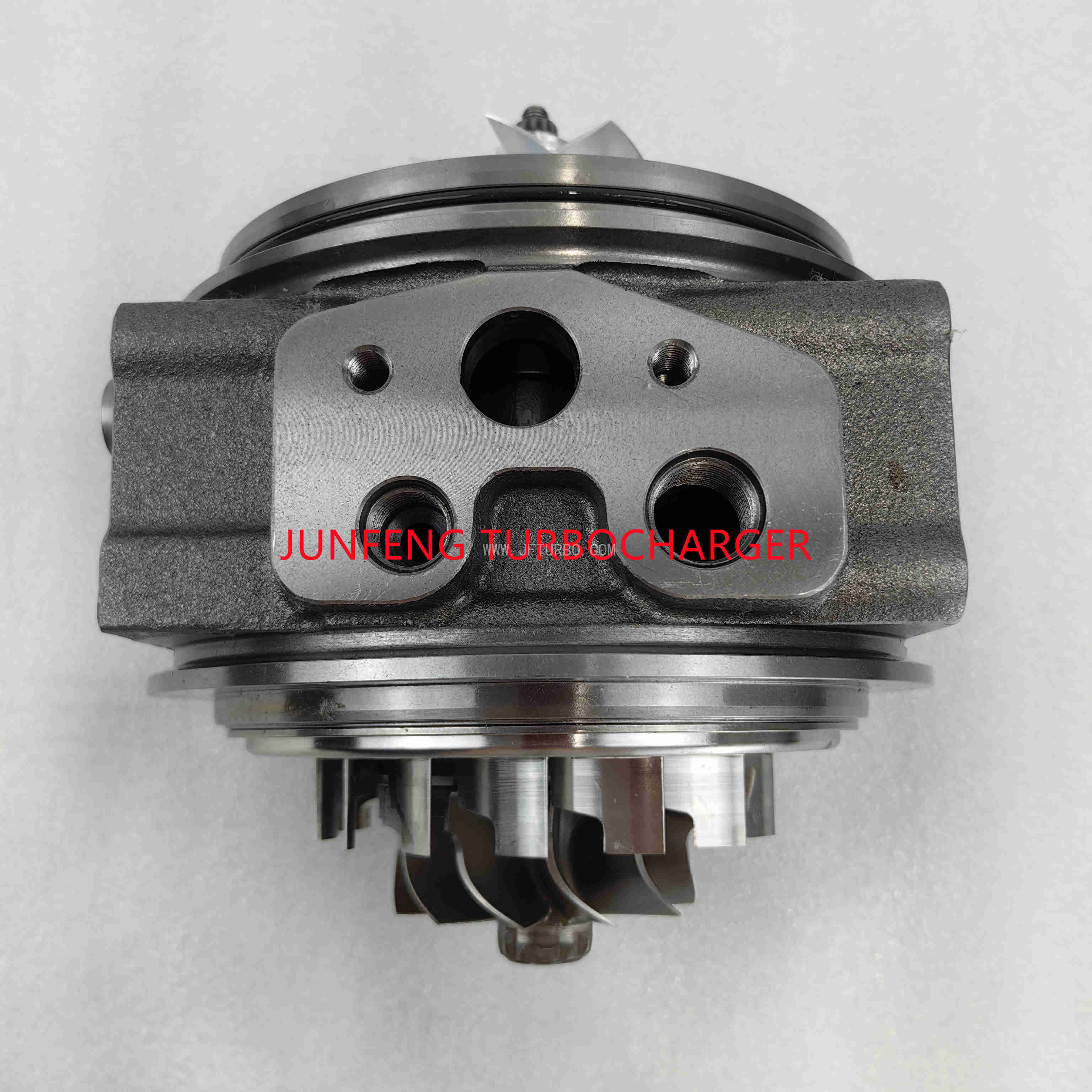

HE400VG turbo CHRA 4309124 2881791 Turbocharger Cartridge for Cummins CTT ISC ISL B3 B4 ISM Engine

Model: HE400VG

Part Number: 4309124 4955428 2881791 2836369 2838787 2840541 3775141 3776839

OE number: 3776838 3776839 3792250 4309124NX 4309124RX 5458510

Others number: 5458510RX 4309083 5458511 4955582 4956028

File No.: HE400VG 2881791

Packing: Neutral carton,or Customized Carton

Size: Standard size

Sample Order: accept

Shipping: DHL,Fedex,UPS,EMS,TNT,Air,Sea

Trade Terms: EXW

Payment: T/T,Western Union,Chinese Account

Delivery: Within 2 days after your payment arrive,if it have in stock

Freight Delivery: Depends on the express company

Weight: 15kg

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product Information
Port

Product Description

Part Number	5350607
Previous Version	19700523D, 2836368, 2836369, 2836373, 2838786, 2838787, 2838788, 2838791, 2840539, 2840540, 2840541, 2840544, 2840545, 2840548, 2840549, 2840550, 2881791, 2881791NX, 2881791RX, 2881792, 2881792NX, 2881792RX, 2881793, 2881793NX, 3774353, 3774354, 3774355, 3774356, 3774358, 3774623, 3774624, 3774637, 3774638, 3774650, 3775131, 3775132, 3775141, 3775650, 3776837, 3776838, 3776839, 3792242, 3792244, 3792246, 3792247, 3792247NX, 3792247RX, 3792248, 3792250, 379225000HX, 3792250H, 3792250HX, 3792251, 3795128, 3795150, 3795151, 3795152, 3797541, 3797542, 379754200, 3797542HX, 4039980, 4040648, 4040649, 4040650, 4040651, 4042426, 4042428, 4042430, 4042432, 4044519, 4044520, 4045268, 4045269, 4046226, 4046227, 4309083, 4309083NX, 4309083RX, 4309124, 430912400, 4309124NX, 4309124RX, 4955428, 4955428NX, 4955429, 4955429NX, 4955582, 4956026, 4956026NX, 4956027, 4956027NX, 4956028
OE Number	4956C26, 4955428
Year	2006-14
Description	Industrial Crane
Manufacturer Part Number	5350526, 5350607, 5350627, 5350627NX, 5350627RX, 5350629, 5355262, 5355263, 5355264, 5355981NX, 5359981, 5359981RX, 5455669, 5456971, 545697100, 545697100H, 545697100HX, 5456971H, 5456971HX, 5457032, 5457032H, 5457032HX, 5457203, 5457203NX, 5457203RX, 5458510, 5458510NX, 5458510RX, 5458511, 5458511NX, 5458511RX
Turbo Model	HE451Ve, HE400VG
CHRA	N/A
Engine	ISC, ISL, B3, B4, ISM
Displacement	320V
Fuel	Diesel
Angle α (compressor housing)	257º
Angle β (turbine housing)	158º
Turbine Wheel	2840238RX (Ind. 66.35 mm, Exd. 71.28 mm, 11 Blades) NEW IN STOCK
Comp. Wheel	(Ind. 61.95 mm, Exd. 92.96 mm, 7+7 Blades, Superback) NEW IN STOCK
Turbine Housing AR	VGT
Speed Sensor Kit	4034201H
Electronic Actuator	4034289H (12V) Reman
Electronic Actuator	4034290H (24V) Reman
Gasket (turbine inlet)	3088984
Gasket Kit	3685535

Applications

2006-14 turbocharger for Cummins (CTT) Industrial Crane with ISC, ISL, B3, B4, ISM Engine
