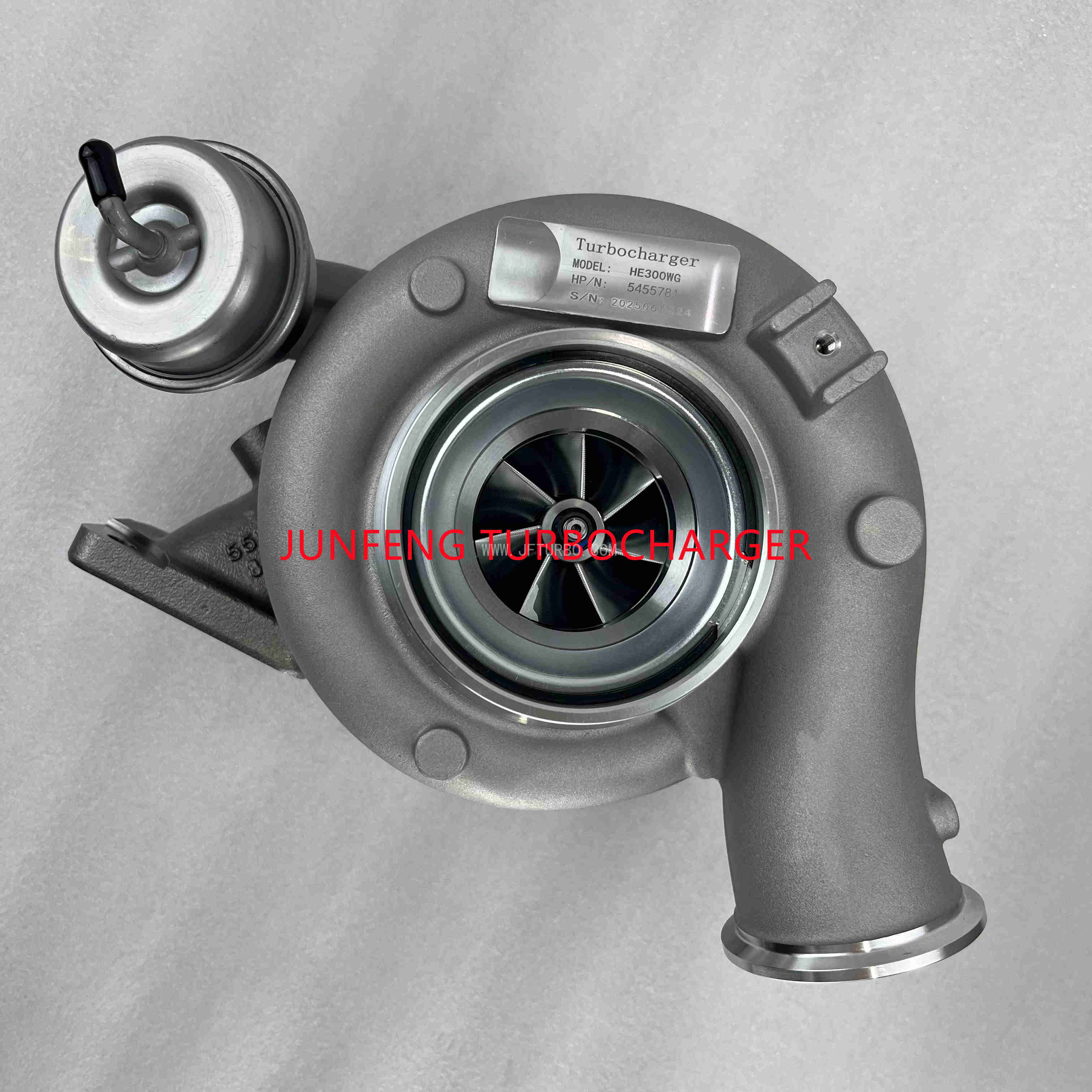

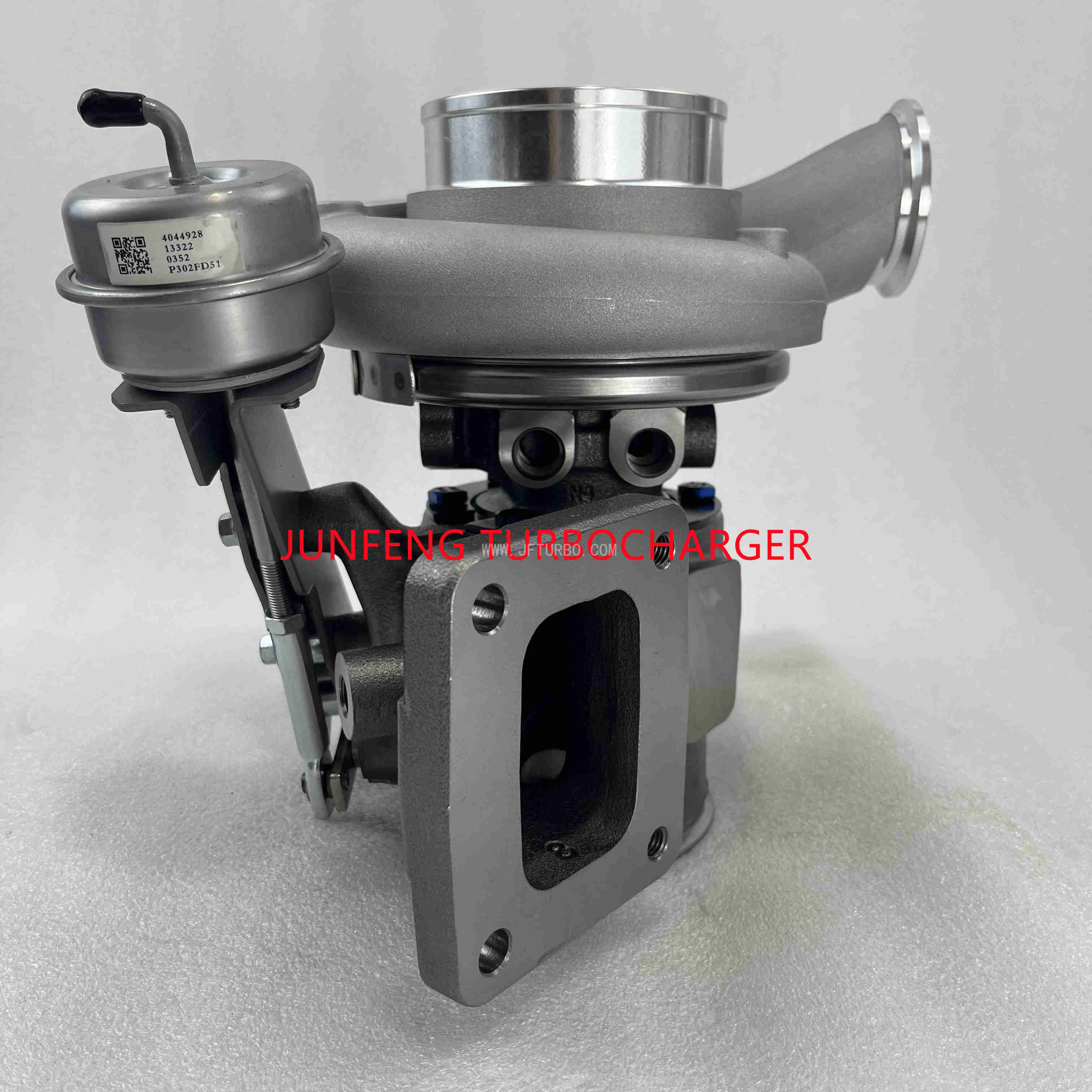

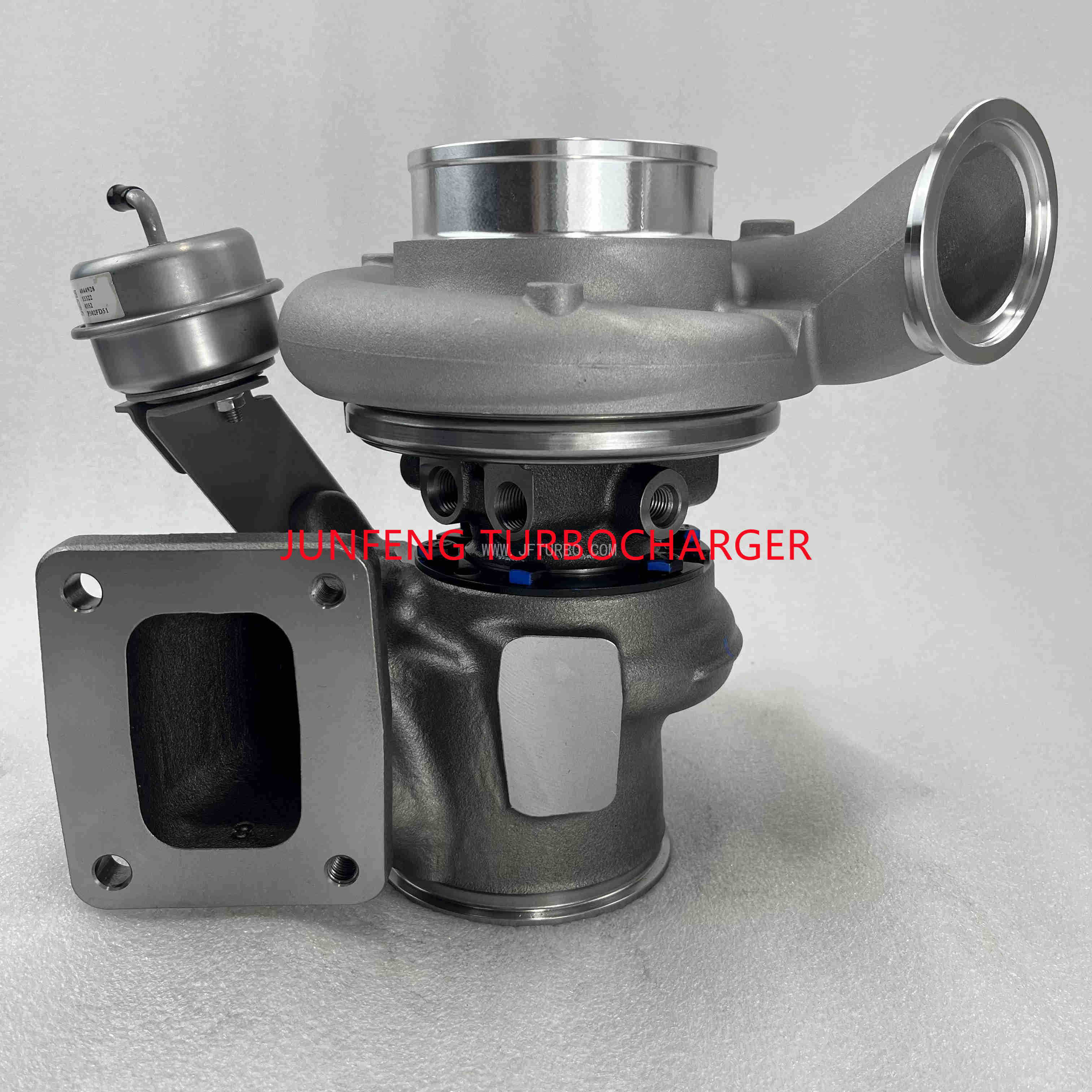

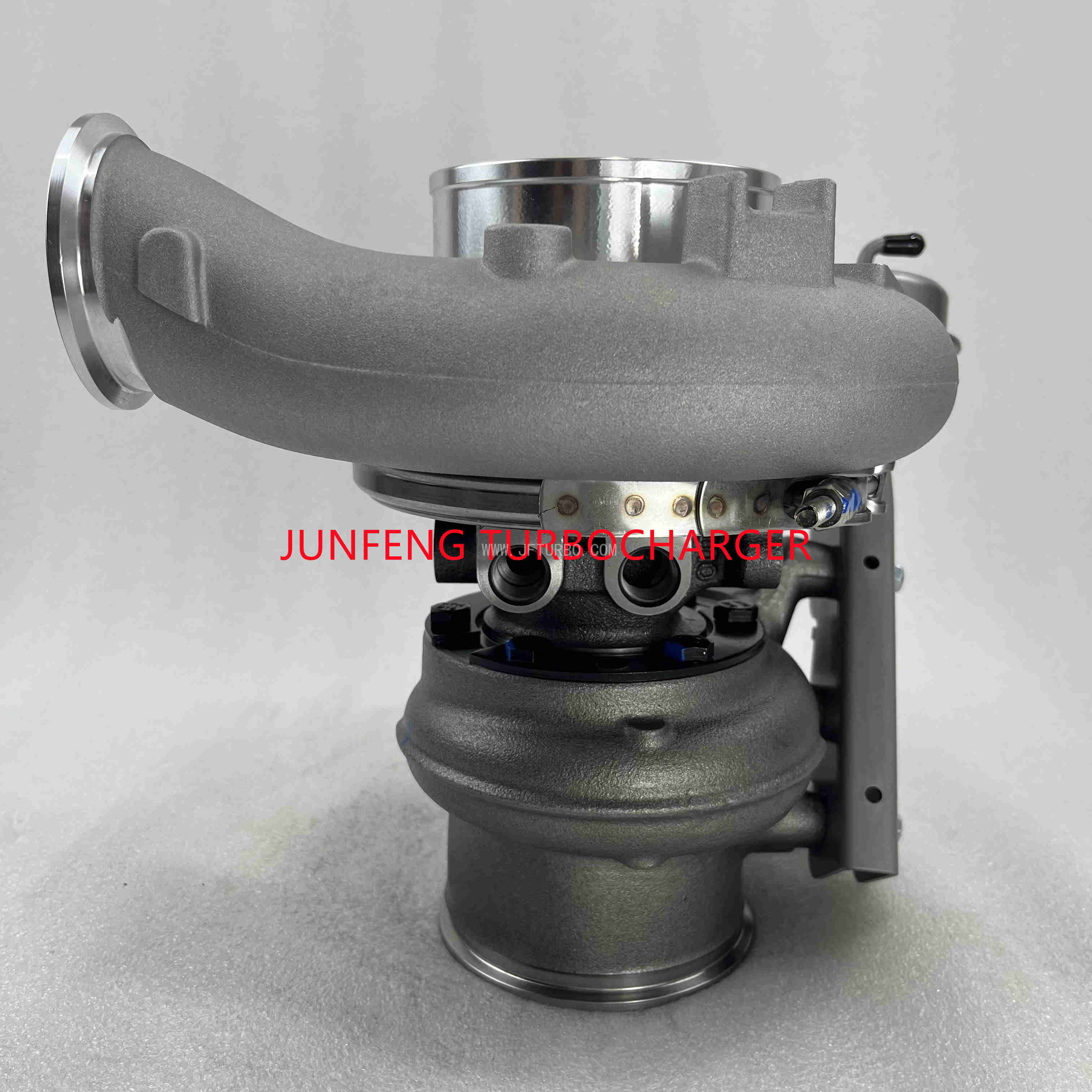

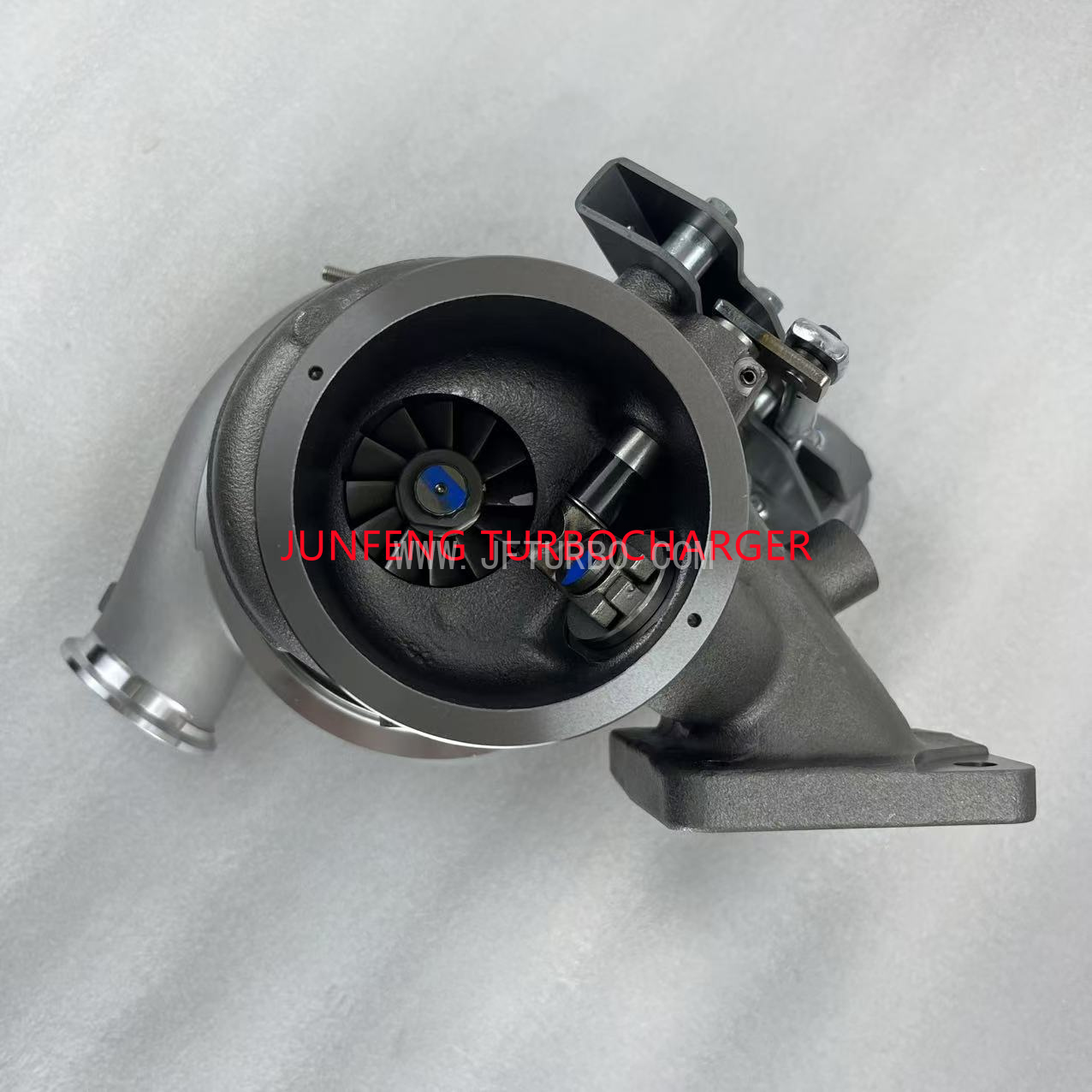

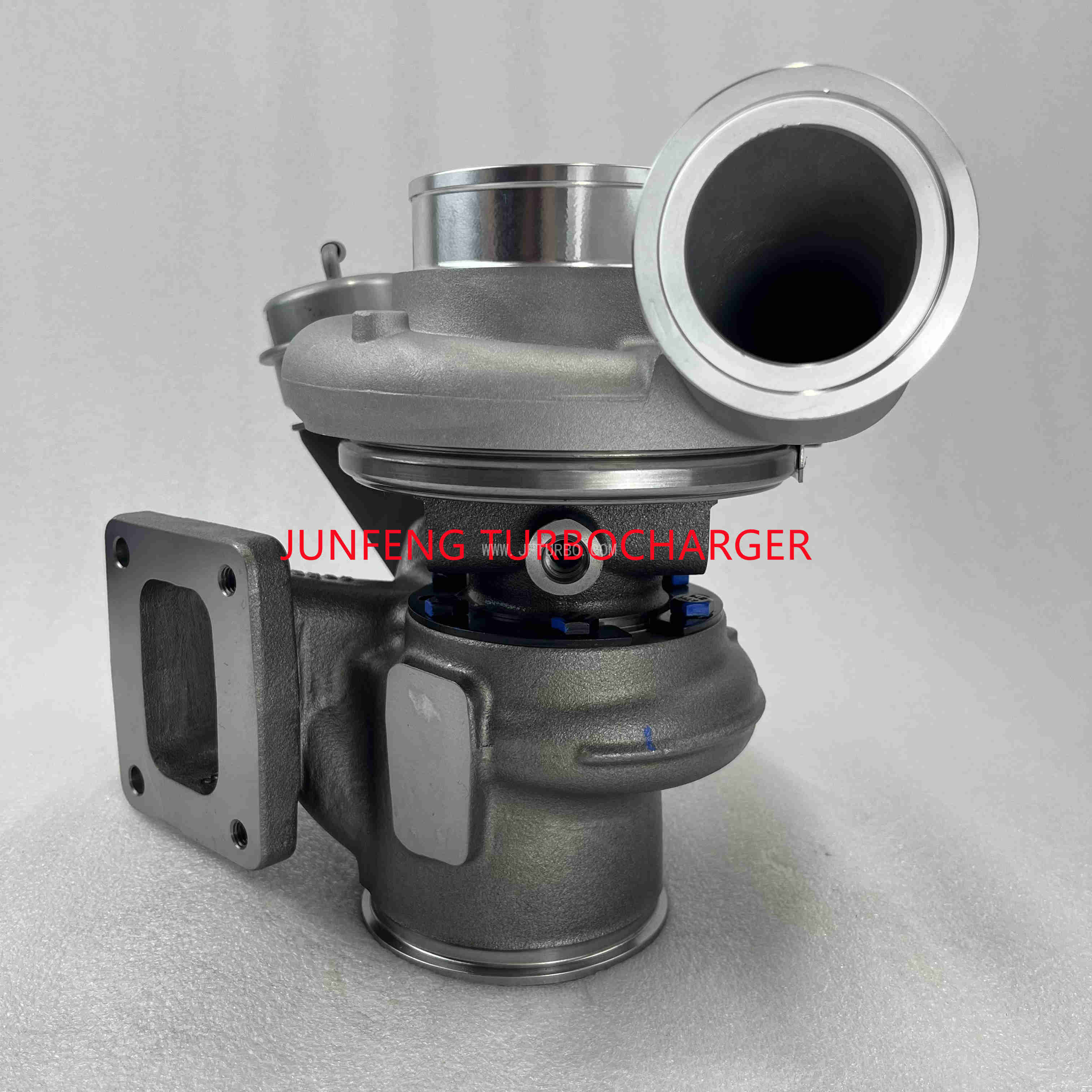

HE300WG Turbo 5350775 5455781 3782467 3788265 Turbocharger for Cummins Industrial 6.7L ISX12G Engine

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Part Number	5350775
Previous Part Number	3782467, 3788265, 3788266, 4309496, 4352254, 5350774, 5350775, 5500858, 5500859
OE number	5357389, 5357389RX, 5455781, 5455781RX
Year	2010-18
Description	Various, Industrial
CHRA	3769917 (3769917H)
CPL	3647, 3648, 3649 CM2350
Turbo Model	HE300WG
Engine	ISX12G
Displacement	6.7L, 6700 ccm
Engine Manufacturer	Cummins
Fuel	Natural Gas, Diesel
Angle α (compressor housing)	145°
Angle β (turbine housing)	165°
Bearing Housing	(Water Cooled)
Turbine Wheel	(Ind. 52.00 mm, Exd. 64.9 mm, 12 Blades)
Comp. Wheel	4039431 (Ind. 57.98 mm, Exd. 86.00 mm, Trm 10.54, 7+7 Blades, Superback)
Back plate	3530923 (1154351300)
Heat shield Number	3519302 (1152301340)
Repair Kit	3575169 (1153035750)
Turbine Housing	3785367
Actuator	4030780
Gasket Kit	4032496
Gasket (turbine outlet)	3535001 (3922789)(Inox Steel)

Applications

turbocharger fits for 2010-18 Cummins Industrial with ISX12G Engine
