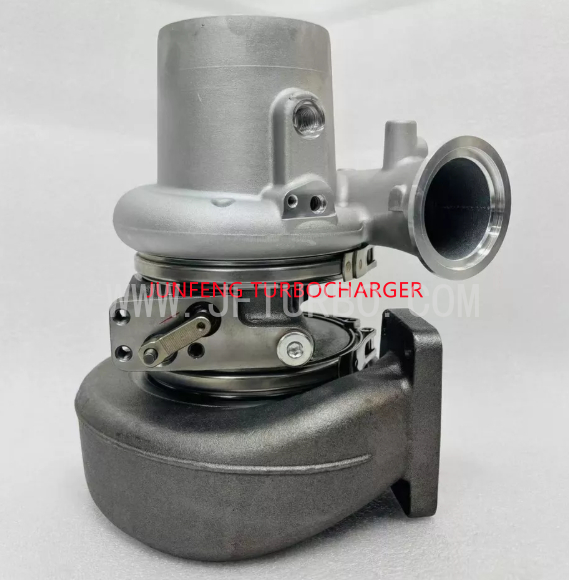

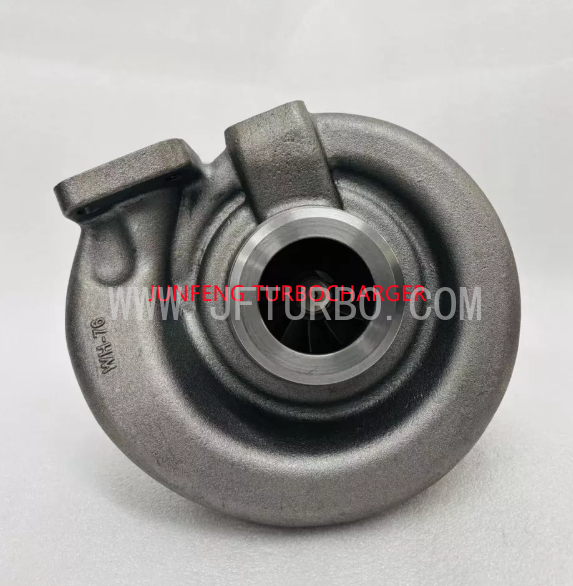

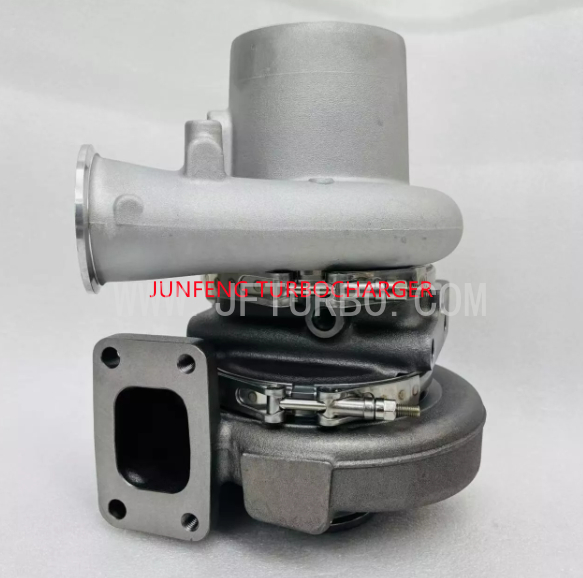

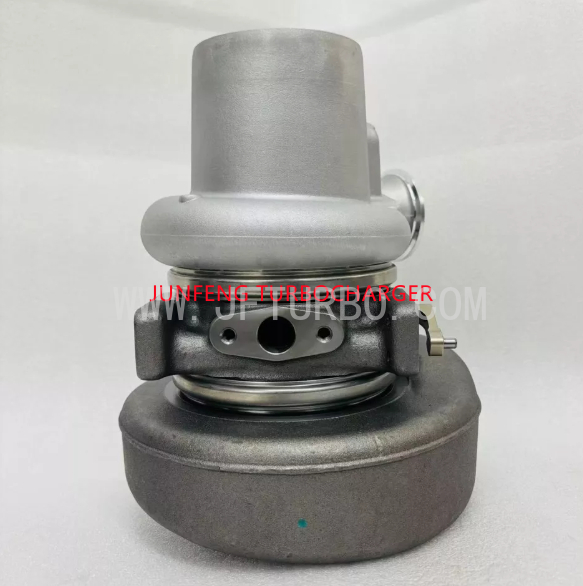

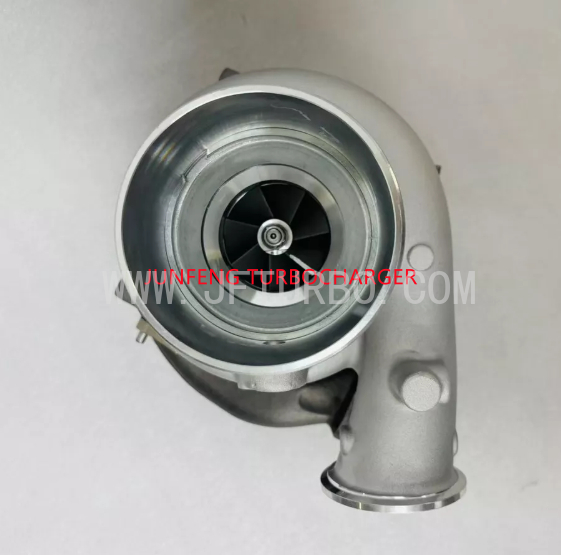

HE300VG Turbo 3795958 4039799 4036432 4089373RX Turbocharger for Cummins Dodge Cab Chassis Truck ISB QSB ISL QSL Engine

Part Number: 3795958 4037280, 4037281, 4037283, 4039799, 4039802, 4039804, 4039805, 4039806

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product Description

Part Number	3795958
Previous Version	3598489, 3599142, 3599395, 3599397, 3599398, 3599399, 3599400, 3599515, 3795960, 3795961, 3795961H, 3795961HX, 3795962, 3795964, 3795965
OE Number	4089312, 4089312NX, 4089312RX, 4089373, 4089373NX, 4089373RX, 4089698, 4089698NX, 4089698RX, 4089945, 408994500, 408994500HX, 4089945H, 4089945HX, 4089945NX, 4089945RX, 4089947, 4089947NX, 4089947RX, 4955165, 4955165NX, 4955165RX, 4955166, 4955166NX, 4955166RX, 4955167, 4955167NX, 4955167RX
Year	2004-09
Description	Truck, Dodge Cab & Chassis Trucks
Turbo Model	HE341VE, HE300VG
CHRA	N/A
Manufacturer Part Number	4035155, 4036432, 4036446, 4036448, 4036449, 4036450, 4036451, 4036453, 4037273, 4037276, 4037278, 4037279, 4037280, 4037281, 4037283, 4039799, 4039802, 4039804, 4039805, 4039806, 4039807, 4039809, 4040622, 4041619, 4041620, 4041621, 4041622, 4041623, 4041624, 4041625
Engine	ISB, QSB, ISL, QSL, ISB02, ECHO LMRO, B Series
Displacement	5.9L, 6.7L
Fuel	Diesel
Angle α (compressor housing)	230/330°
Angle β (turbine housing)	180°
Bearing Housing	(Water Cooled)
Turbine Wheel	(Ind. 59.15 mm, Exd. 66.5 mm, 11 Blades)
Comp. Wheel	3599648 (3599648H)(Ind. 53.7 mm, Exd. 77.98 mm, 7+7 Blades, Superback)
Back plate	3595189
Repair Kit	4027309 (1152301750)
Turbine Housing AR	VGT
Electronic Actuator	4031337 (3598564, 403133700, 403133700H, 403133700HX, 4031337H, 4031337HX, 4031337NX, 4037832, 4039360, 4039360H)
Gasket Kit	3545575 (1900100057)
Manufacturer	booshiwheel

Applications

turbocharger fits for 2004-09 Cummins Truck with ISB Engine
