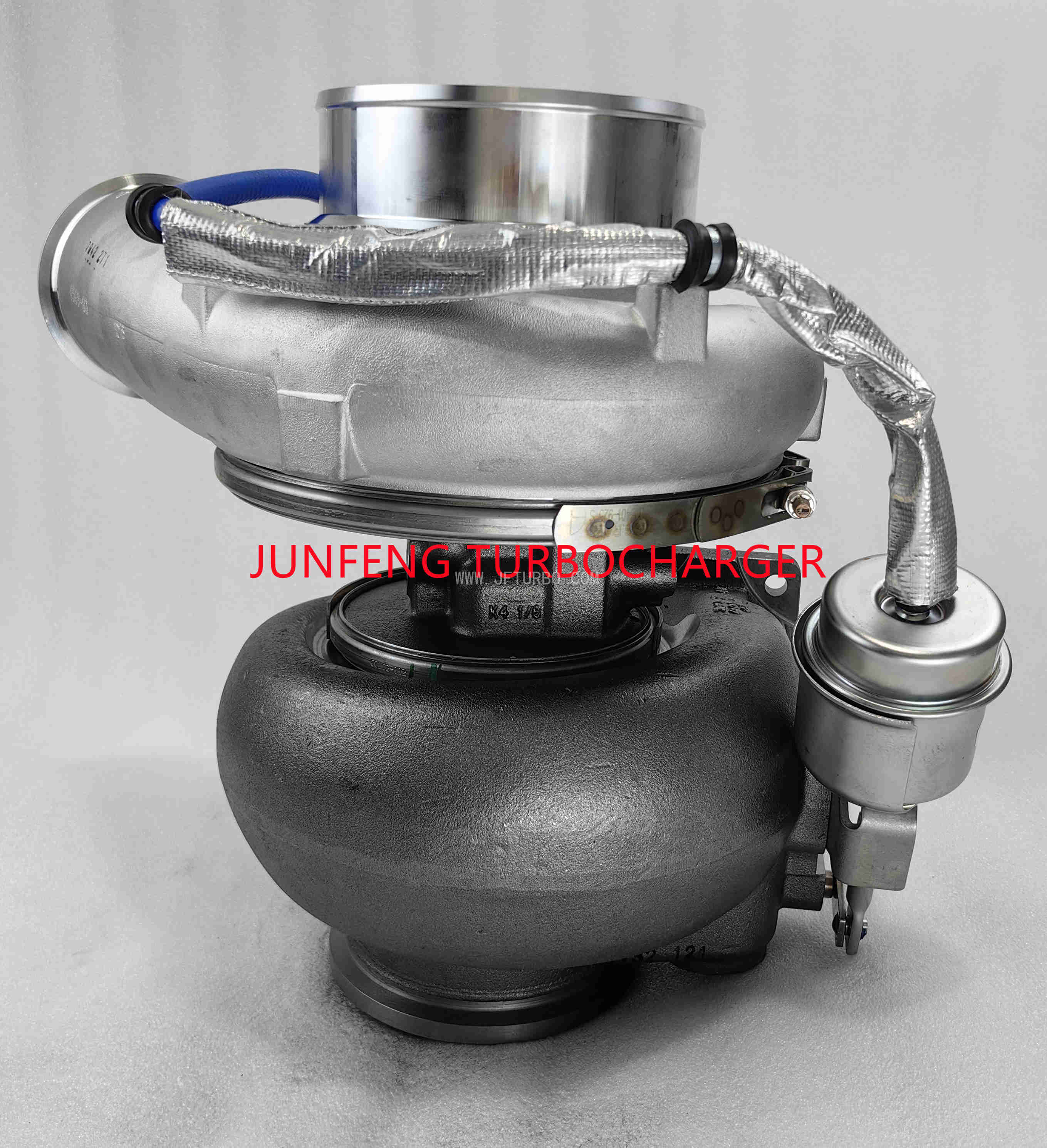

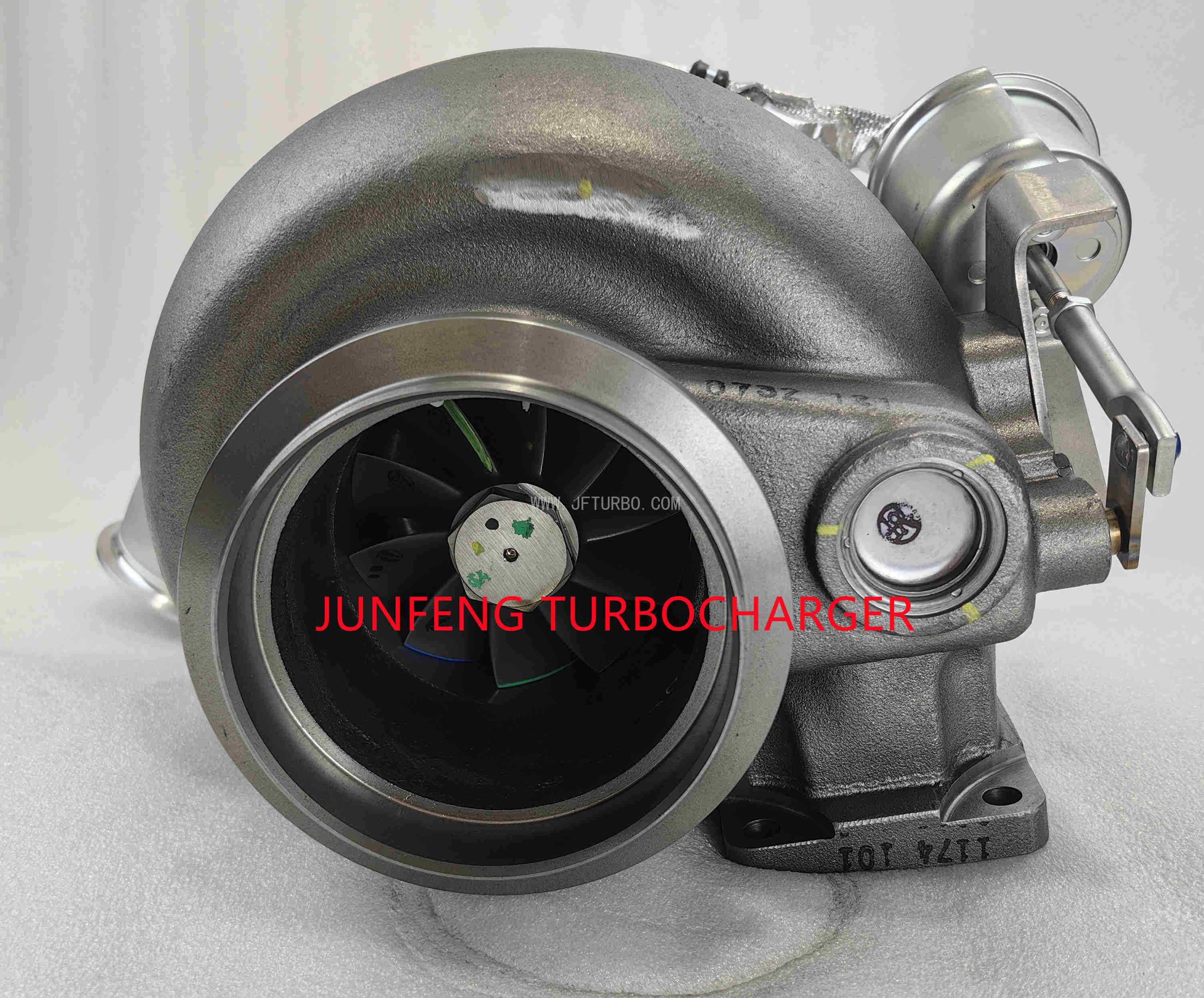

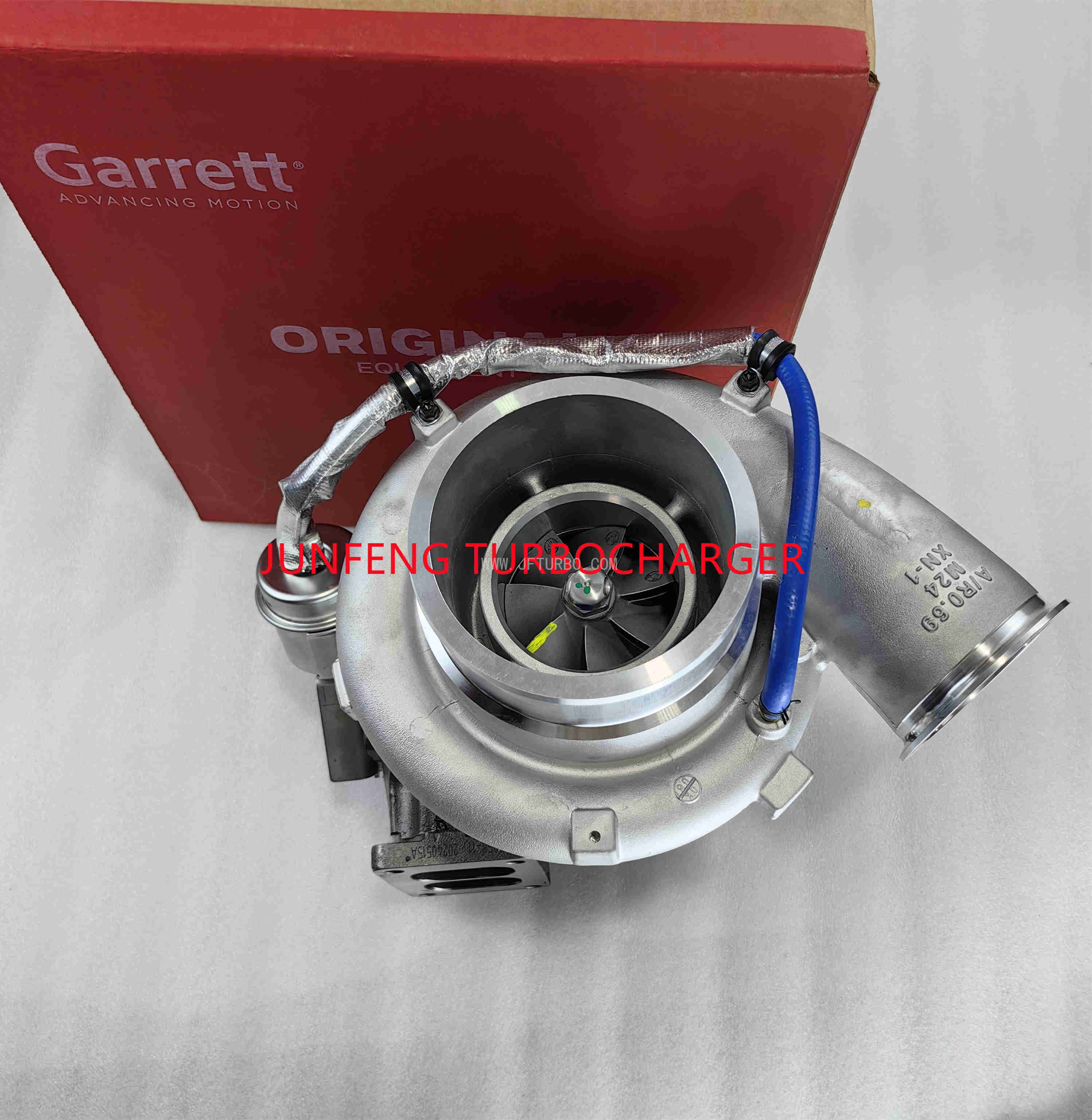

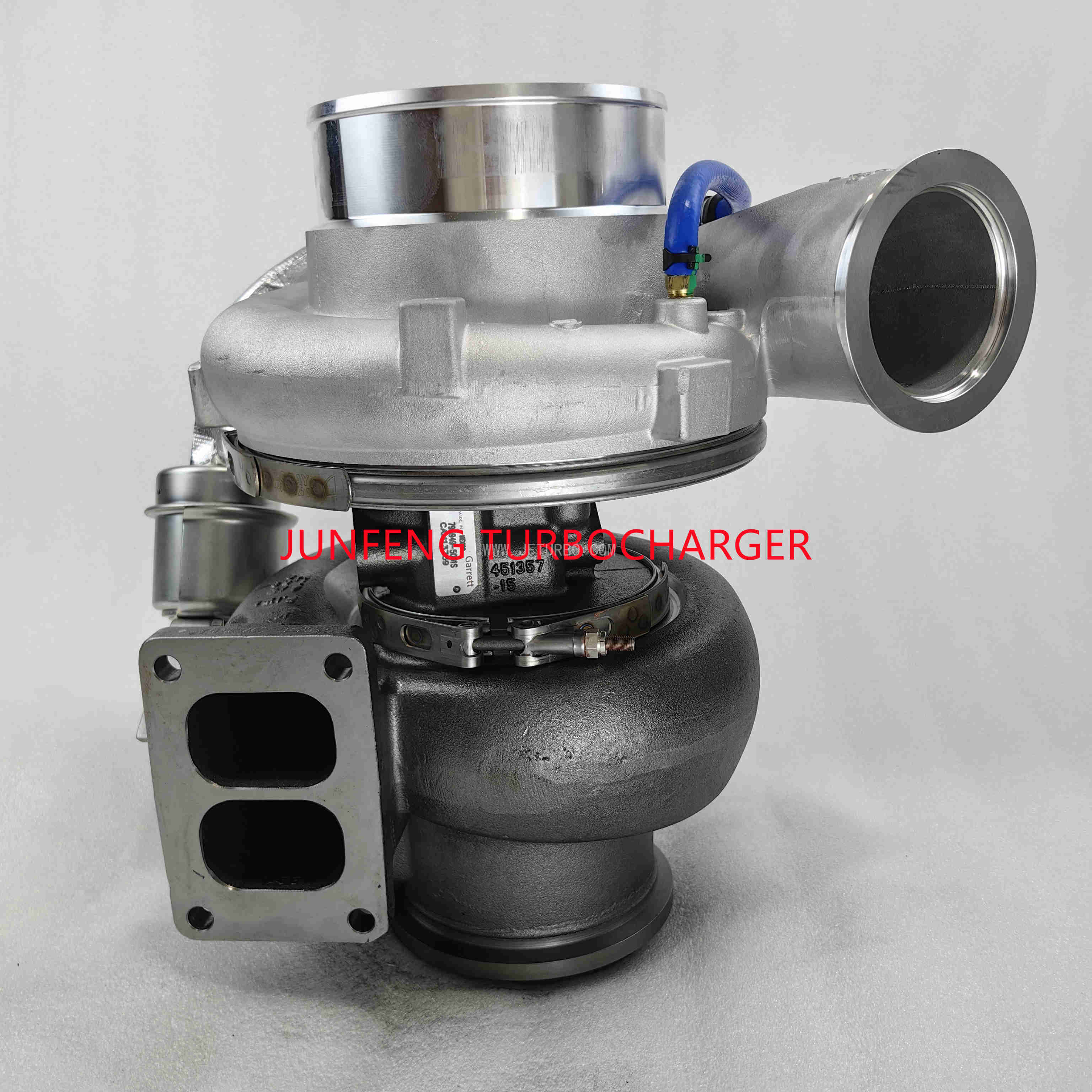

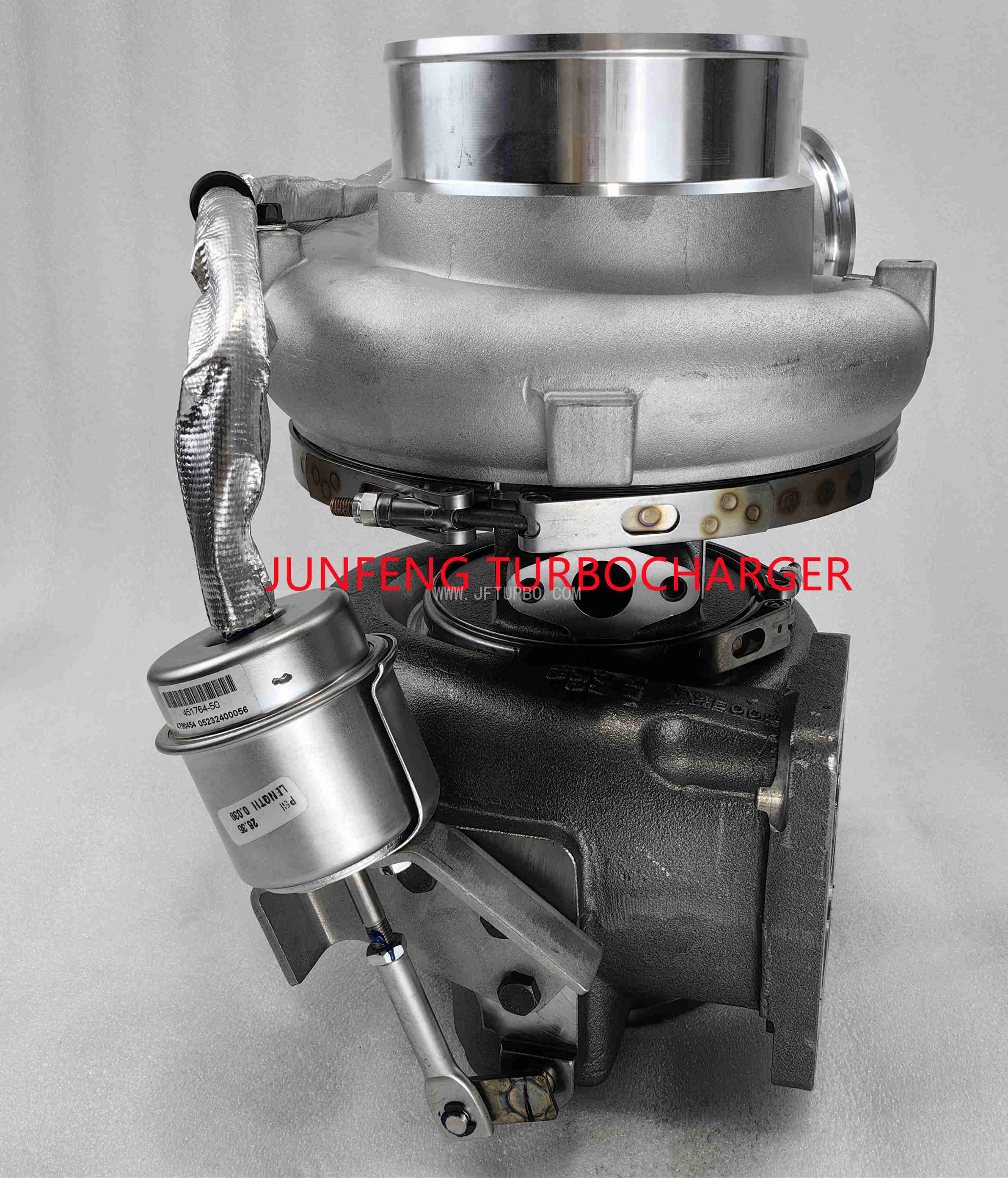

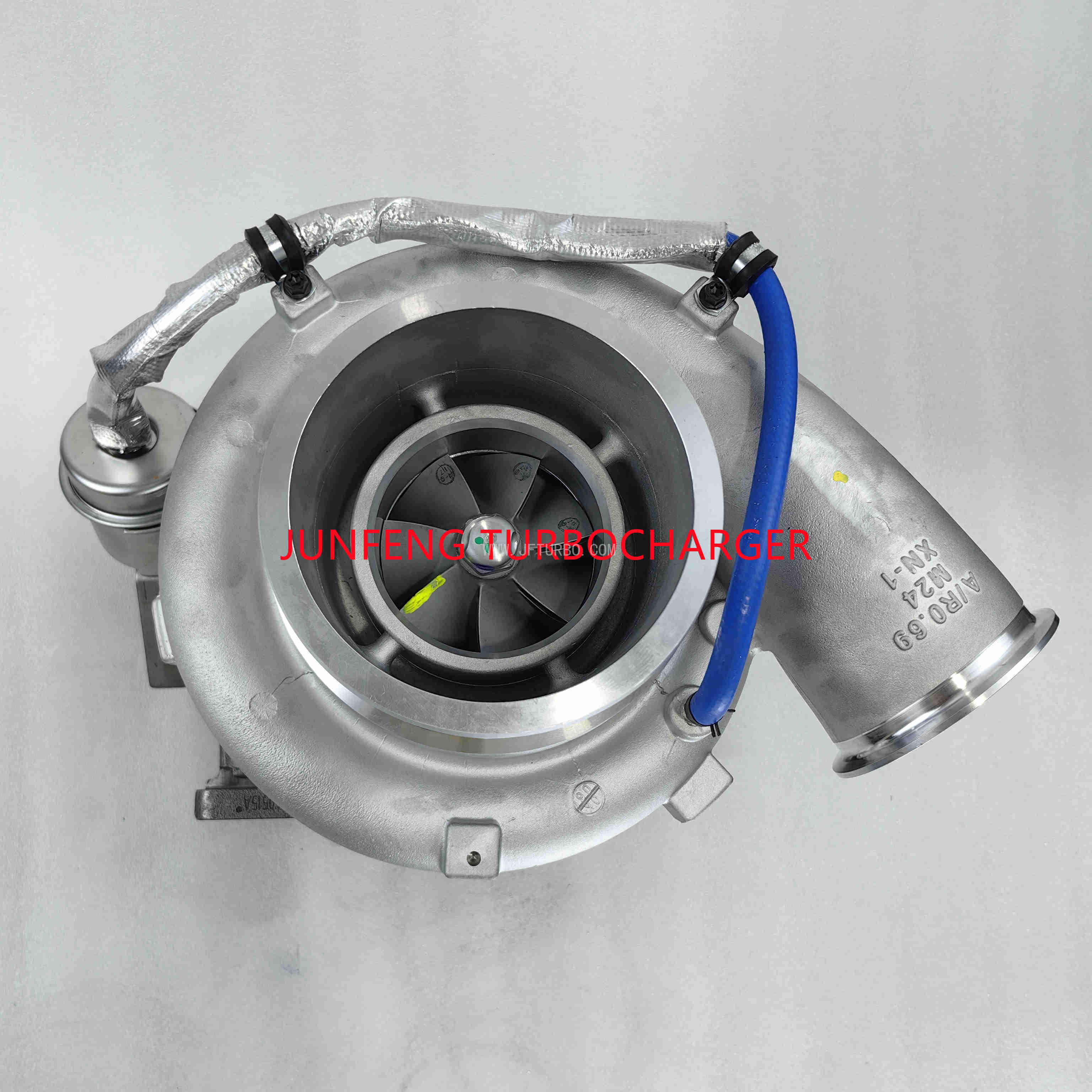

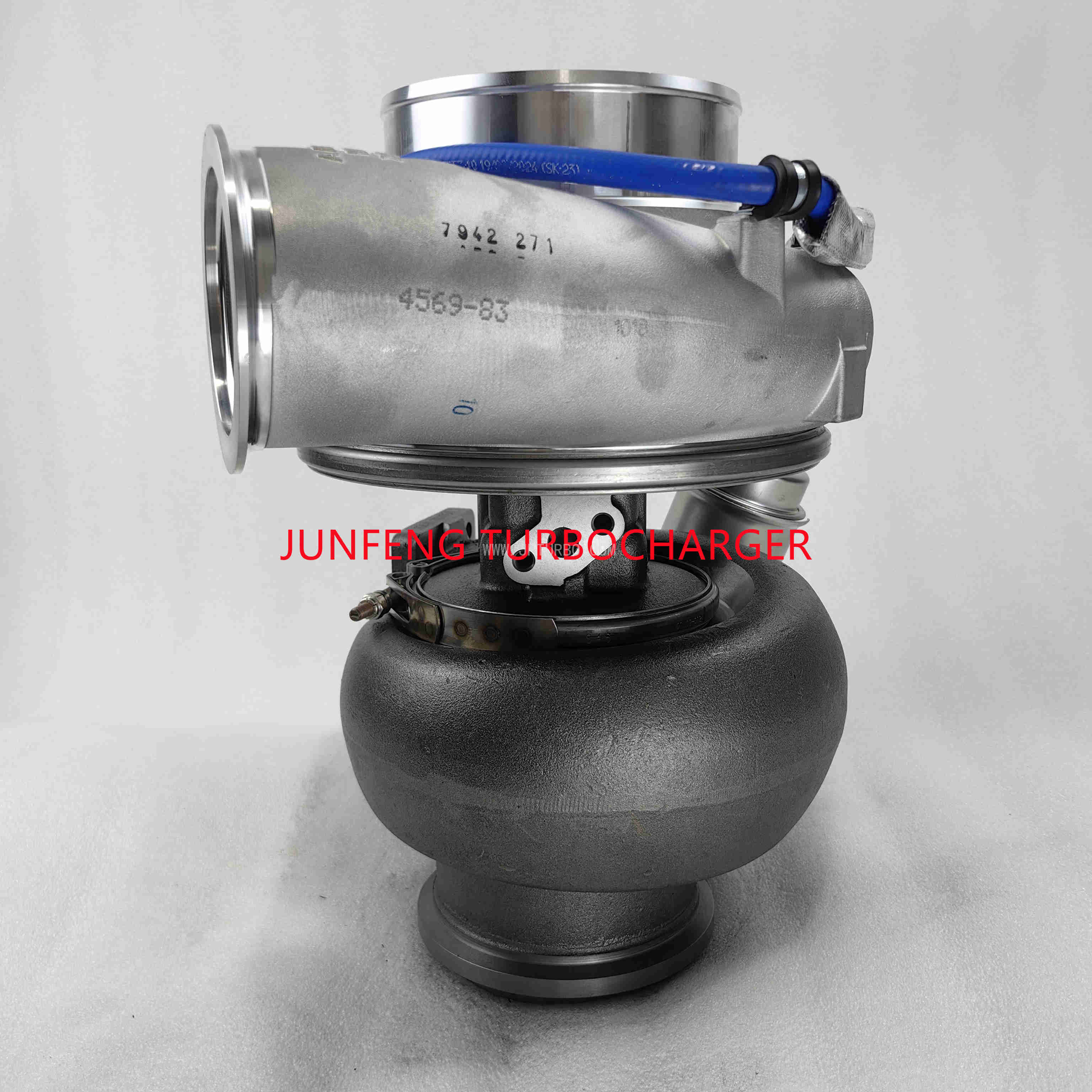

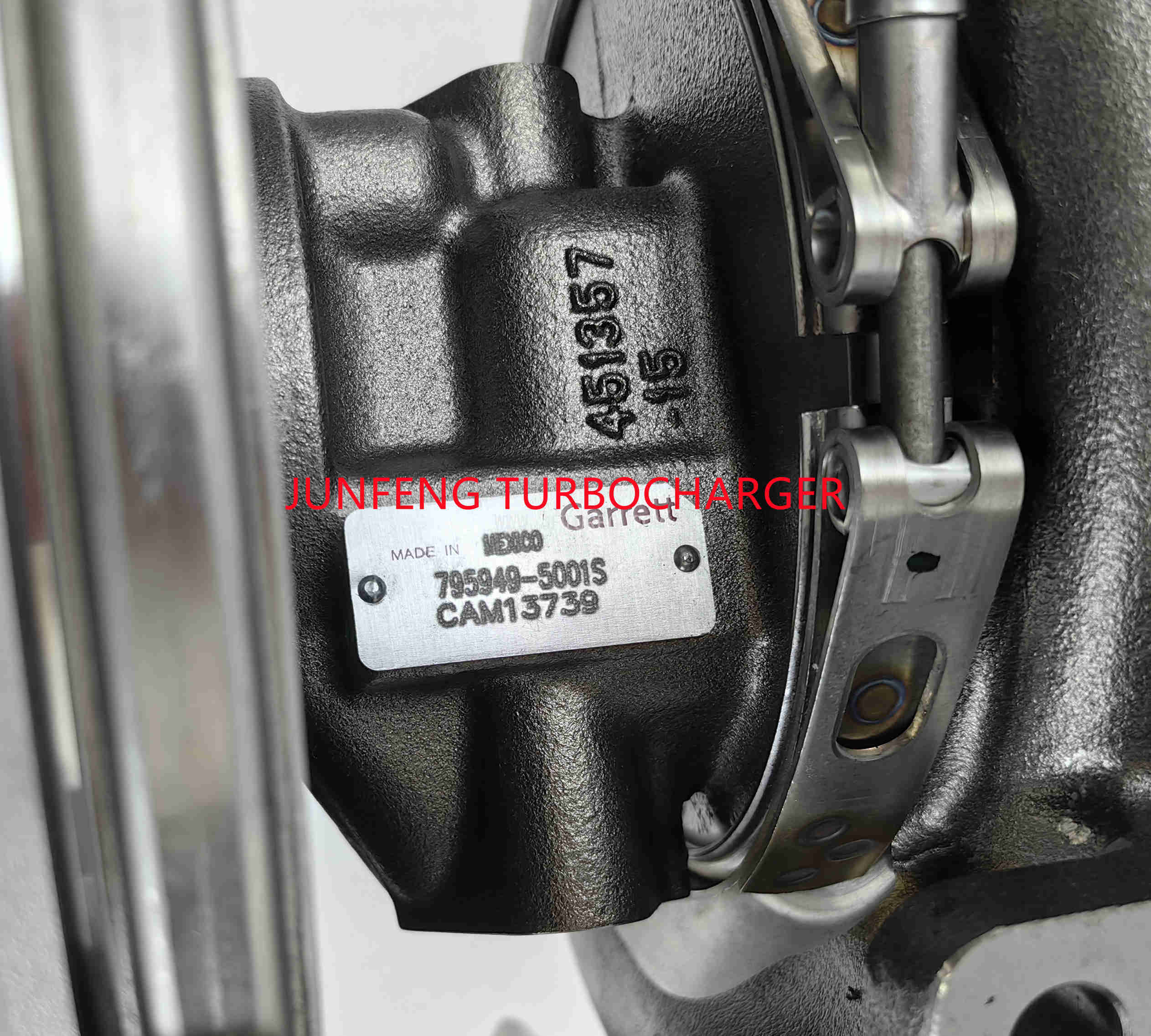

GTA5518BS Turbo 795949-5001S 3457243 GARRETT NEW Turbocharger for Caterpillar Industrial C18 Engine

Part Number: 7959490001, 795949-0001, 7959495001, 795949-5001, 7959495001S, 795949-5001S, 7959499001, 795949-9001, 7959499001S, 795949-9001S

OE number: 10R2797, 10R-2797, 20R2917, 20R-2917, 2370926, 237-0926, 3014299, 301-4299, 3457243, 345-7243

Others number: 7508630002, 750863-0002, 7508630006, 750863-0006, 7508635002, 750863-5002, 7508635006, 750863-5006, 7508639002, 750863-9002, 7508639006, 750863-9006

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product details

Part Number	795949-5001S
Previous Part Number	750863-0002, 750863-0006, 750863-5002, 750863-5006, 750863-9002, 750863-9006, 750863-6 750863-5006S
OE Number	3014299, 3457243,10R2797, 237-0926 2370926, 301-4299, 3014299, 345-7243
Description	Industrial Engine, Various
CHRA	712371-0109 (712371-5109S, 712371-0083)(10R-2207, 10R-5499, 10R2207, 10R5499, 2680220, 268-0220, 246-4718)
Turbo Model	GTA5518BS
Prefix	EJG, GJE
Displacement	18.1L, 18100 ccm
Fuel	Diesel
Industrial Engine	C18
S/N	EJG847-1956, EJG1957-UP
Fuel	Diesel
Bearing Housing	706666-0004 (Oil Cooled)
Turbine Wheel	451941-0005 (451941-0002)(Ind. 111.45 mm, Exd. 101.57 mm, Trm 17.24, 11 Blades)
Comp. Wheel	449207-0022 (Ind. 79.73 mm, Exd. 117.83 mm, Trm 7.21, 7+7 Blades, Superback)
Back plate	706668-0005 (452703-0001)
Heat shield Number	710891-0001
Repair Kit	(Major)
Turbine Housing	726858-0011
Compressor Cover	704569-0083
Actuator	451467-0016
Turbine Housing A/R	1.58
Gasket Kit	468190-0000 (1900120791, 118099-0000)
Gasket (oil inlet)	129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035)
Gasket (oil outlet)	210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(Paper)(1900000025)

Application

Turbocharger for Caterpillar Industrial C18 engine
