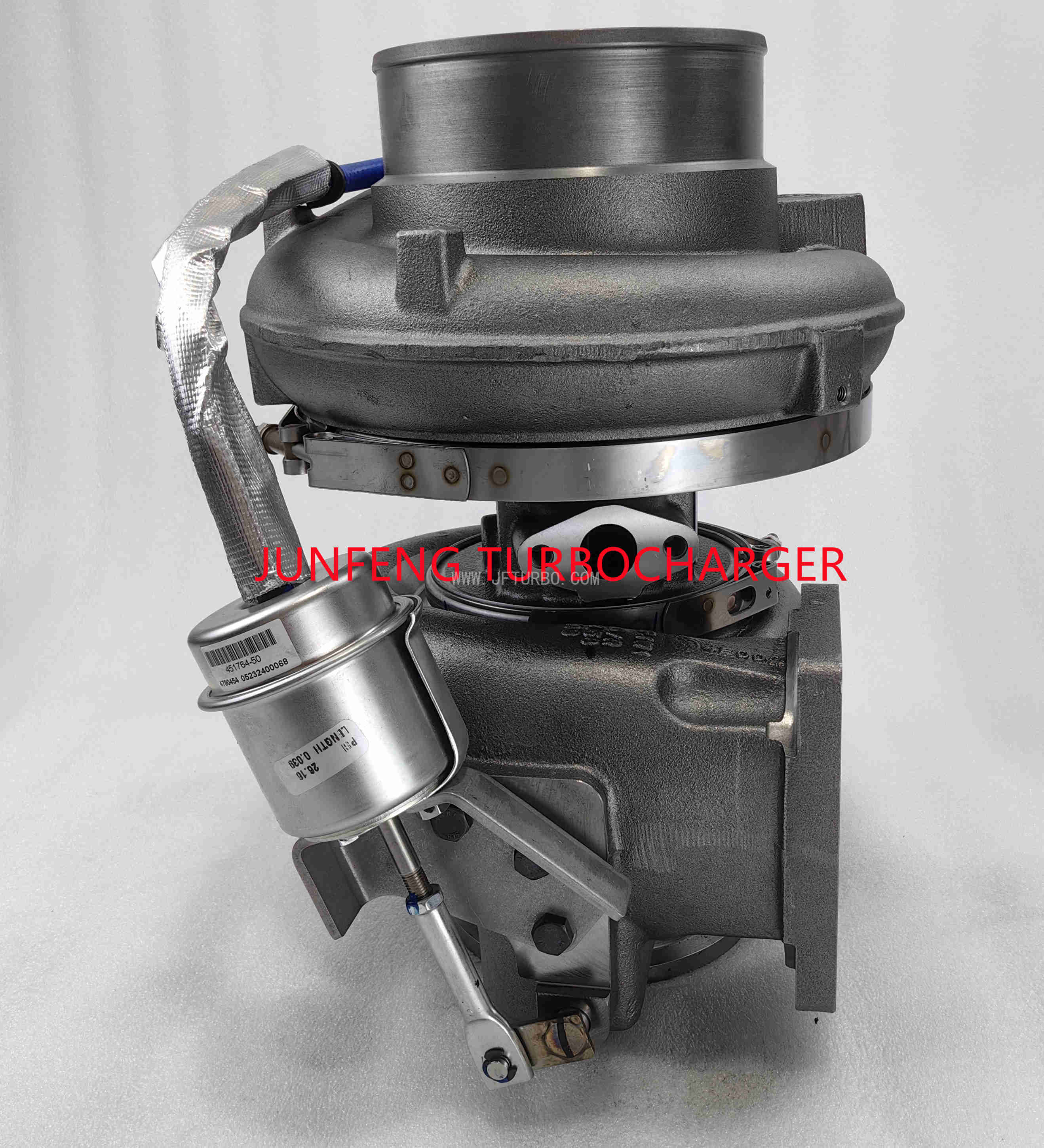

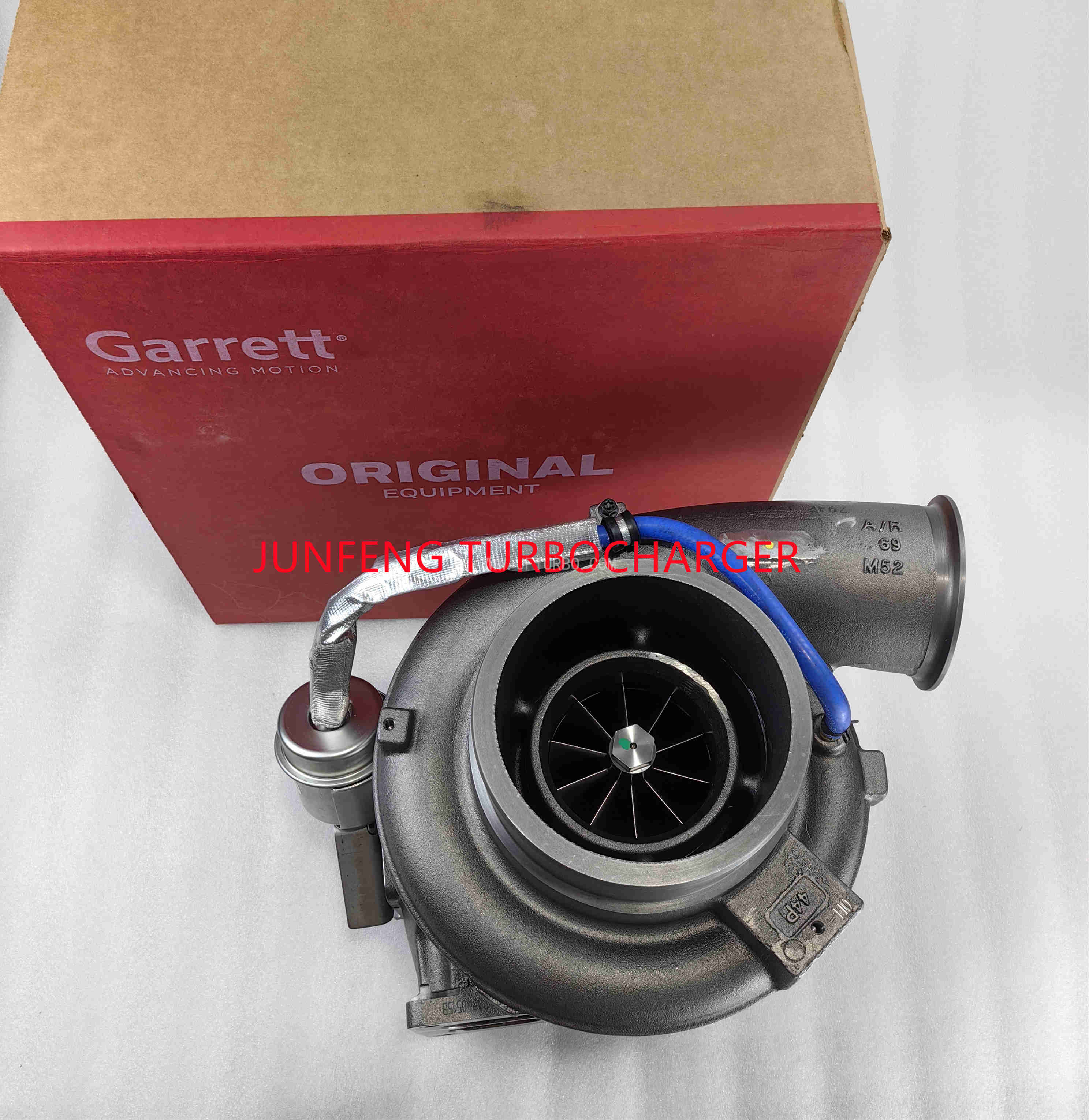

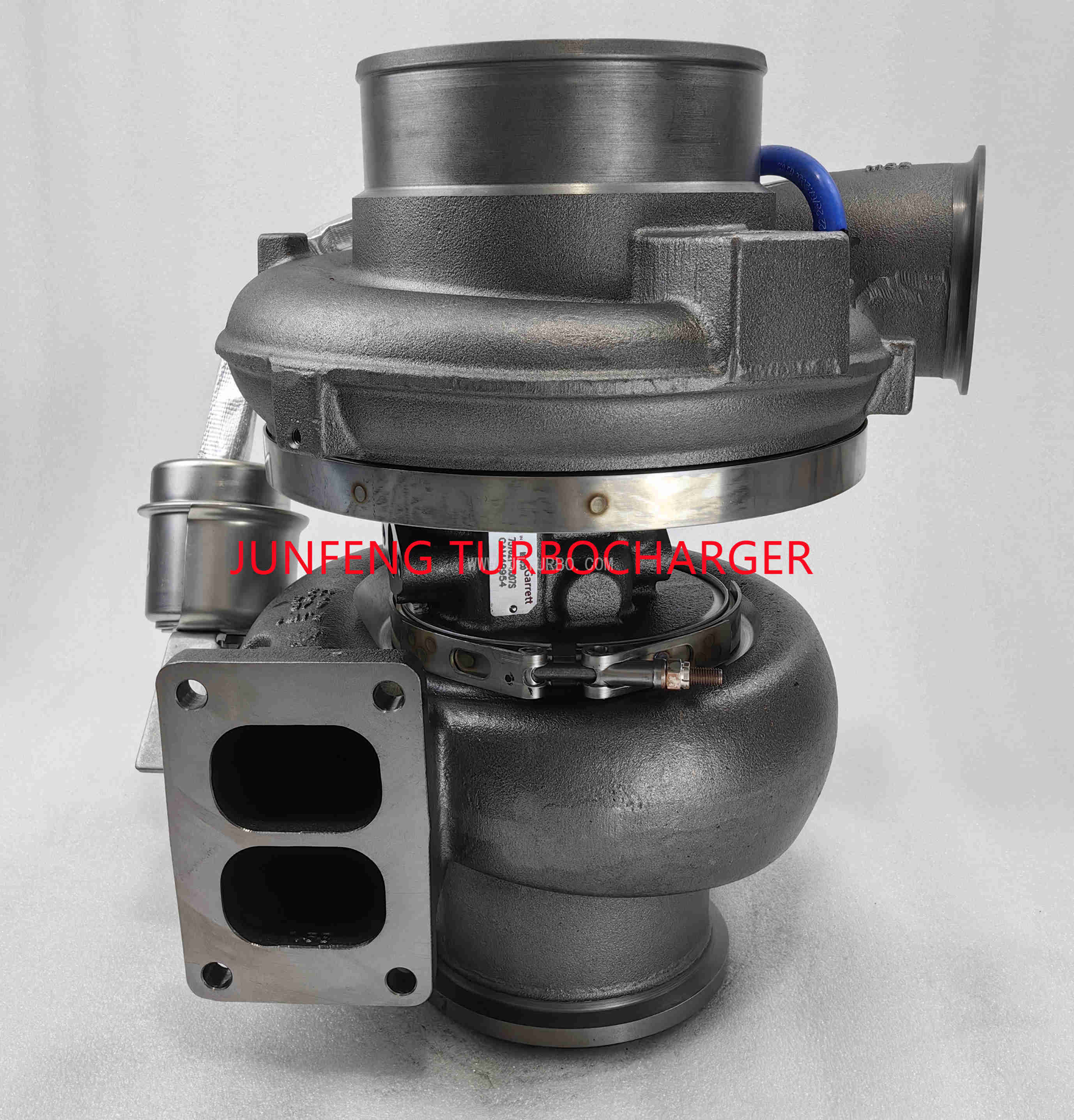

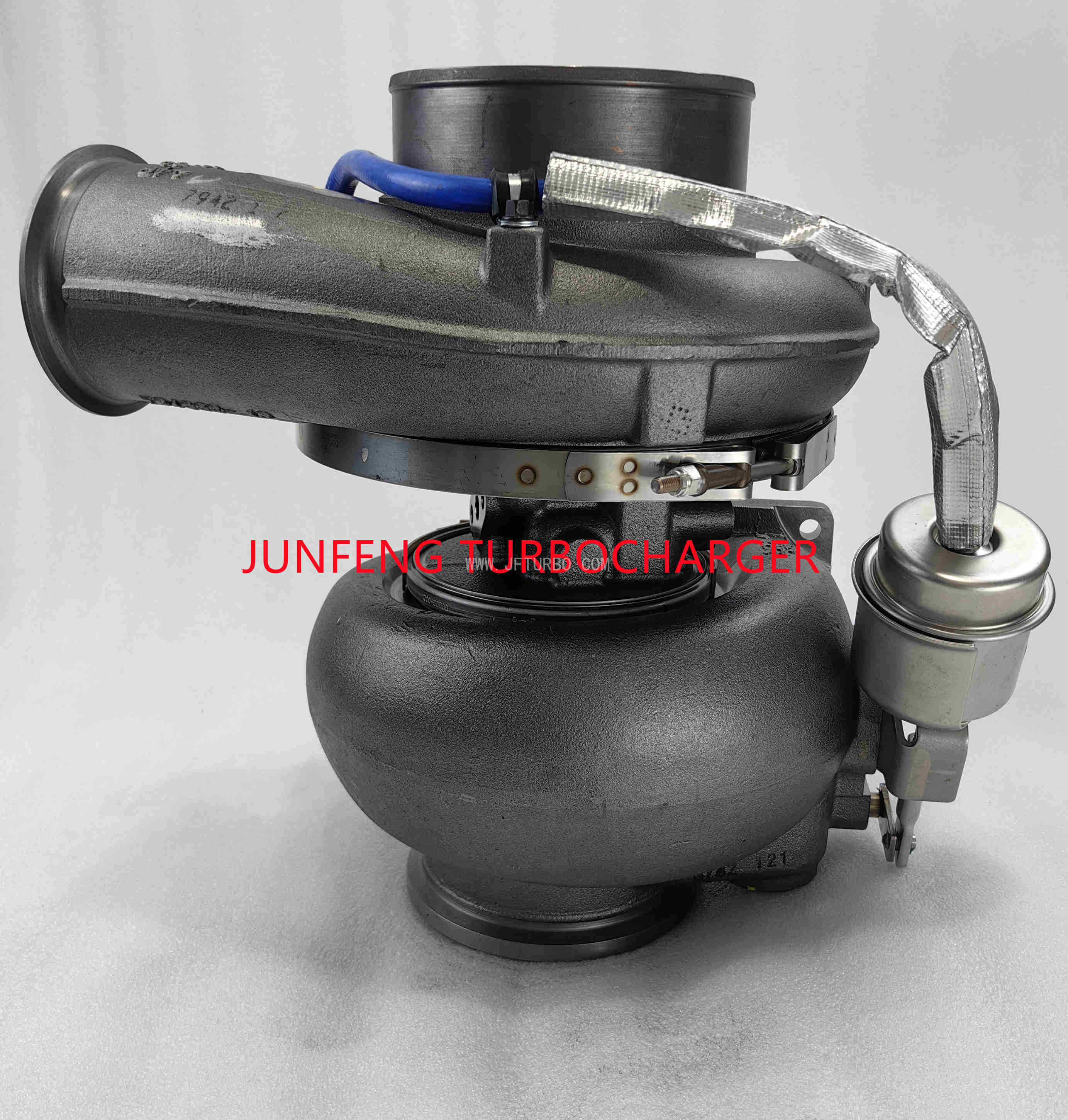

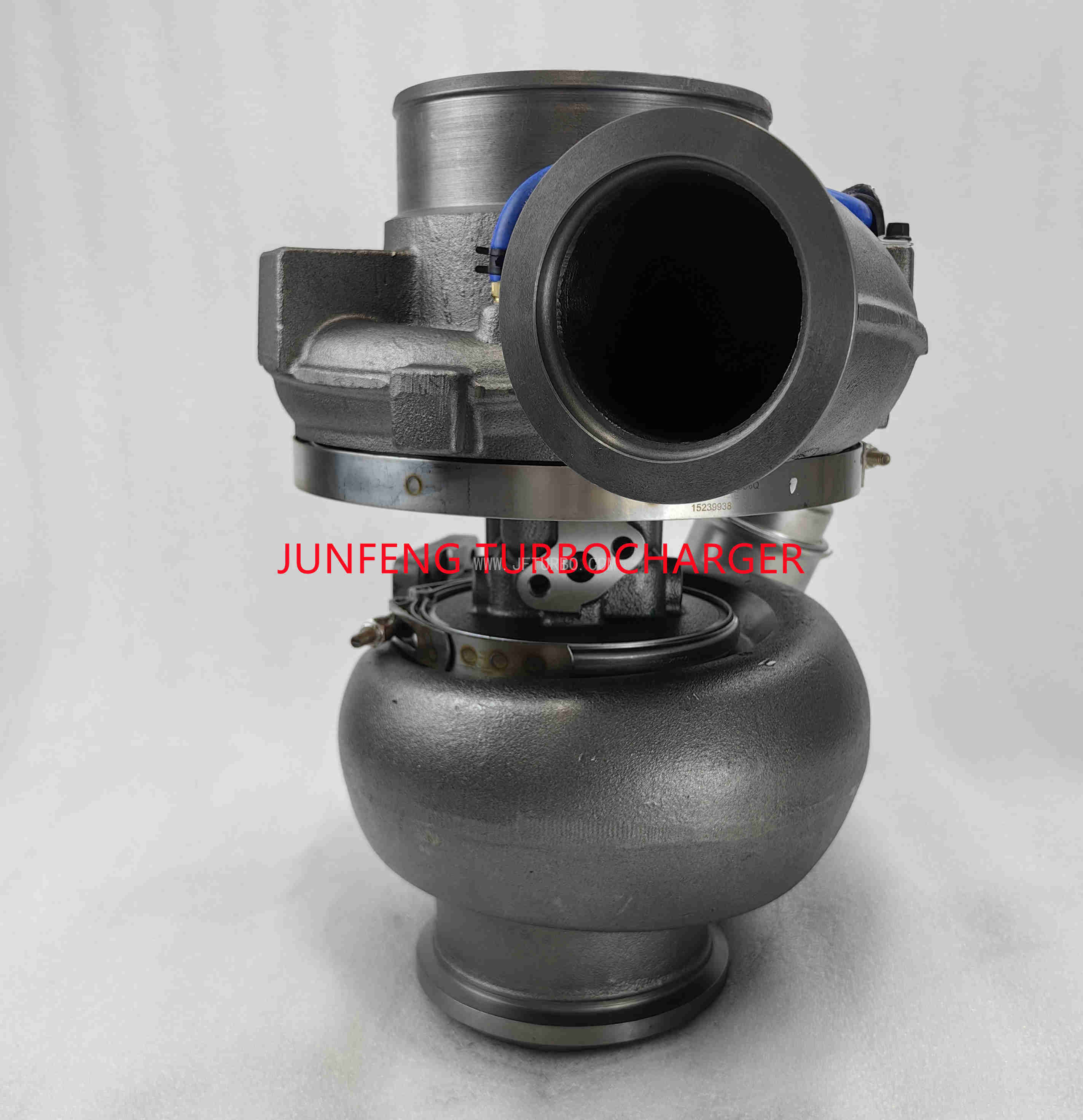

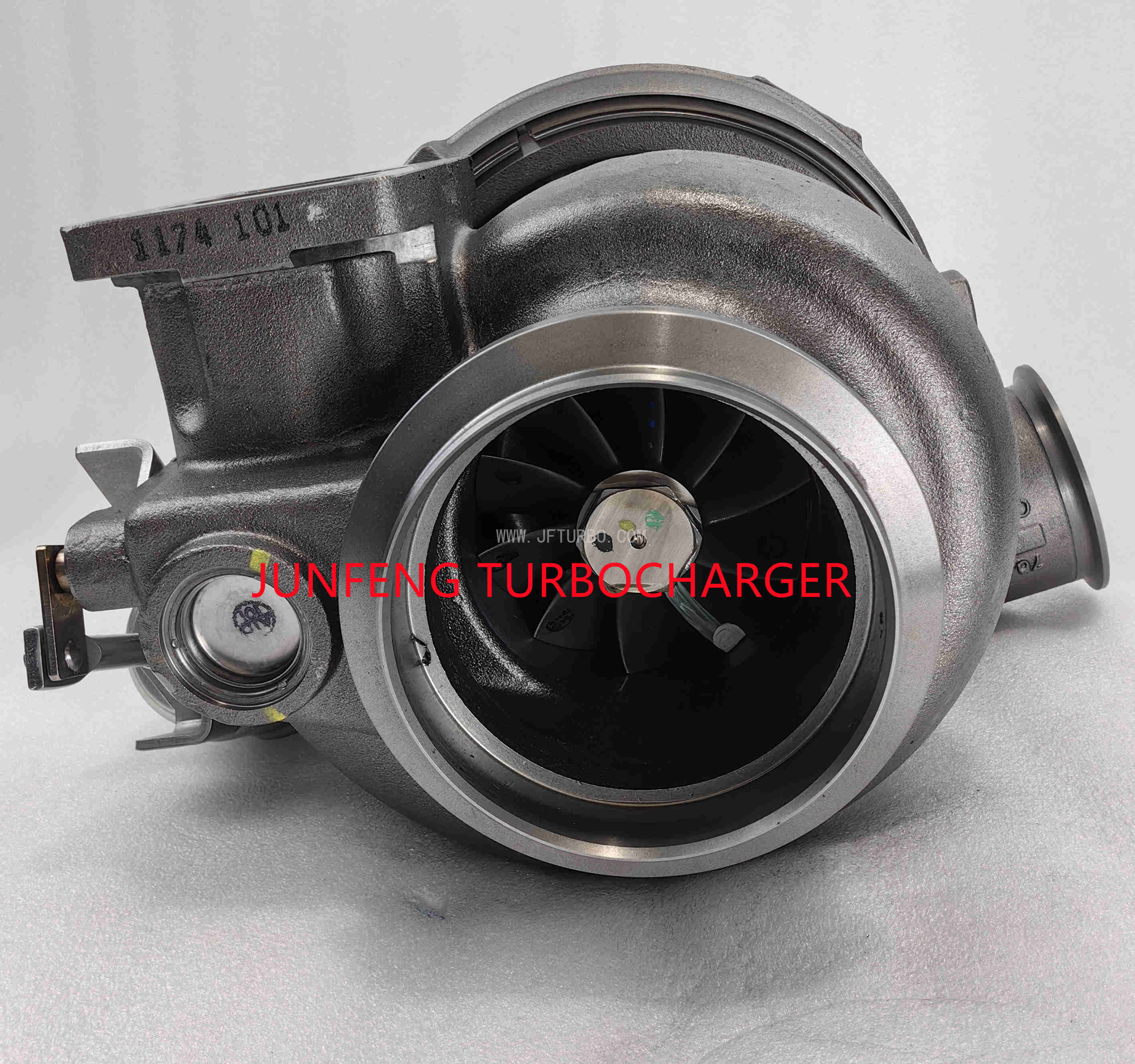

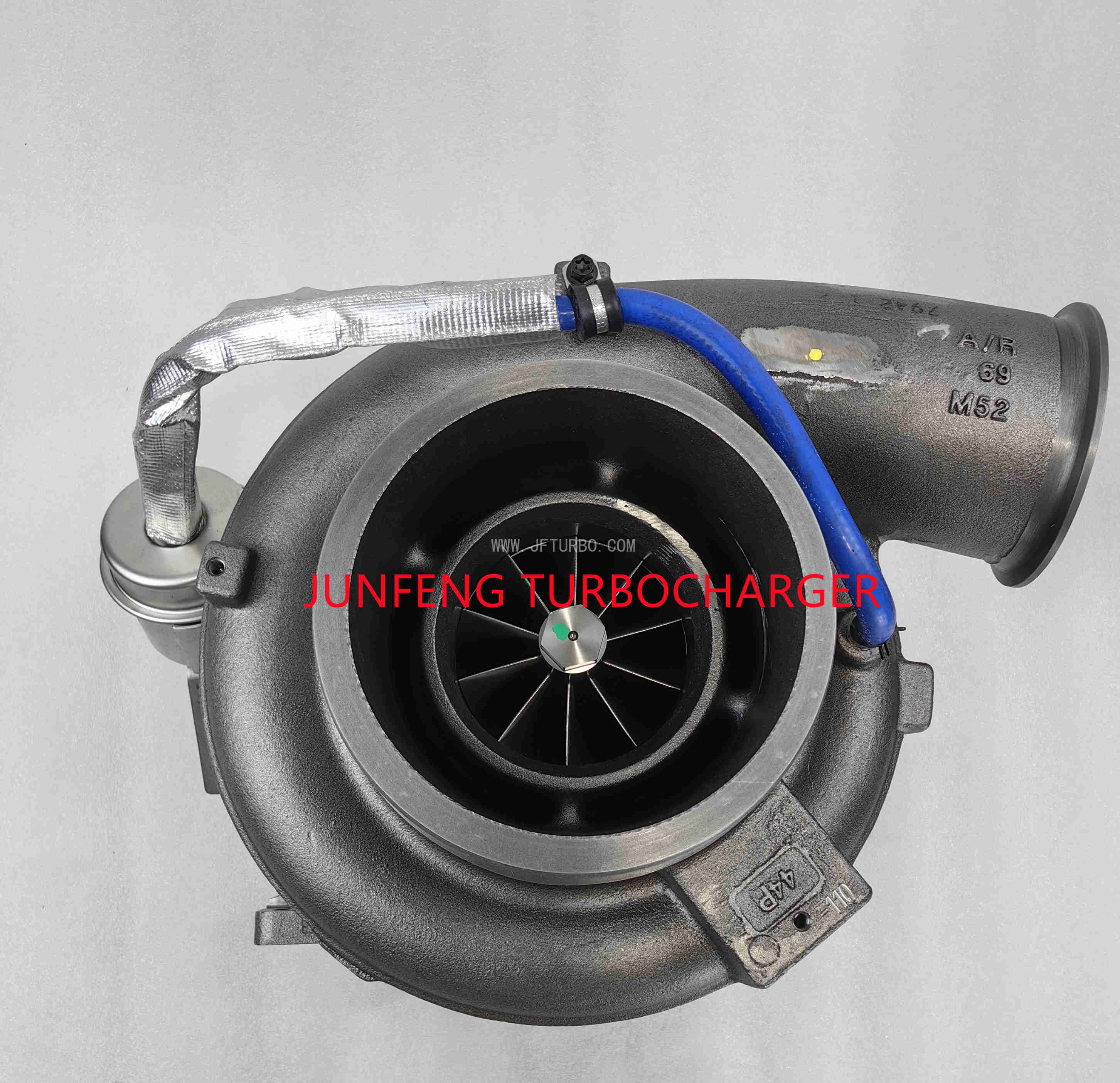

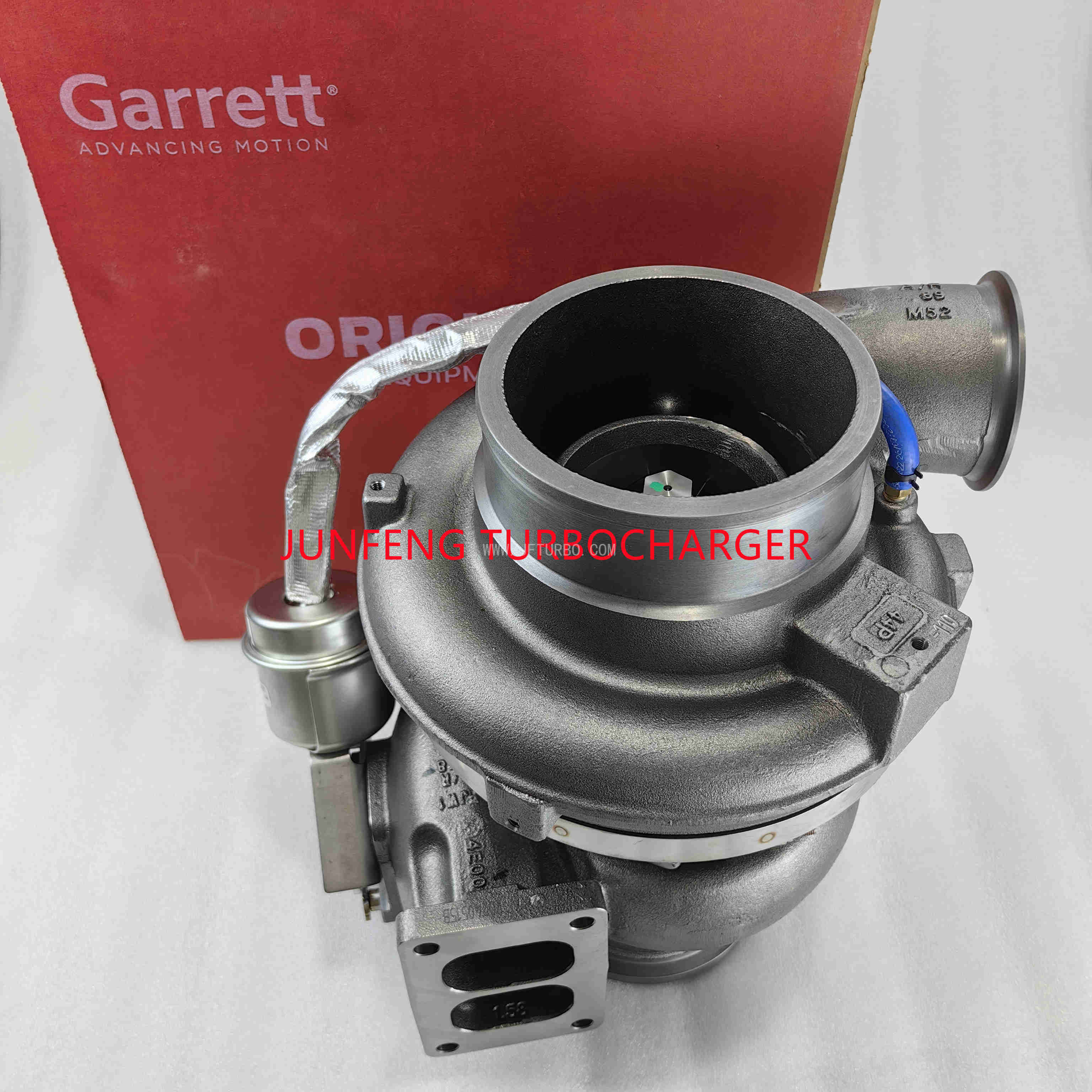

GTA5518 Turbo 757621-5007S 3027448 302-7448 380-8698 garrett Turbocharger for Caterpillar Industrial Gen Set C18 Engine

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Description

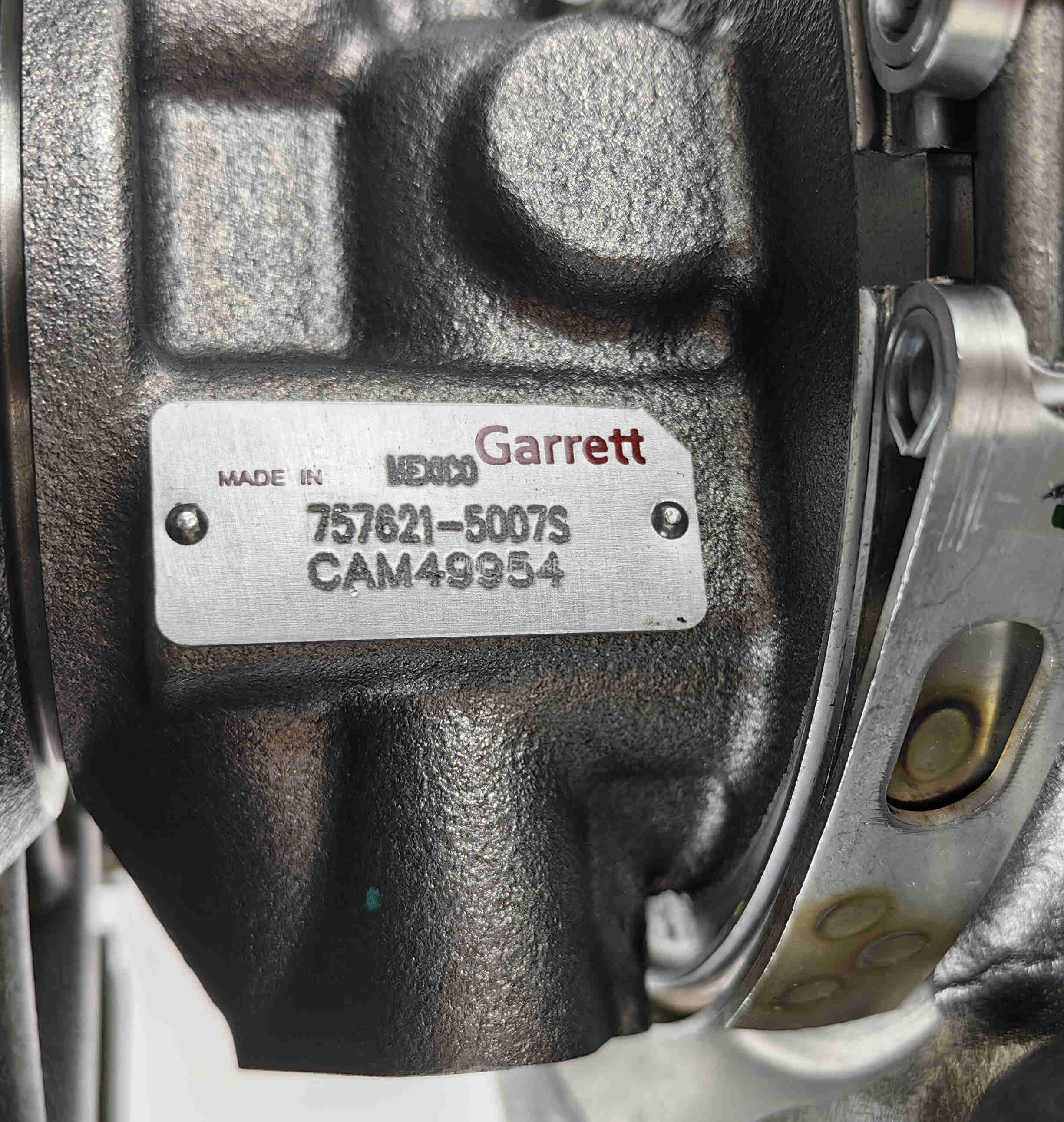

Part Number	757621-5007S
Previous Part Number	757621-0007, 7576210007, 757621-7, 7576210002, 757621-0002
OE number	302-7448, 3027448, 10R2741, 2558175, 241-1703, 2411703,
Description	Industrial Gen Set, C18 Petroleum Engine
CHRA	754190-0034 (754190-5034S, 754190-0015, 754190-0024, 754190-0028)(10R3047, 268-0218, 2680218, 296-7651, 2967651, 301-9278, 3019278)
Turbo Model	GTA5518, GTA5518BS
Prefix	EJG, GJE, WJH, WJW, WJY, WRH, JWH, PCZ
Engine	C18
Displacement	18000 ccm, 6L Cylinders
KW	640
Fuel	Diesel
Industrial Engine	C18
Petroleum Power	CX35-P800-C18I
S/N	WJH1-UP, WRH1-UP, WJW1-UP, WJH317-UP, WRH107-UP, WJH00001-UP, WJW00001-UP, JDA00001-UP, PCZ00001-UP
Bearing Housing	754228-0013 (754228-0004)(Oil Cooled)
Turbine Wheel	754195-0002 (754190-0005)(10 Blades, Boreless)
Comp. Wheel	751285-0003 (Ind. 84.8 mm, Exd. 117.7 mm, 6+6 Blades)(Titanium Billet)
Back plate	706668-0005 (452703-0001, 706668-0003)
Heatshield Number	710891-0001
Turbine Housing	743732-0033 (301-4301)
Turbine Housing W/G Assy	726858-0011
Compressor Cover	447992-0072 (704569-0110)(240-6924)
Actuator	451764-0050
Actuator (Heat shield Cover)	701585-0001
Turbine Housing A/R	1.58
Gasket (turbine inlet)	132040 (202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003)
NOTE	Partially restricted

Application

turbocharger for Caterpillar Industrial Gen Set with C18 Engine
