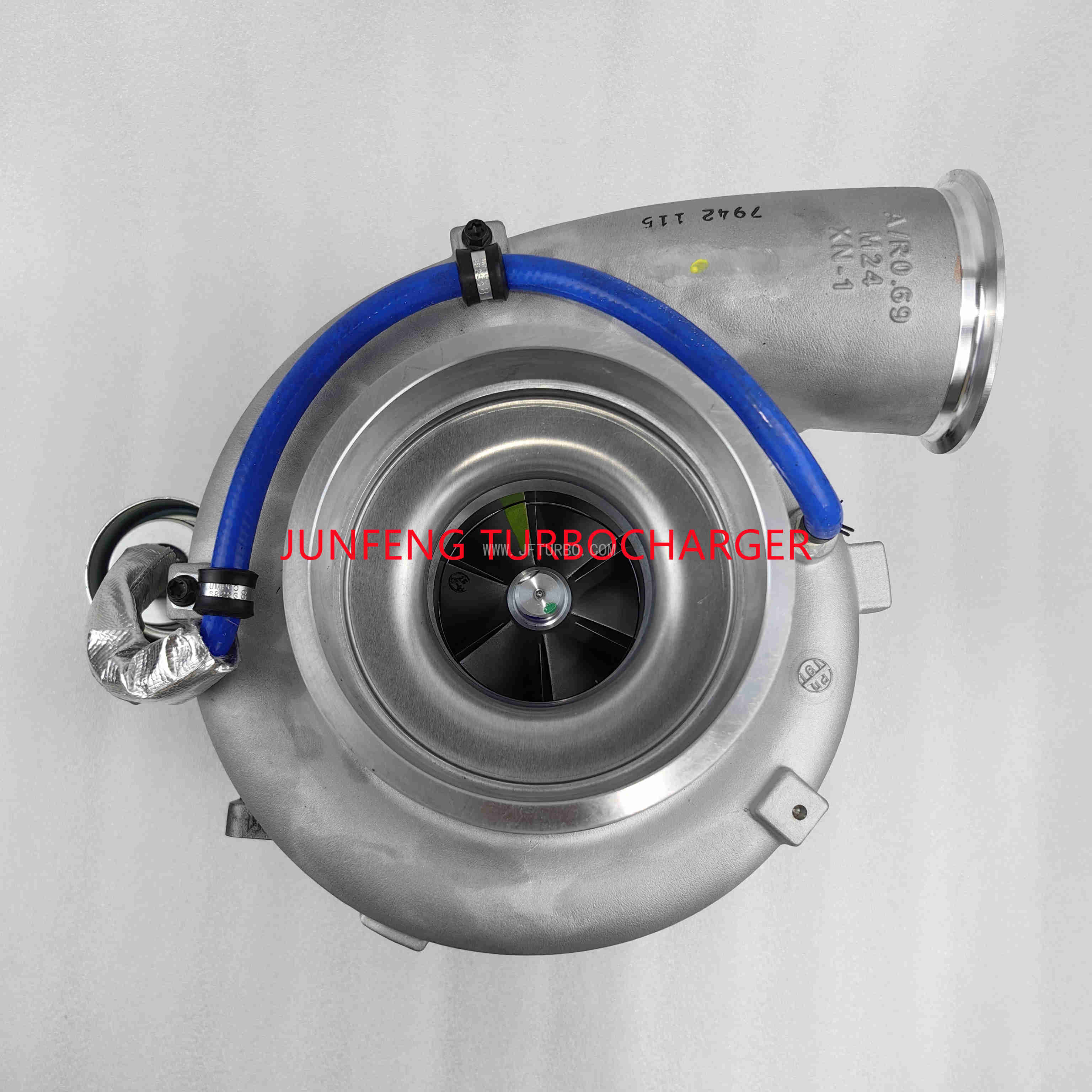

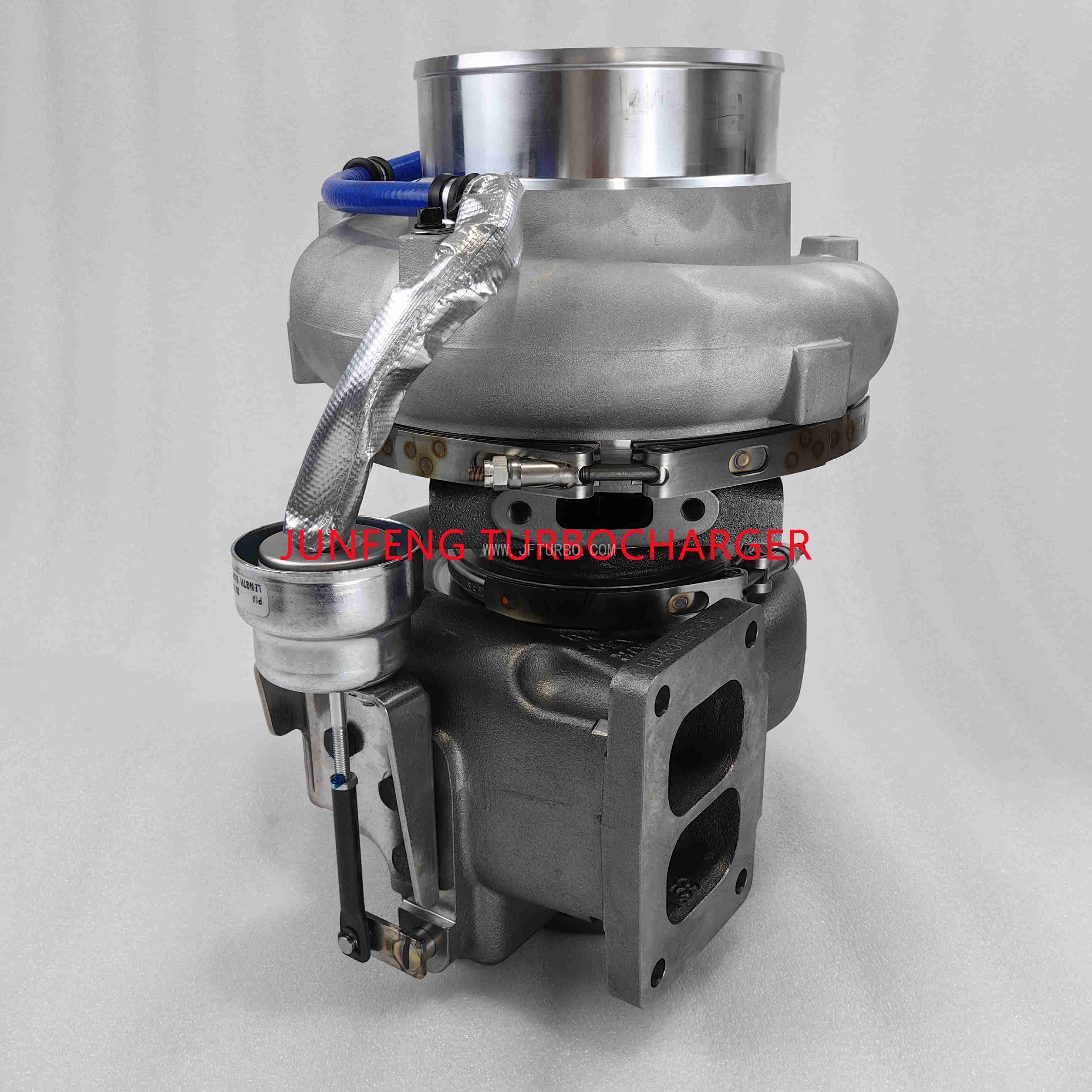

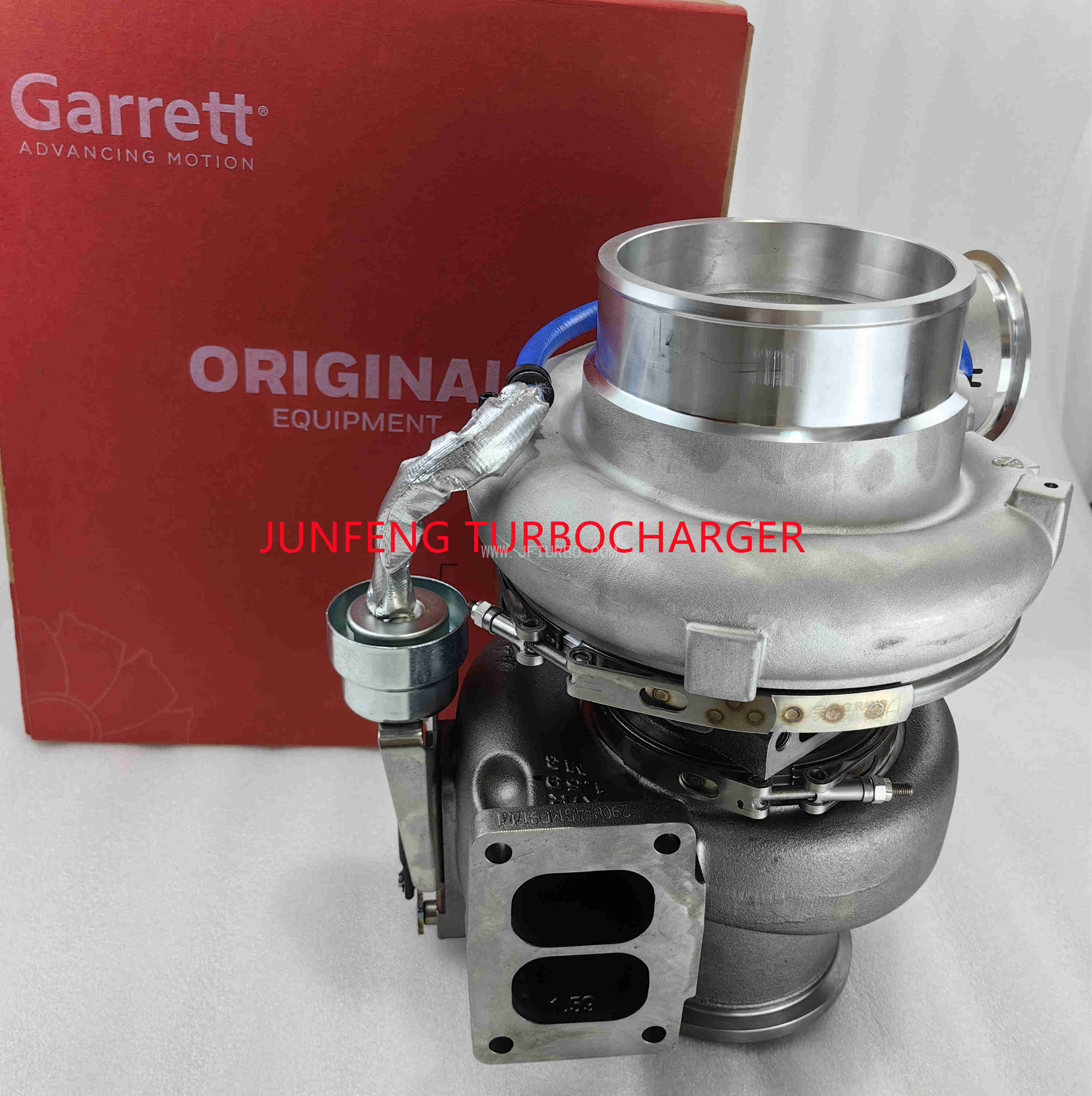

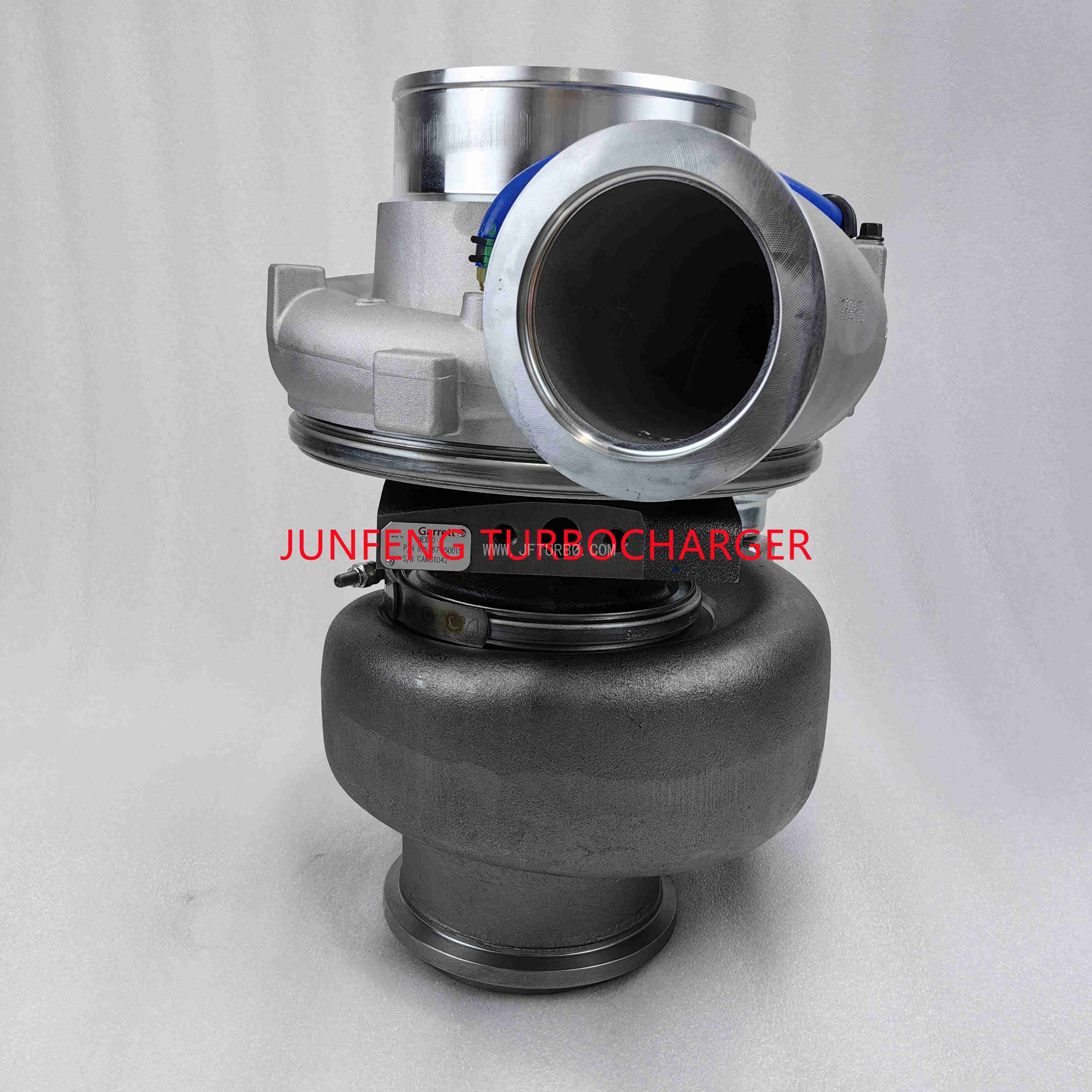

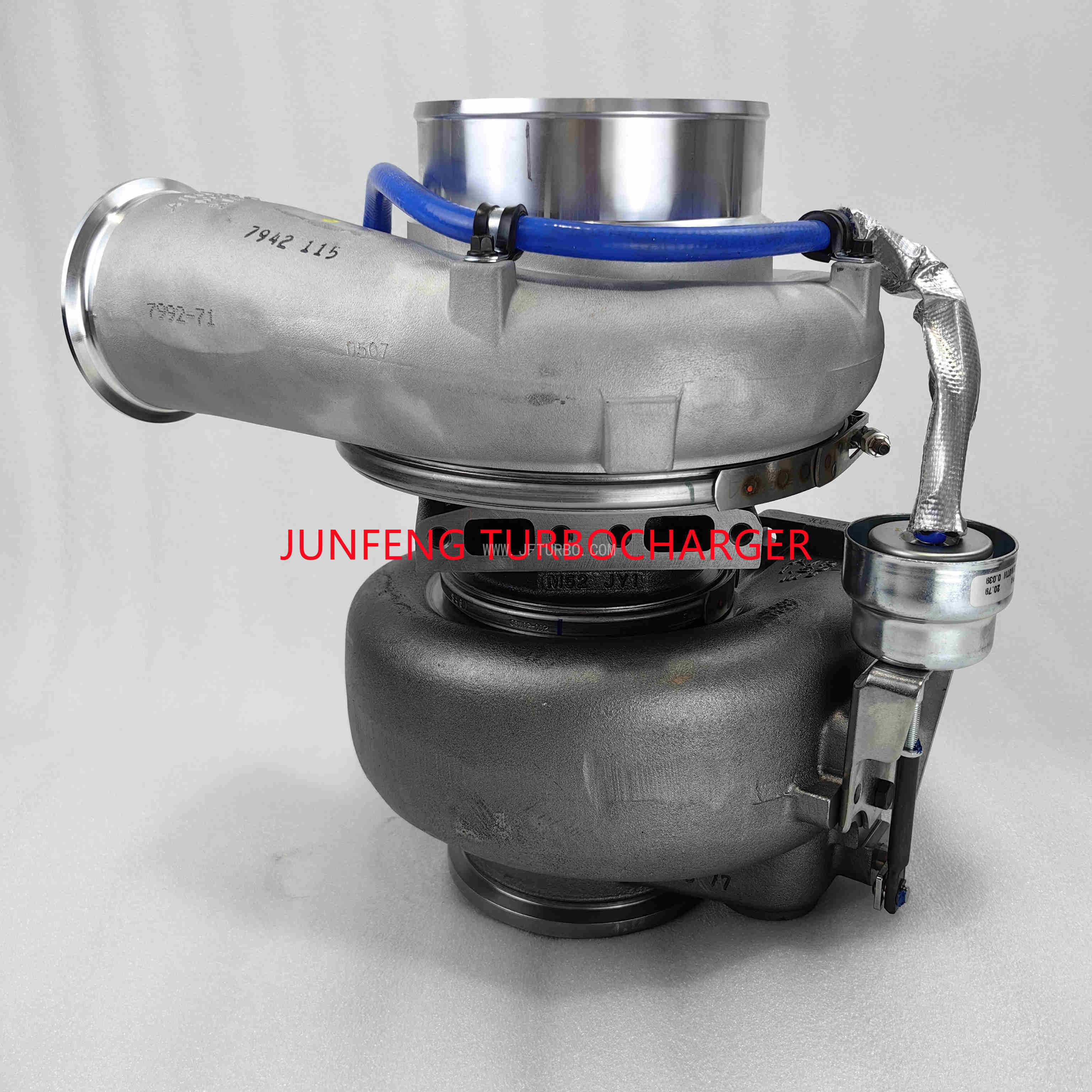

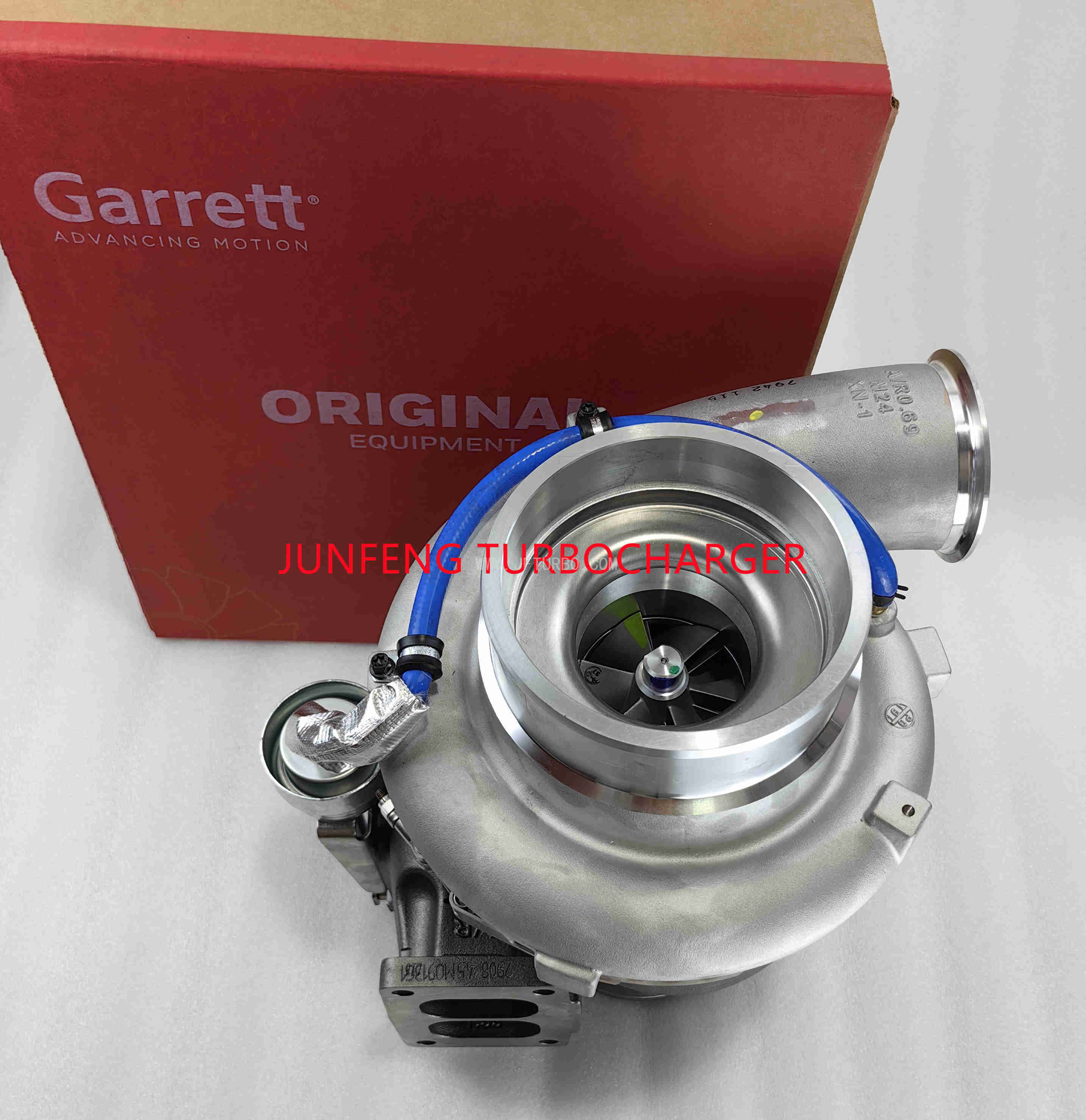

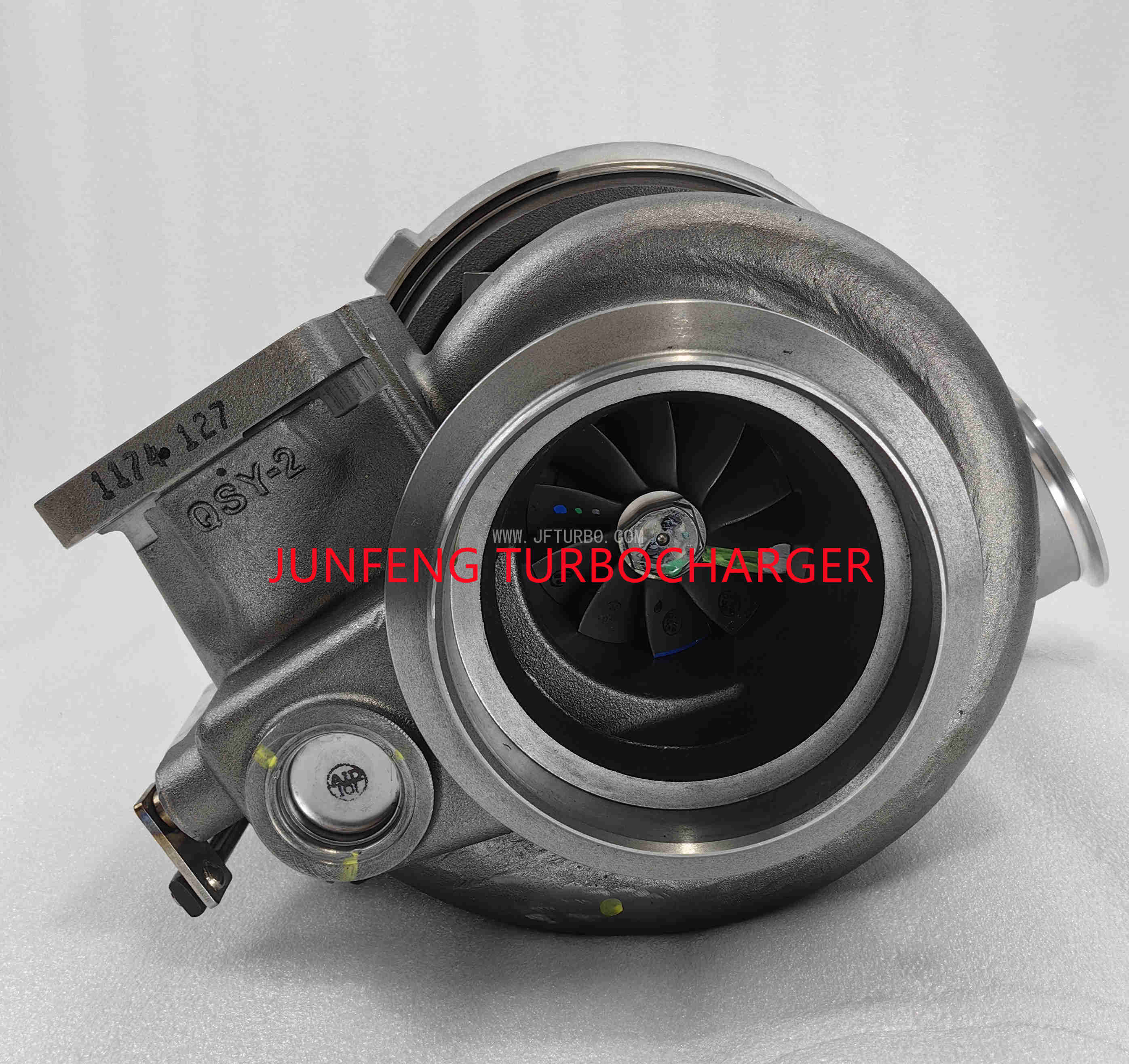

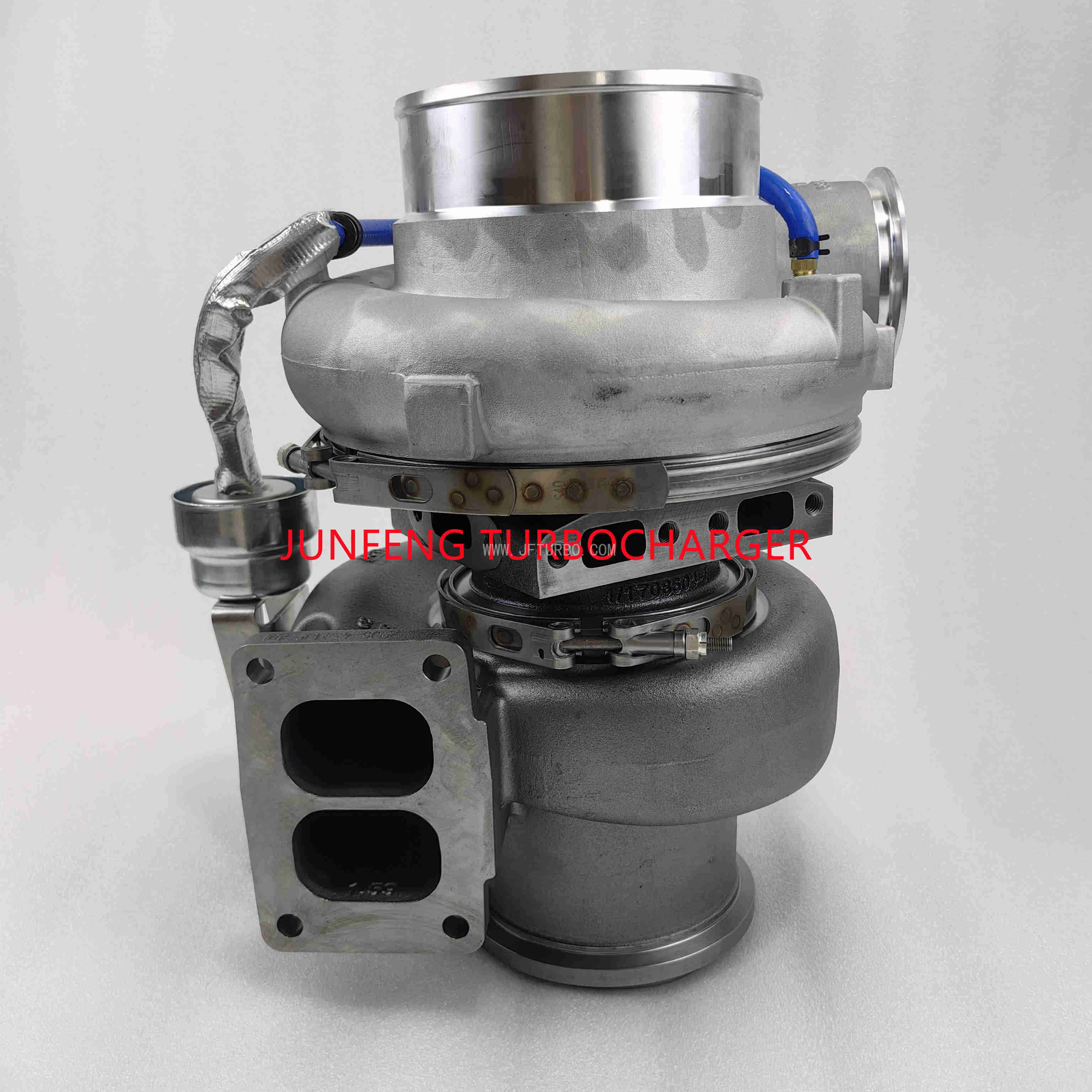

GTA4702BLS Turbo 815267-5001S 3808711 GARRETT NEW Turbocharger for Caterpillar Industrial C15 Engine

Part Number: 815267-5001S 3808711740131-0003, 740131-0001, 740131-3 , 740131-0005 740131-5003S

Others number: 362-0862, 3620862, 380-8708, 3808708, 10R2297, 238-8683, 2388683, 380-8711, 3808711

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product details

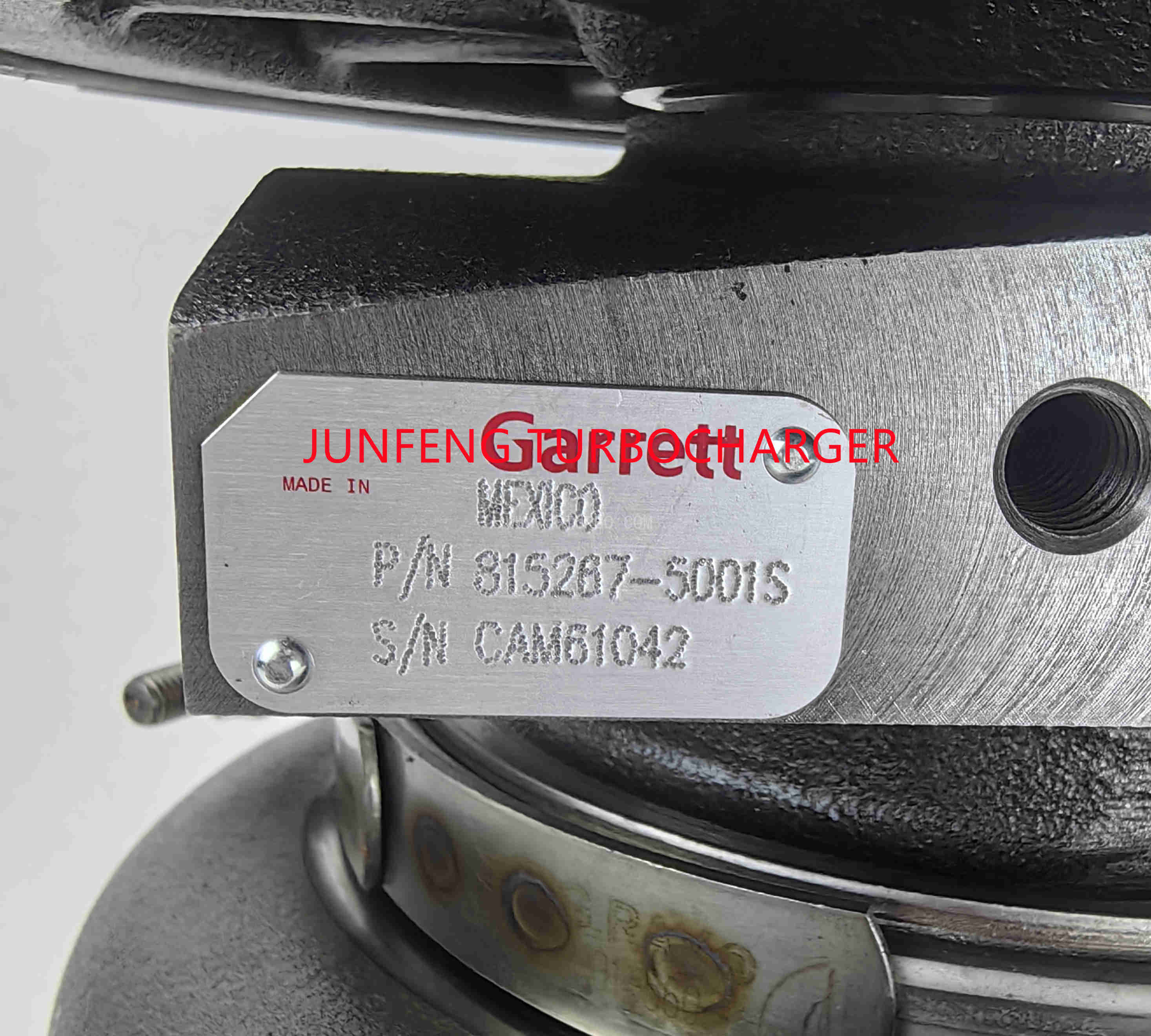

Part Number	815267-5001S
Previous Part Number	740131-0003, 740131-0001, 740131-3 , 740131-0005 740131-5003S
OE Number	10R-2907, 10R2907, 254-1802, 2541802, 362-0862, 3620862, 380-8708, 3808708, 10R2297, 238-8683, 2388683, 380-8711, 3808711
Description	Industrial, Truck, 583T PIPE LAYER
Turbo Model	GTA4702S, GTA4702BLS
CHRA	710270-0063 (710270-5063S, 710270-0062, 710270-0090, 710270-0093, 2407359, 240-7359, 10R1928, 2605852)
Engine	C15
Fuel	Diesel
Machine Engine	C15
Pipe layer	583T, 587T
Track-Type Tractor	D8T
S/N	LHX1-UP
	5º
Angle β (turbine housing)	305º
Bearing Housing	708605-0001 (Water Cooled)
Turbine Wheel	702892-0001 (Ind. 64. mm, Exd. 93. mm, 10 Blades)
Comp. Wheel	451936-0008 (726400-0003, 448671-0020)(Ind. 76.48 mm, Exd. 102.2 mm, 6+6 Blades, Boreless)
Back plate	706668-0018 (408487-0003)
Heat Plate	741153-0003
Repair Kit	709153-0001
Turbine Housing	729356-0034 (702908-0041)
Compressor Cover	447992-0071
Actuator	452603-0051
Settings Waste gate adjustment (pressure)	1.385-1.455 bar
Settings Waste gate (lift shaft)	1.00 mm
Gasket (turbine inlet)	132040 (9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-0000, 52231083002)(Inox Steel)(1900000004)
Gasket oil inlet	210161 (Paper Gasket)
Gasket (oil outlet)	210172 (Paper Gasket)

Application

Turbocharger for Caterpillar Industrial with C15 Engine
