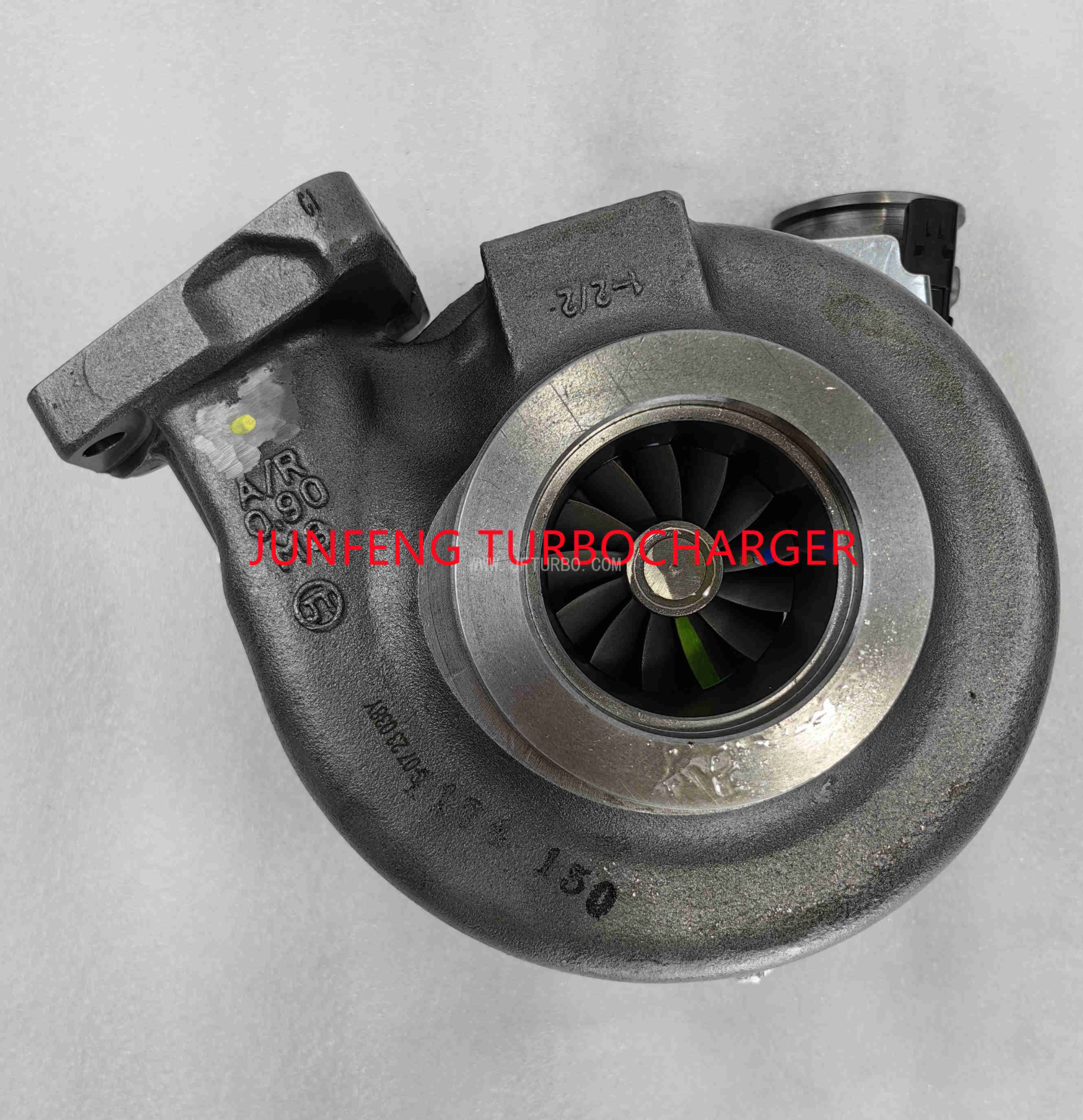

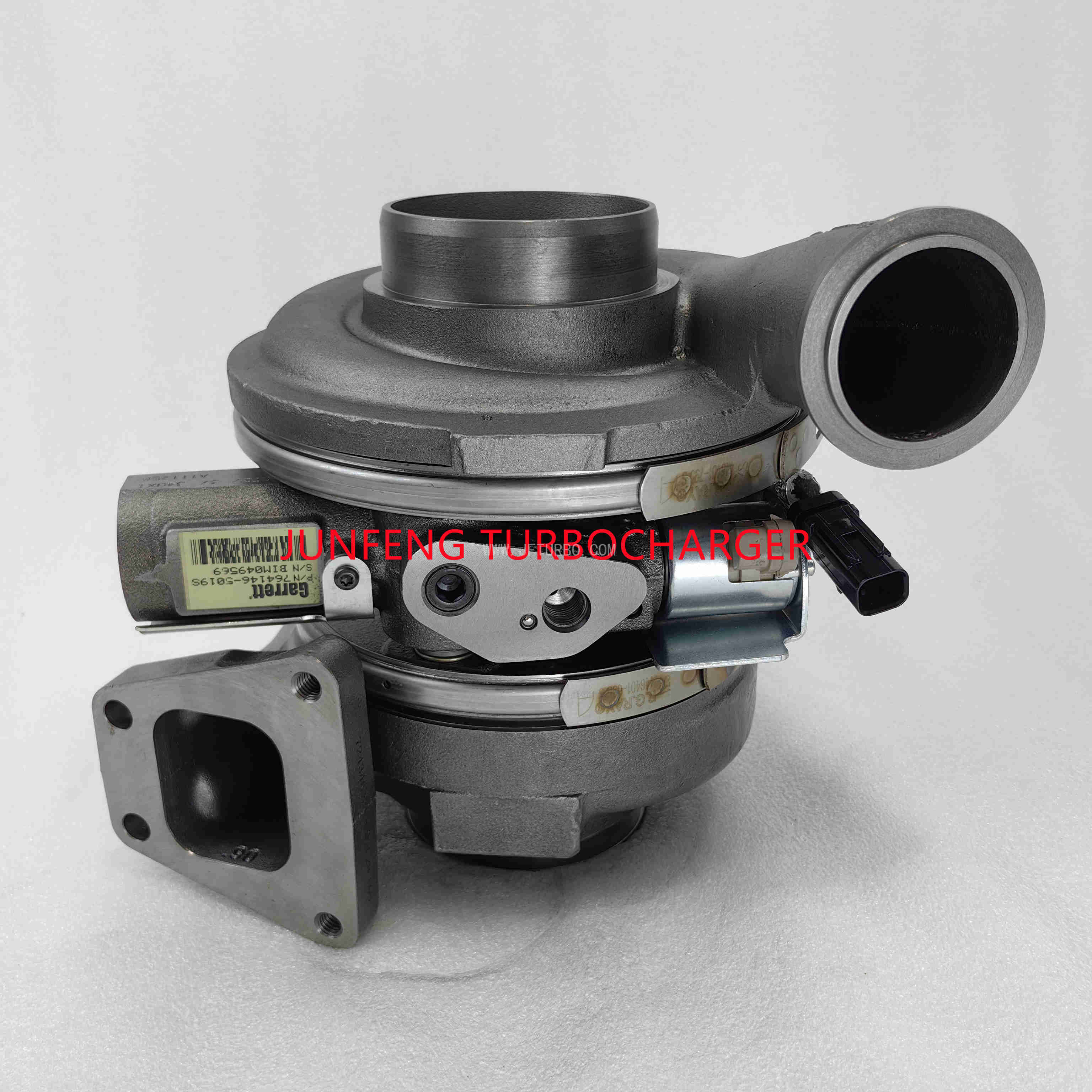

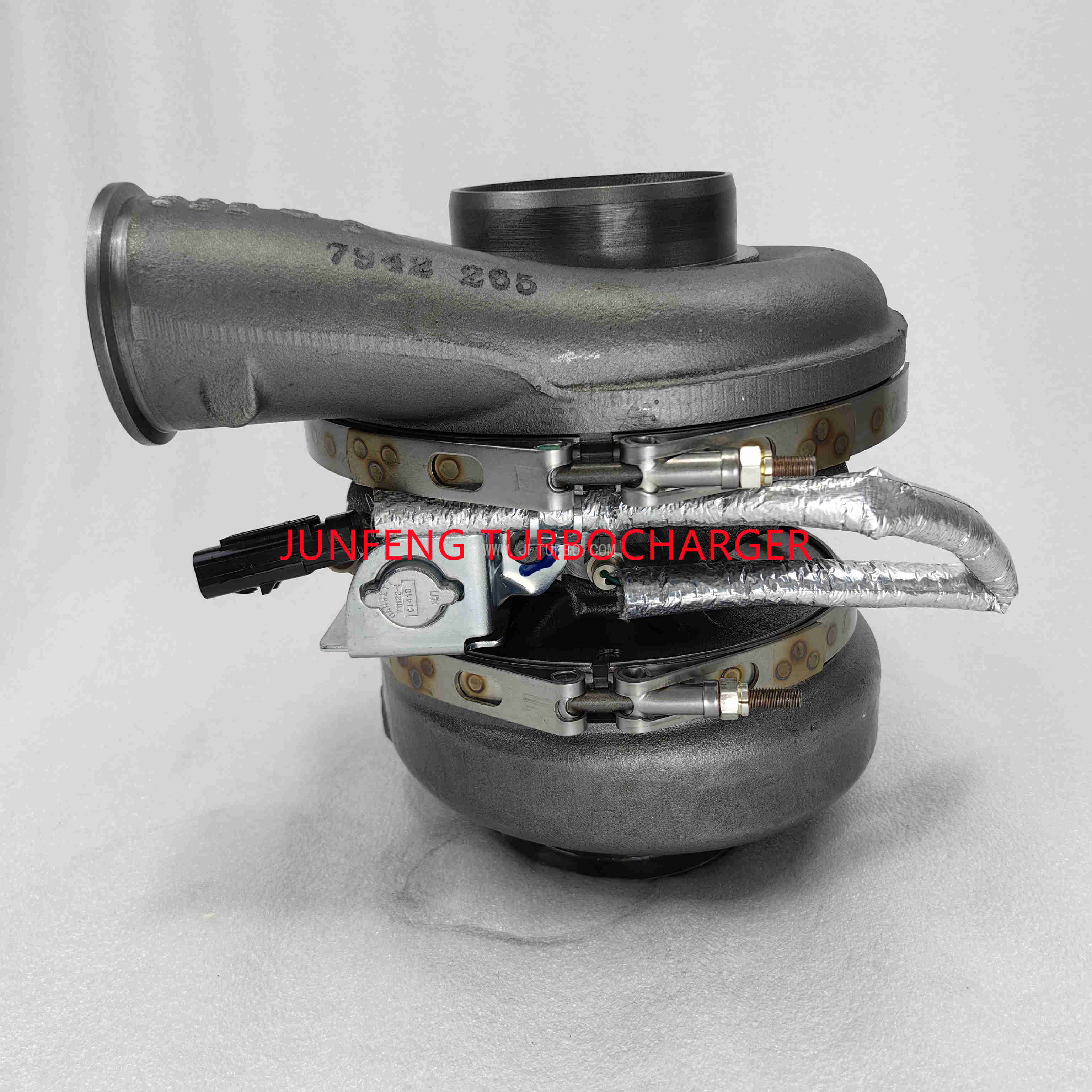

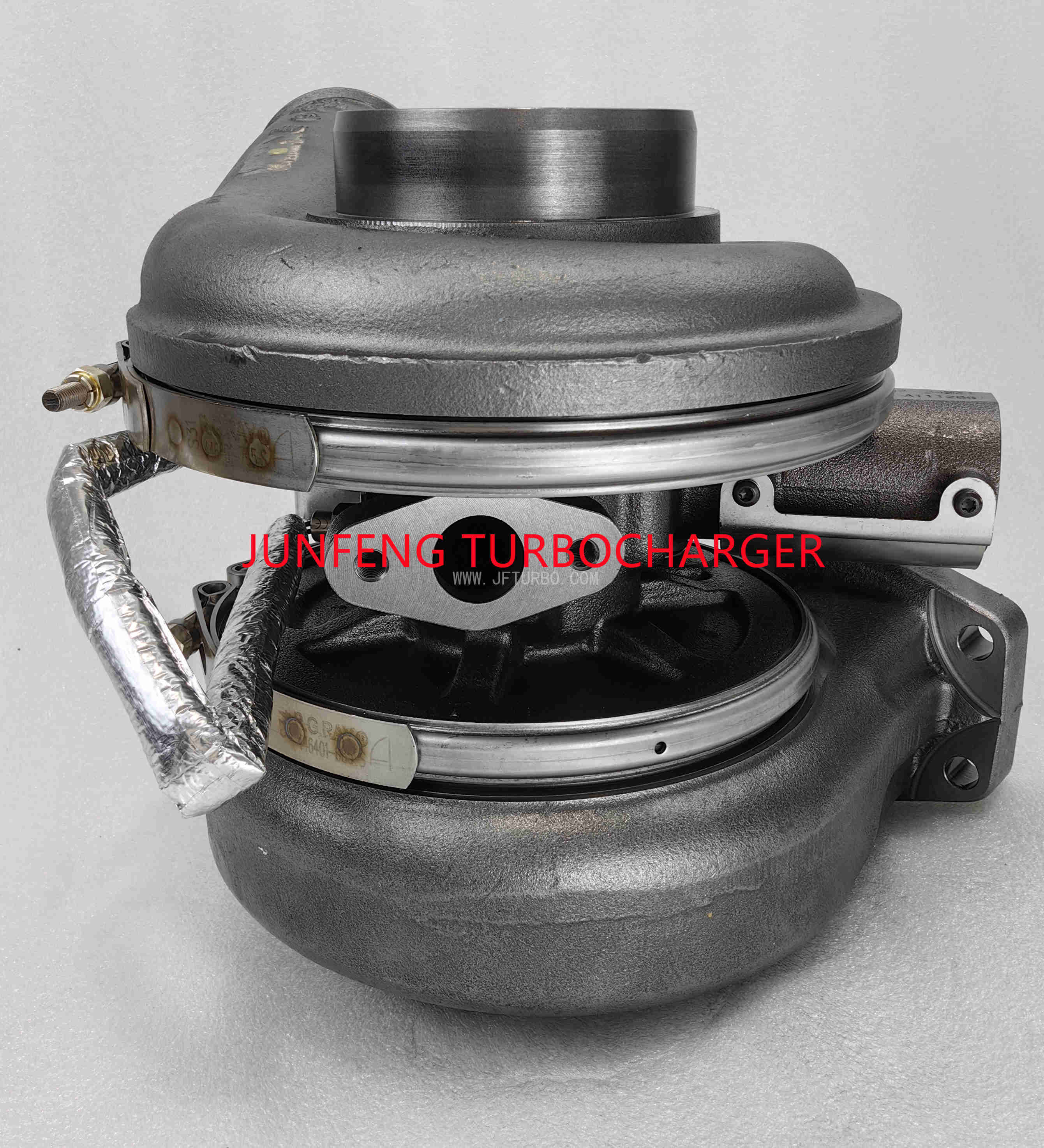

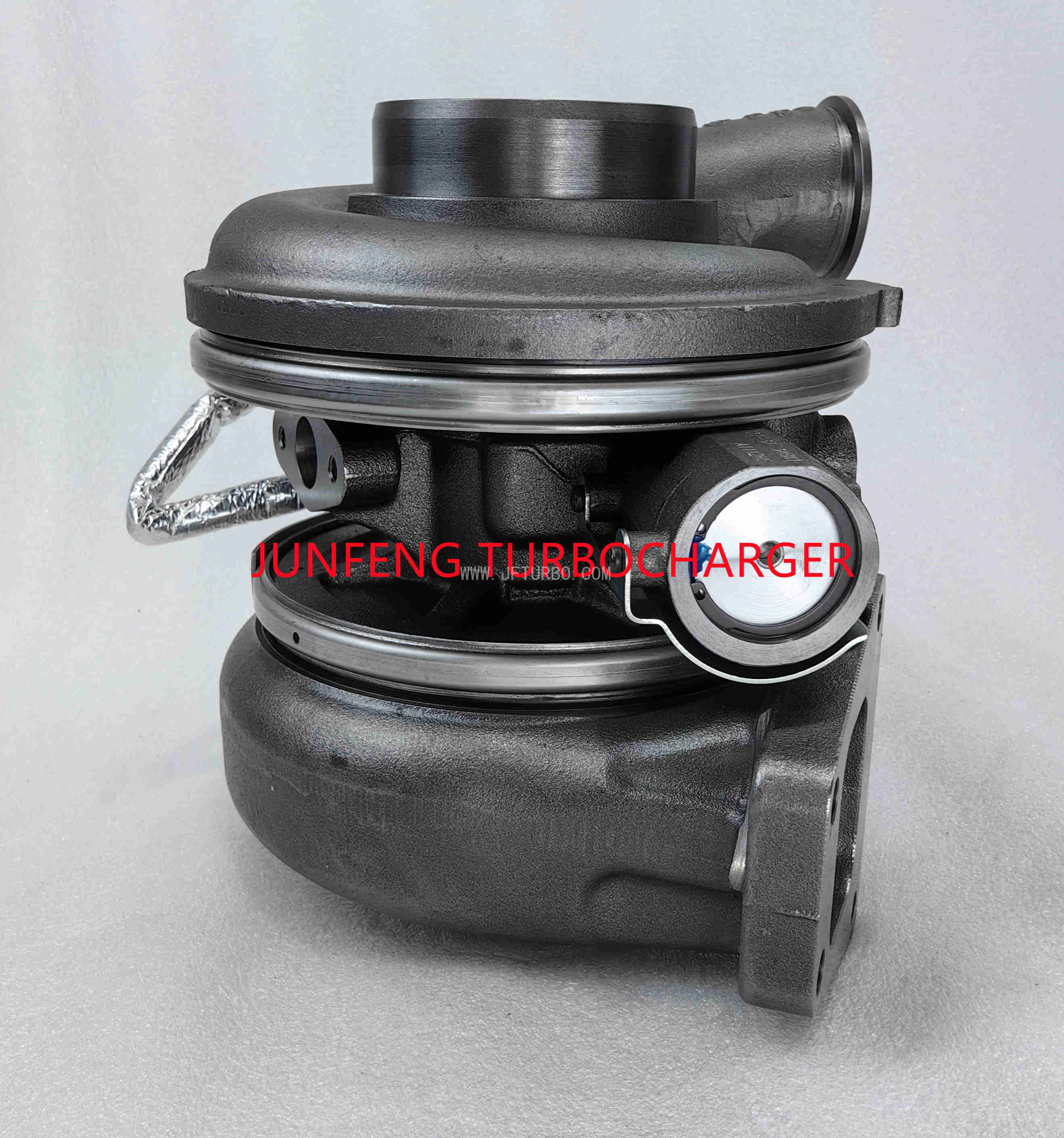

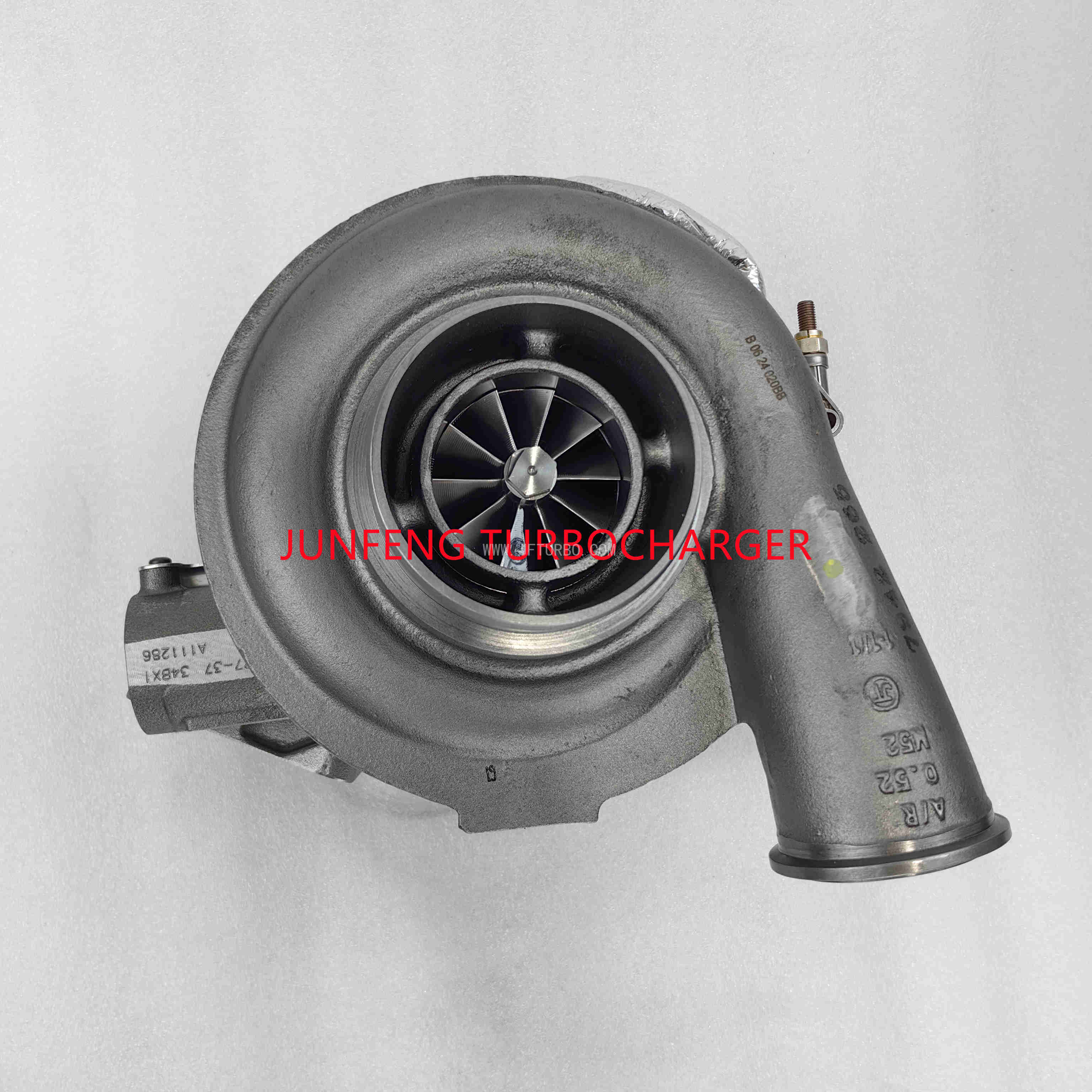

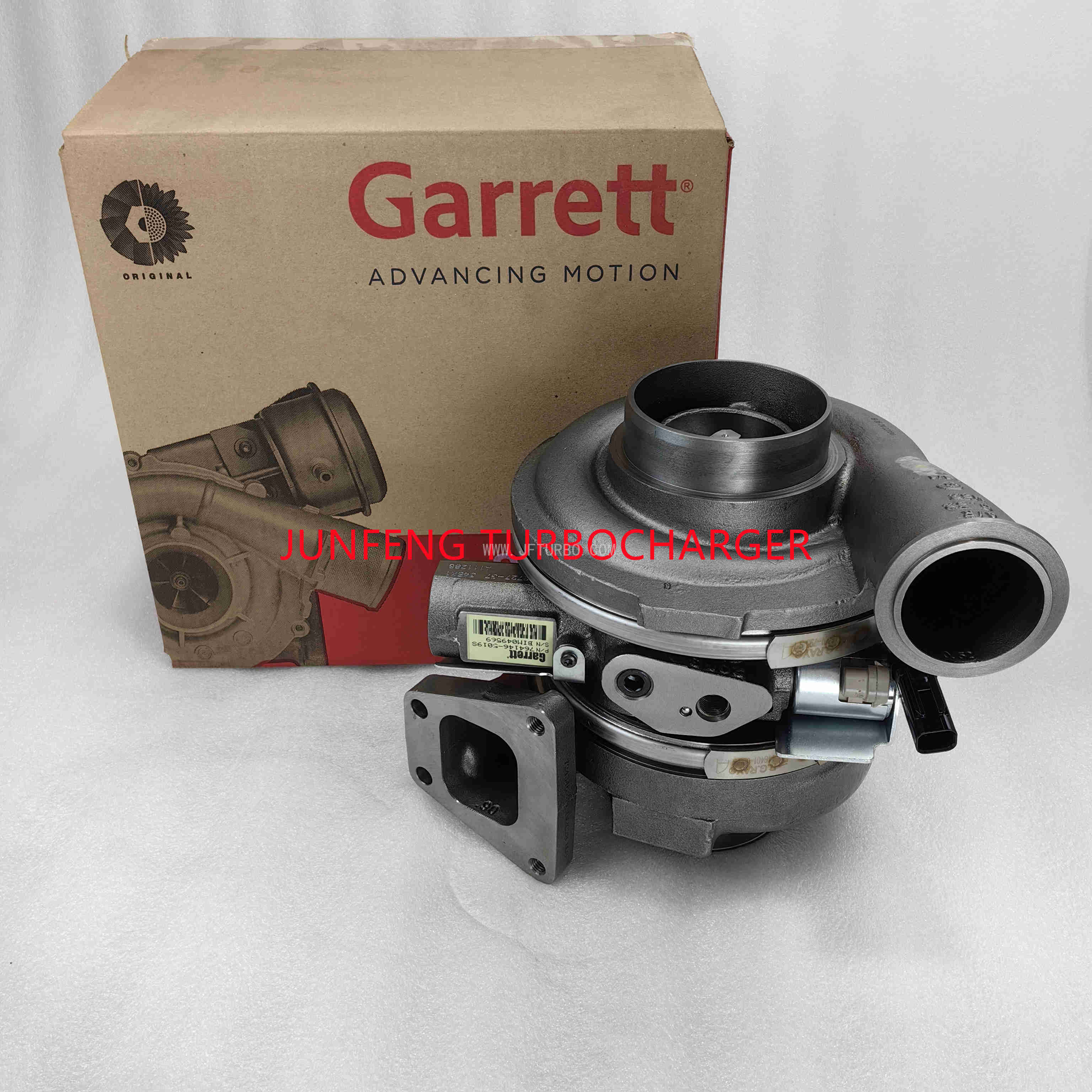

GT3782BVA Turbo 764146-5019S 2900508 garrett new Turbocharger for Caterpillar Truck and Bus C7 Engine

Model: GT3782BVA GT3782VA

Part Number: 764146-0009, 764146-0002, 764146-0004, 764146-0005, 764146-0006, 764146-0007, 764146-0008, 764146-0010, 764146-0011, 764146-0012, 764146-0013

OE number: 2900508, 2900511, 290-0508, 290-0511, 278-4380, 280-6886, 288-5467, 288-5468

Others number: 764146-0015, 764146-0016, 764146-0017, 764146-0018, 813016-0001 764146-5009S

File No.: 764146-5019S 2900508

Packing: Neutral carton,or Customized Carton

Size: Standard size

Sample Order: accept

Shipping: DHL,Fedex,UPS,EMS,TNT,Air,Sea

Trade Terms: EXW

Payment: T/T,Western Union,Chinese Account

Delivery: Within 2 days after your payment arrive,if it have in stock

Freight Delivery: Depends on the express company

Weight: 25kg

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product Information
Port

Product details

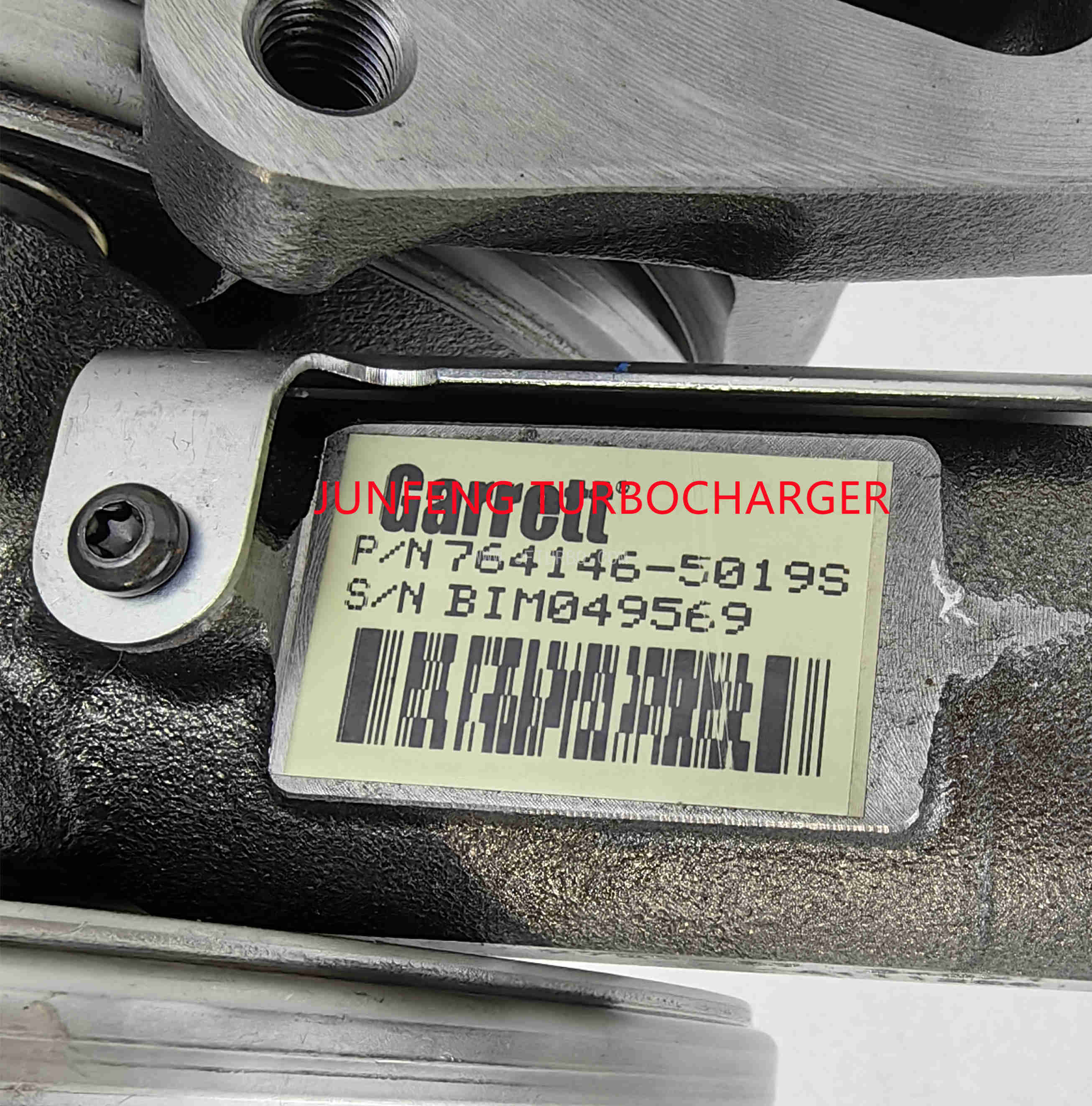

Part Number	764146-5019S
Previous Part Number	764146-0009, 764146-0002, 764146-0004, 764146-0005, 764146-0006, 764146-0007, 764146-0008, 764146-0010, 764146-0011, 764146-0012, 764146-0013, 764146-0014, 764146-0015, 764146-0016, 764146-0017, 764146-0018, 813016-0001 764146-5009S
OE number	2900508, 2900511, 290-0508, 290-0511, 278-4380, 280-6886, 288-5467, 288-5468, 288-5469, 290-0513, 291-3994, 291-3995, 291-3996, 261-3167, 261-3168, 261-3168, 326-1205, 2784380, 2806886, 2885467, 2885468, 2885469, 2900513, 2913994, 2913995, 2913996, 2613167, 2613168, 2613168, 3261205
Description	Truck and Bus, Various, RV and Fire Truck
CHRA	726529-0057 (726529-5057S, 726529-0031)
Turbo Model	GT3782VA, GT3782BVA
Engine Model	C7
Displacement	6.7L, 7.2L, In-line 6 Cylinders
Fuel	Diesel
KW	190/300/350
Sensor-Speed	2913979
RPM	1440/2400
S/N	C7S417-3155, C7S349-416, C7S349-UP, C7S5473-UP, C7S857-UP, C7S1-403, C7S1-416, C7S1-3133, C7S4474-UP, C7S349-416, C7S00001-UP
Truck Engine	C-7, C7
Fuel	Diesel
Bearing Housing	752727-0027 (Oil Cooled)
Turbine Wheel	759331-0010 (759331-0004)(Ind. 65.83 mm, Exd. 64.61 mm, 13 Blades)
Comp. Wheel	765092-0001 (Ind. 59.09 mm, Exd. 82.96 mm, 5+5 Blades)
Back plate	772959-0001 NEW IN STOCK
Heat shield Number	720416-0006 (773730-0004)
Repair Kit	740659-0010
Turbine Housing	764148-0002
Compressor Cover	764150-0001
Turbine Housing AR	0.9, AVNT, VNT
Actuator Solenoid Assembly	792593-0001 (711122-0016)(904268, 7111220008, 7111220013, 7111220016, 7111220017, 3C3Z6F089A, 3X3Z6F089AA, 5C3Z6F089AA, 5C3Z6F089BA, A1371201N, ROTA1371201N)
Gasket (turbine inlet)	2692904 (269-2904)

Application

Turbocharger for 2006-11 Caterpillar Truck and Bus, Various with C7 Engine
