Part Number 452187-0006
Previous Version 452187-0001, 452187-0003, 452187-0005, 452187-5006S
OE number 1441169T00, 14411-69T00
Year 98-07
Description Nissan M100, Trade Trucks & Buses
CHRA 451298-0006

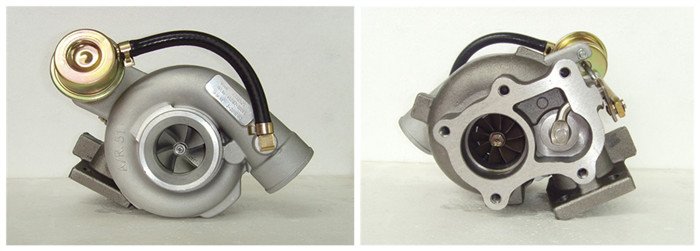

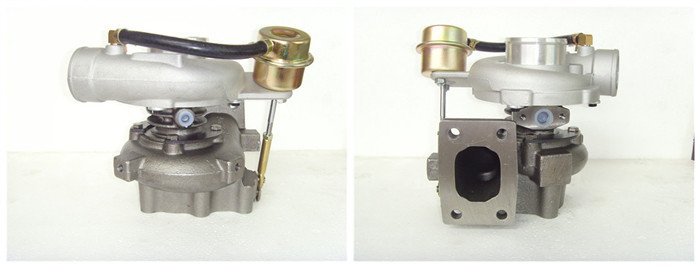

Turbo Model GT2252S
Engine BD30TI, BD-30Ti
Displacement 3.0L, 3000 ccm, 4 Cylinders
KW 178/242 HP
RPM Max 3500
Fuel Diesel
Bearing Housing 433275-0002/433275-0001
Turbine Wheel 434716-0005
Comp. Wheel 436131-0001
Back plate 434689-0002
Heat shield Number 434302-0001
Repair Kit 732252-0001
Turbine Housing 436313-0006
Compressor Cover 713468-0003
Turbine Housing AR 0.67
Actuator 432340-0078
Waste gate adjustment (pressure) 1.00-1.04 Bar
Settings Waste gate (lift shaft) 1.00 mm
Gasket (turbine inlet) 210218
Gasket (oil outlet) 210243
Gasket (turbine outlet) 210270

Applications
1996-01 Nissan Trade, M100 Commercial with BD30TI Engine
1998-07 Nissan CapsStar 110E Trucks & Buses with BD30TI Engine
