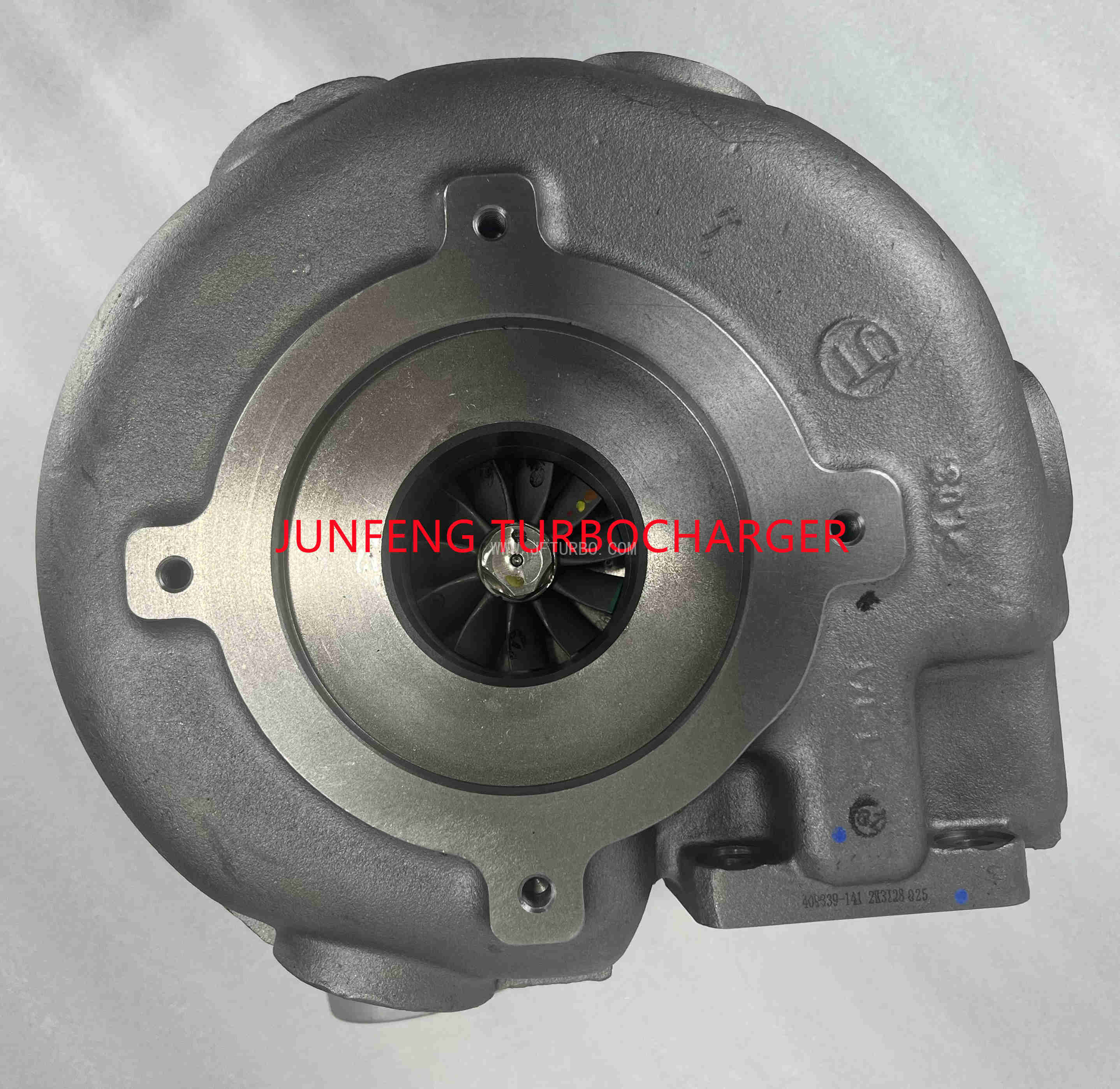

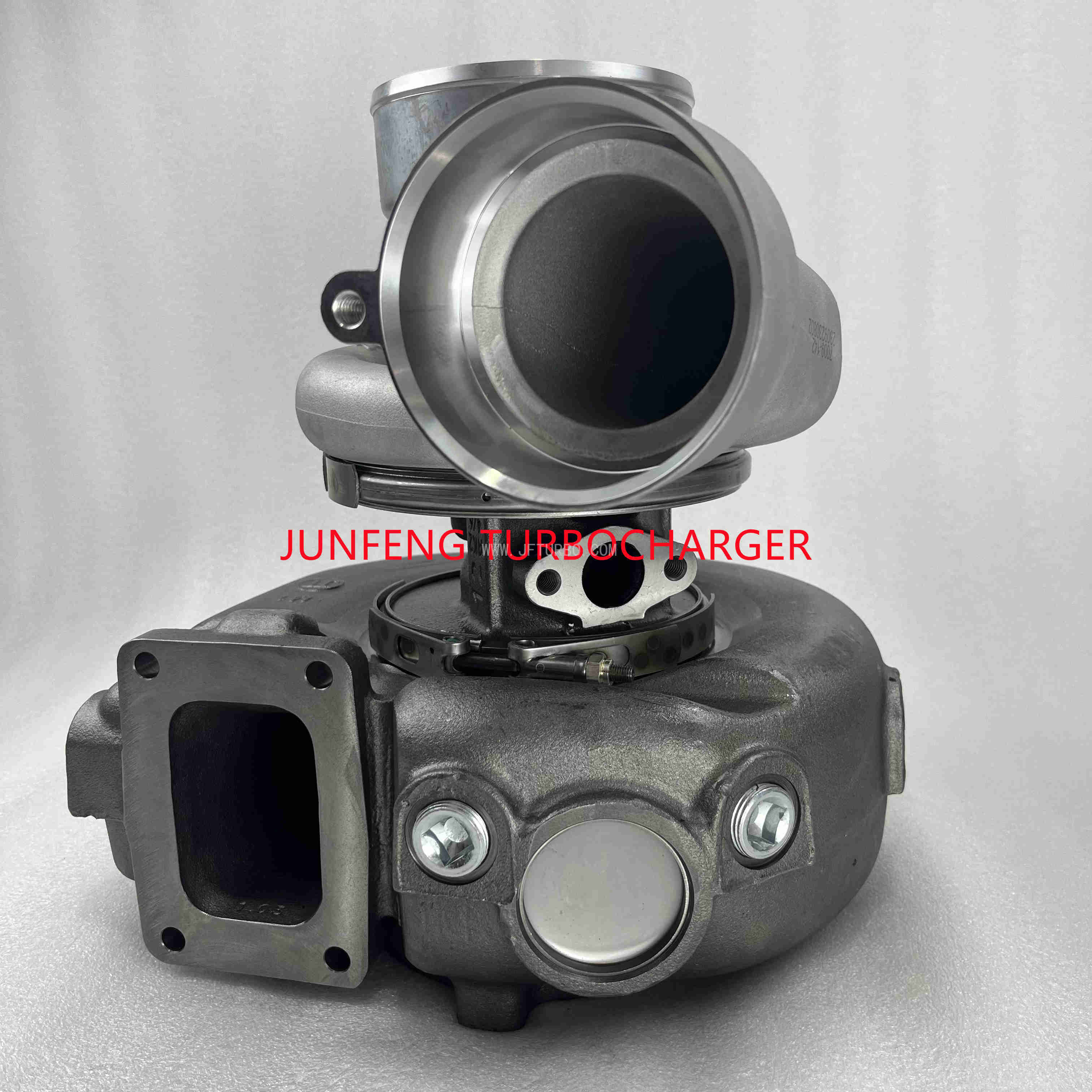

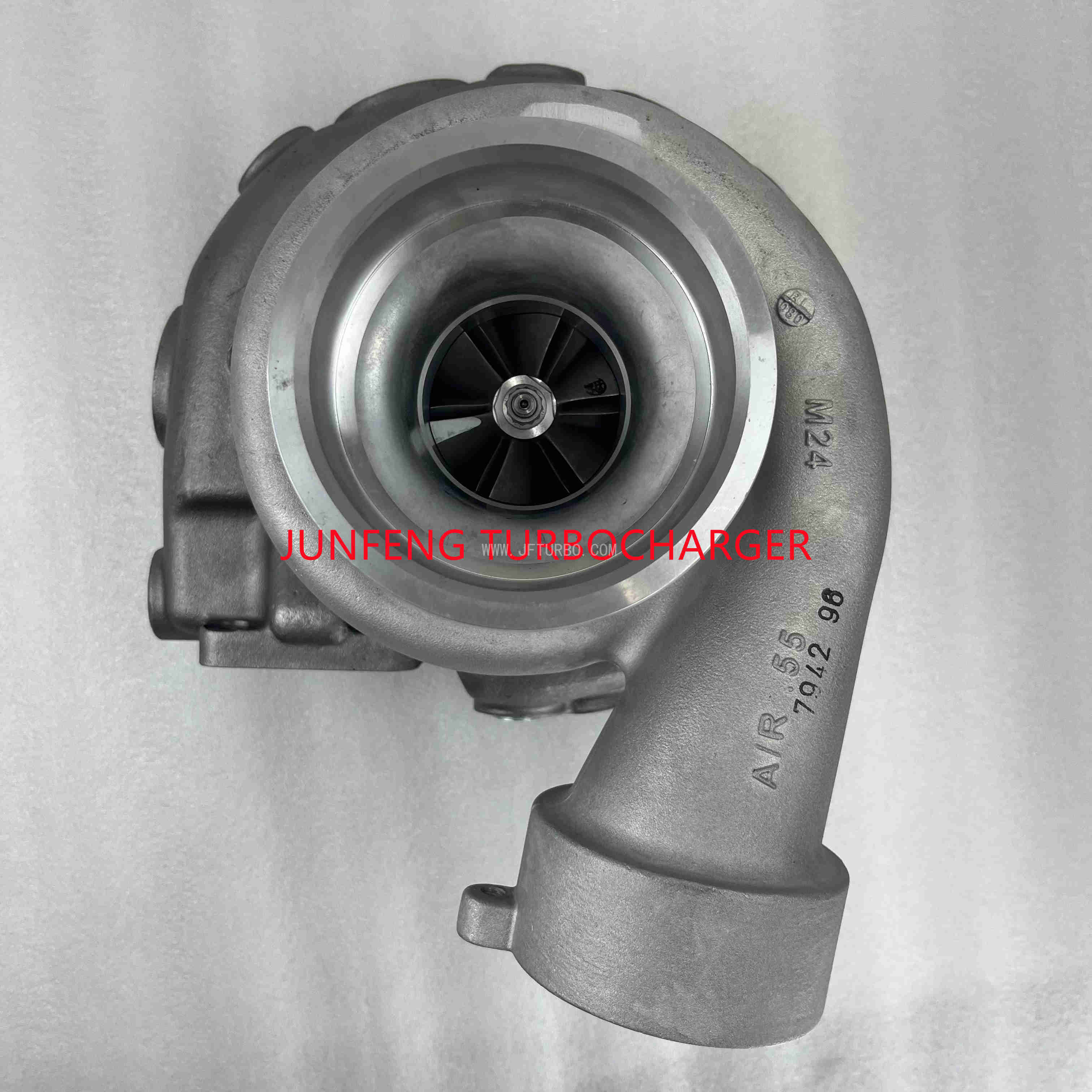

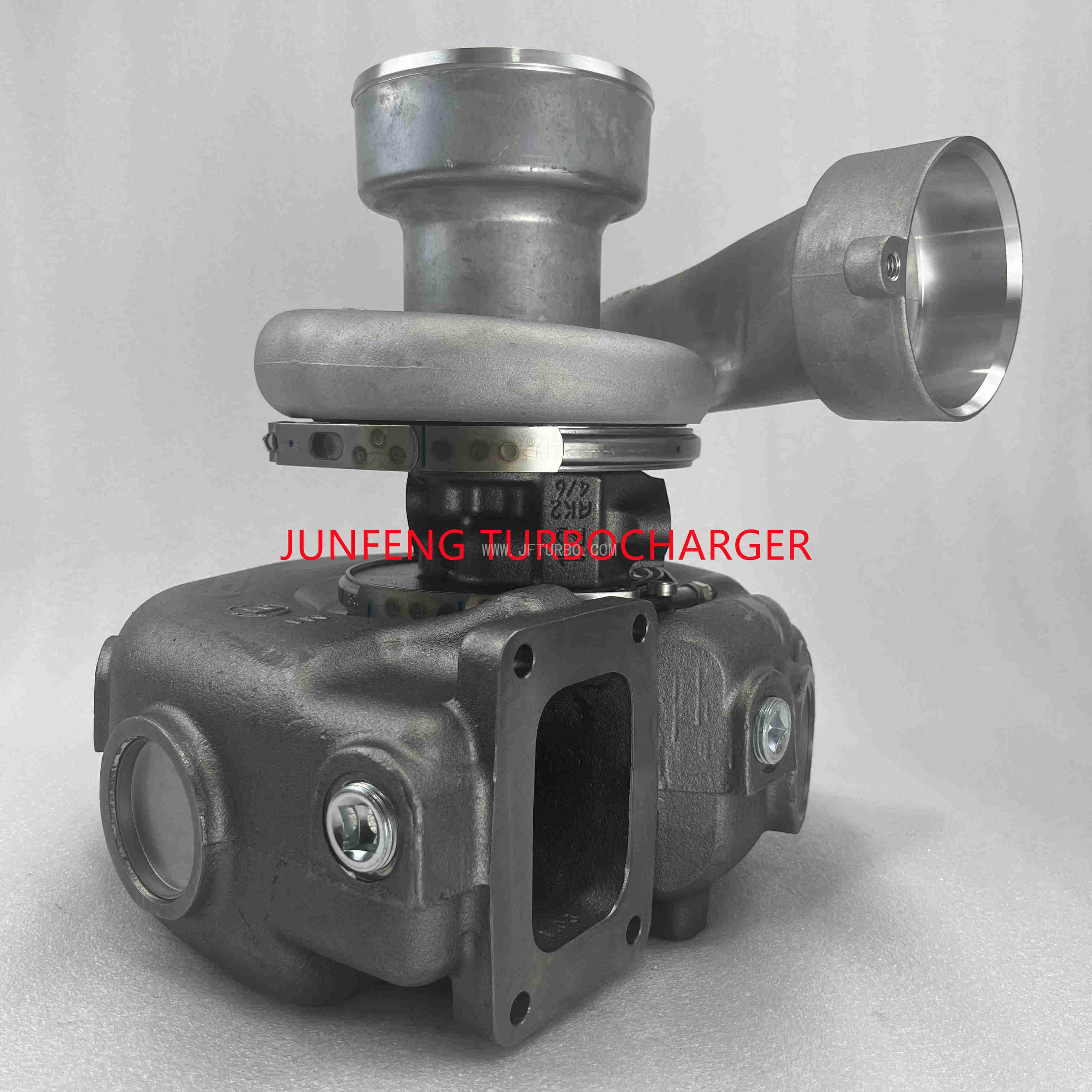

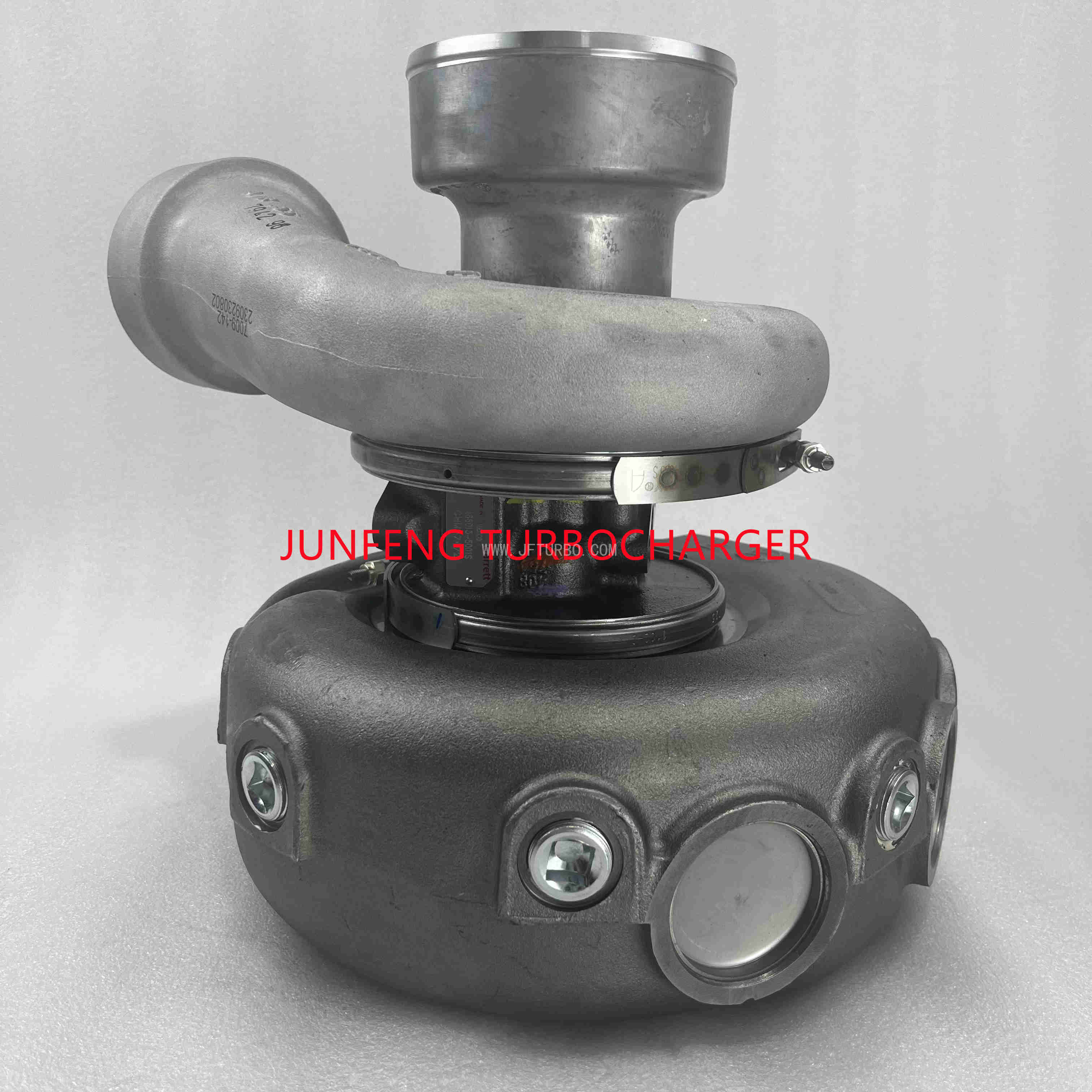

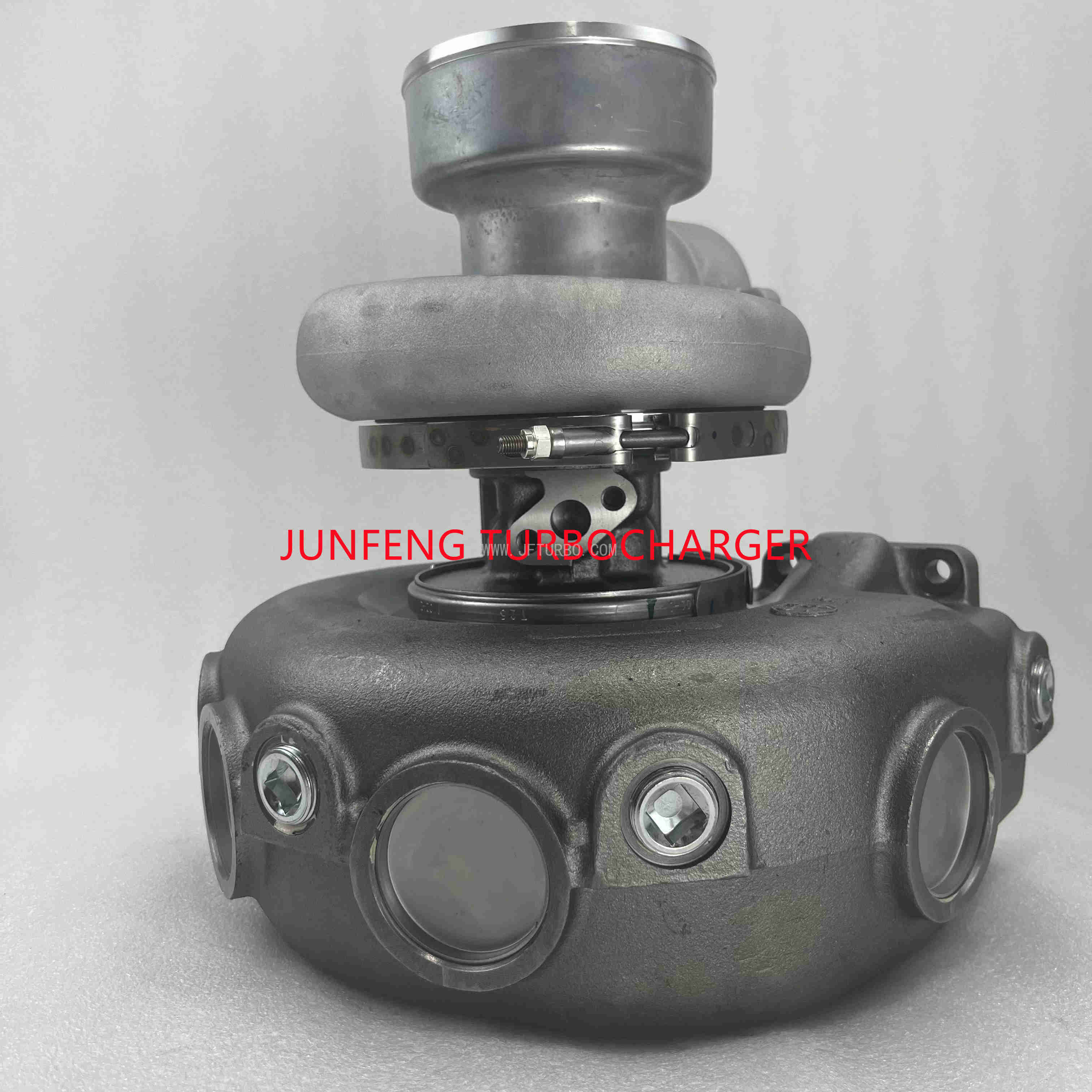

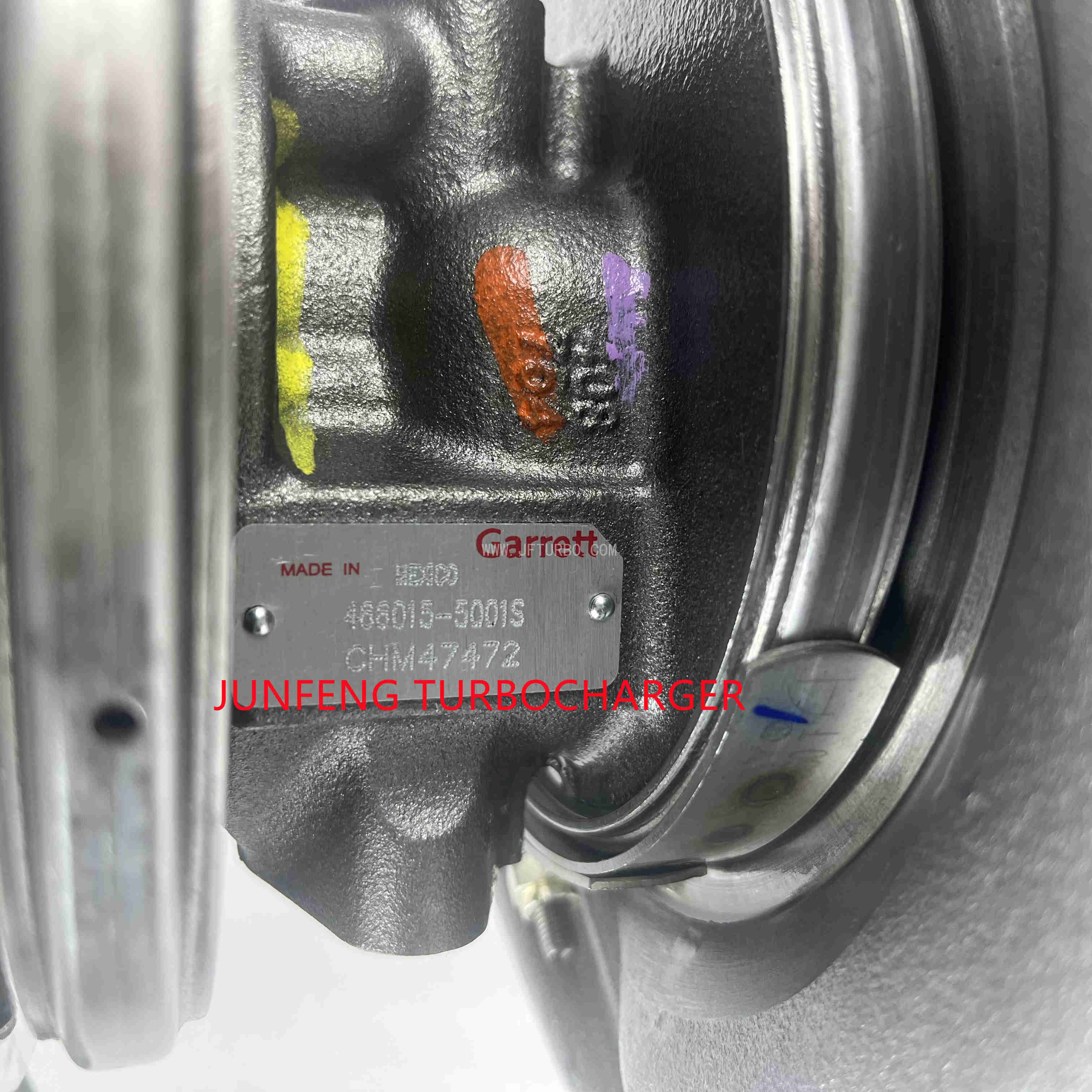

GARRETT TW6156 20R7014 9Y9810 466015-5001S Turbocharger forturbocharger for Caterpillar Marine 3304 Engine

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product details

Part Number	466015-5001S
Previous Version	466015-0001, 466015-9001, 466015-1
OE number	20R-7014, 20R7014, 9Y-9810, 9Y9810
Description	Marine, Generator
CHRA	409043-0102 (409043-5102S)(10R8221, 7C2286)
Turbo Model	TW6156
Engine	G3406
Displacement	14.60L, 14600 ccm, 6 Cylinders
Fuel	Diesel
Generator Set Engine	G3406
Generator Engine	SR4
Industrial Engine	G3406
S/N	4FD1-UP, 1RK1-UP, KAR1-UP, R7E1-UP
Bearing Housing	408495-0028 (9N2035)(408495-0009, 408495-0010)(Oil-Cooled)(1101672450)
Turbine Wheel	408493-0015 (6N8486)(408493-0008)(Ind. 79. mm, Exd. 86.04 mm, 11 Blades)
Comp. Wheel	410913-0001 (1W1603)(Ind. 65.2 mm, Exd. 94. mm, Trm 48, 6+6 Blades, Billet)
Back plate	408487-0017 (408487-0021)(1W1610, 8N0819, 331640848721)
Heat shield Number	407657-0004 (409794-0000, 409794-0001, 9N2037, 9N3701, 8925757)(1101680340, 2030016145)
Repair Kit	468103-0000 (312325, 468173-0000, 3545824, 2W0715)(1101280750, 5000010008)
Turbine Housing (Water Cooled)	409133-0141 (6N9906)
Compressor Cover	407009-0142 (1W1602)
Turbine Housing AR	1.03
Gasket oil inlet	210023
Gasket (oil outlet)	210021 (148062, 311496)

Applications

turbocharger for Caterpillar Marine with 3304 Engine

turbocharger for Caterpillar Earth Mover with with 3406 SITASCAC GS Engine
