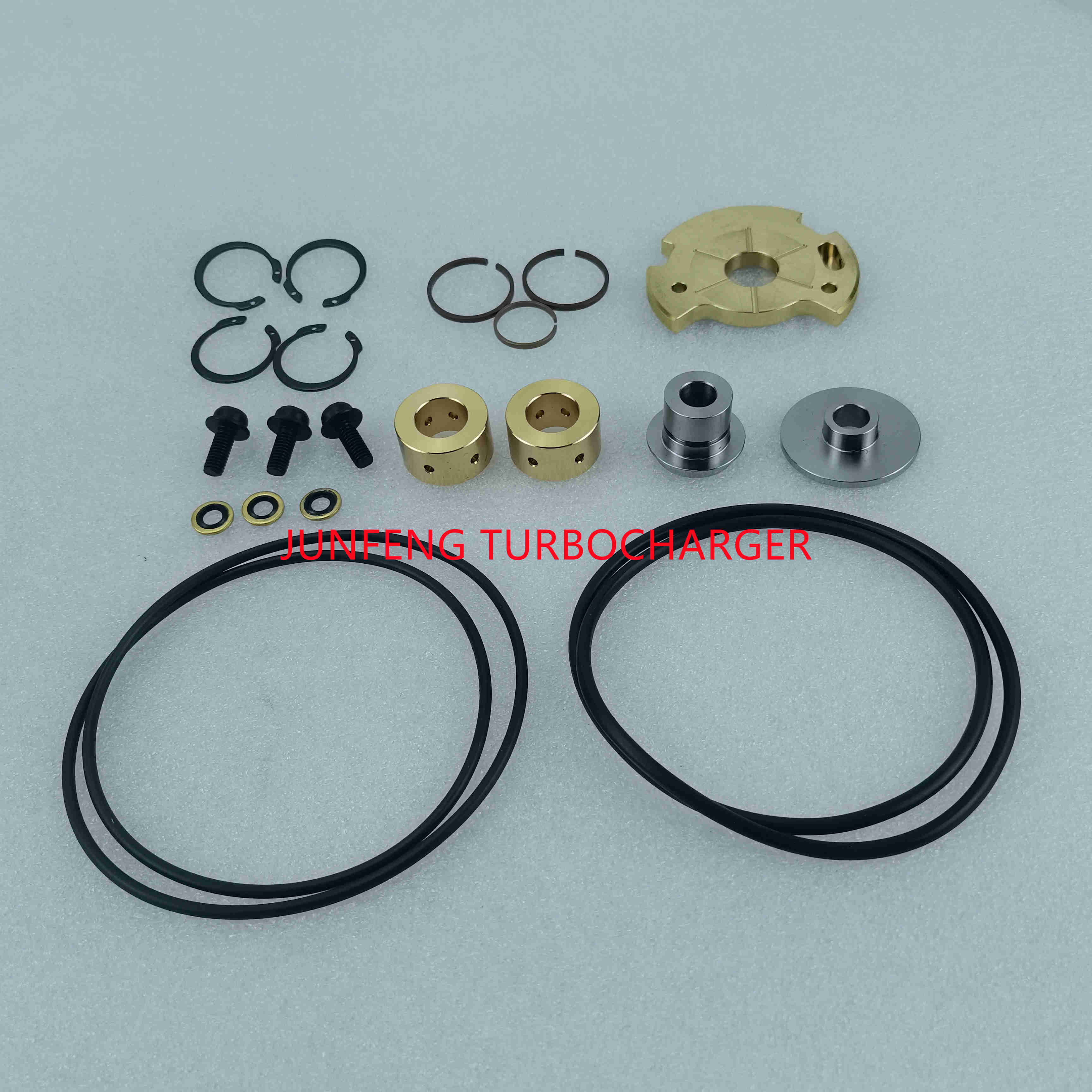

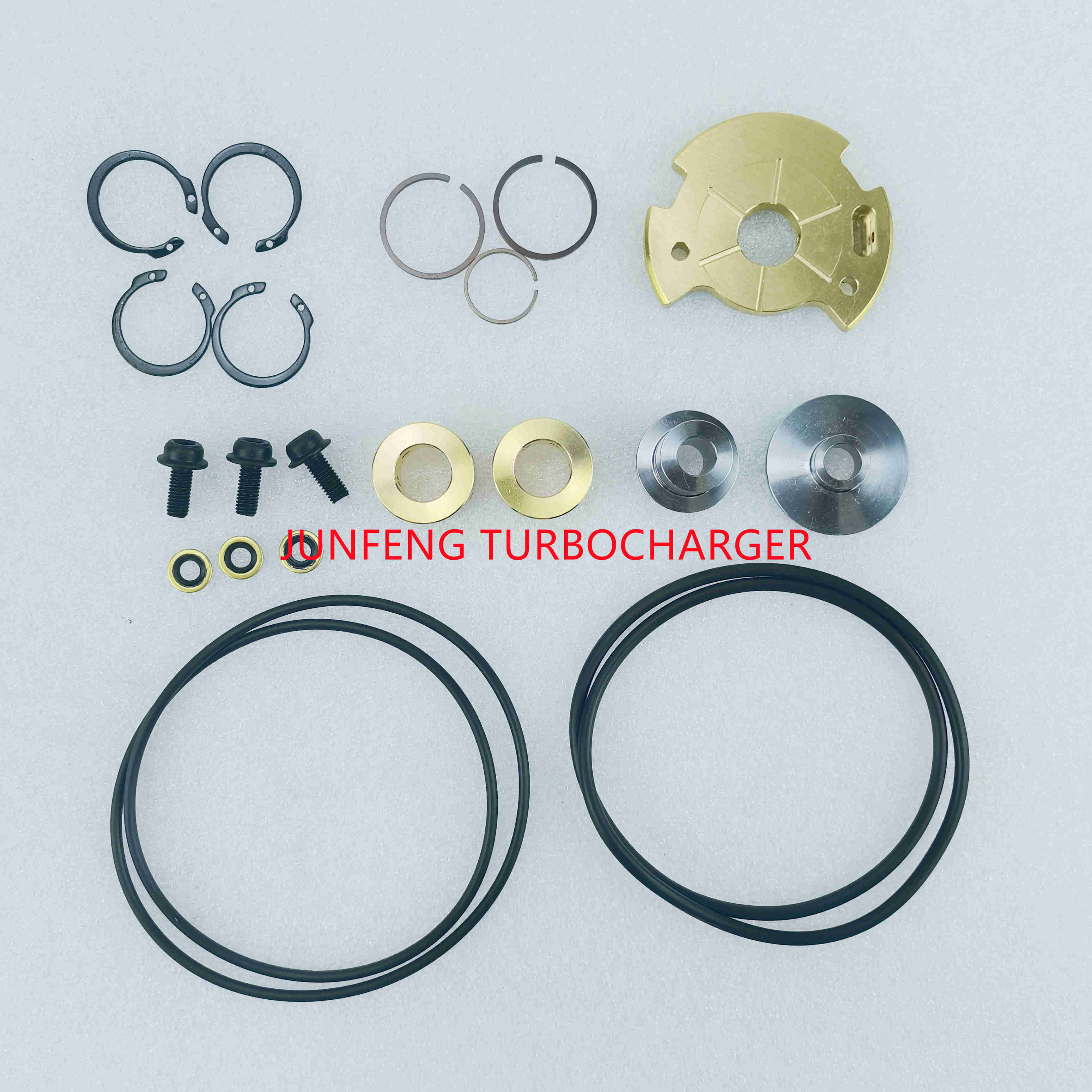

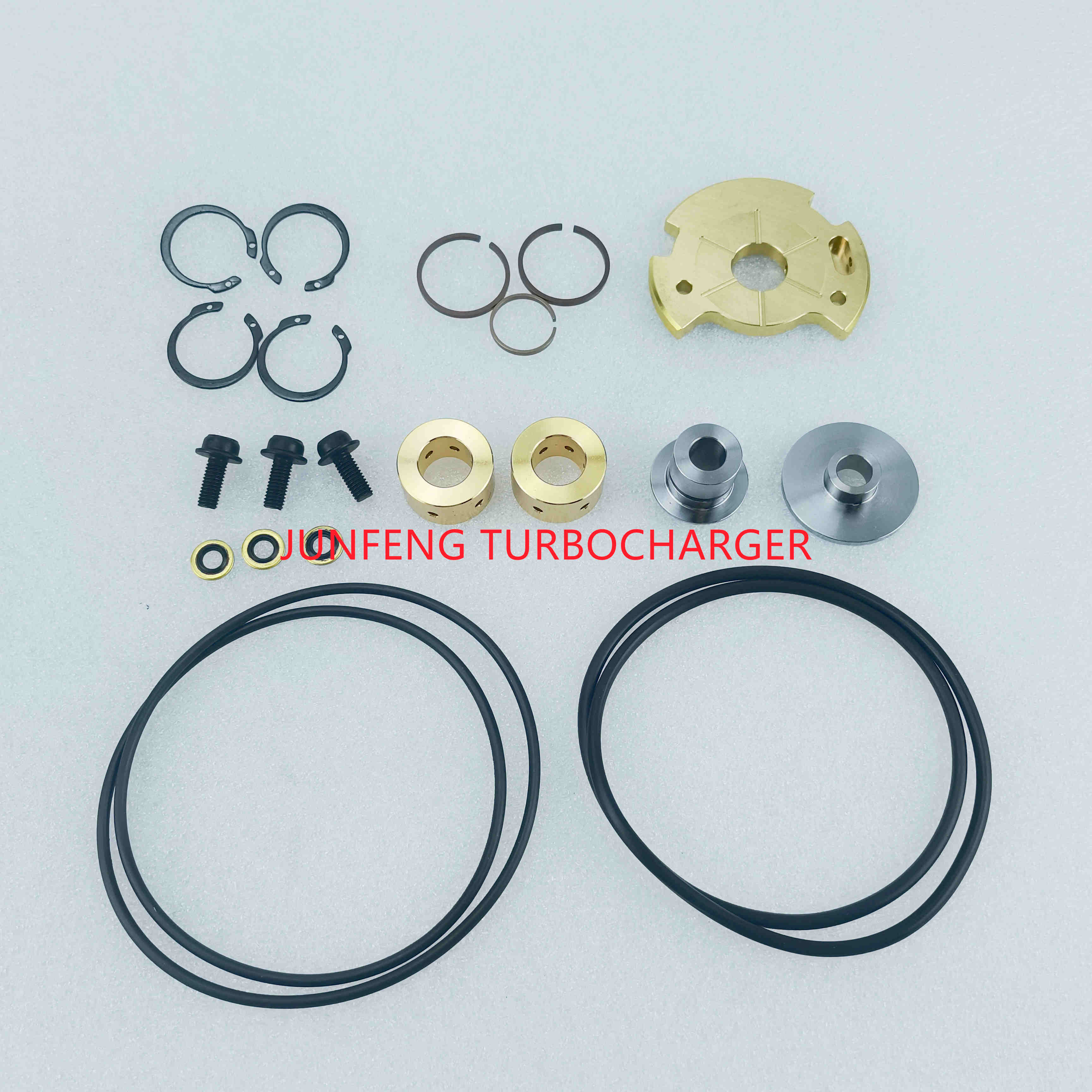

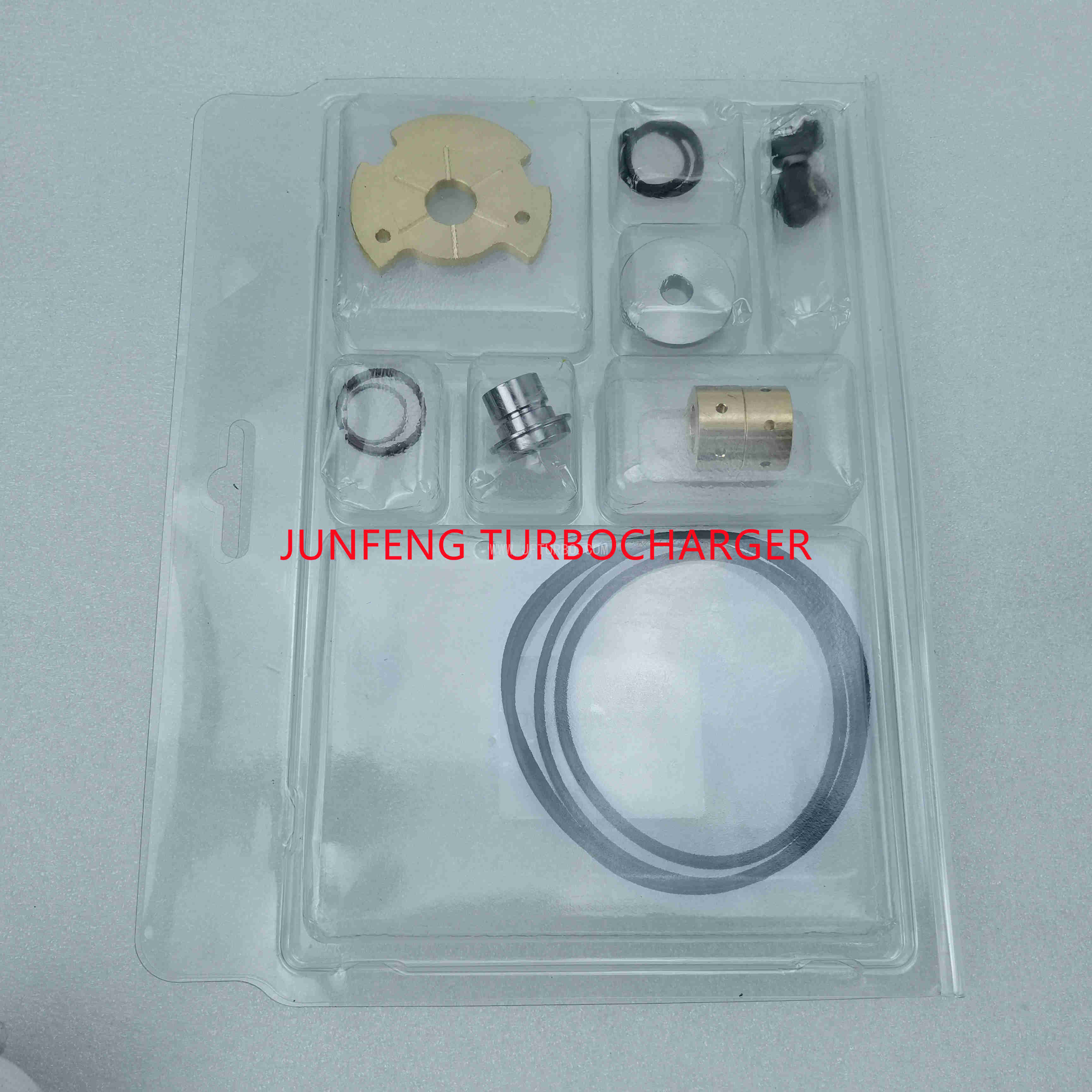

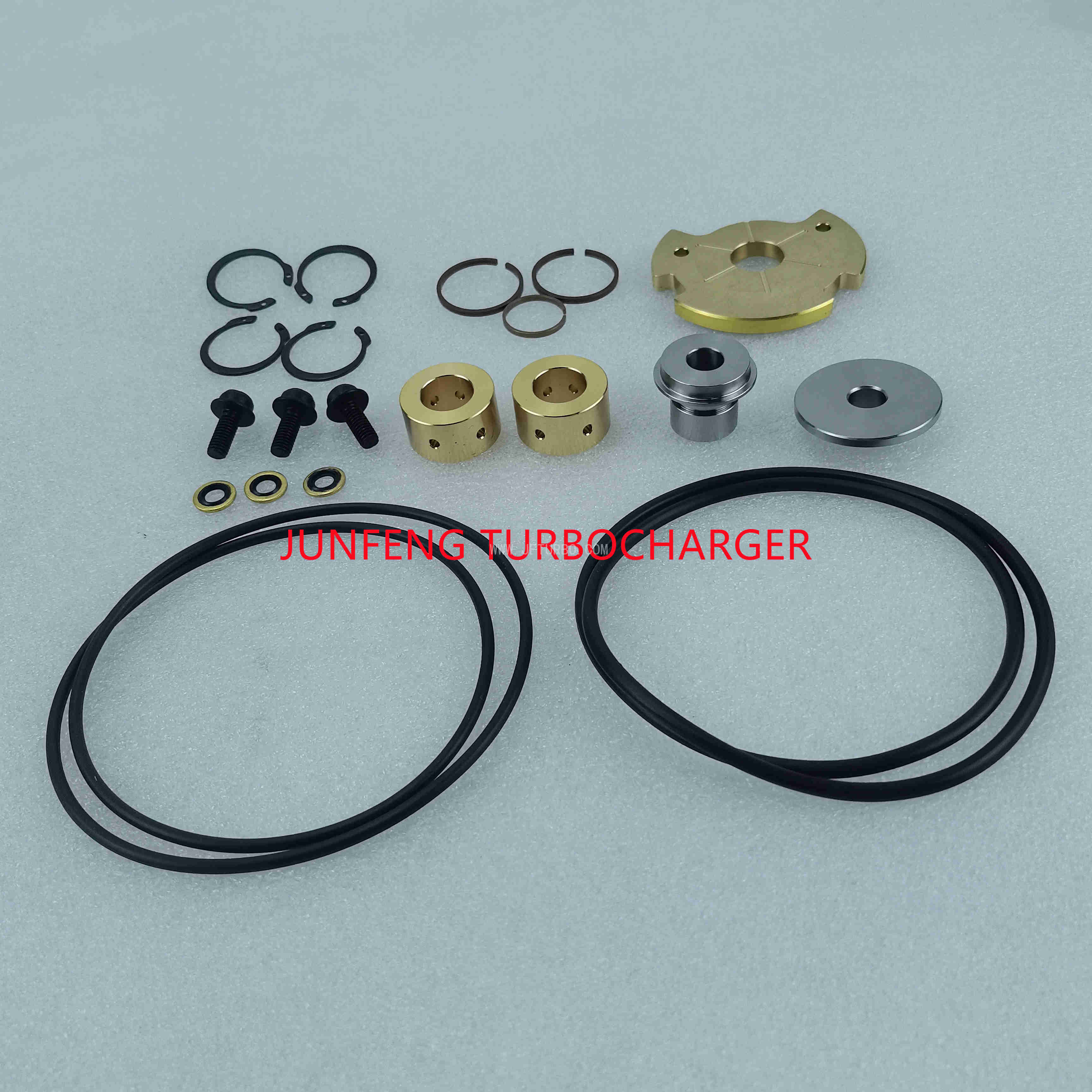

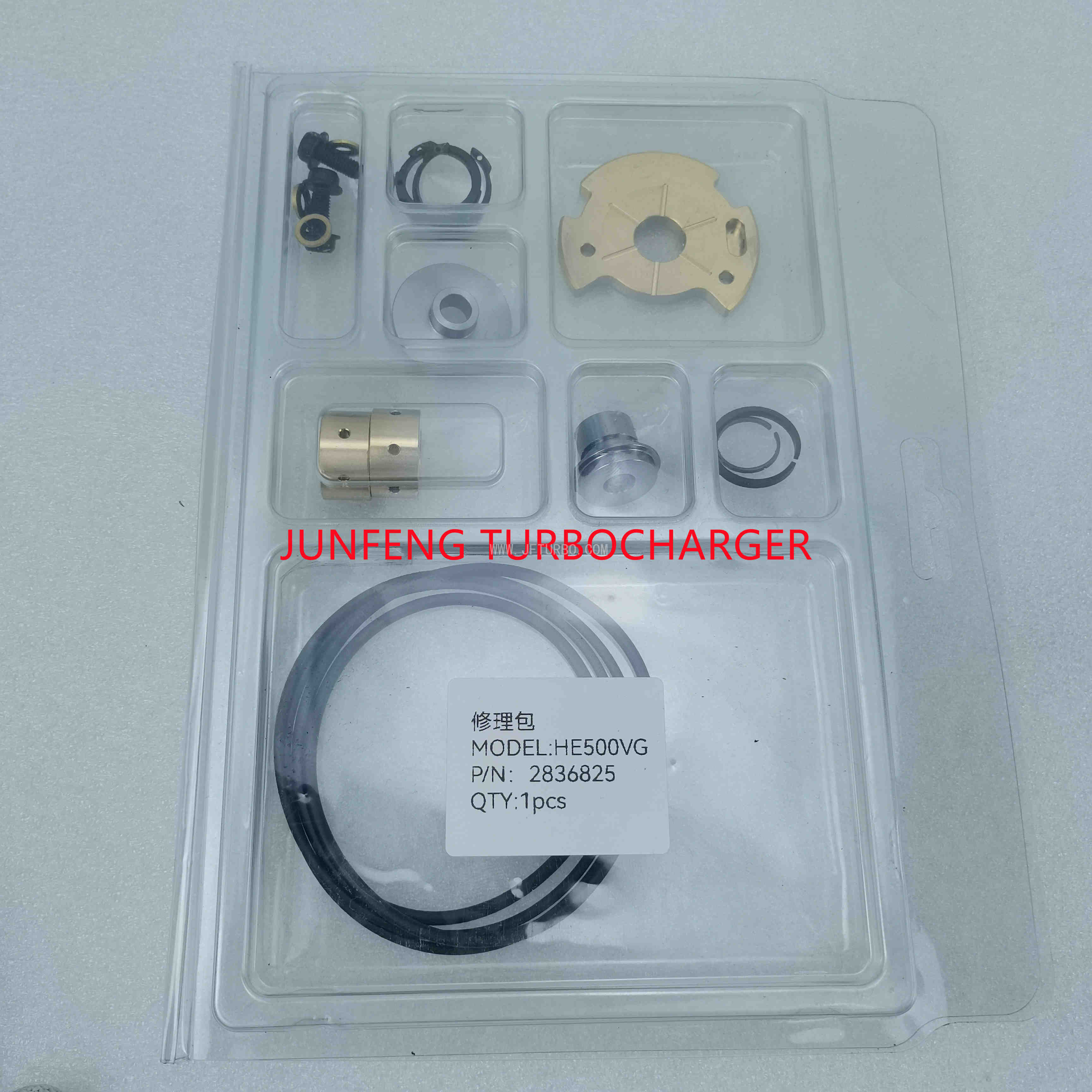

Detroit Diesel Fire Truck HE531VE HE500VG 5352845 2836825 turbo repair kits

Part Number: 19514480D, 23536422, 23539062, 23539570, 2836826, 4043261, 4045291

OE number: 4047269, 2836826, 3781169, 3792071, 3798597, 3781169, 3786234, 378623400

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product Description

Part Number	5352845
Previous Version	19514480D, 23536422, 23539062, 23539570, 2836826, 4043261, 4045291, 4047269, 2836826, 3781169, 3792071, 3798597, 3781169, 3786234, 378623400, 378623400H, 378623400HX, 3786234H
OE number	23539062, 23536422, R23539062, R23536422, 23536802
Description	Detroit Diesel Various, Fire Truck Class 3-8, Truck Kenworth, Peterbilt, Freightliner
Turbo Model	HE531VE
CHRA	4034440 (4034440H)
Engine Manufacturer	BOOSHIWHEEL
Manufacturer Part Number	5329513, 5352845, 5498208, AP80055, 23536422, 23539062, 23536422, 23539062, E23536422, E23539062, E23539570, R23536422, R23539062, R23539570, 3792069, 4047598
Fuel	Diesel
Displacement	14.0L, 14000 ccm
Engine	Series 60 (VGT) on EPA07, MTU Detroit Diesel
SN	1209197011
Fuel	Diesel
Angle α (compressor housing)	194°
Angle β (turbine housing)	90 °
Bearing Housing	(Oil cooled)
Turbine Wheel	4042581 (Ind. 83.99 mm, Exd. 69.97 mm, 12 Blades)(1154055438, 1100016492)
Comp. Wheel	4035068 (2836825)(Ind. 65.19 mm, Exd. 98.61 mm, Trm 6.30, 7+7 Blades, Superback)
Repair Kit	(1154500755)
Actuator Kit	4034121 (3787580, 3787582, 4032244, 403412100, 403412100H, 4034121H, 23537677, E23537677, R23537677, 4034120H, AP80082, 4042309, 5352845, 5352847)(12 Volts)
Nozzle Ring Assembly	(1154500990)
Actuator Installation Kit	4031365 (20837312, 23537048, 403136500H, 4031365H)
Gasket Kit	3545576 (201049, 3519763)
Turbine Housing AR	VI EGR

2004-14 Detroit Diesel Engine Various, Fire Truck Series 60
