| Part Number | 3774613 |
| Previous Version | 2836358, 2836359, 2838008, 2838009, 2840523, 2840524, 2840525, 2843356, 2843359, 2881786, 2881786NX, 2881786RX, 2881988RX, 2881998, 2881998NX, 2881998RX,, 4048260, 4045019, 2838008, 3767616, 4309077, 4045032, 4309077RX, 4309077NX, 3774641, 3767632, 430907700HX, 4309077RX, 4309077RXCUM, 2881998RX, 5350895HX, 3767616, 3767623, 3767631, 3769880, 3769882, 3774602, 3774613, 3774627, 3774641, 3776665, 3776666, 3776669 |
| OE Number | 4955903, 4956011, 4956011NX, 4955426, 2080039R |
| Year | 2008-11 |
| Cummins | 2881786, 2881998, 34042417, 4045032, 4045035, 4048260, 4048261, 4309077, 430907700, 430907700HX, 4309077HX, 4309077NX, 4309077RX, 4955426, 4955903, 4956011, 4956011NX, 5350895, 5350895H, 5350895HX, 5456817, 5456817H, 5456817HX, 5457298, 5457298NX, 5457298RX, 4042417, 4045032, 4045035, 4048260, 4048261, 4955426, 4955903, 4956011- |
| Holset | 3774613, 3781160, 5350510, 430907700- |
| Description | fits for Cummins Coach, Transit Bus, Various |
| Turbo Model | HE500VG, HE561VE |
| Displacement | 3.6L, 3600 ccm, V6 |
| Manufacturer Part Number | 3774627, 4045035, 3767623, 2838009, 4042417, 4048261, 2840524, 2836359, 3774641 |
| Engine Model | ISX07, ISX1, ISX-EGR, ISX15, ISL |
| Displacement | 8.3LL, 8300 ccm |
| Fuel | Diesel |
| Angle α (compressor housing) | 132º |
| Angle β (turbine housing) | 155º |
| Bearing Housing | 4042072 (Water Cooled) NEW IN STOCK |

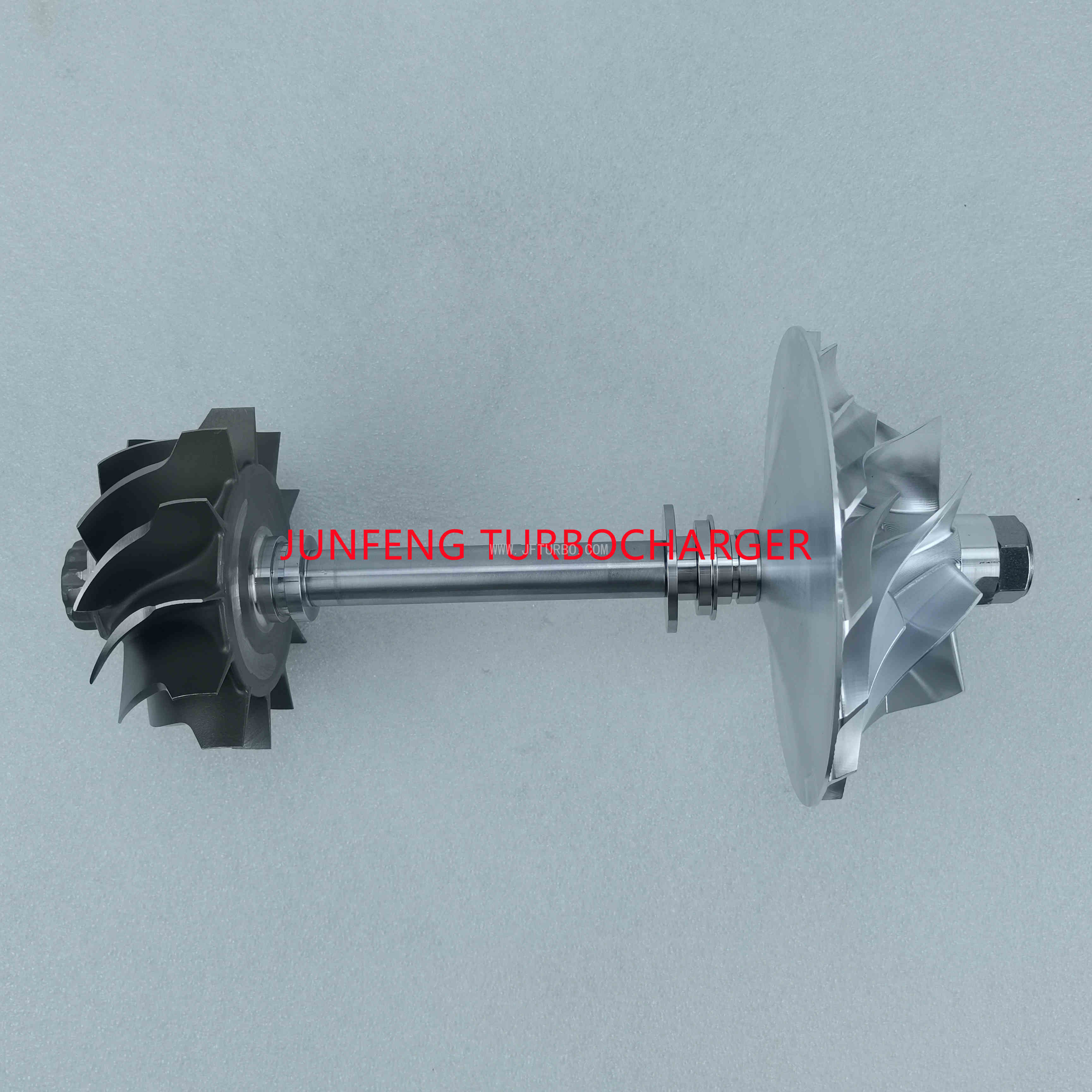

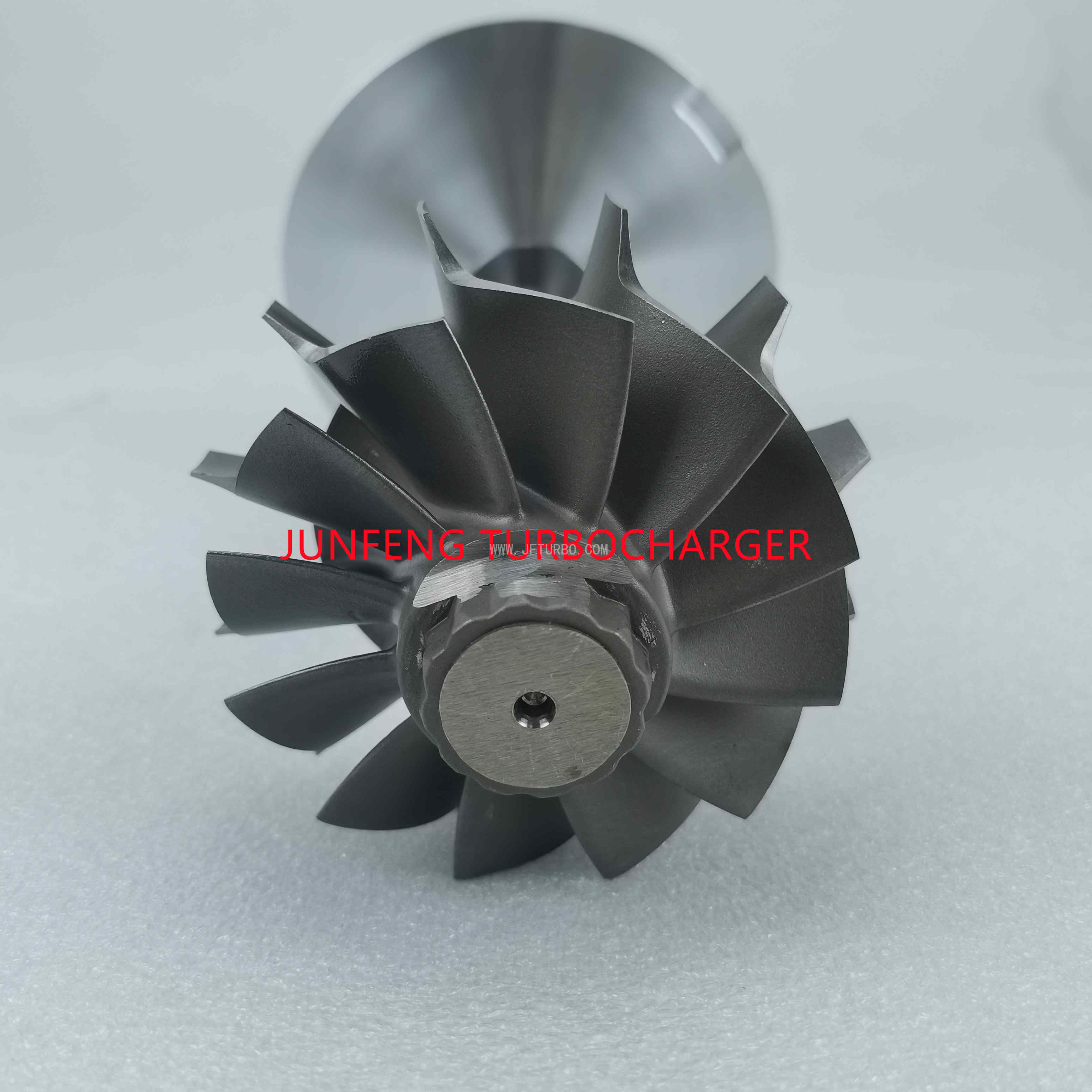

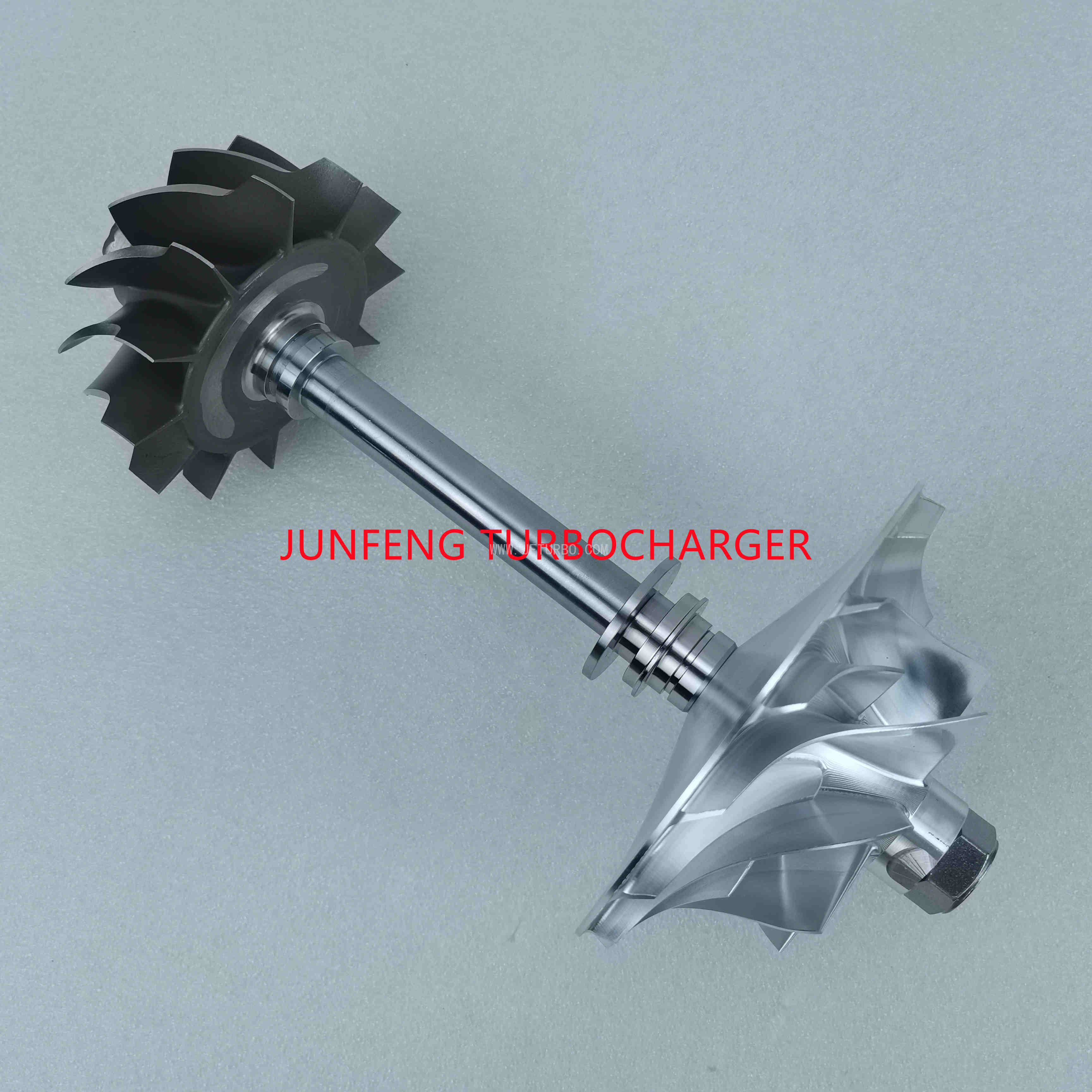

| Turbine Wheel | 4038560 (Ind. 72. mm, Exd. 86. mm, 12 Blades) NEW IN STOCK |

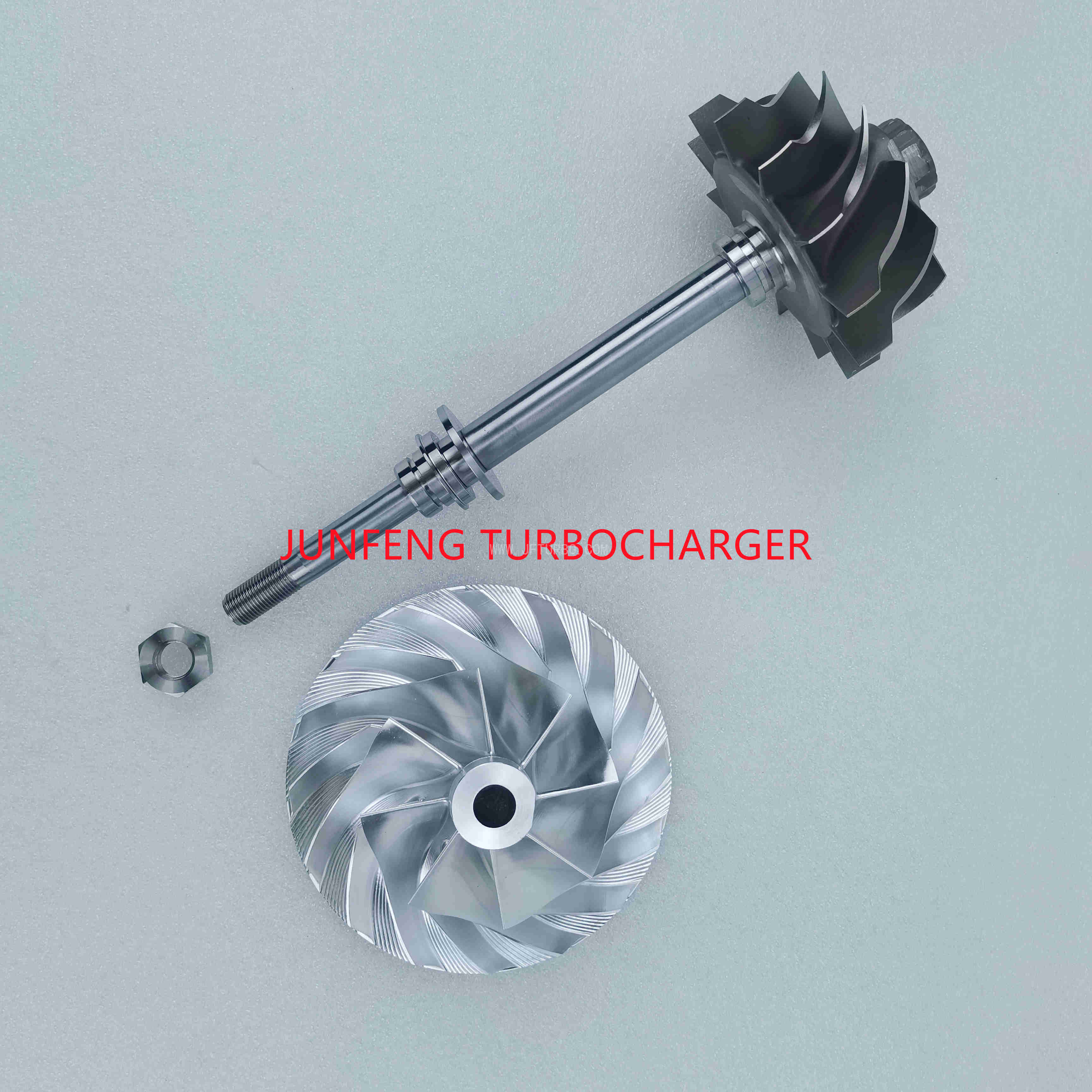

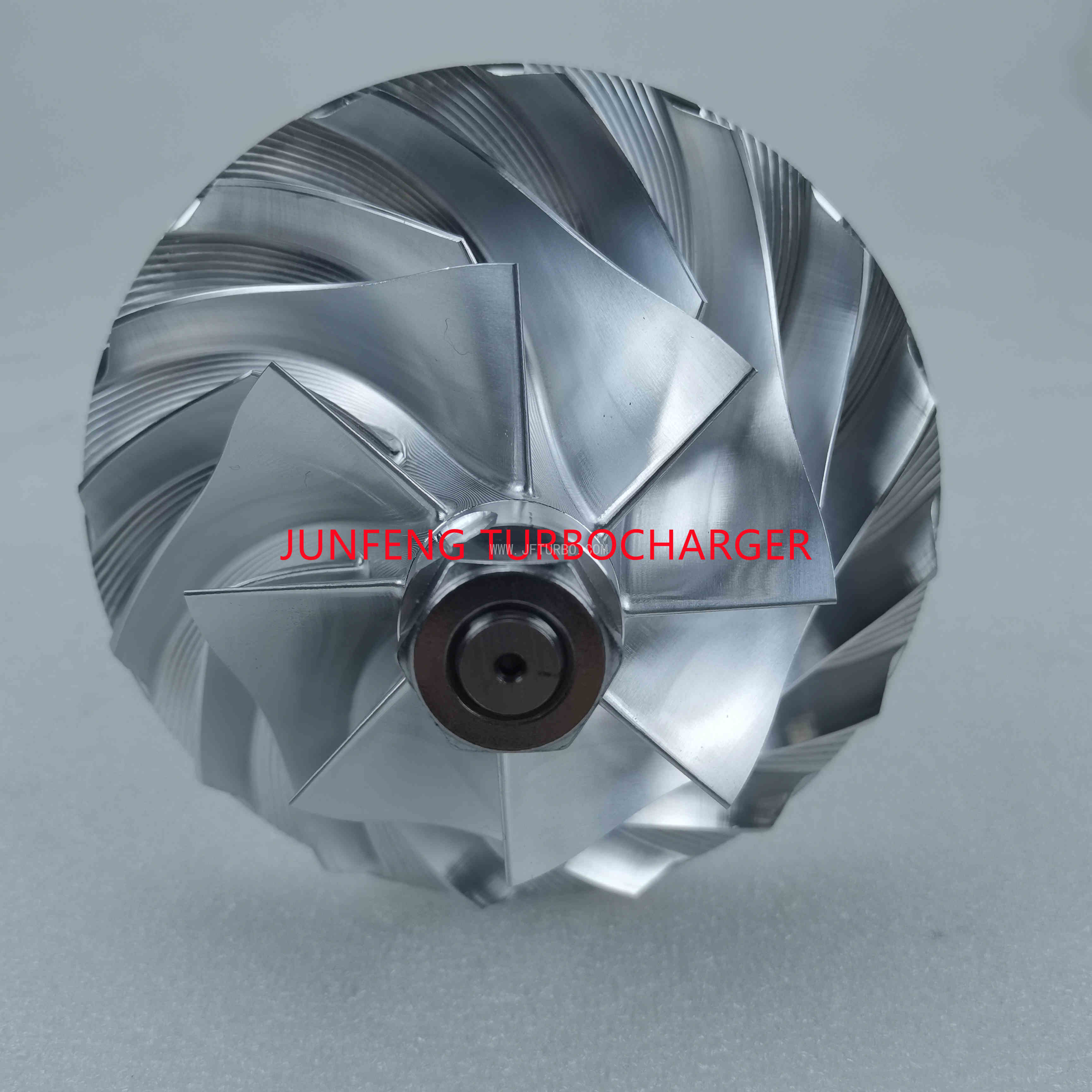

| Comp. Wheel | 4043068 (Ind. 70. mm, Exd. 111.48 mm, 8+8 Blades, Superback) NEW IN STOCK |
| Back plate | NEW IN STOCK |
| Heat shield Number | NEW IN STOCK |
| Repair Kit | (Major)(1154500756) |
| Nozzle Ring | 3779114 |
| Electronic Actuator Kit | 4034289 (28087185, 28087185-10, 2808718510, 28169119, 28169119-10, 2816911910, 2835940, 2837201, 3789667, 3789676, 3789677, 3791991, 379199100, 4032066, 4032673, 4032760, 4032760NX, 4032760RX, 4034116, 4034208, 4034210, 4034210NX, 4034210RX, 4034289, 403428900, 403428900HX, 4034289H, 4034289HX, 4034289NX, 4034289RX, 4034403, 4034403NX, 4034403RX, 4042307, 4043340, 4045108, 4045991)(12 Volts) |
| Speed Sensor | 4032068 (3596936, 3598841, 4027517, 4089377, 304Z05095, DSE121010P5HZ, DSE304Z05095) |
| Temperature Sensor | 4088832 |
| Turbine Housing AR | VGT |
| Electronic Actuator | 4034289 (4034289HX, 2837201RX, 4032760RX) |
| Gasket (oil outlet) | 3101268 |
| Gasket (turbine inlet) | 3102314
|
