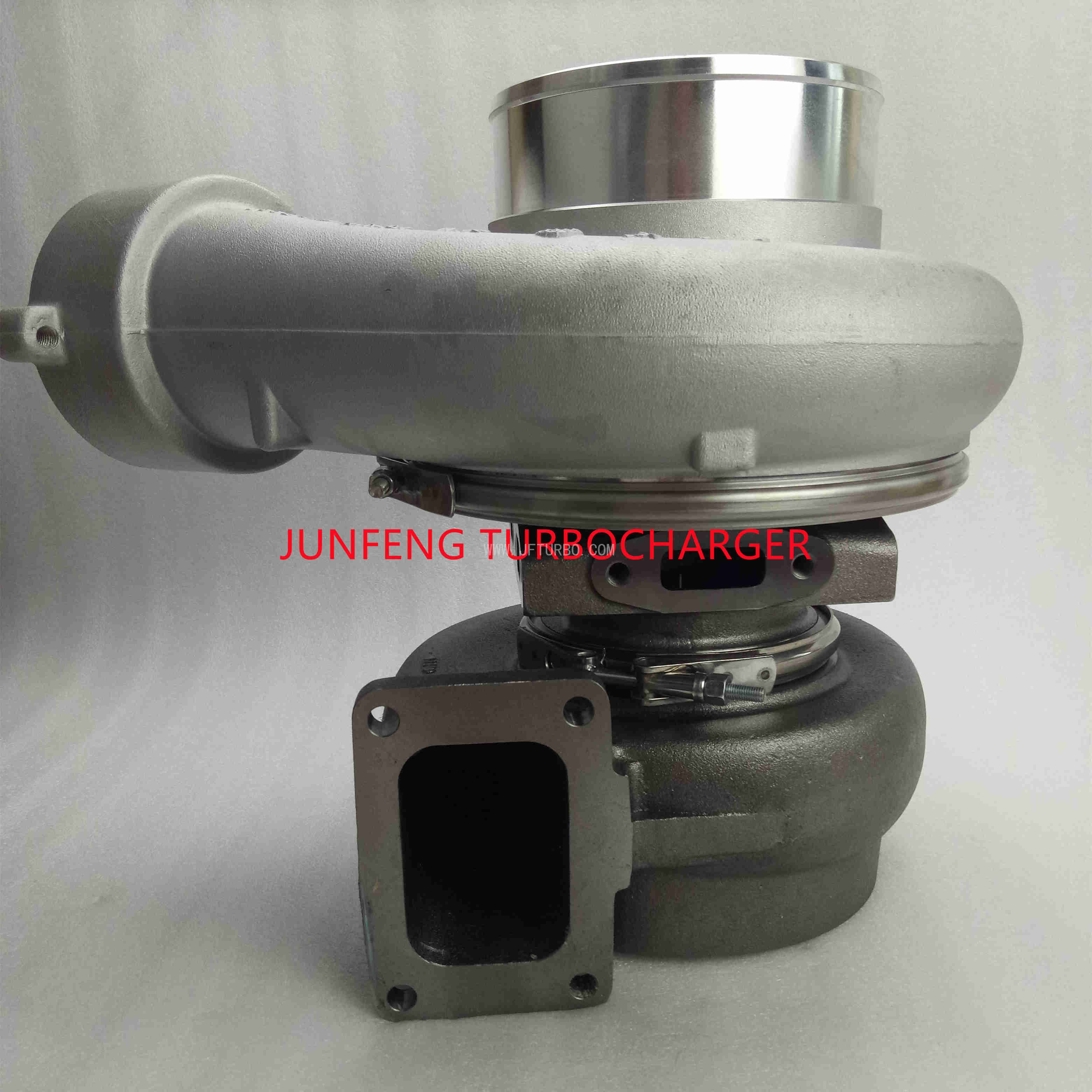

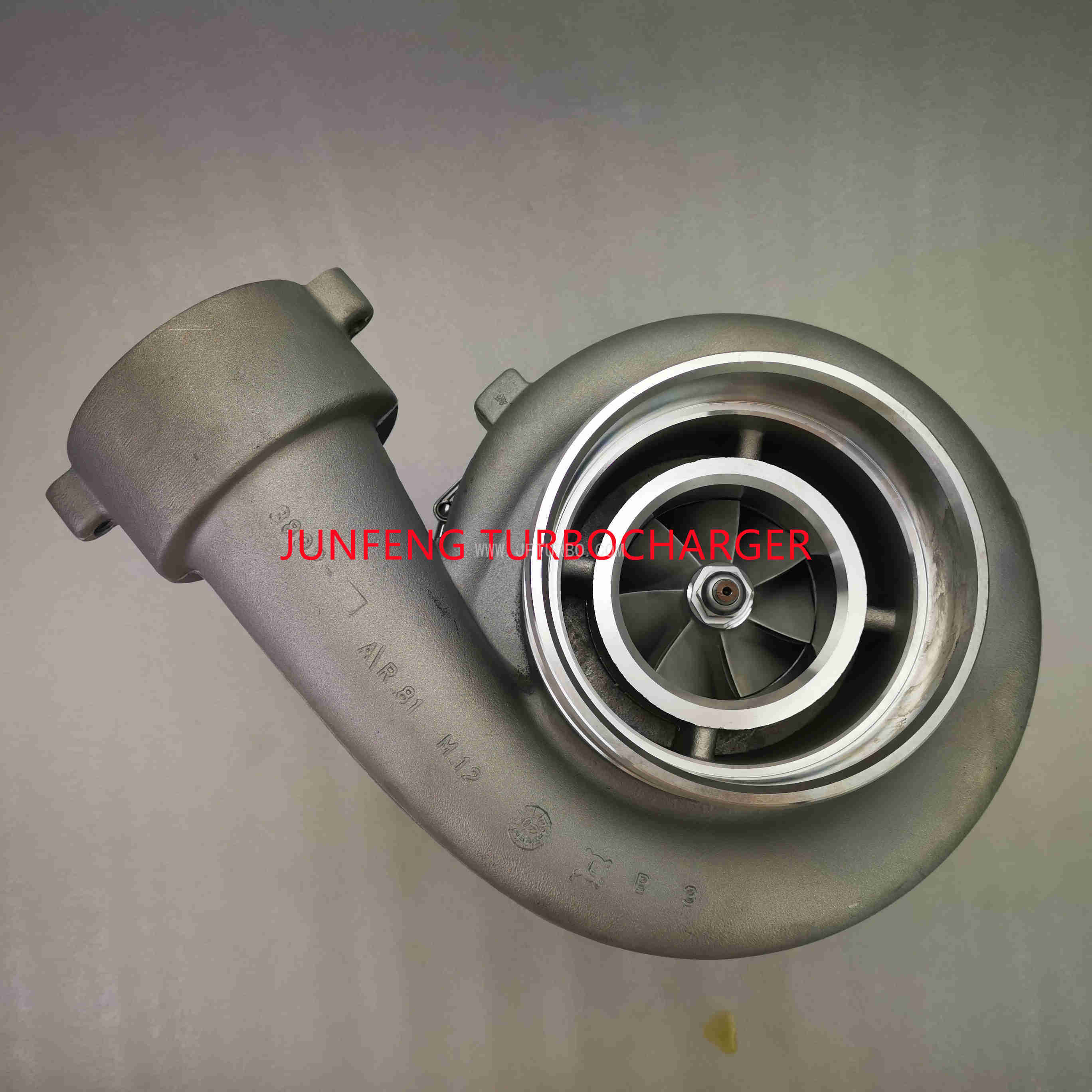

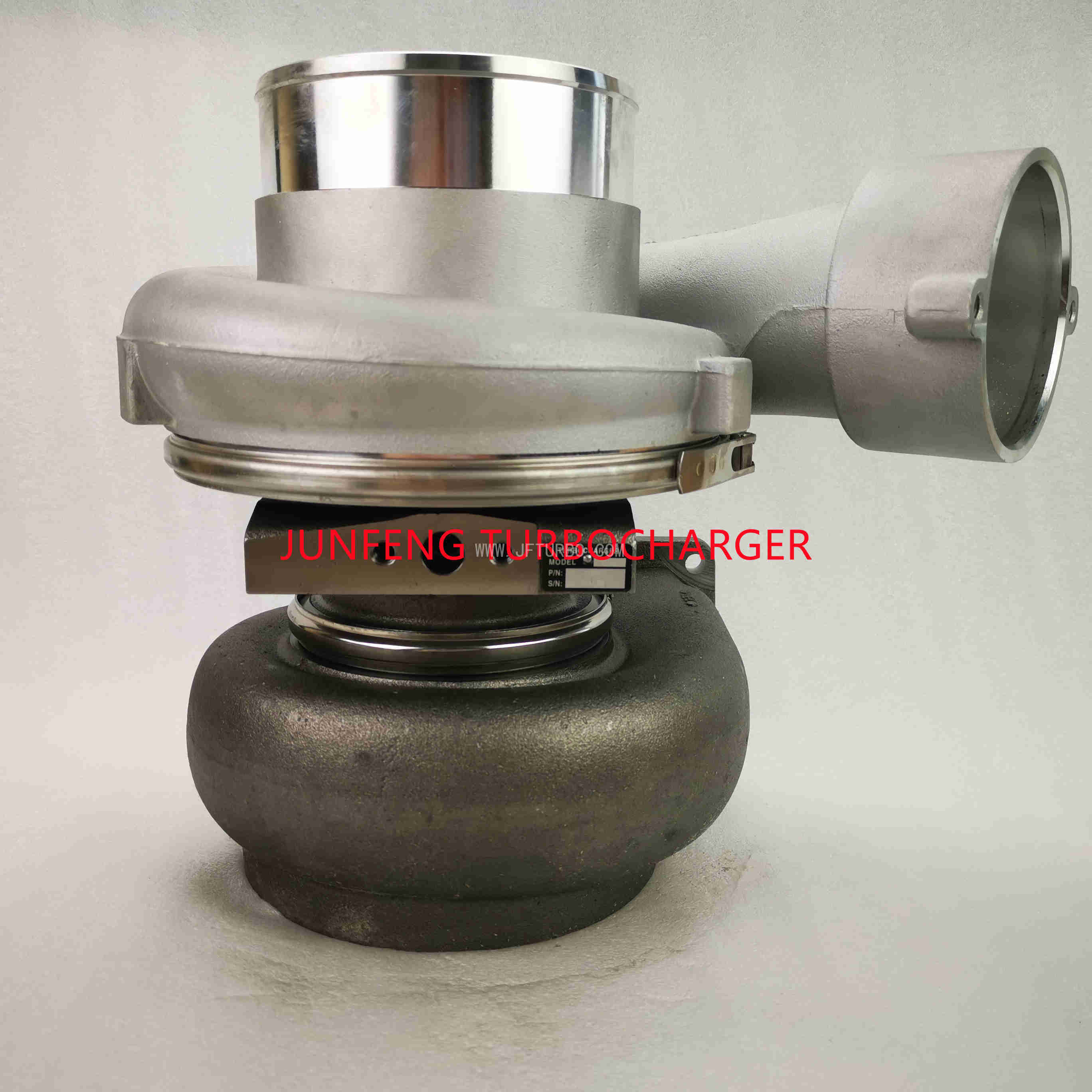

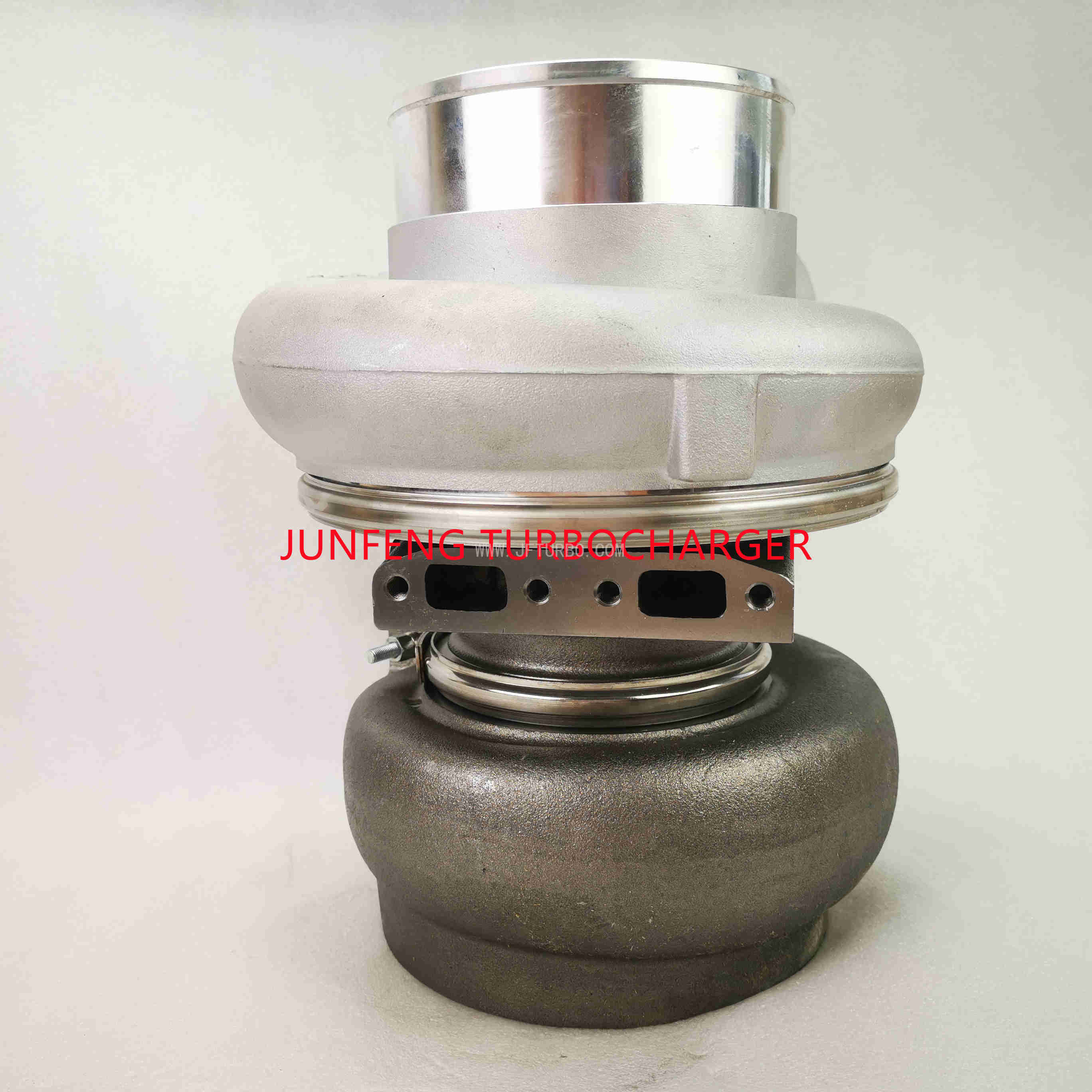

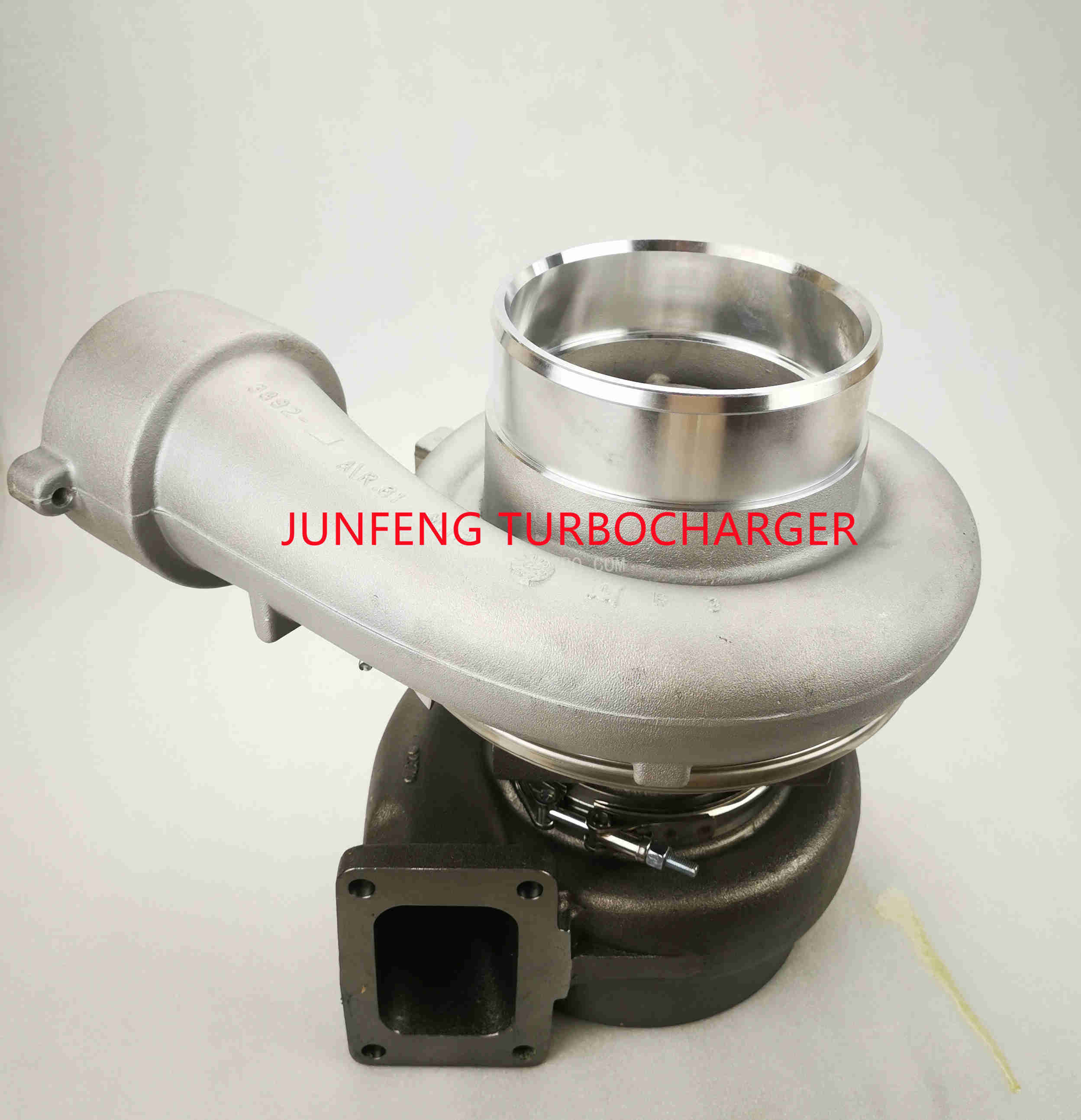

BTL8501 466725-0016 466725-0005 145-7095 1135180 Turbocharger for Caterpillar Industrial Engines Power Units 3512B Engine

Part Number: 466725-0005, 466725-9005, 466725-5, , 466725-0010, 466725-0012, 466725-0016

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Turbo Product Description

Part Number	466725-5005S
Previous Version	466725-0005, 466725-9005, 466725-5, , 466725-0010, 466725-0012, 466725-0016
OE Number	145-7095, 1135180, , 466725-0010, 466725-0012, 466725-0016, 1586599, 2877214, 1457095
Description	Industrial, Marine, Engines and Power Units
CHRA	449109-0012 (449109-5012S, 449109-0004, 710270-0012)(146-9173, 0R7038, 1469173, 1923726, 10R8934)
Displacement	34.5L, 34500 ccm, 8V Cylinders
Turbo Model	BTL8501, BTLA8501
Prefix	7EF, 96Y, 66Z, 2BM, 3DM, 5PS, 7SM, C8R, GS7, LPD, S2B, S2E, 1PW, 2GW, 4AW, S2G, S2K, 3CW, 5KW, 99Z, BLF, MGC, PTF, 7EF, S2Z, GS2, PES,
Engine Model	466725-0005
Engine Manufacturer	Caterpillar
Fuel	Diesel
Marine Engine	3512B
Generator Set Engine	3512B
Generator	SR4B, SR4BHV
S/N	CTB249-UP, S2G108-UP, 4AW339-UP, CTB1-UP
Bearing Housing	449159-0005 (Water-Cooled)

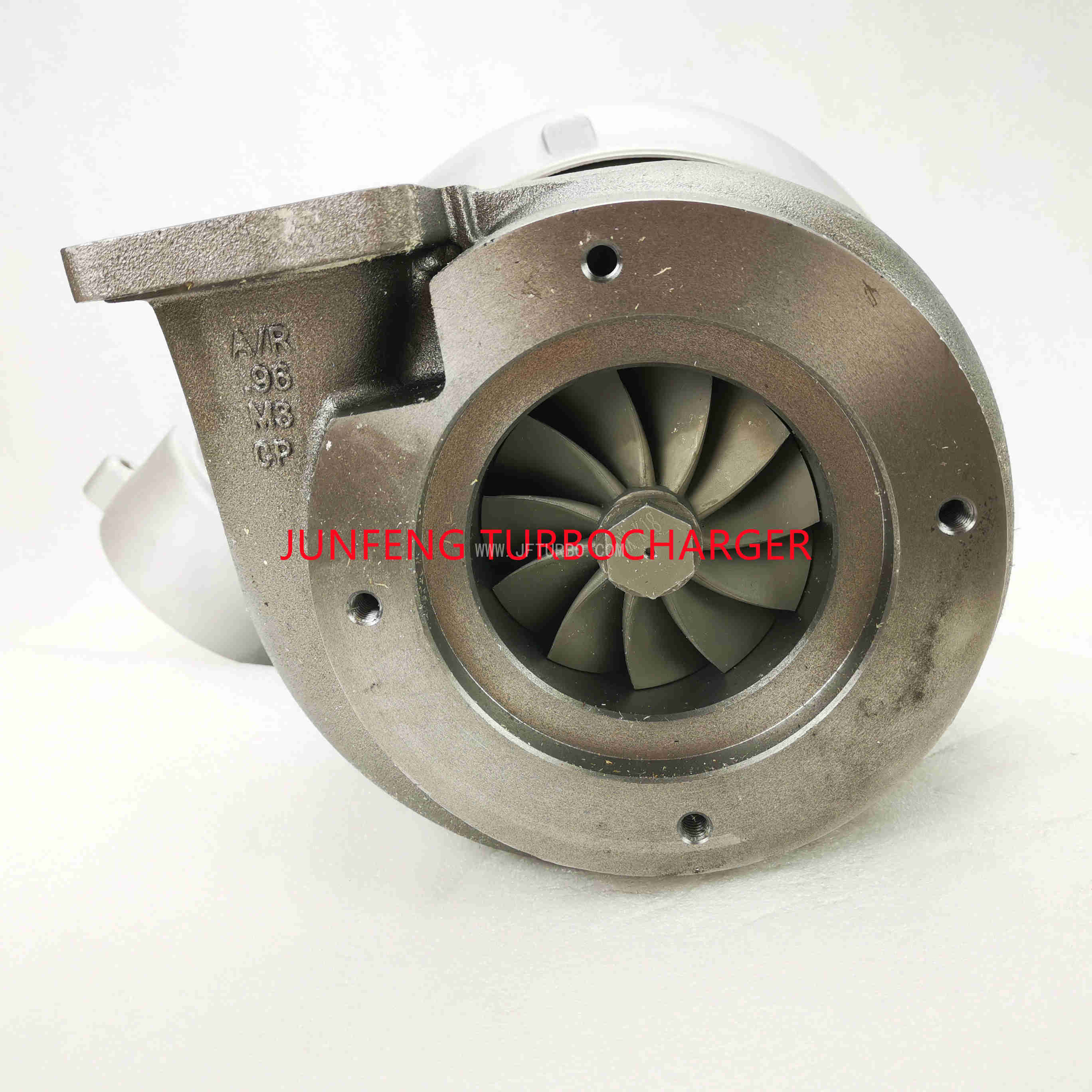

Turbine Wheel	449236-0001 (44567-0005)(Ind. 101.05 mm, Exd. 110.24 mm, 11 Blades, Boreless)
Comp. Wheel	449207-0002 (449207-0022)(Ind. 79.73 mm, Exd. 117.83 mm, Trm 7.21, 7+7 Blades, Boreless)
Back plate	448797-0011 (708668-0005)
Heat Shield / Shroud	441096-0001 (441097-0001)
Repair Kit	468267-0007 (468267-0006)
Turbine Housing	451513-0010 (1247274)
Compressor Cover	442892-0073
Turbine Housing AR	1.23
Gasket (turbine inlet)	409038-0001 (210835-0000, 9749)(Inox Steel)
Gasket oil inlet	210161 (Paper)
Gasket (oil outlet)	210172 (Paper)
Gasket (water inlet and outlet)	210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807)(Paper)
NOTE	Partially restricted

Application

turbocharger for Caterpillar Industrial, Engines and Power Units with 3512B Engine
