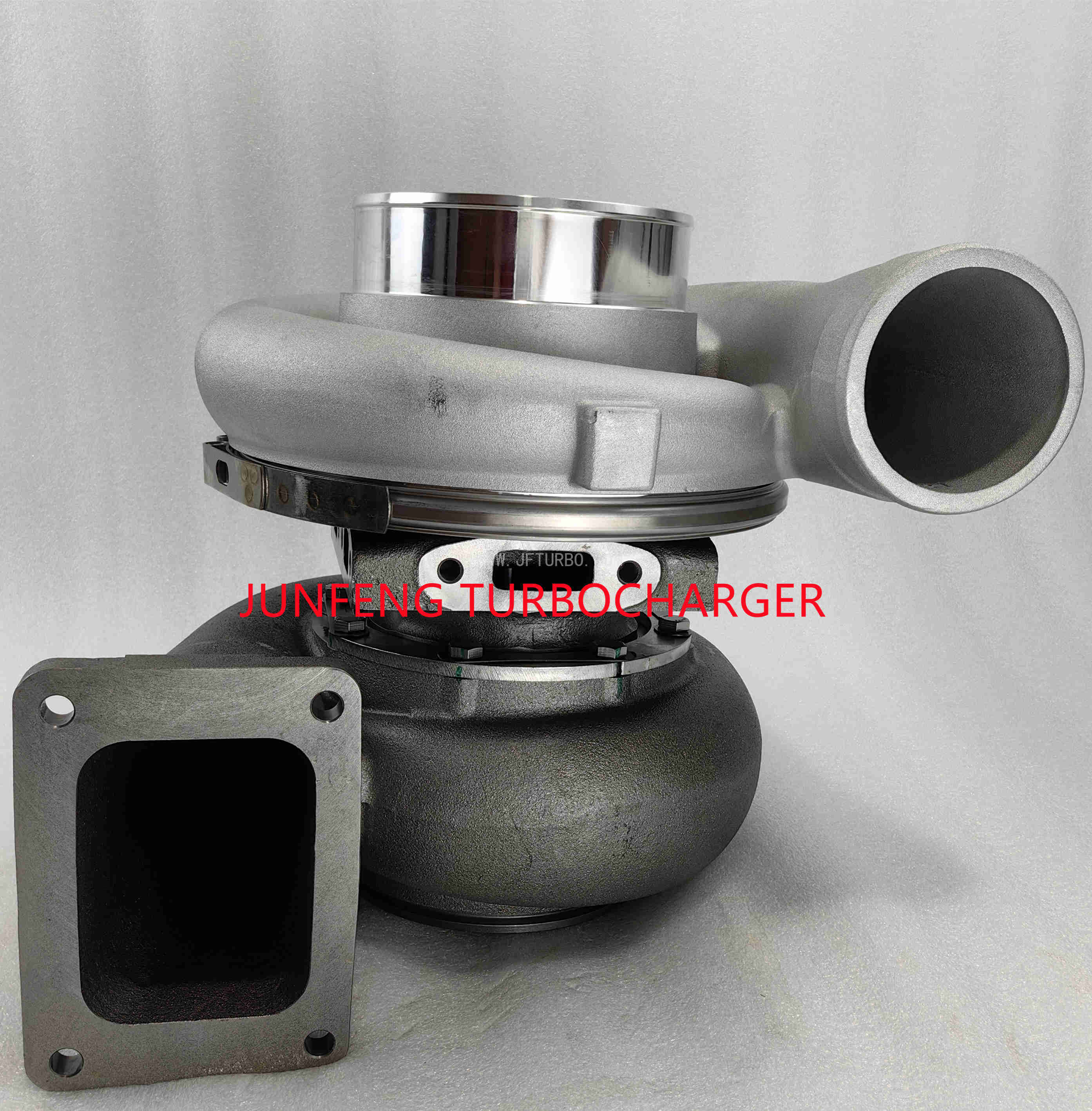

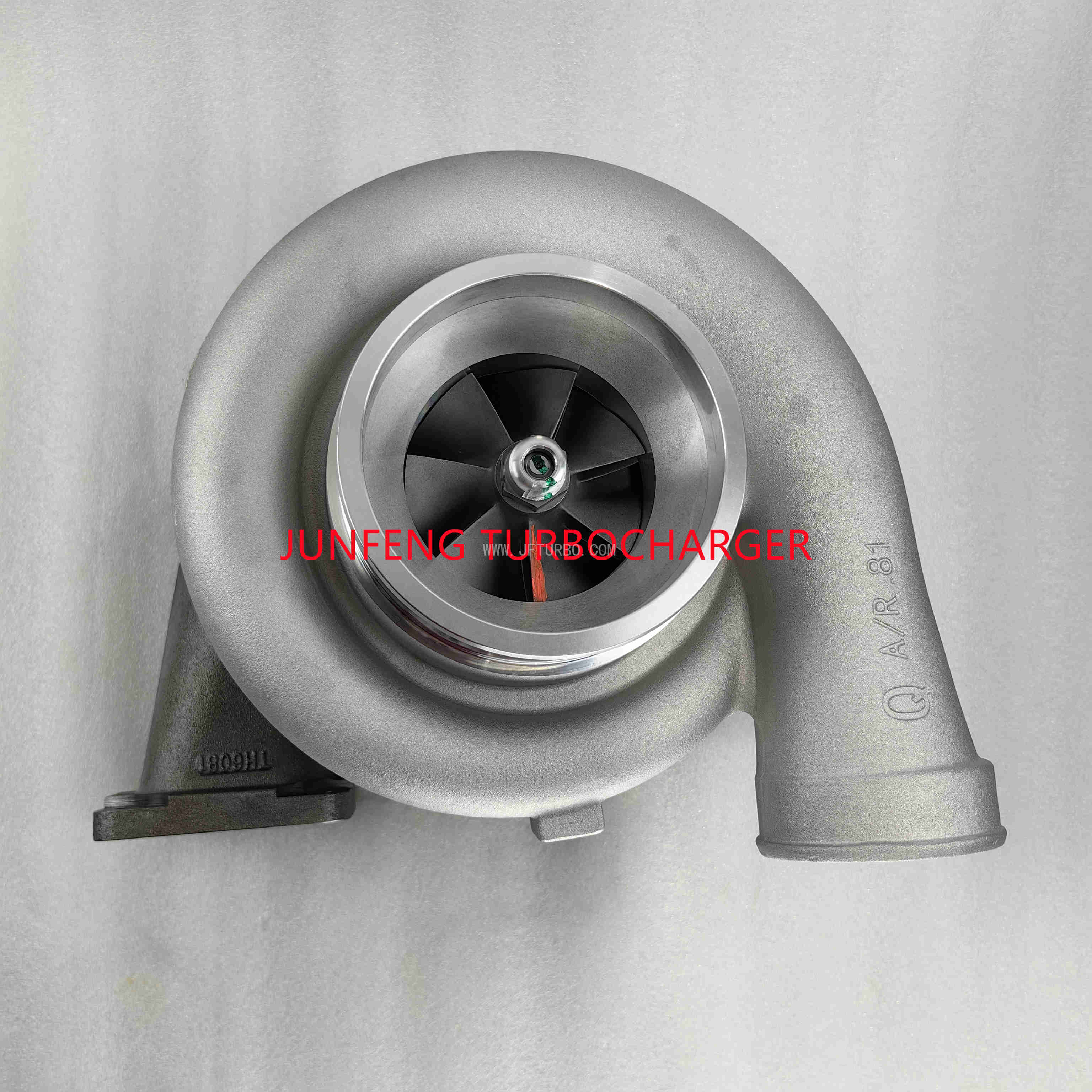

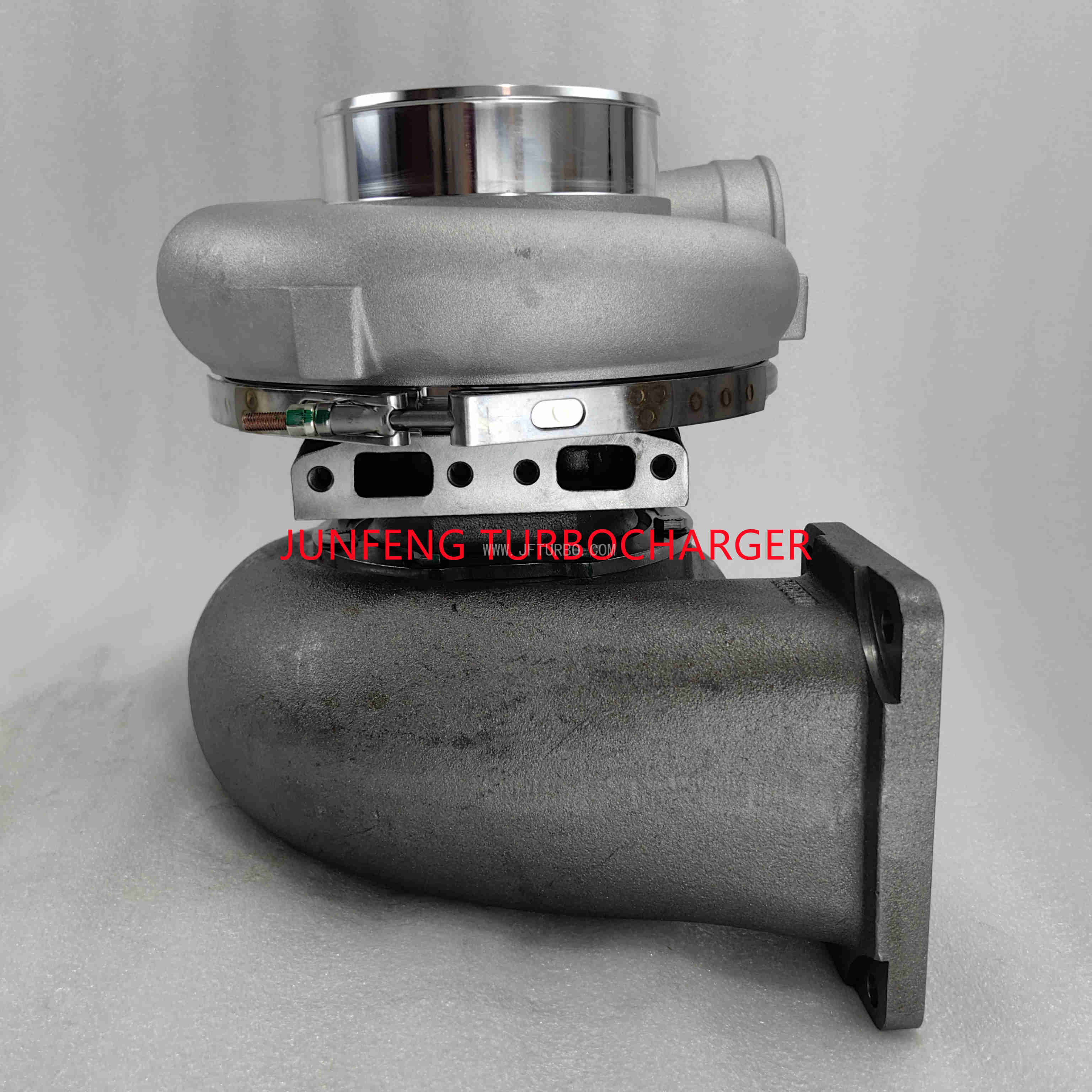

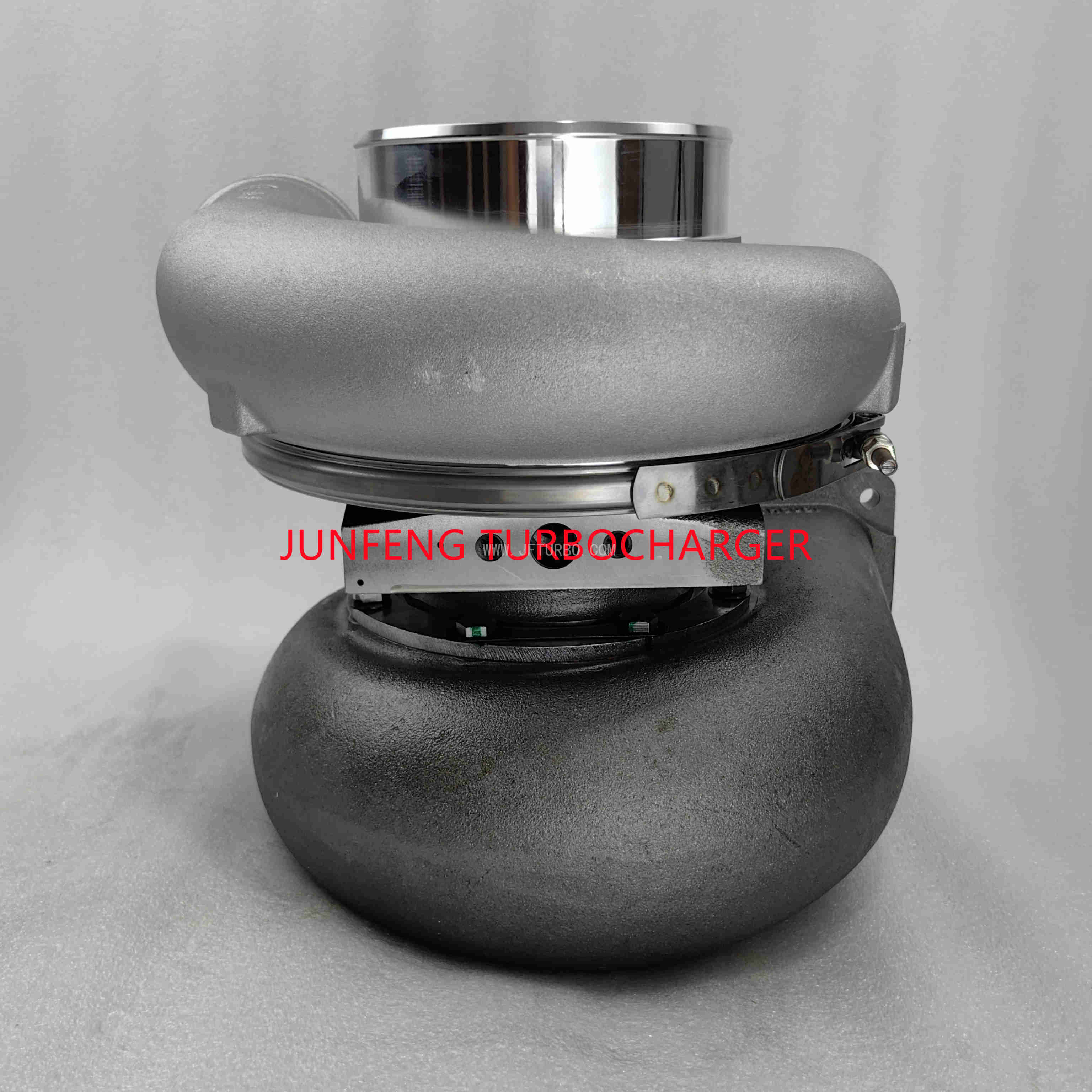

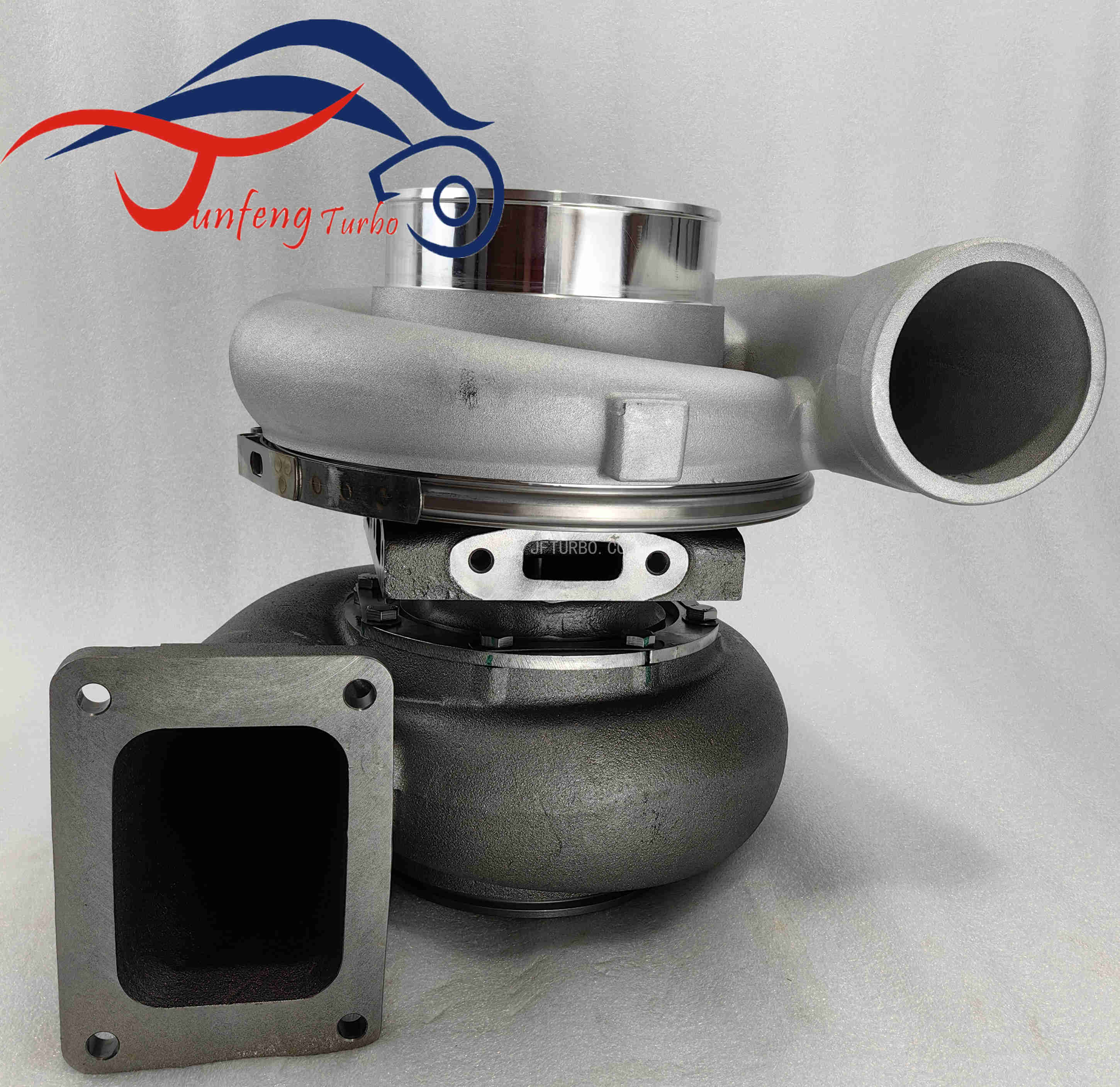

704837-5006S 211896B 704837-0005 704837-5 704837-0006 ULT9406 Turbocharger for Waukesha Industrial GenSet F3524GSI Engine

704837-5006S 211896B 704837-0005 704837-5 704837-0006 ULT9406 Turbocharger for Waukesha Industrial GenSet F3524GSI Engine

704837-5006S 211896B 704837-0005 704837-5 704837-0006 ULT9406 Turbocharger for Waukesha Industrial GenSet F3524GSI Engine

Model: ULT9406

Part Number: 704837-5006S2

OE number: 211896B

Others number: B704837-0005 704837-5

File No.: 704837-0006

Packing: Neutral carton,or Customized Carton

Size: Standard size

Sample Order: accept

Shipping: DHL,Fedex,UPS,EMS,TNT,Air,Sea

Trade Terms: EXW

Payment: T/T,Western Union,Chinese Account

Delivery: Within 2 days after your payment arrive,if it have in stock

Freight Delivery: Depends on the express company

Weight: 35kg

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Product Information
Port

Product Description

Part Number	704837-5006S
Previous Version	704837-0005, 704837-5
OE Number	211896B
Description	Industrial Gen Set
CHRA	452669-0007 (452669-9007S, 452669-5007S)
Turbo Model	UTL9406
Fuel	Diesel
Bearing Housing	451861-0002 (Water-Cooled)
Turbine Wheel	451882-0004 (Ind. 129. mm, Exd. 111.6 mm, 11 Blades)
Comp. Wheel	451883-0010 (Ind. 88.6 mm, Exd. 140.45 mm, 7+7 Blades, Superback)
Back plate	452668-0001
Repair Kit	705731-0001
Turbine Housing	409688-0031
Compressor Cover	443568-0028
Gasket (turbine inlet)	409038-0001 (409038-0000, 1S4295, 210835-0000, 9749, 132040, 202873, 205396, 3500683, 210017-0000)(1900000003)
Gasket (oil outlet)	210172 (Paper)
Gasket oil inlet	210161 (Paper)
Gasket (water inlet and outlet)	210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807)(1900000027)
Replaced by	704837-0008

Applications

Turbocharger fits for Waukesha Industrial Gen Set With F3524GSI Engine
