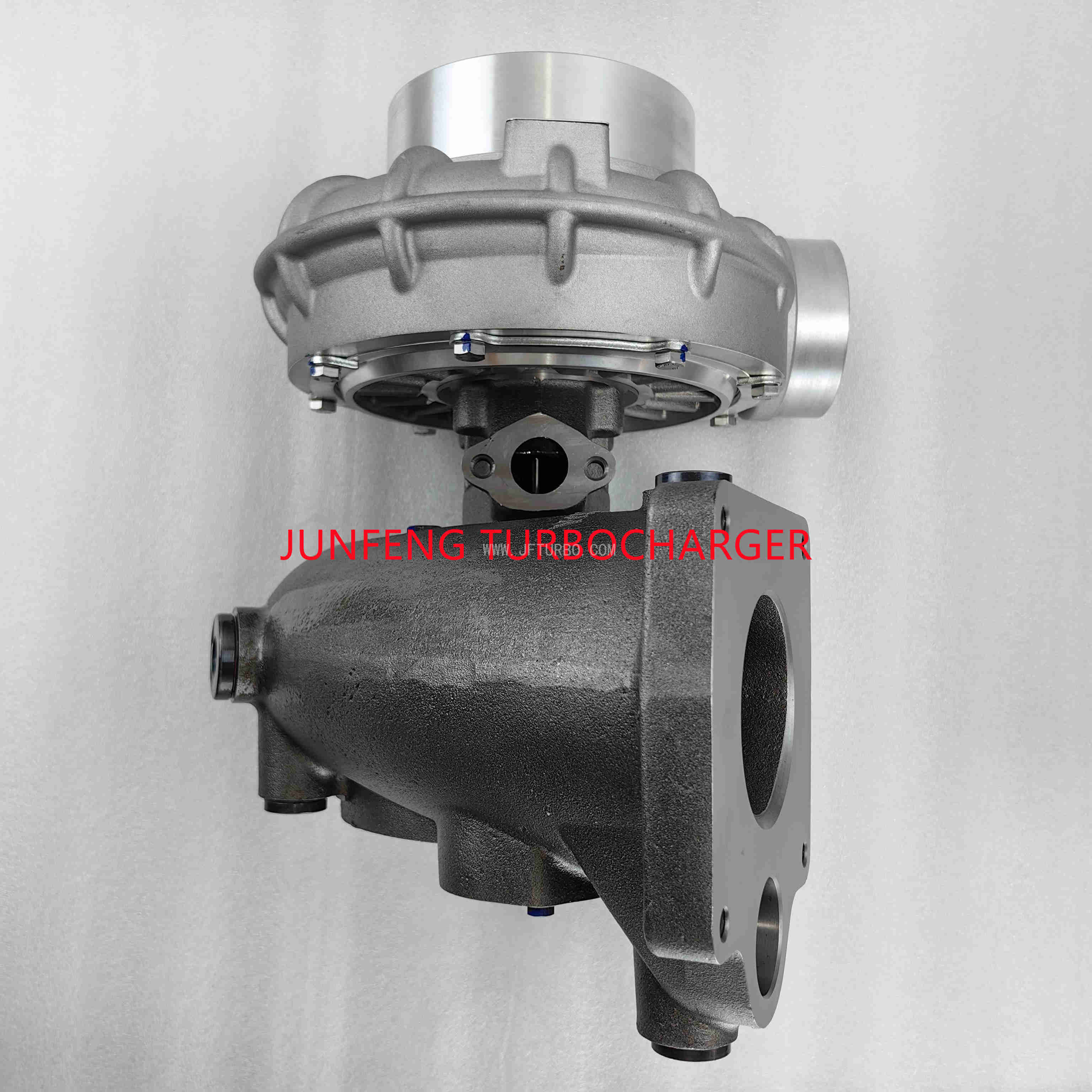

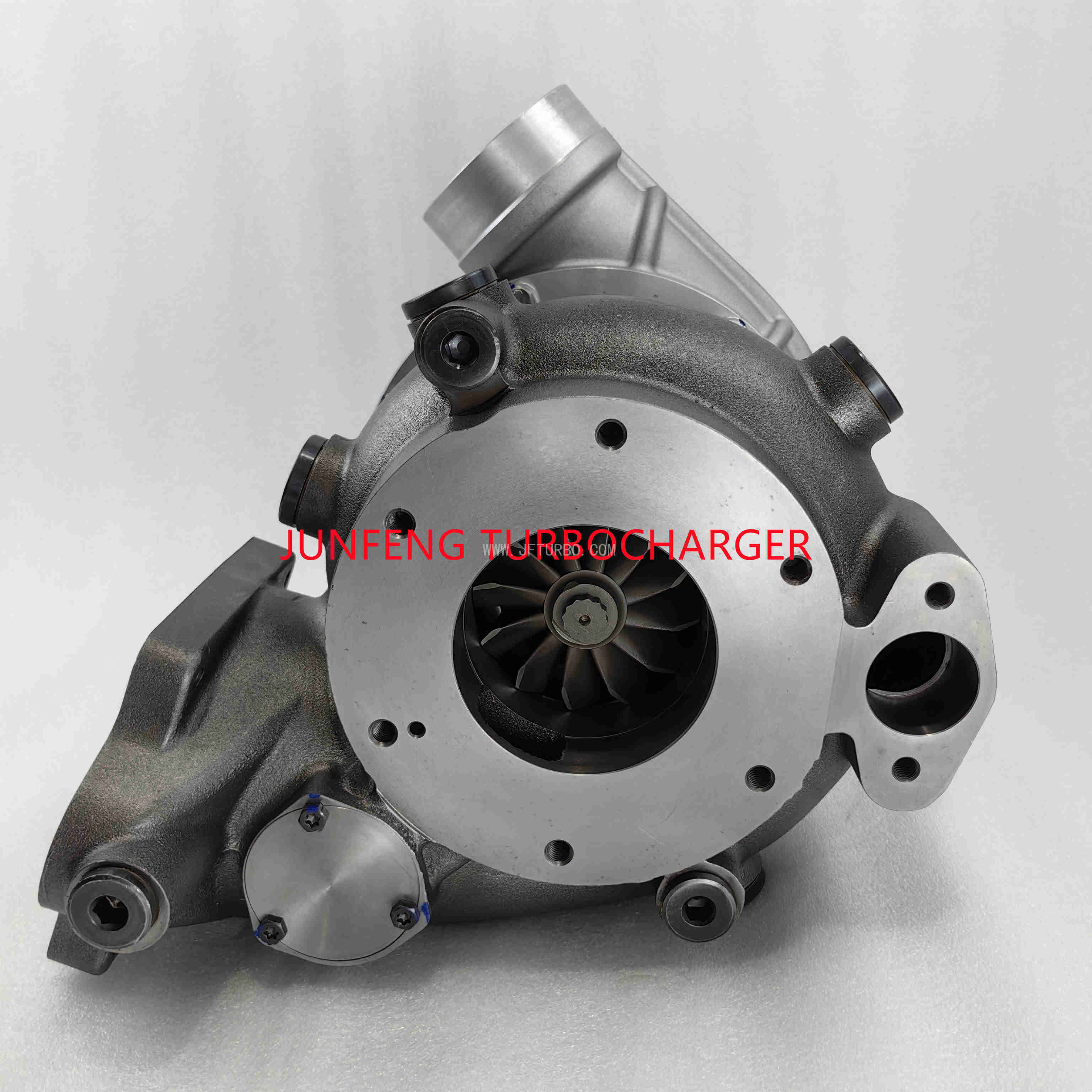

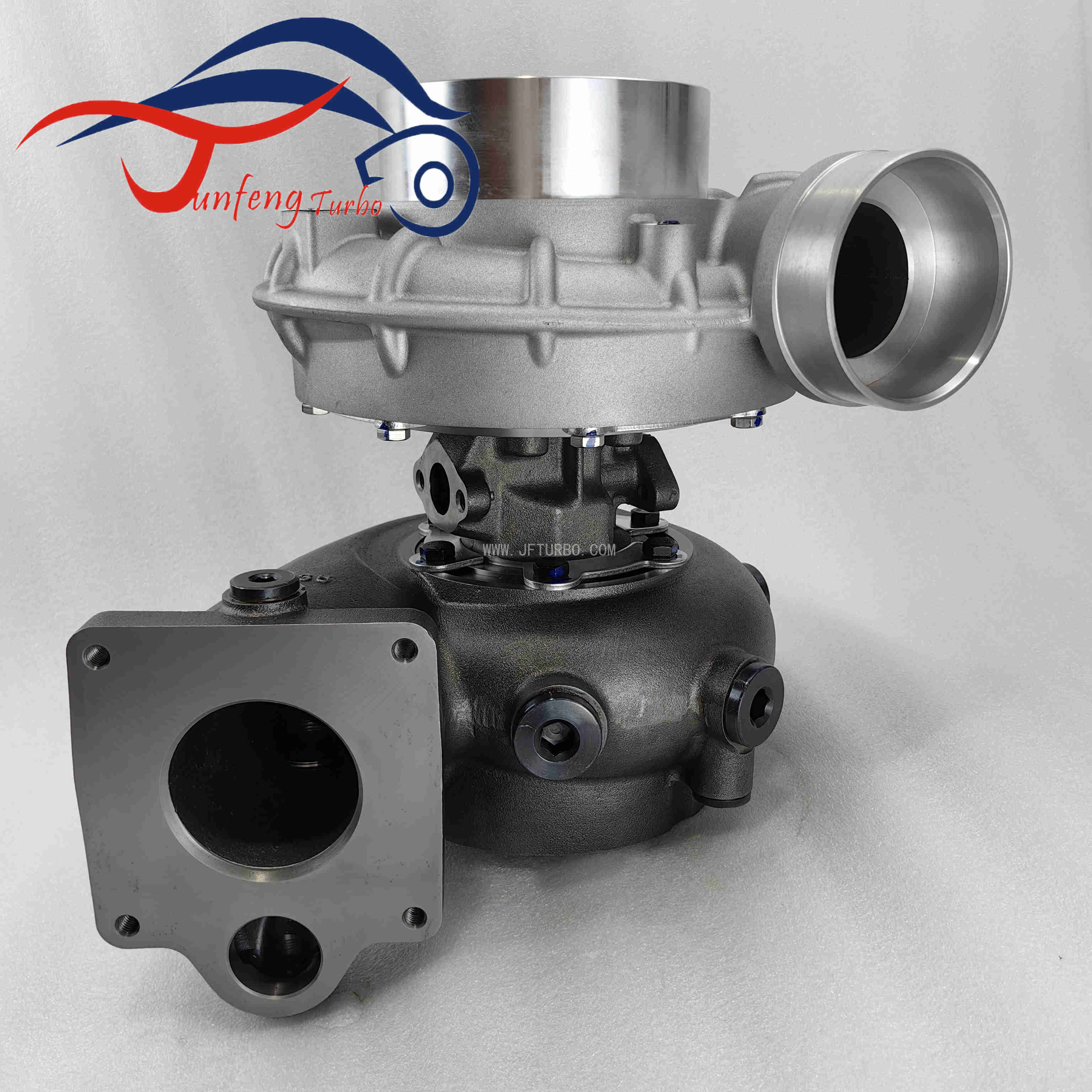

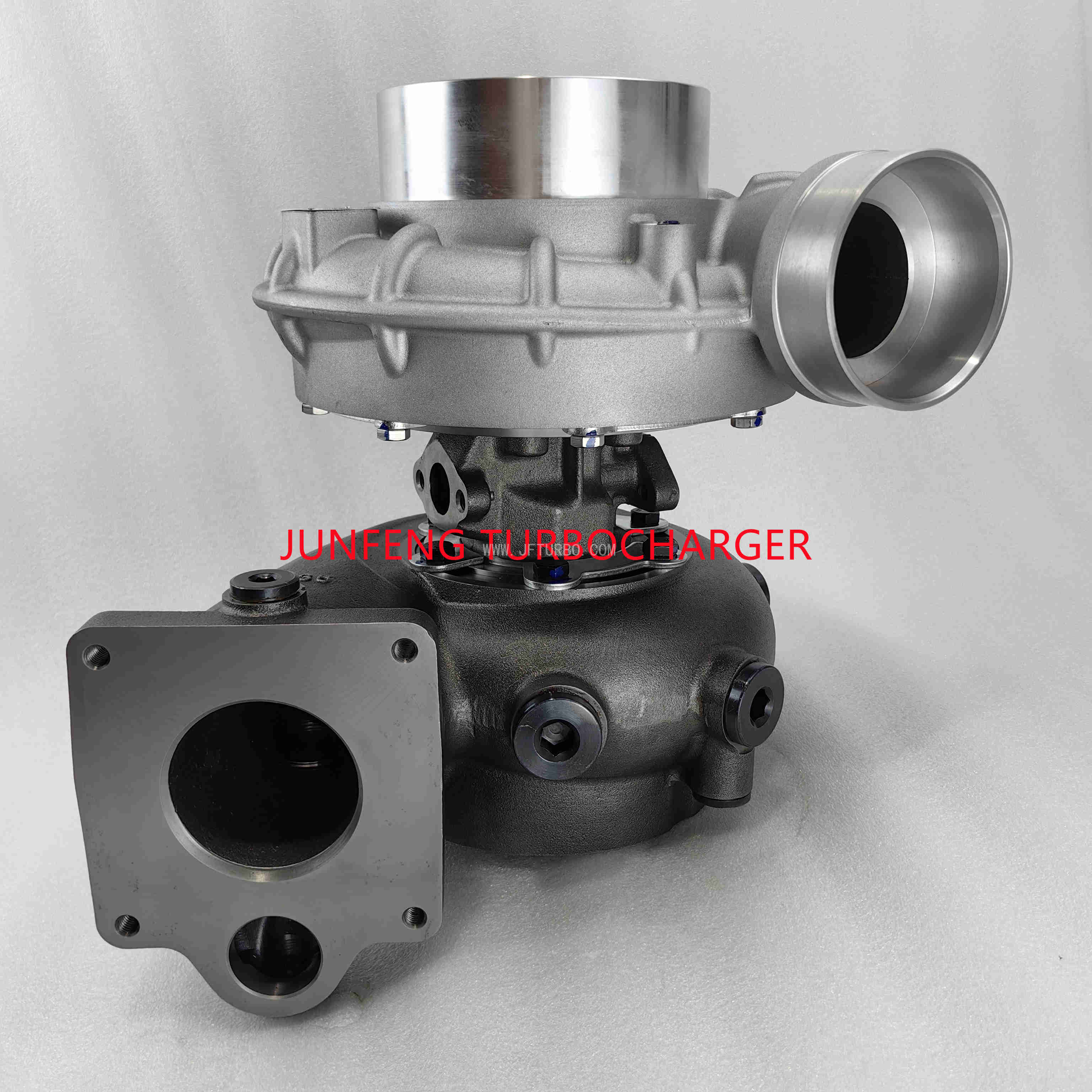

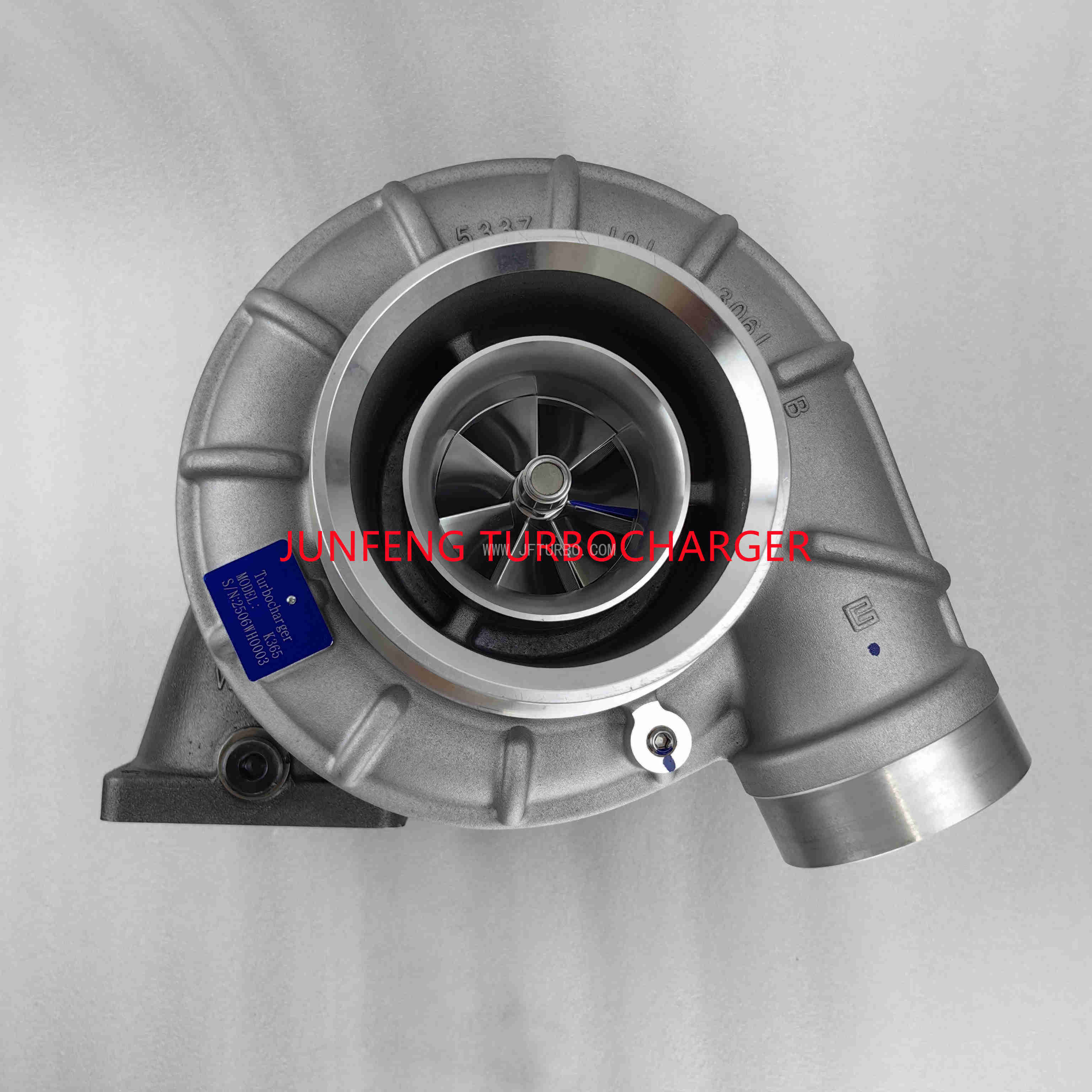

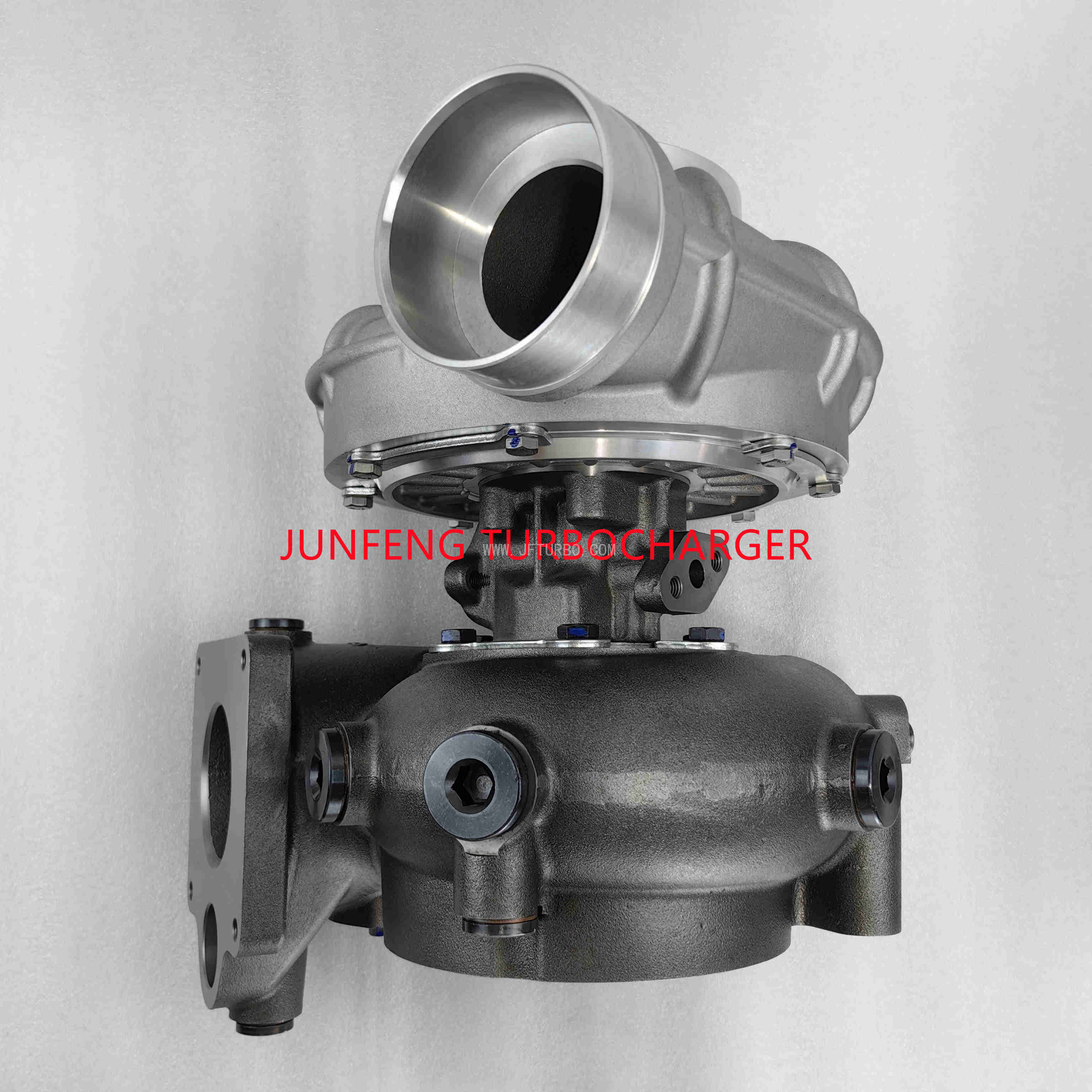

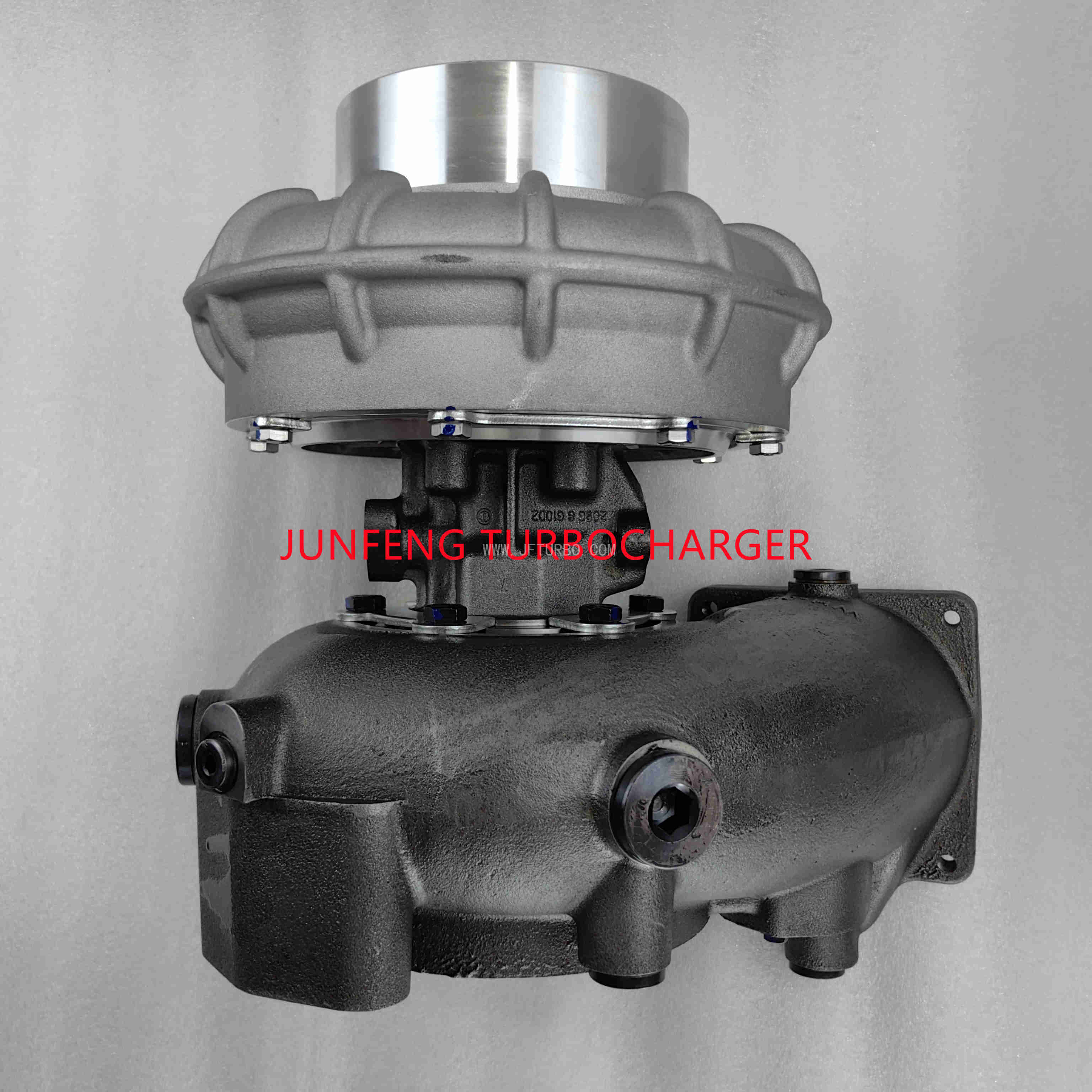

53369886916 53369706916 0080966299 0080966399 K365 Turbocharger for MTU Ship with 12V183TE94 USA Engine

Note: Pictures are only for reference,Logo and color base on production line,we just promise good quality of item.

Inquire Online

Turbo Details

Part Number	53369886916
Previous Version	5336-988-6916, 5336 988 6916
OE number	0080966299, 0080966399, 80966299, 80966399
Year	2002-06
Description	MTU Ship
Manufacturer Part Number	53369706916, 5336-970-6916
CHRA	ORDER ACCEPTABLE
Turbo Model	K365-4669OOAKF18.72GAAXC
Engine	12V183TE94 USA
Engine Manufacturer	MTU
Displacement	21.93L, 21930 ccm
KW	956/1300
RPM Max	2400
Fuel	Diesel
Angle α (compressor housing)	224°
Angle β (turbine housing)	21°
Bearing Housing	53361500008 (Oil Cooled)
Turbine Wheel	53361205004 (Ind. 60.58 mm, Exd. 69.49 mm, Trm 11.88, 10 Blades)
Comp. Wheel	53371232033
Back plate	53371515719
Heat shield Number	53421652002
Repair Kit	53337110015
Turbine Housing	53371003016
NOTE	Inter-cooler, left side; with separate waste gate 58061101215

Applications

2002-06 turbocharger used for MTU Ship with 12V183TE94 USA Engine
